WattCycle 48V 100Ah Server Rack LiFePO4 Battery with Bluetooth, 5.12kWh Home Solar Energy Storage, 100A BMS, CAN/RS485/RS232, Max 20P Expansion (102.4kWh), LCD Screen, Deep Cycle Power for Off-Grid
WattCycle 48V 100Ah Server Rack LiFePO4 Battery with Bluetooth, 5.12kWh Home Solar Energy Storage, 100A BMS, CAN/RS485/RS232, Max 20P Expansion (102.4kWh), LCD Screen, Deep Cycle Power for Off-Grid
Equipplus may earn a commission from qualifying purchases. You pay the partner directly.
Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
- Nominal voltage: 48 V class
- Capacity: 100 Ah
- Energy listed: 5.12 kWh
- Chemistry: LiFePO4

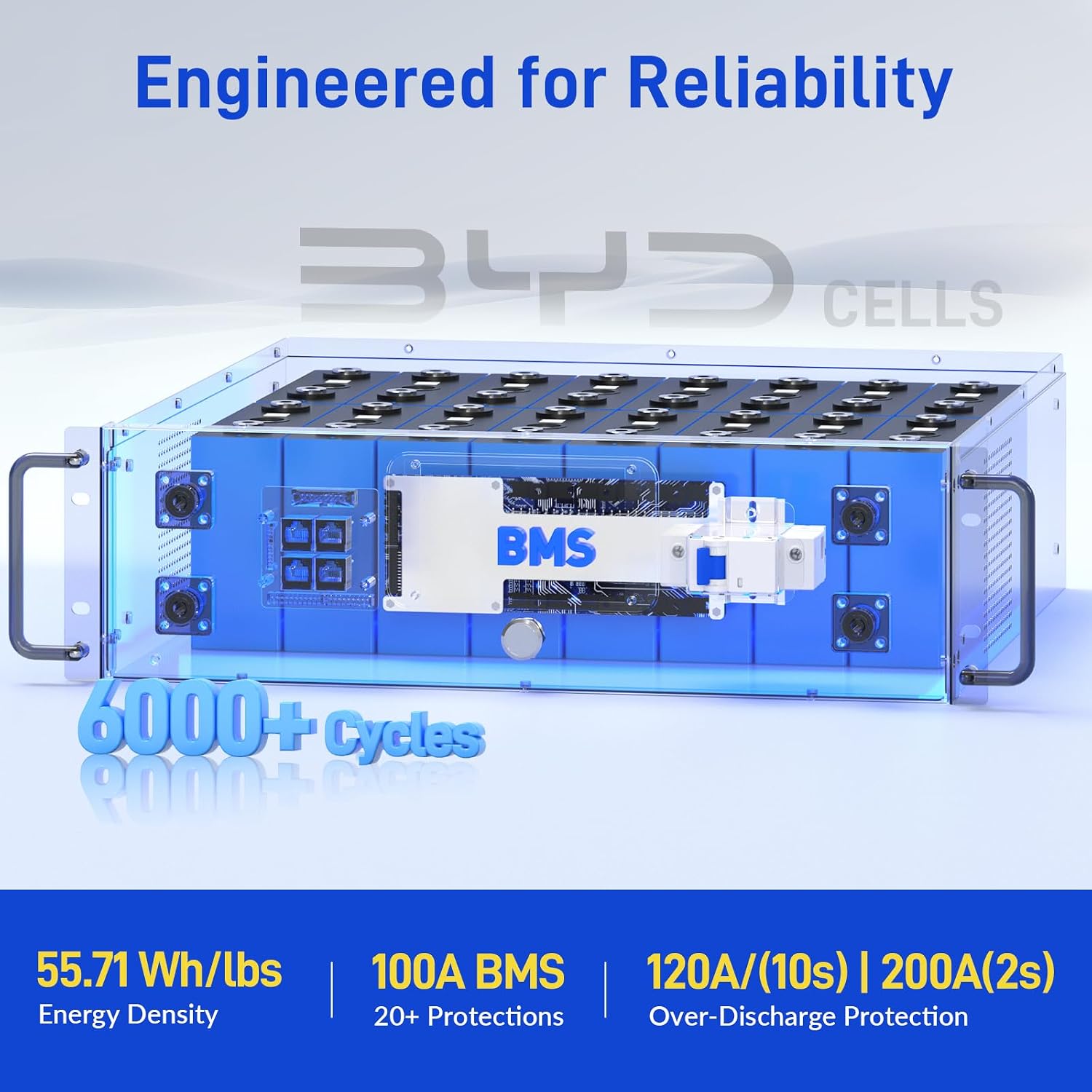

- Battery management system: 100 A BMS

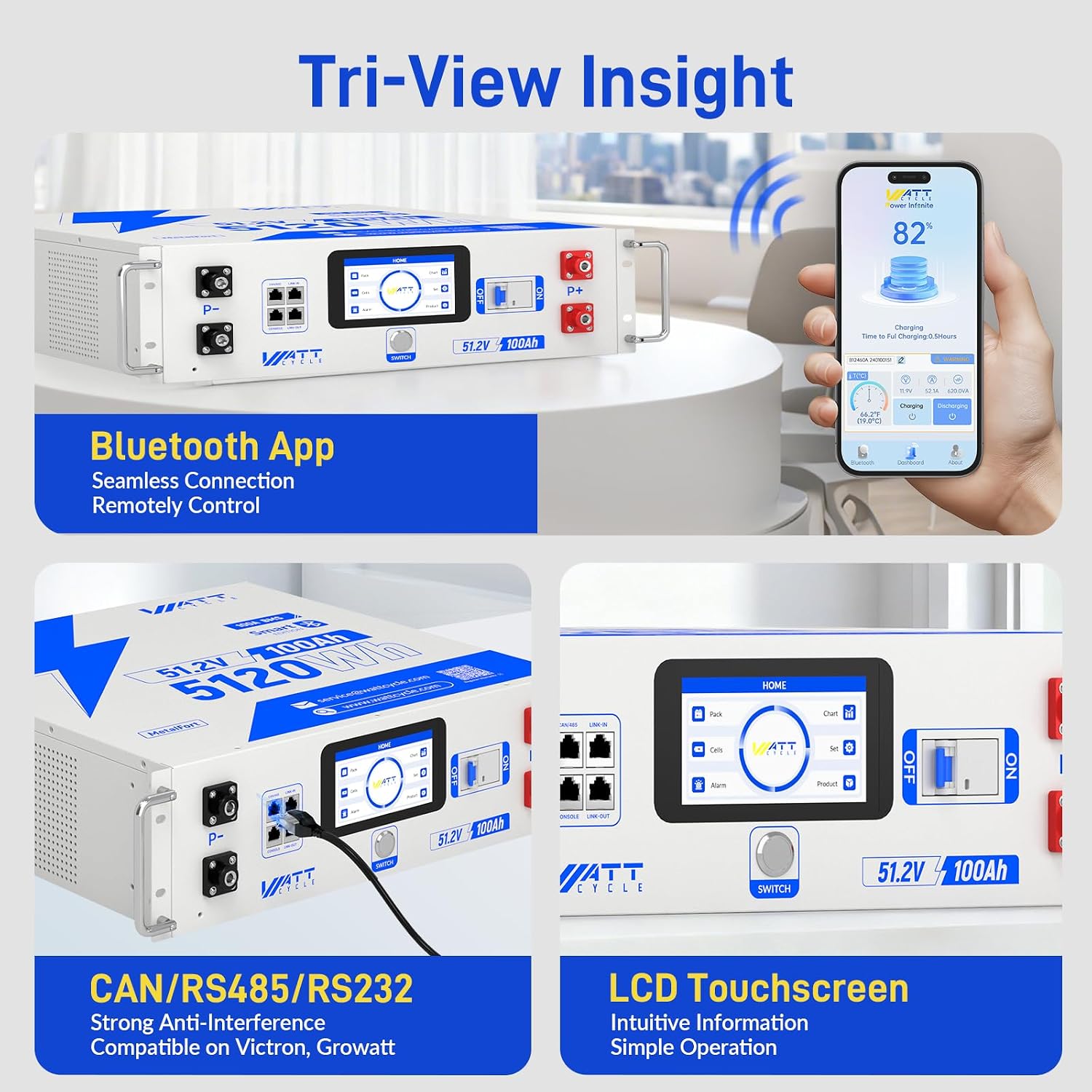

- Communications: CAN, RS485, RS232 and Bluetooth
- Display: LCD

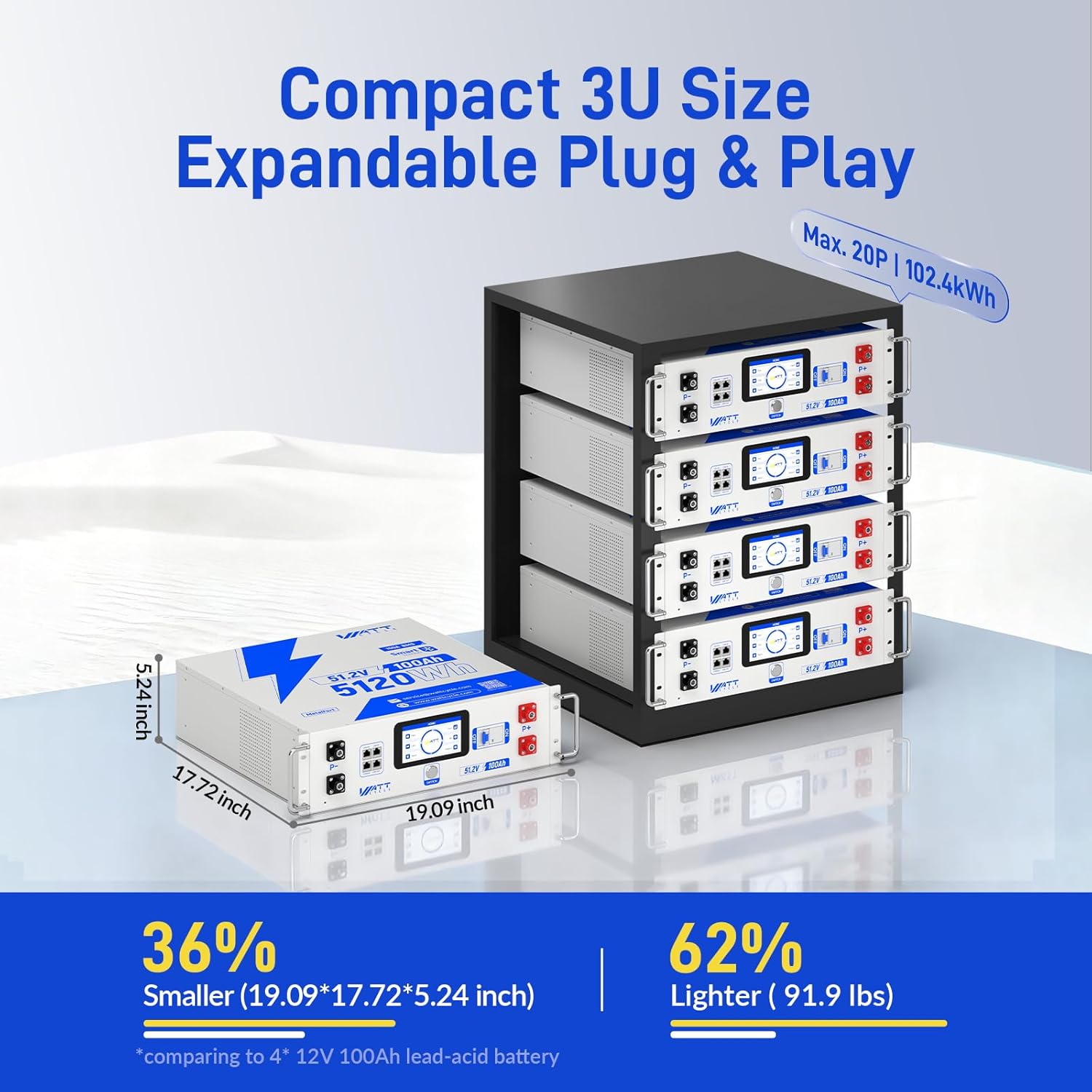

- Expansion claim: Up to 20 batteries in parallel / 102.4 kWh
- Nominal voltage: 51.2 V
- Cell manufacturer listed: BYD
- Cycle-life claim: 5000+ cycles
- Dimensions: 19.09 × 17.72 × 5.24 in / 485 × 450 × 133 mm
- Weight: 91.9 lb / 41.7 kg
- Rack height: 3U
- Ingress-protection listing: IP20
- Monitoring interfaces: Bluetooth, CAN, RS485 and RS232
- Expansion claim on the Amazon listing: Up to 20 parallel batteries / 102.4 kWh; confirm compatibility with the current model manual
Product overview
This WattCycle server-rack battery is designed for modular 48 V solar storage. Built-in communications and an LCD support system monitoring, while the listed parallel expansion capability provides a path to larger banks using compatible equipment.
Suitable applications
Rack-based home energy storage, off-grid solar and backup systems with an inverter that supports the battery’s voltage and communications protocol.
Before ordering
Use a charger and inverter profile approved for the selected battery. Confirm continuous and peak current, operating-temperature limits, series/parallel permissions, dimensions, terminal layout and required certifications before building the bank.
Technical sources
Exact Amazon.ca product listing | WattCycle manufacturer specifications
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
