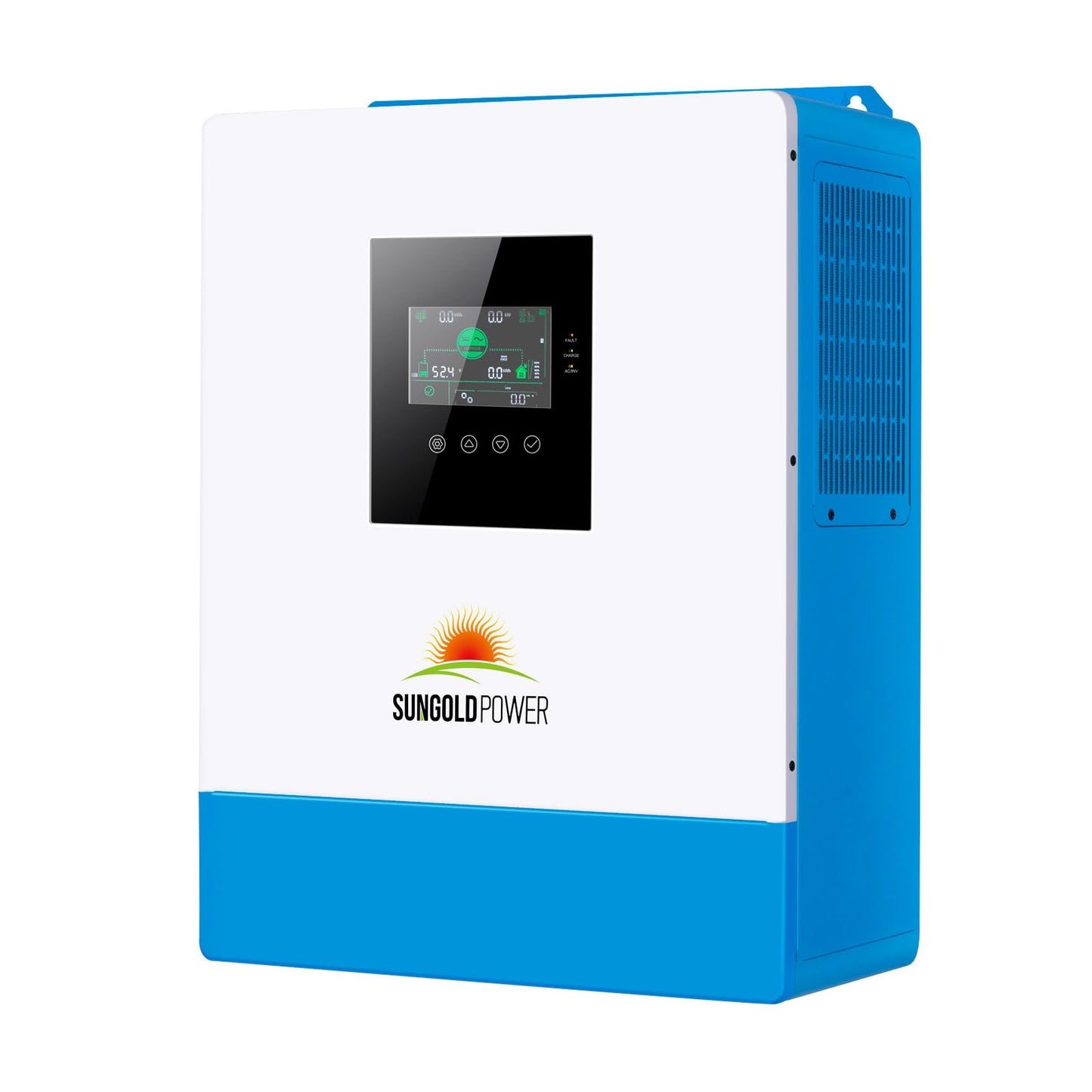

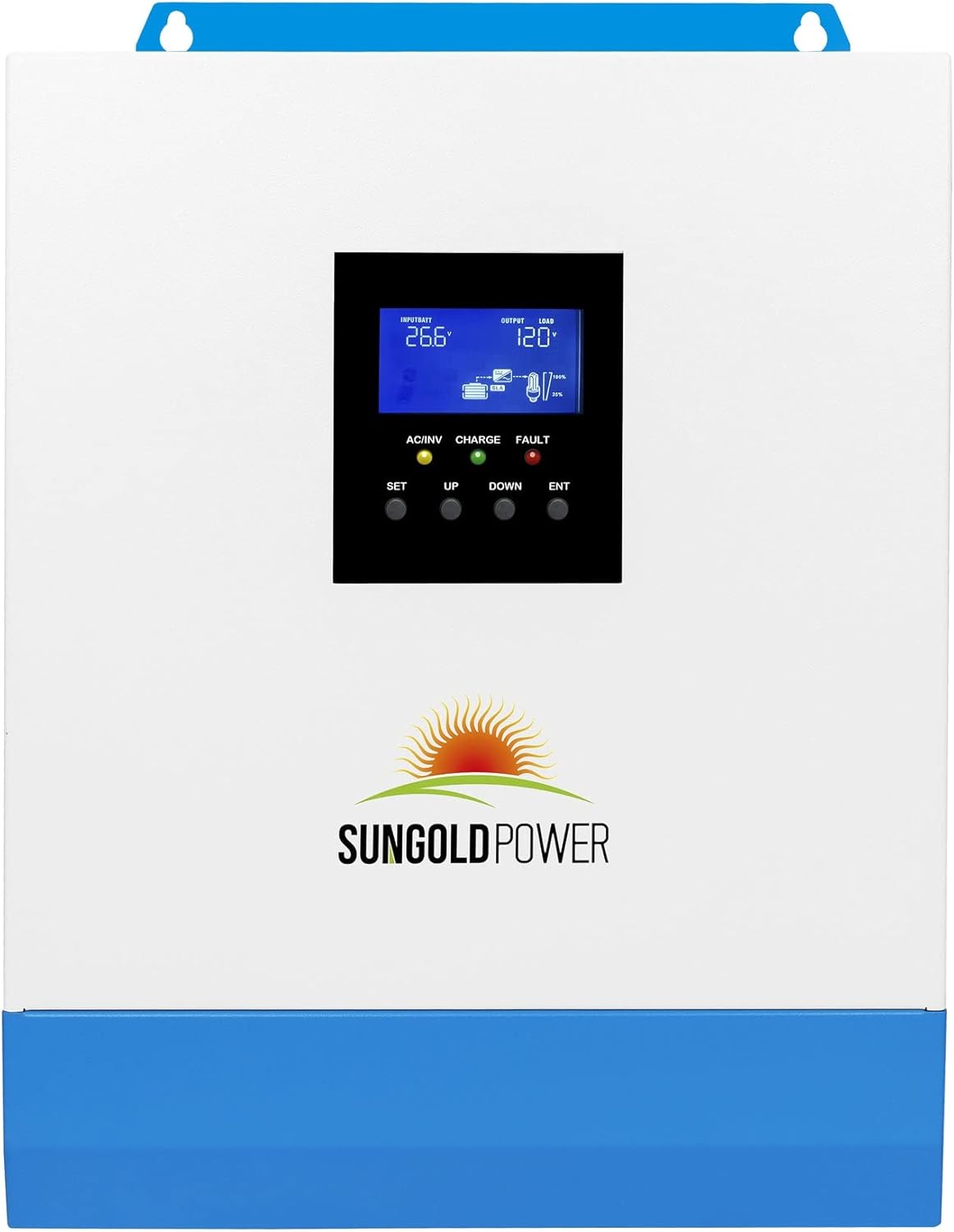

SUNGOLDPOWER 3000W 24V Solar Inverter All in One, 120Vac Input,120V Output Pure Sine Wave, 80A MPPT(PV Range 120-450Vdc) Solar Charger and 40A AC Battery Charger in Off Grid System
SUNGOLDPOWER 3000W 24V Solar Inverter All in One, 120Vac Input,120V Output Pure Sine Wave, 80A MPPT(PV Range 120-450Vdc) Solar Charger and 40A AC Battery Charger in Off Grid System
Three Output Modes
PV priority mode:
Switch to mains supply when the PV charging fails. This mode maximizes the use of solar energy while maintaining battery power, suitable for use in the areas with relatively stable grid.
Mains priority mode:Switch to inverter only when the mains fails (when there was mains power, switch to mains power for charging and power supply). Then, the unit is equivalent to a backup UPS, suitable for areas with unstable grid. Switching does not affect PV charging.
Inverter priority mode:
Switch to mains supply only when the battery discharge under voltage is lower than the set point (item 04). When the charging battery is higher than the set point of (05 setting item), switch to the battery discharge mode. This can cycle the battery charge and discharge. This mode maximizes the use of DC power and is used in the area with stable grid. Switching does not affect PV charging.
Warnings：
- This solar inverter is off grid inverter. It can not be used in parallel.
- This pure sine wave inverter can only used for 24V solar system.
- Optional WiFi/GPRS remote monitoring need extra cost.
- Voltage setting logic:[15]＜[12]＜[04]＜[14]＜[35]＜[37]＜[05]＜[09/11]
- PV voltage required: 120-400VDC
440W Solar Panel N-Type 8PCS
|
Solar Panel Mounting Brackets
|
10KW 48V WIFI/COMM
|
5000W Solar Kit
|
100A 24V Battery
|
SGKT-3PRO 3000W Solar Kit
|
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
| Customer Reviews |
1
|
13
|
77
|
—
|
—
|
—
|
| Max Power | 3520W | -- | 10000W | 5000W | 2560W | 3000W Inverter/5120AH battery/800W Solar Panel |
| Input Voltage | Voc:39.03Vdc | -- | 120Vac/240Vac | 120Vac | 29.2Vdc | 29.2Vdc |
| Output Voltage | Imp: 13.15A | -- | 120Vac/240Vac | 120Vac | 21.6Vdc | 21.6Vdc |
| DC Voltage | Efficiency: 22.5% | -- | 48 | 48 | 24 | 48 |
| Features | 16BB/N Type/UL61730/CEC listed | Suitable for 2PCS 300W/400W/450W/500W/550W/590W Solar Panel | WIFi/COMM/UL1741 | COMM/UL1741 | Sefl heating/Bluetooth/IP65 | 3000W complete solar kit |

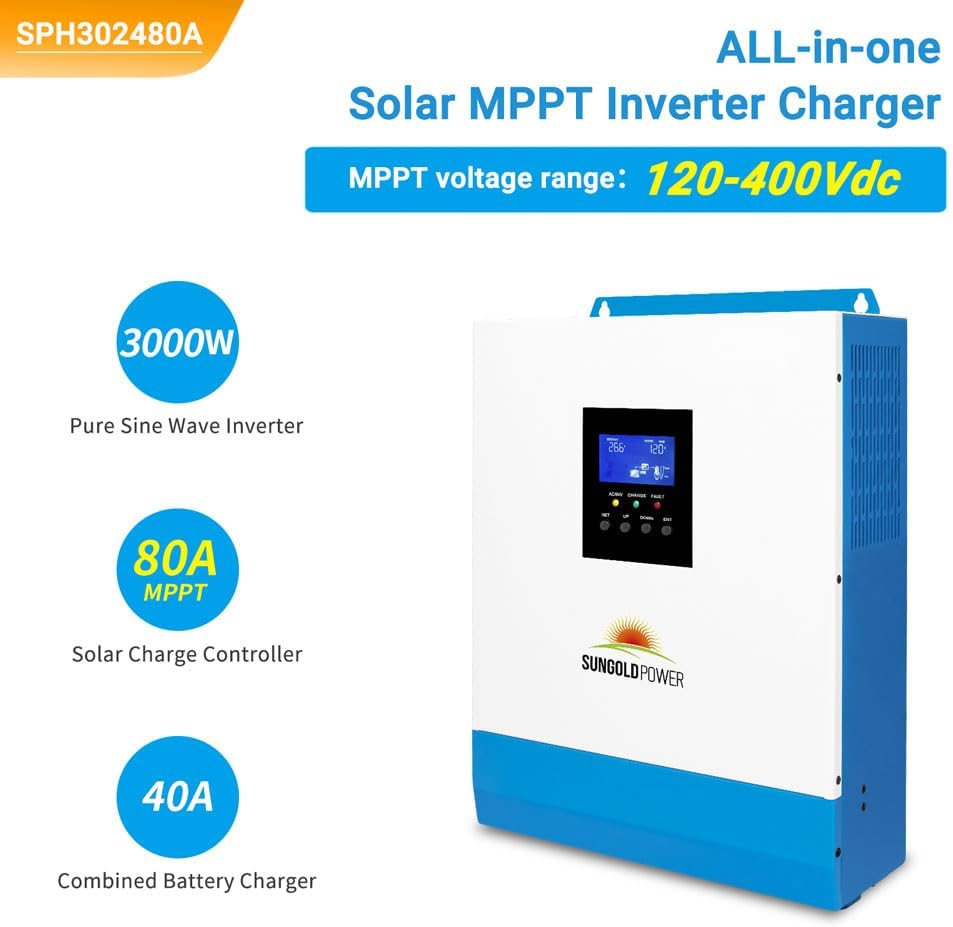

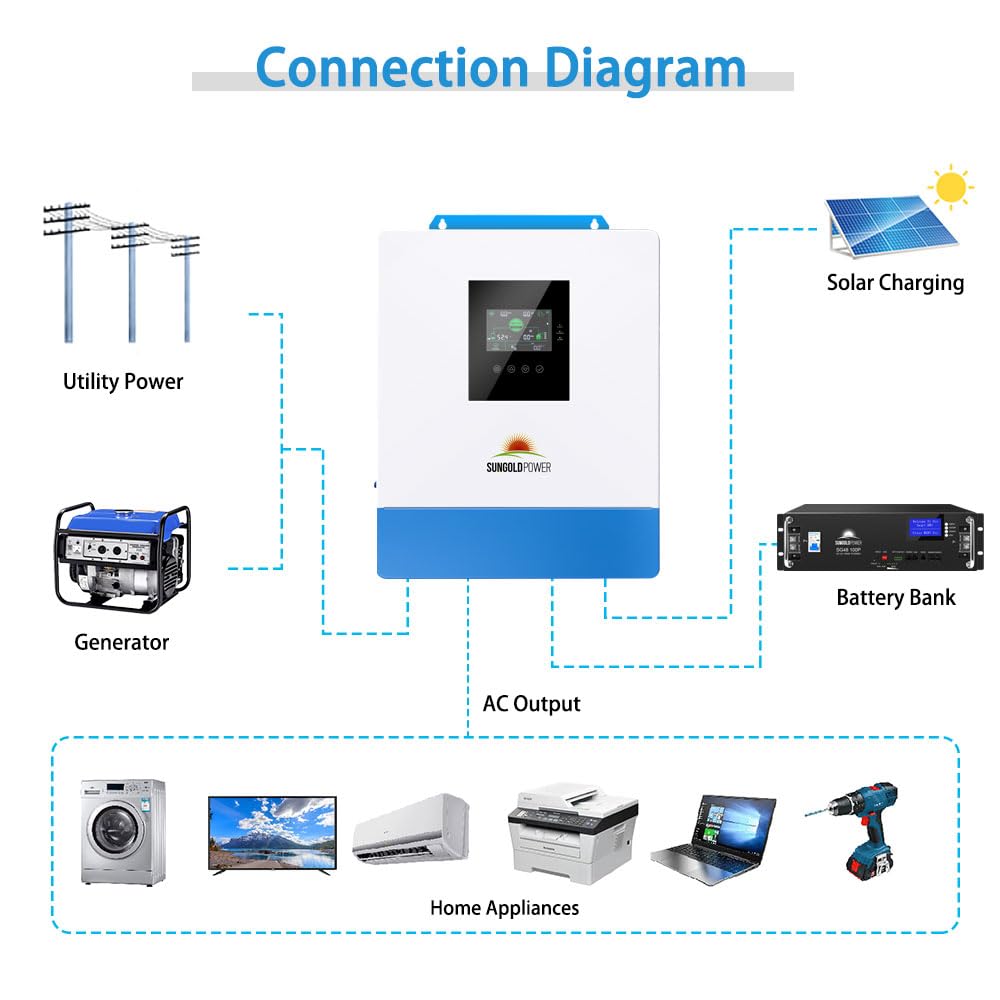

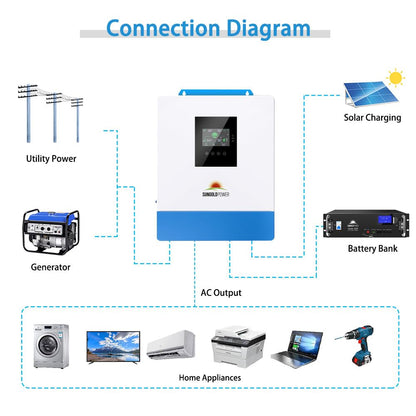

- 【All in One Solar Inverter】：SUNGOLDPOWER 3000W DC 24V hybrid solar inverter combined with 80A MPPT solar charger (MPPT voltage range:120-400Vdc) and 40A AC battery charger.You can enjoy stable power from the sun and the utility grid to keep your appliances powered under any circumstances.

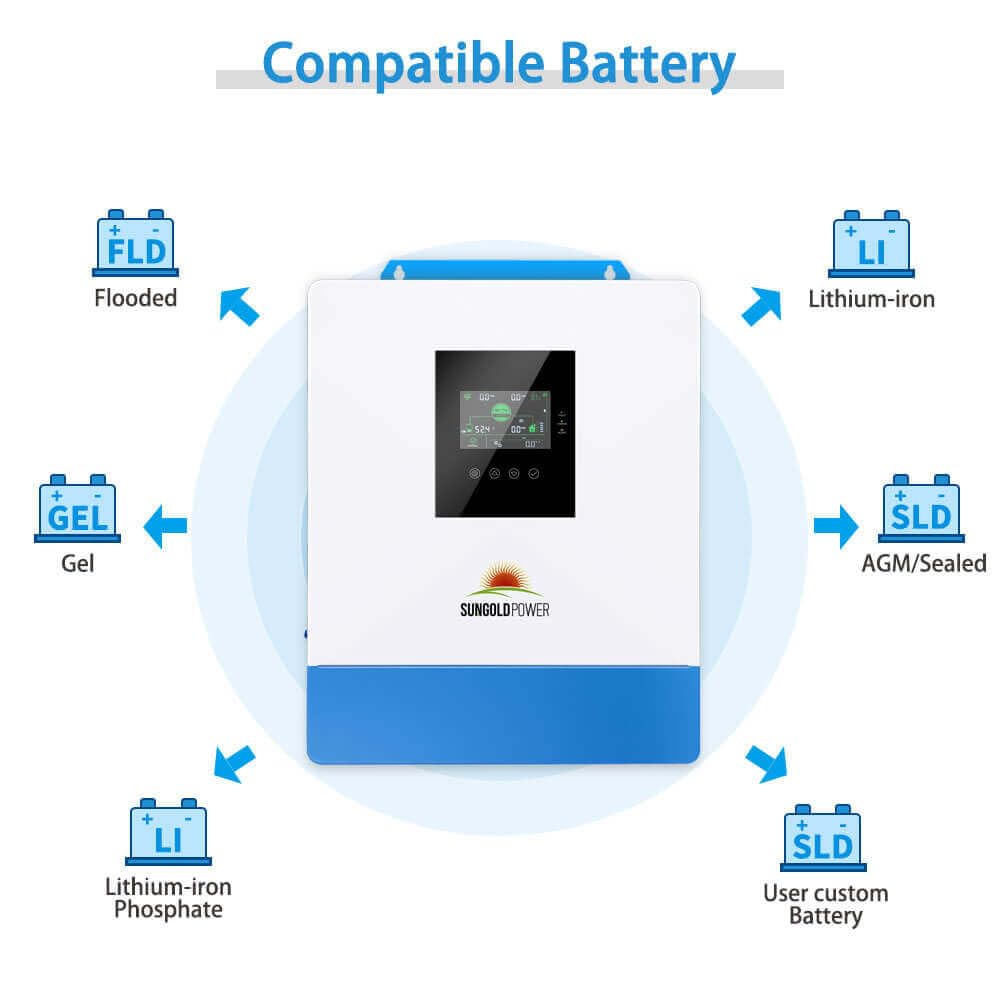

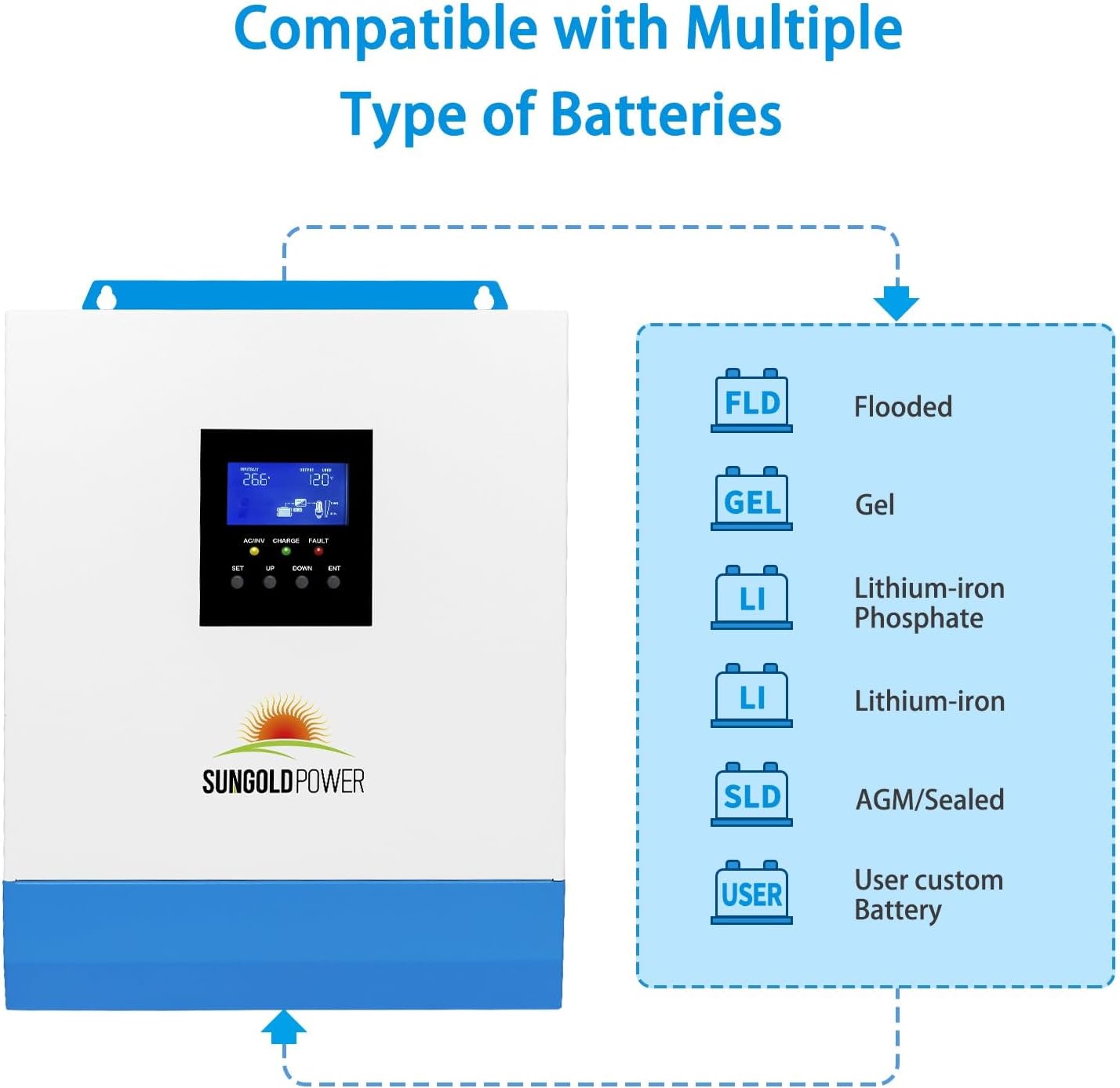

- 【Charging different batteries】：3KW solar inverter SPH302480A can charge 24Volt AGM/Sealed,Gel,Flooded,Lithium batteries and a User Mode for custom inputs to work with virtually all battery types. Lithium battery activation by PV solar or mains,allowing access of lead-acid battery and lithium battery;Maximum AC charge current(can be set)0-40A,DC charge voltage range 20-30Vdc

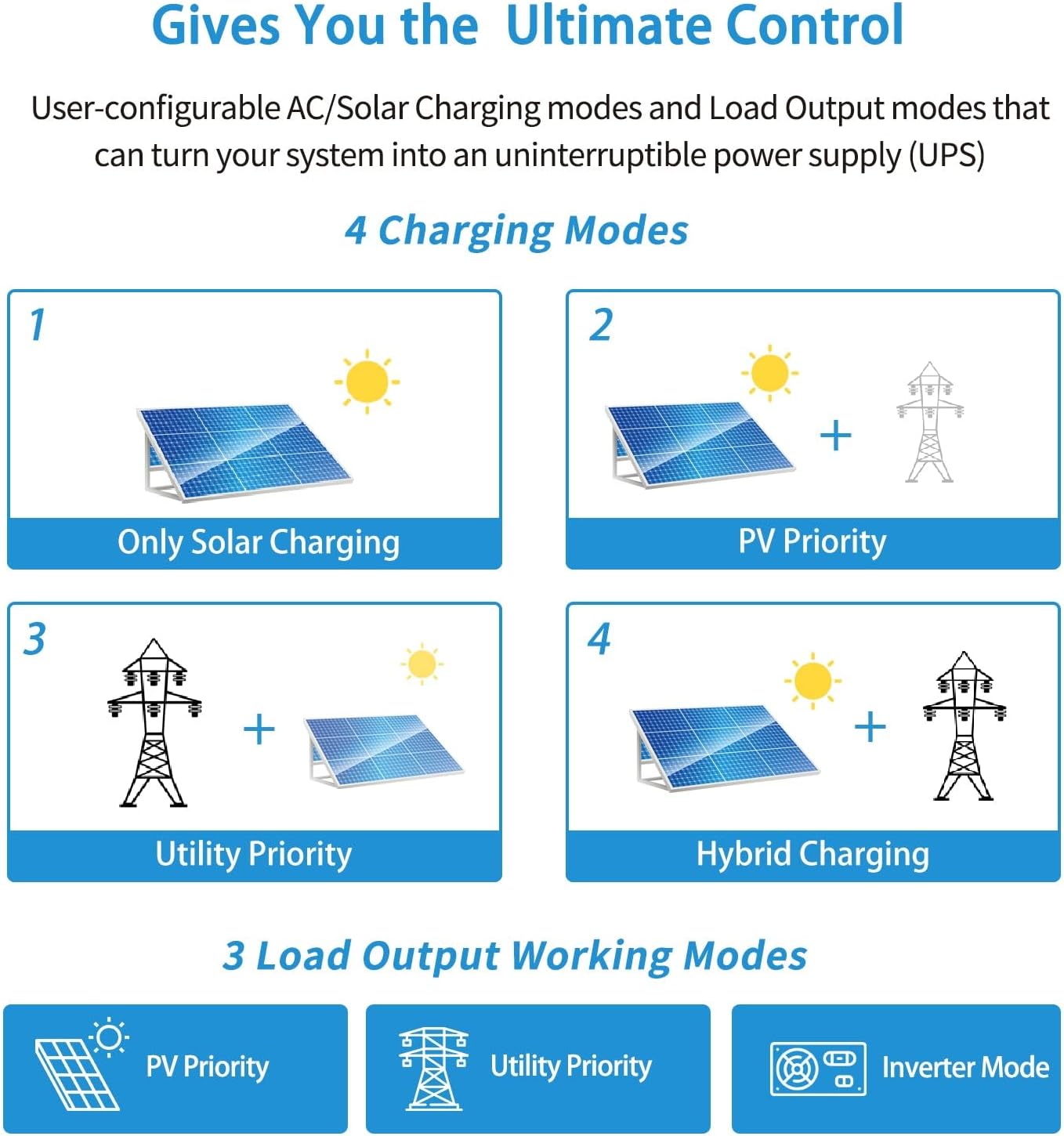

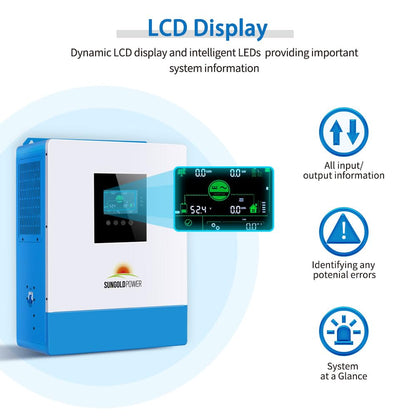

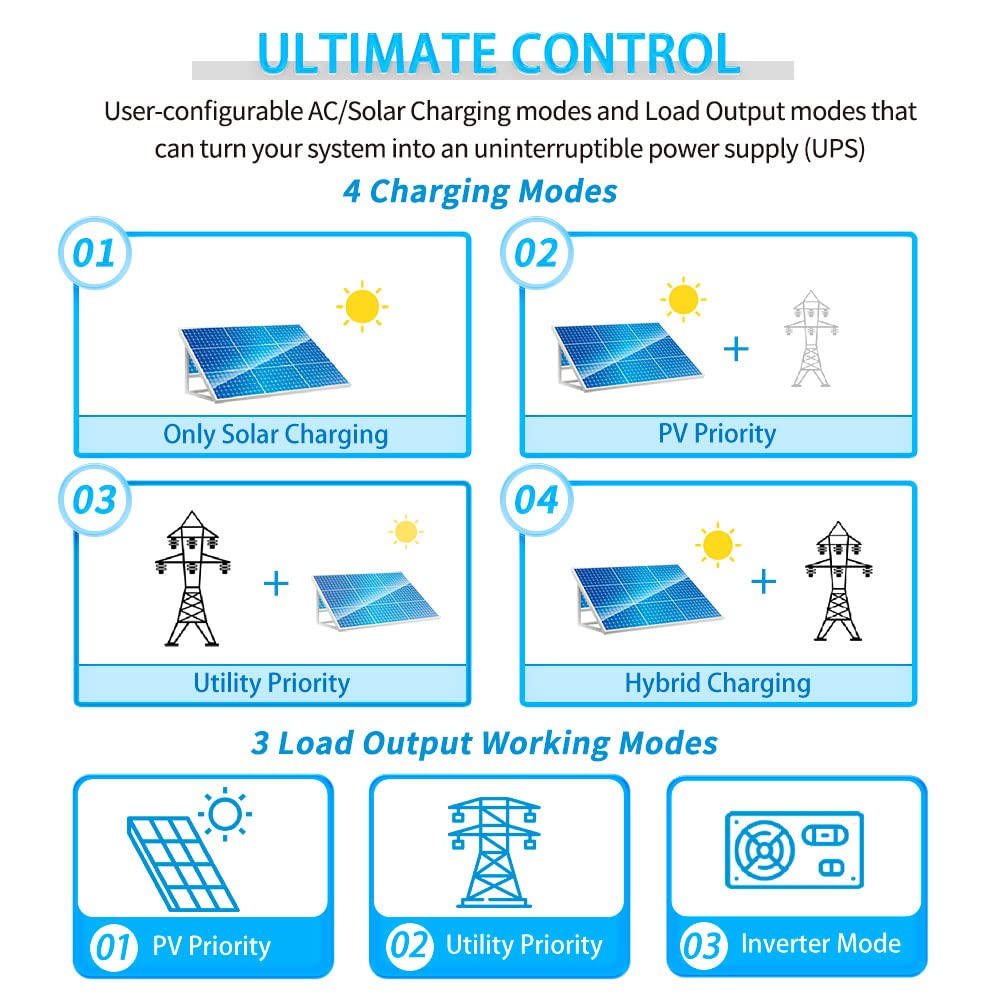

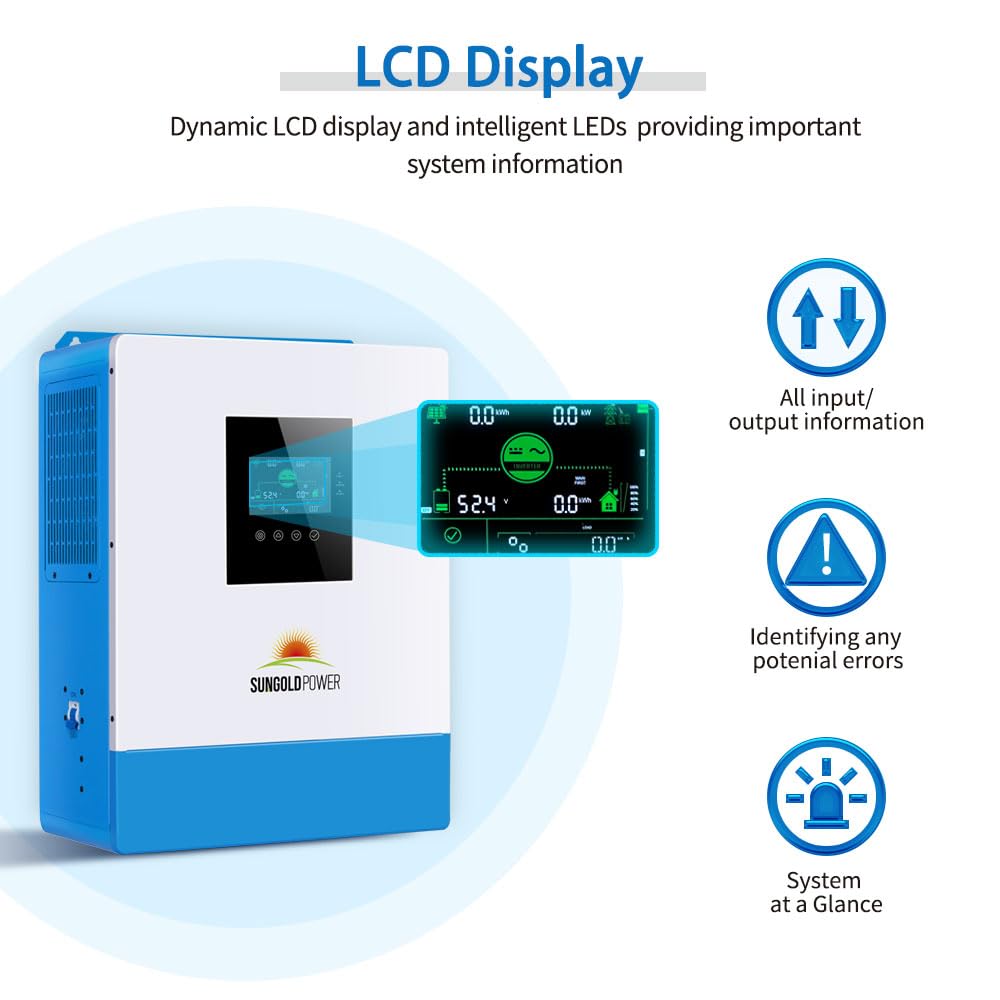

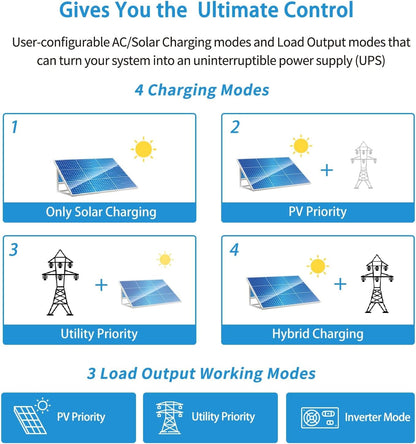

- 【Characters】:Four charging modes: AC Priority, Solar Priority ,Only Solar and Mains & Solar hybrid charging;Designed with LCD/LED dynamic display of system data and operating status. Three output modes: mains priority,PV priority ,inverter output, uninterrupted power supply,optional WiFi/GPRS remote monitoring(extra cost）

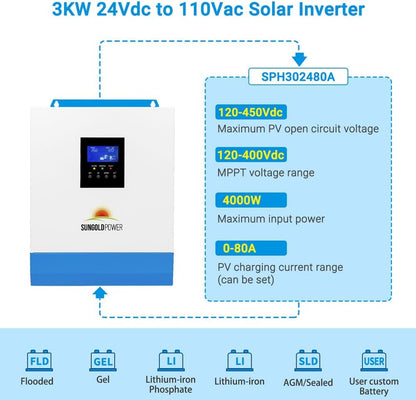

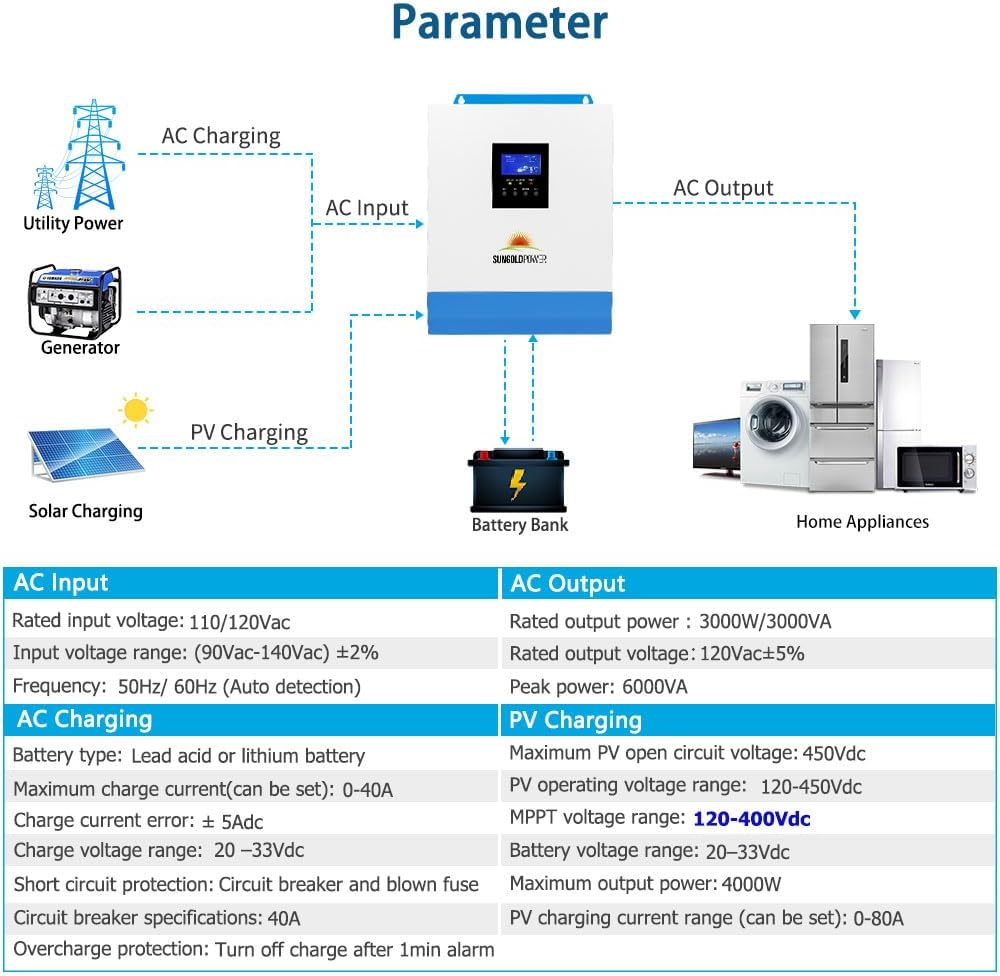

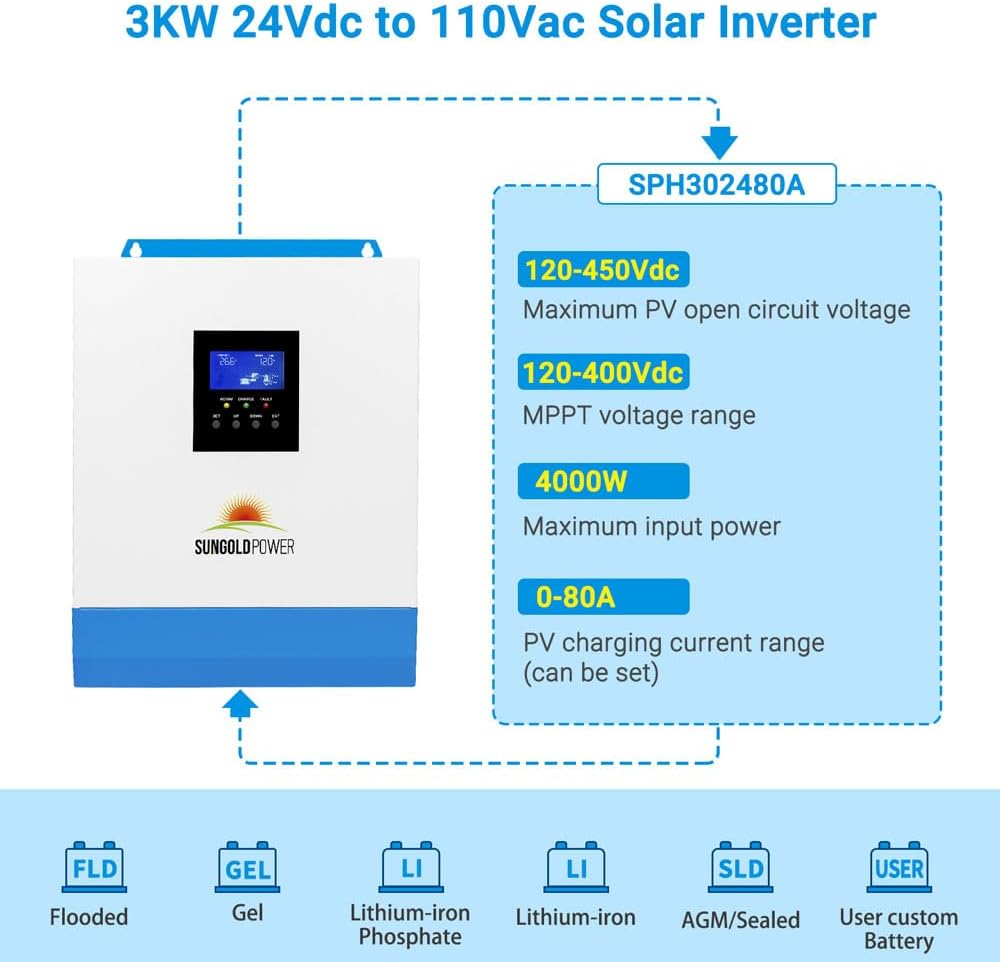

- 【Technical parameter】: 3000W hybrid inverter’s conversion time between bypass and inverter is 10ms;Rated input voltage 110/120Vac,Frequency 50Hz/ 60Hz (Auto detection);Efficiency >92%(Inverter mode),PV voltage range 120-450Vdc,PV maximum output power 4000W
- 【What you get】: 3000 Watt 24V Solar Inverter (PV Voltage range:120-400V) 1set;SUNGOLDPOWER is professional manufacturer in inverter business for over 10 years, customer services of Sungoldpower inverter are in USA,warranty time 24 months, lifetime technical support
| Brand | SGPWATT |
| Recommended uses for product | Off-grid power systems, backup, RVs, marine applications |
| Power source | Solar Powered |
| Wattage | 3000 watts |
| Battery capacity | 200 milliamp_hours |
| Model name | 3000W 24V Solar Inverter Charger |
| Colour | White |
| Included components | [All-in-one solar charge controller, battery charger, and inverter] |

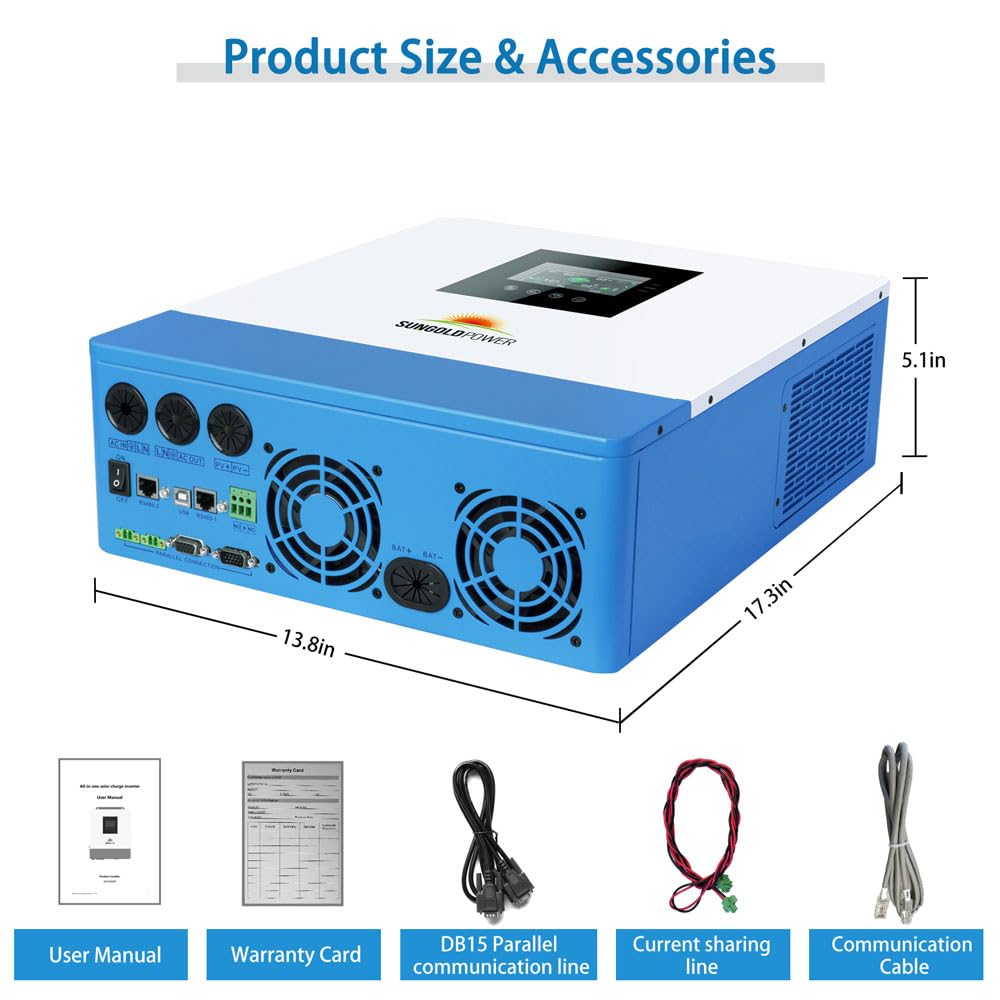

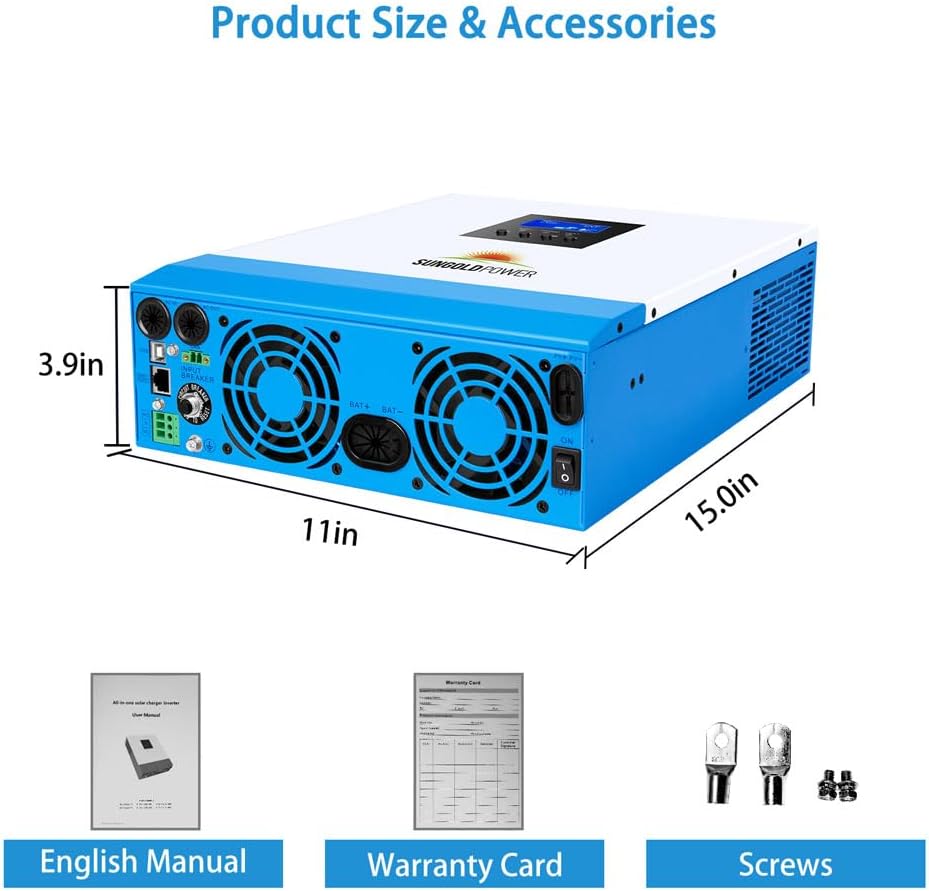

| Product Dimensions | 38.1L x 27.9W x 9.9H centimetres |
| Voltage | 120 volts_of_alternating_current |
