Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
- PV input voltage range: 125–425 V DC (MPPT operating range)
- Maximum PV input power: 11,000 W total
- Maximum PV open-circuit voltage: 500 V DC
- Headline inverter power: 10,000 W
- Battery voltage: 48 V DC
- AC configuration: Split phase, 120/240 V settable
- Solar charging: Two built-in MPPT controllers
- Maximum listed battery-charging current: 200 A
- Expansion: Parallel and communications support listed
- Standard claim in product title: UL 1741
- Other listing options include 8000 W, 48 V models
- Continuous AC output: 10,000 W
- Peak AC output: 20,000 W
- Maximum motor-load rating: 6 hp
- MPPT tracking efficiency: 99.9%
- Maximum battery-inverter efficiency: 92%

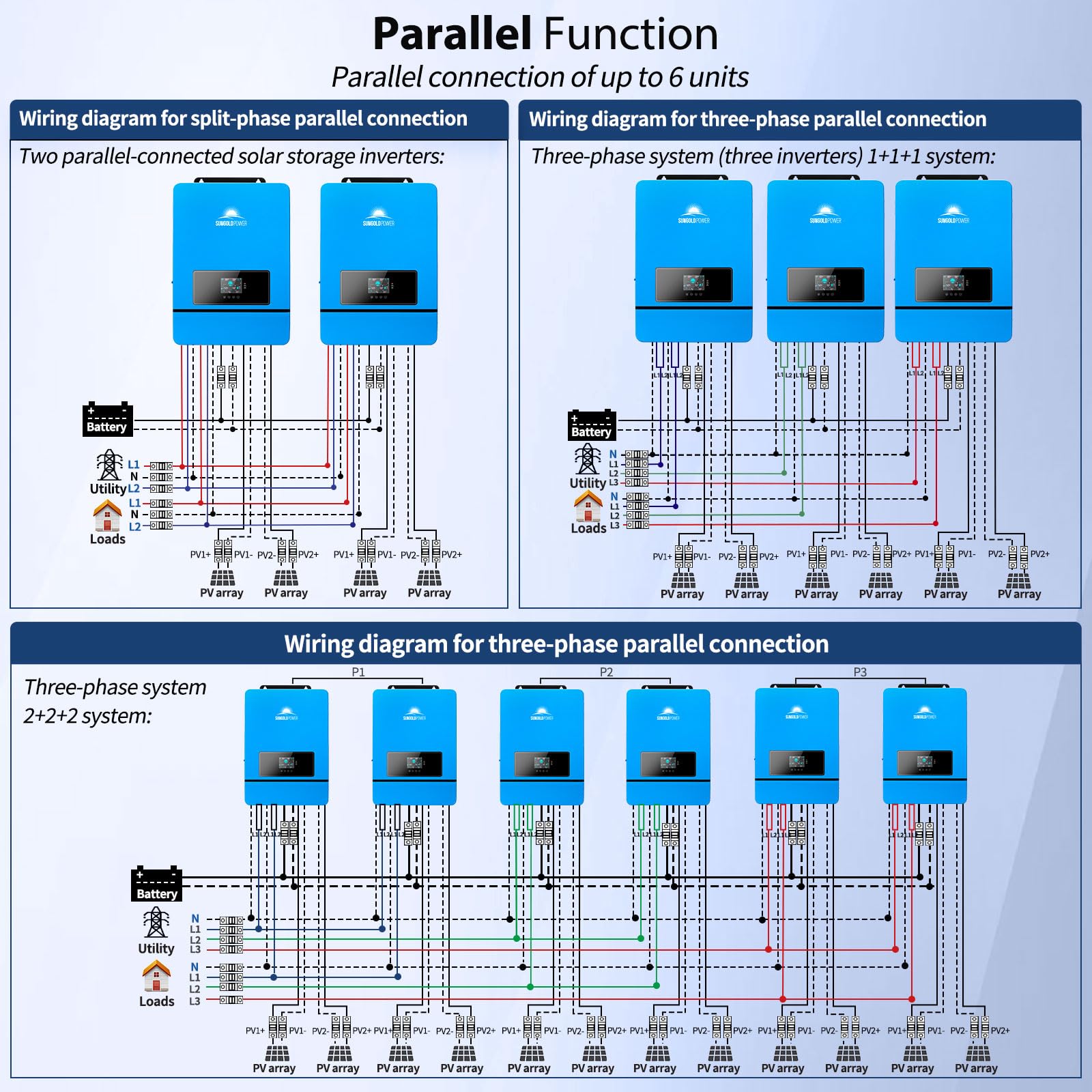

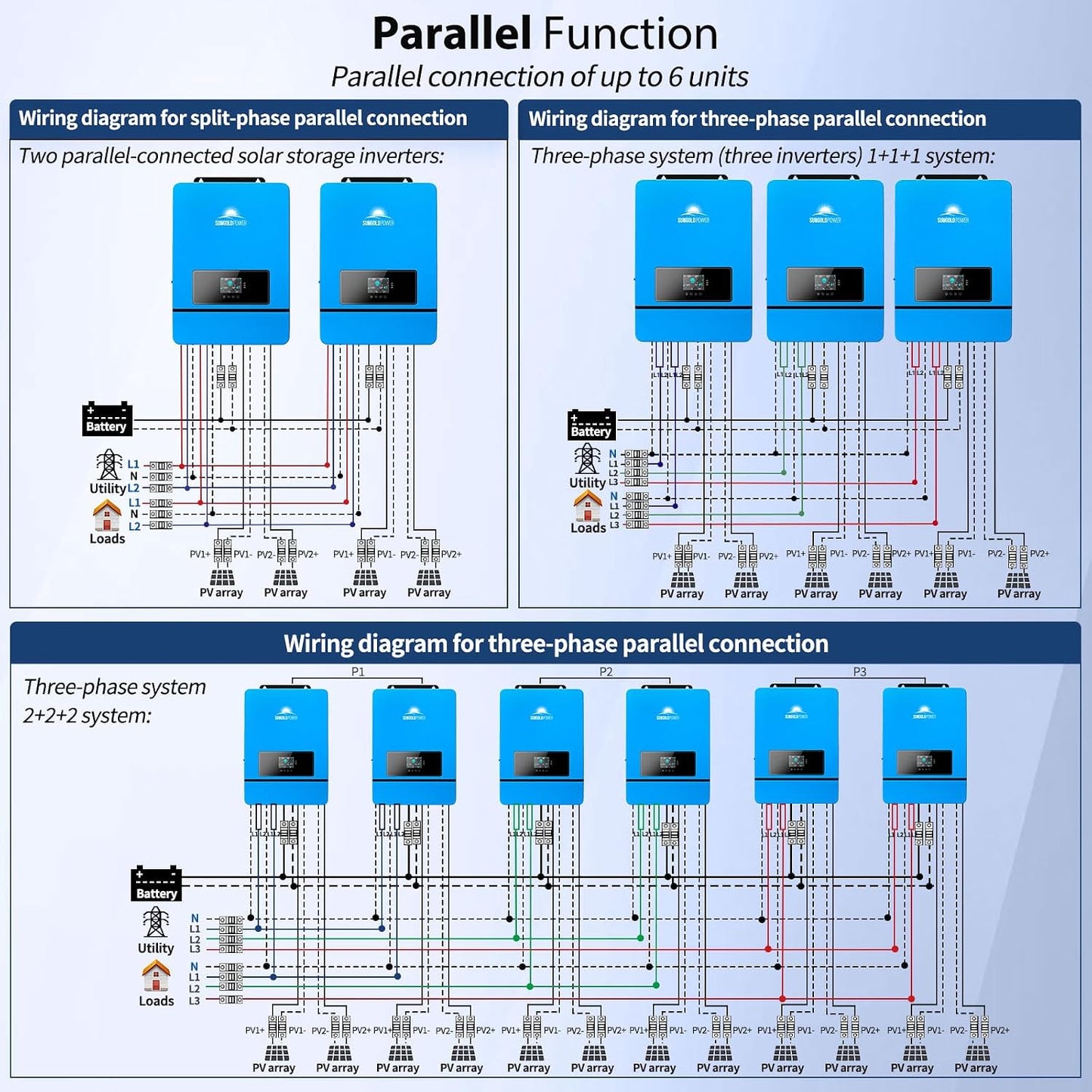

- Parallel expansion: Up to six units / 60 kW
- Parallel output configurations: 120 V single phase, 120/240 V split phase or 208 V three phase with qualifying multi-unit setup

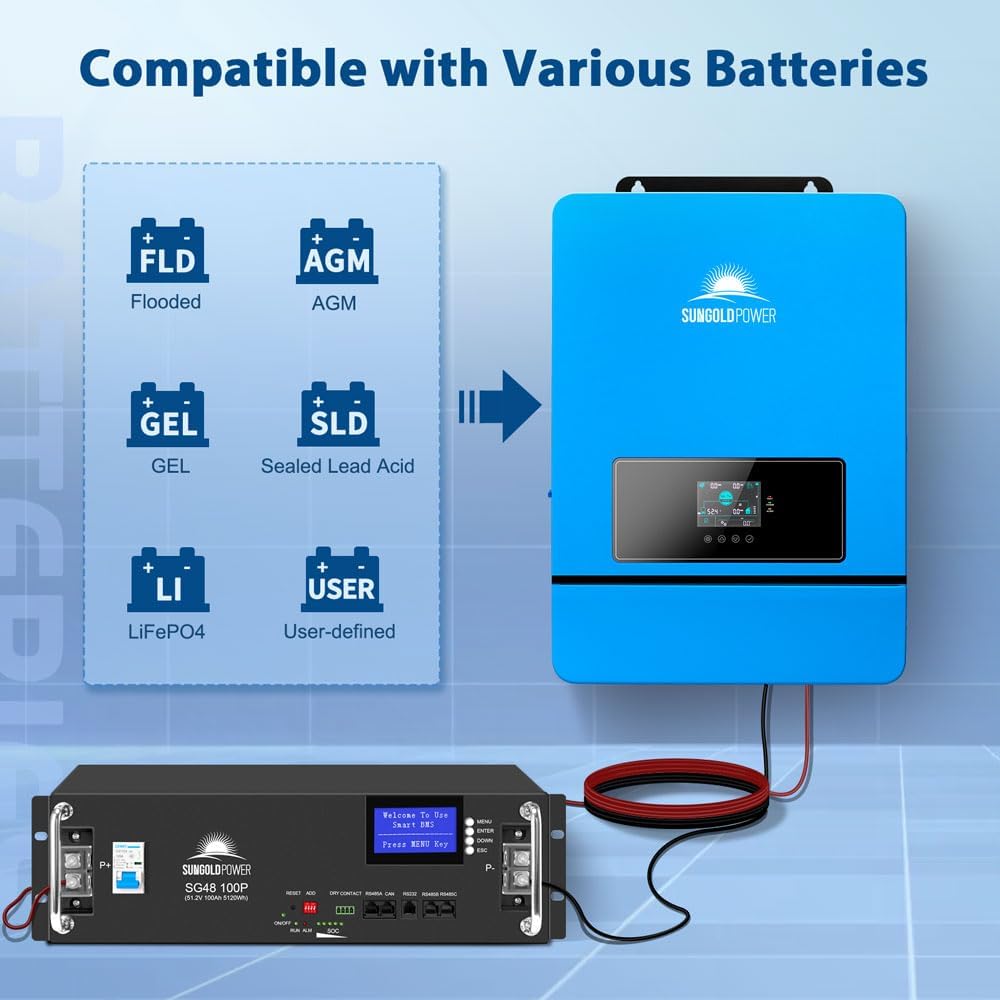

- Battery support: AGM/sealed, gel, flooded and LiFePO4 plus user-defined mode
- Battery communications: CAN and RS485 with compatible batteries

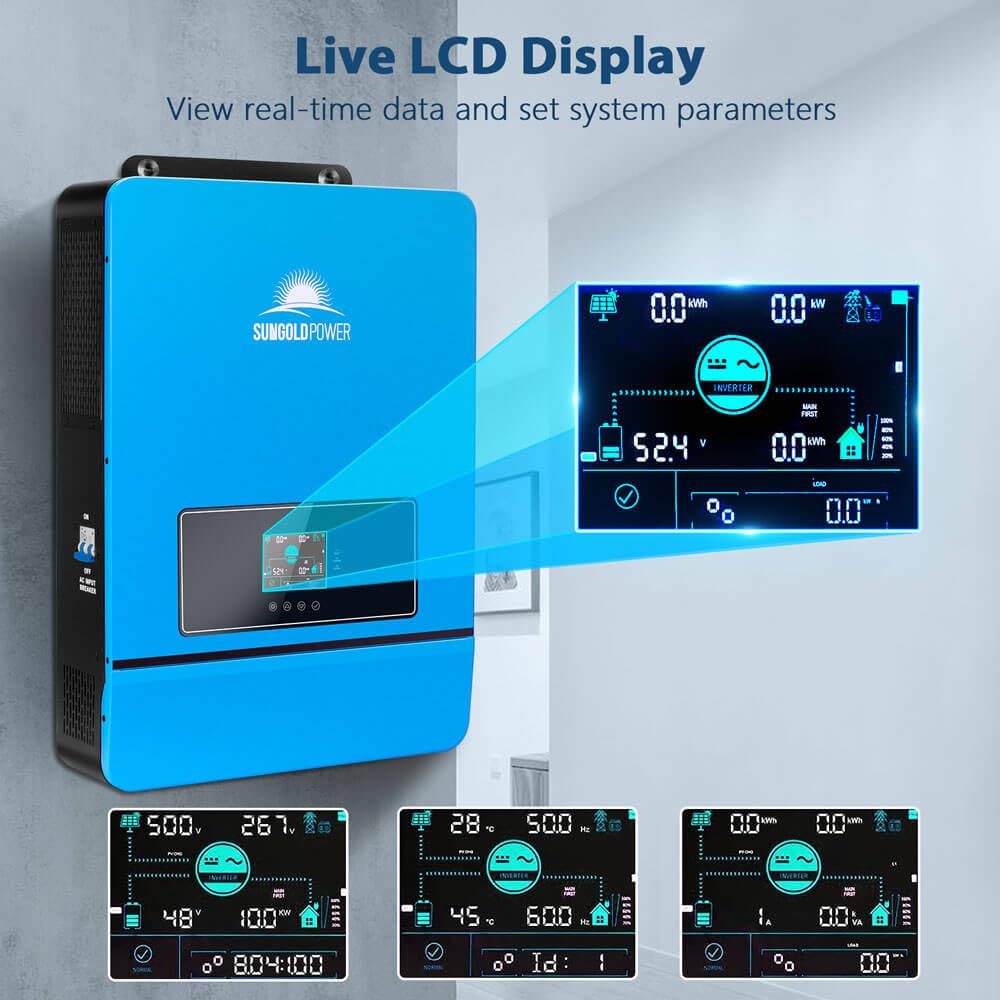

- Monitoring: Wi-Fi mobile-app support
- Certification: ETL certified to UL 1741 for off-grid solar systems
Product overview

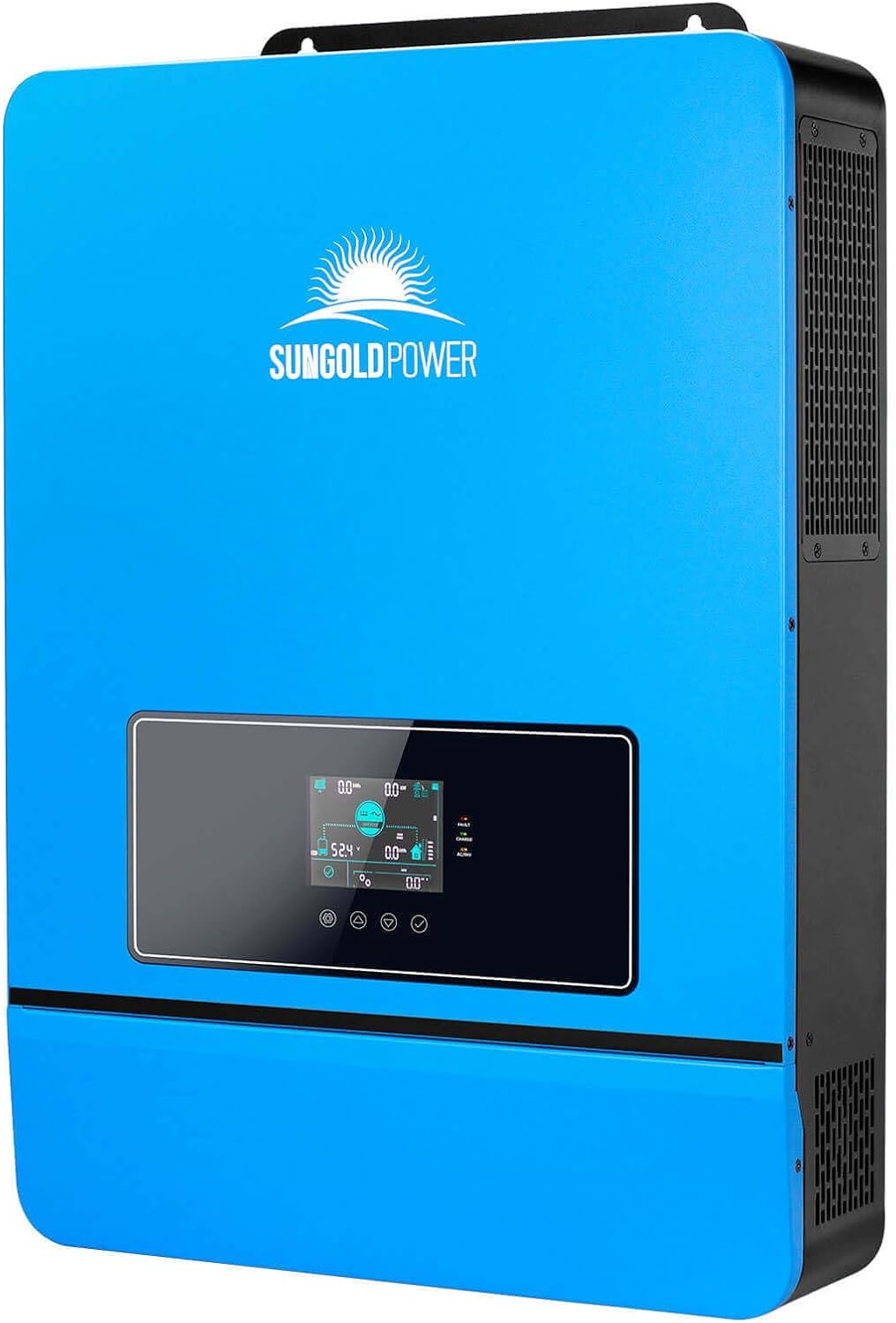

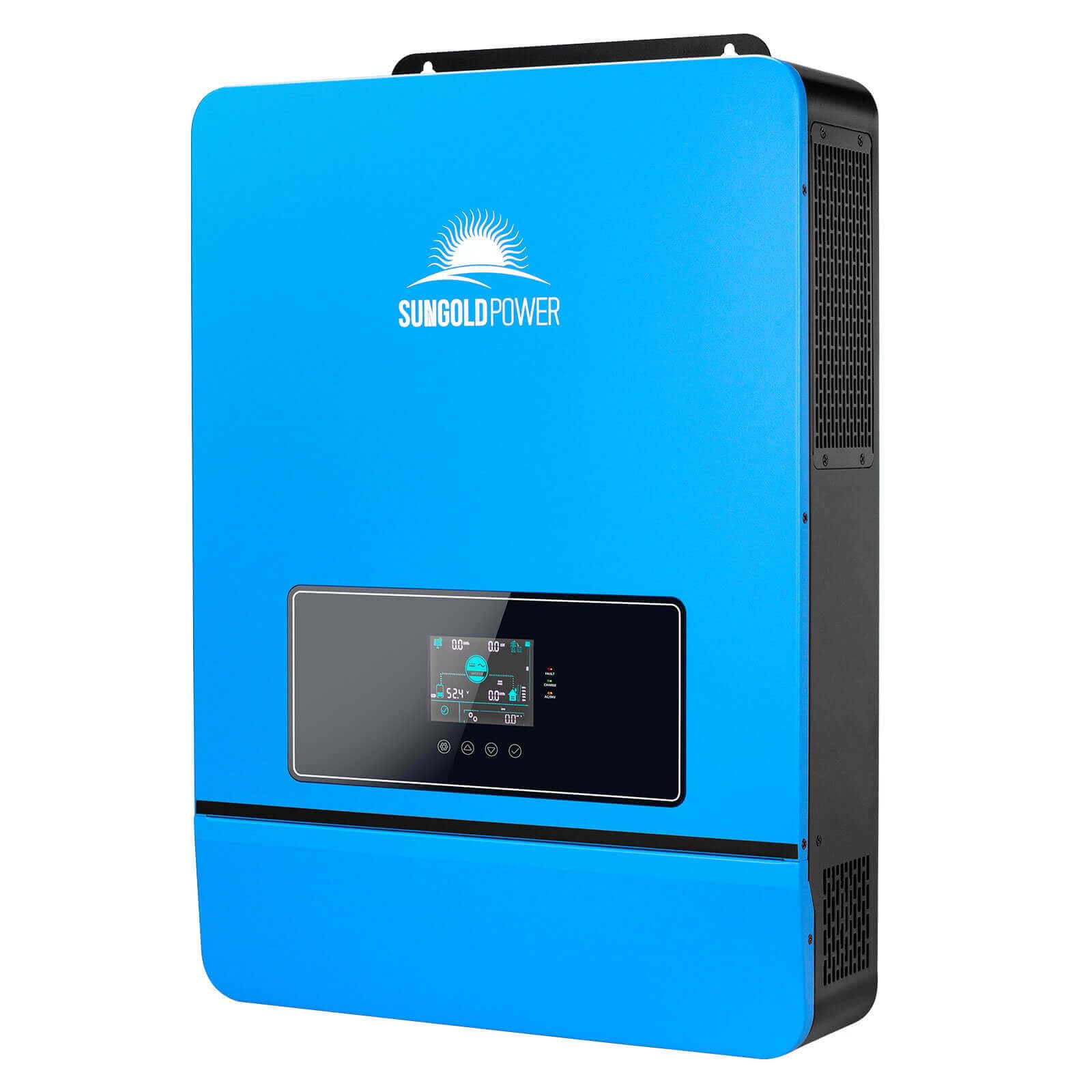

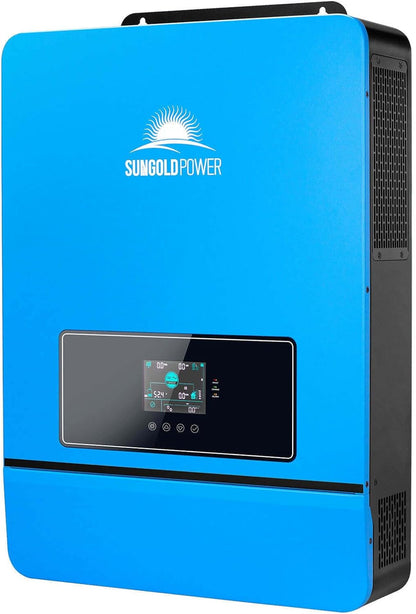

This Sungoldpower all-in-one inverter charger is designed for larger 48 V systems requiring split-phase AC service. Dual MPPT controllers, high listed charging current and parallel communication support combine several major system functions in one platform.
Suitable applications
Large off-grid and backup-power systems engineered for the selected inverter model, battery bank, PV array and 120/240 V load arrangement.
Before ordering
Confirm battery voltage, continuous and surge output, PV input window, charging limits, neutral/ground arrangement, conductor size and overcurrent protection. High-power inverter installation should be completed or reviewed by a qualified person.
Technical sources
Exact Amazon.ca product listing | SunGoldPower manufacturer specifications
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
