Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
Chemistry: LiFePO4
Nominal system voltage: 12 V

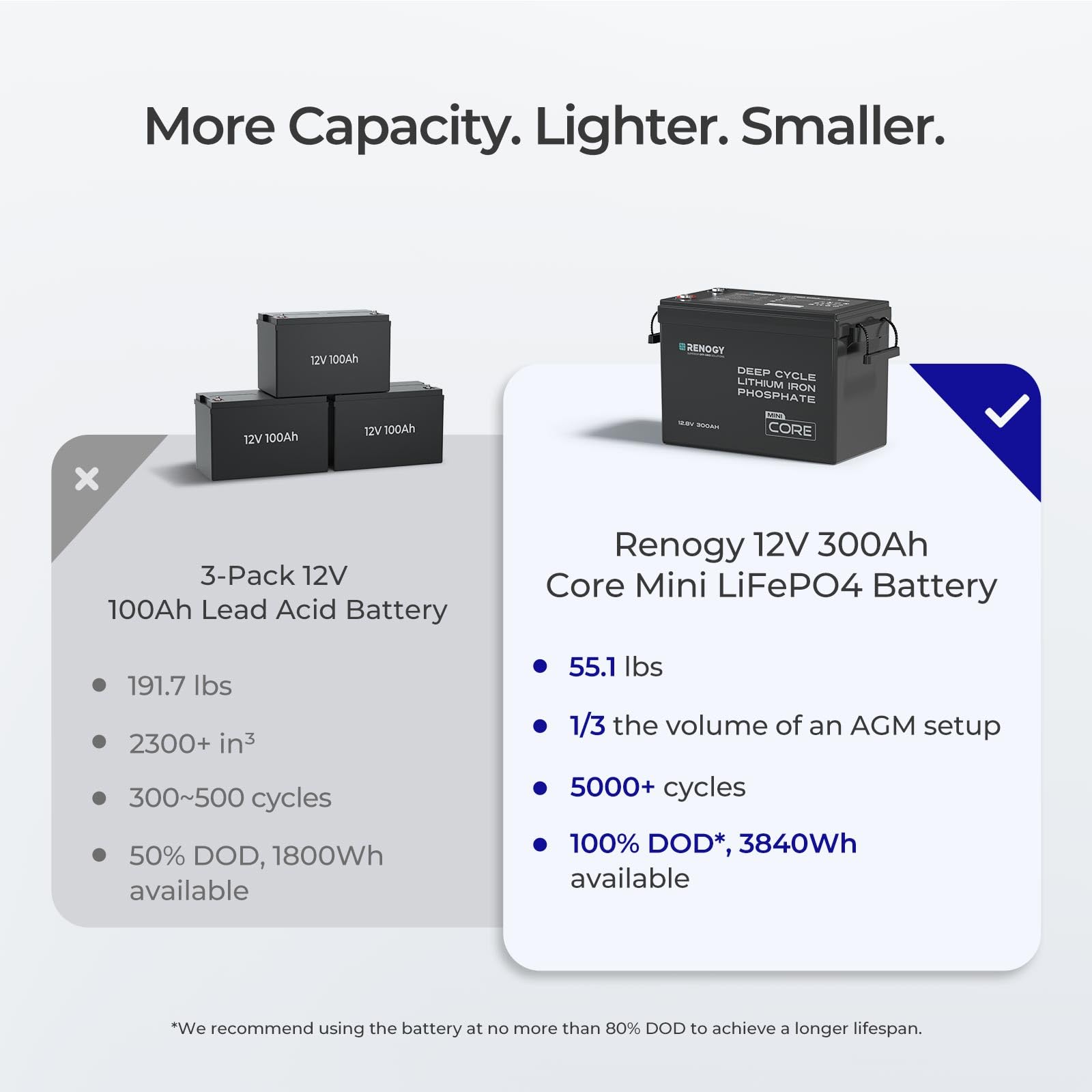

Headline capacity: 300 Ah

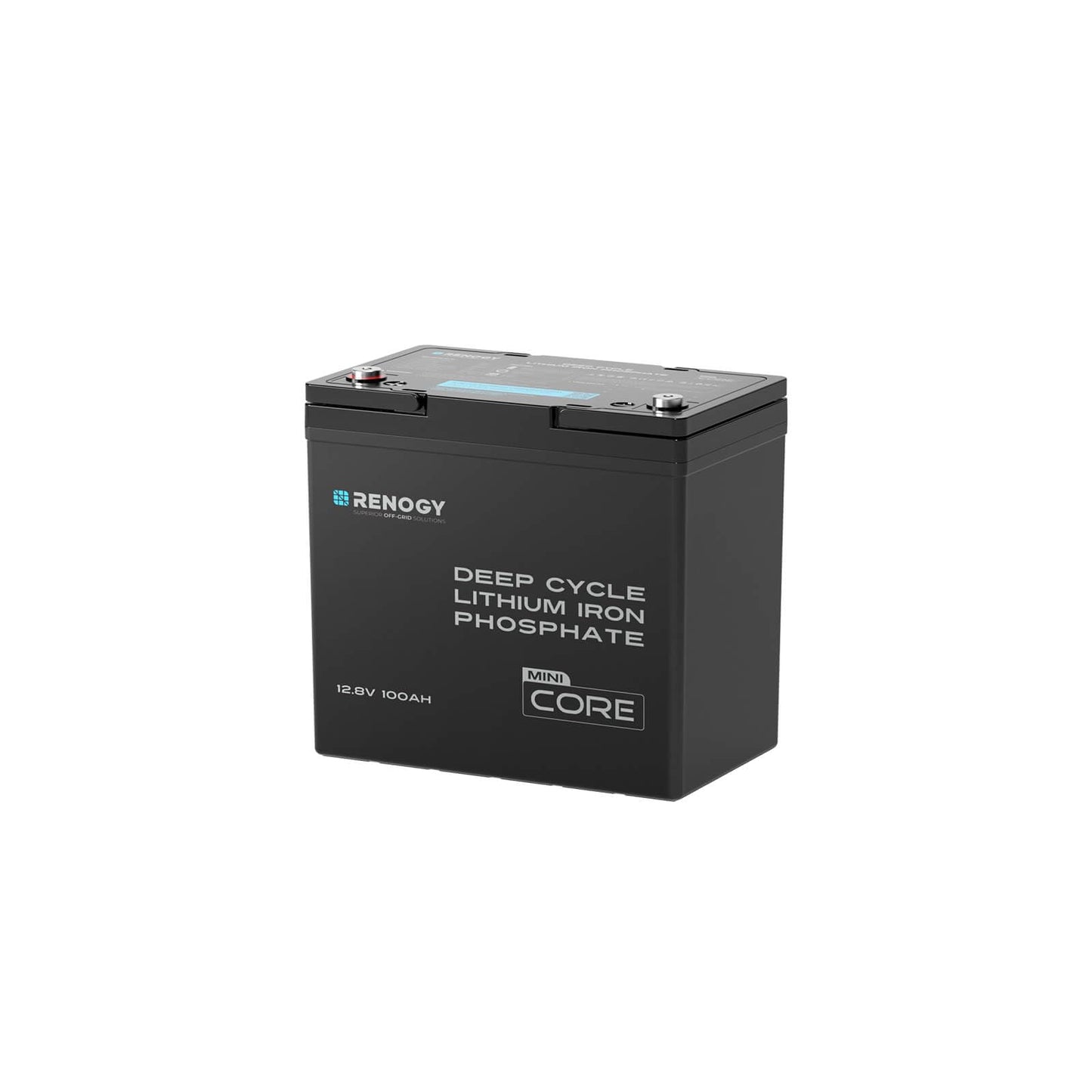

Format: Core Mini ultra-compact battery

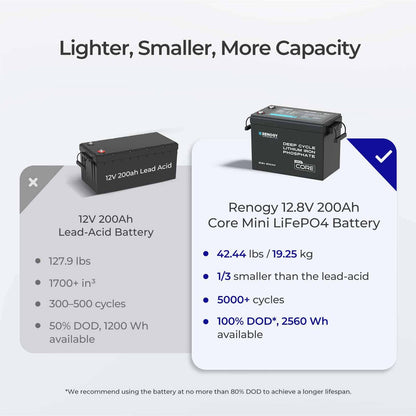

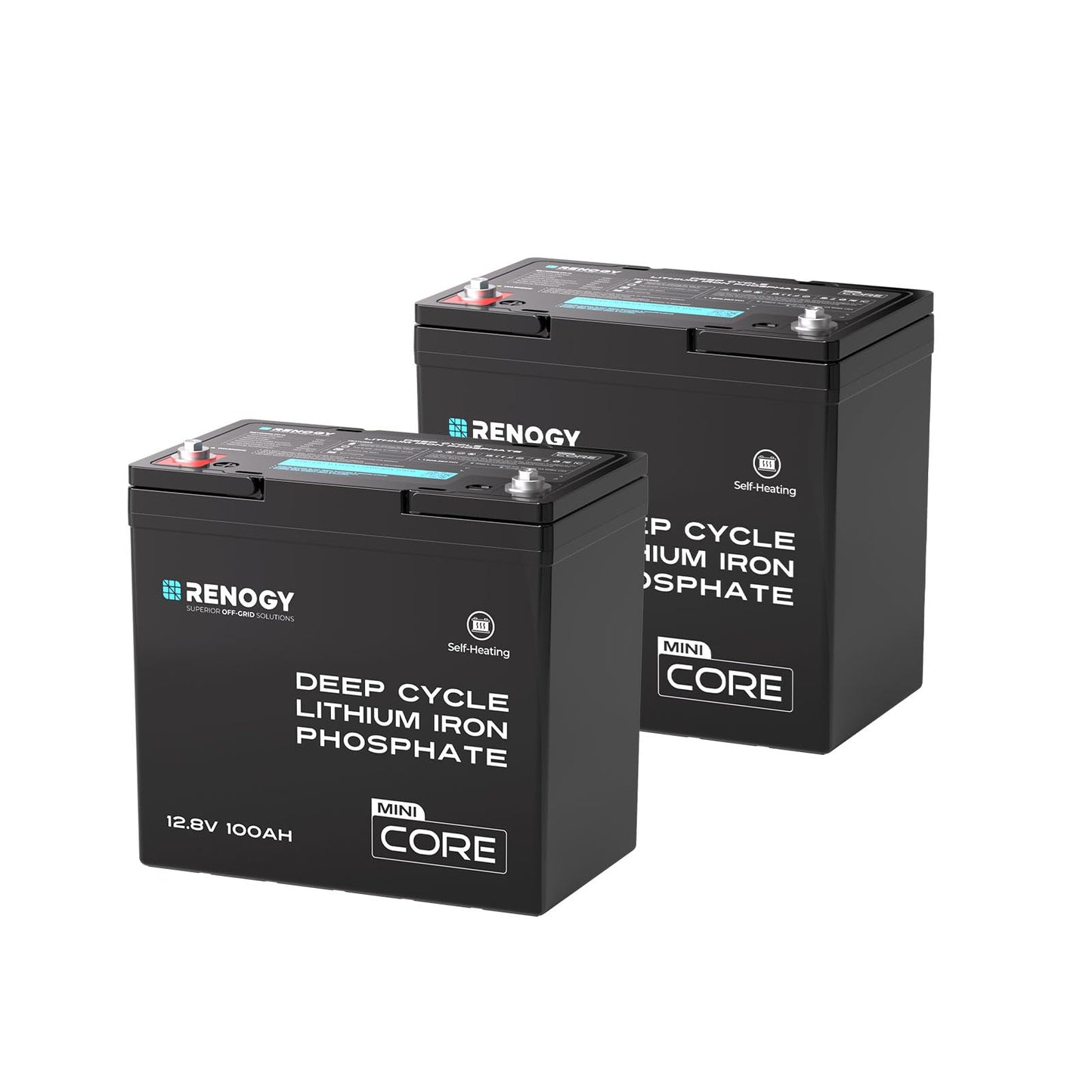

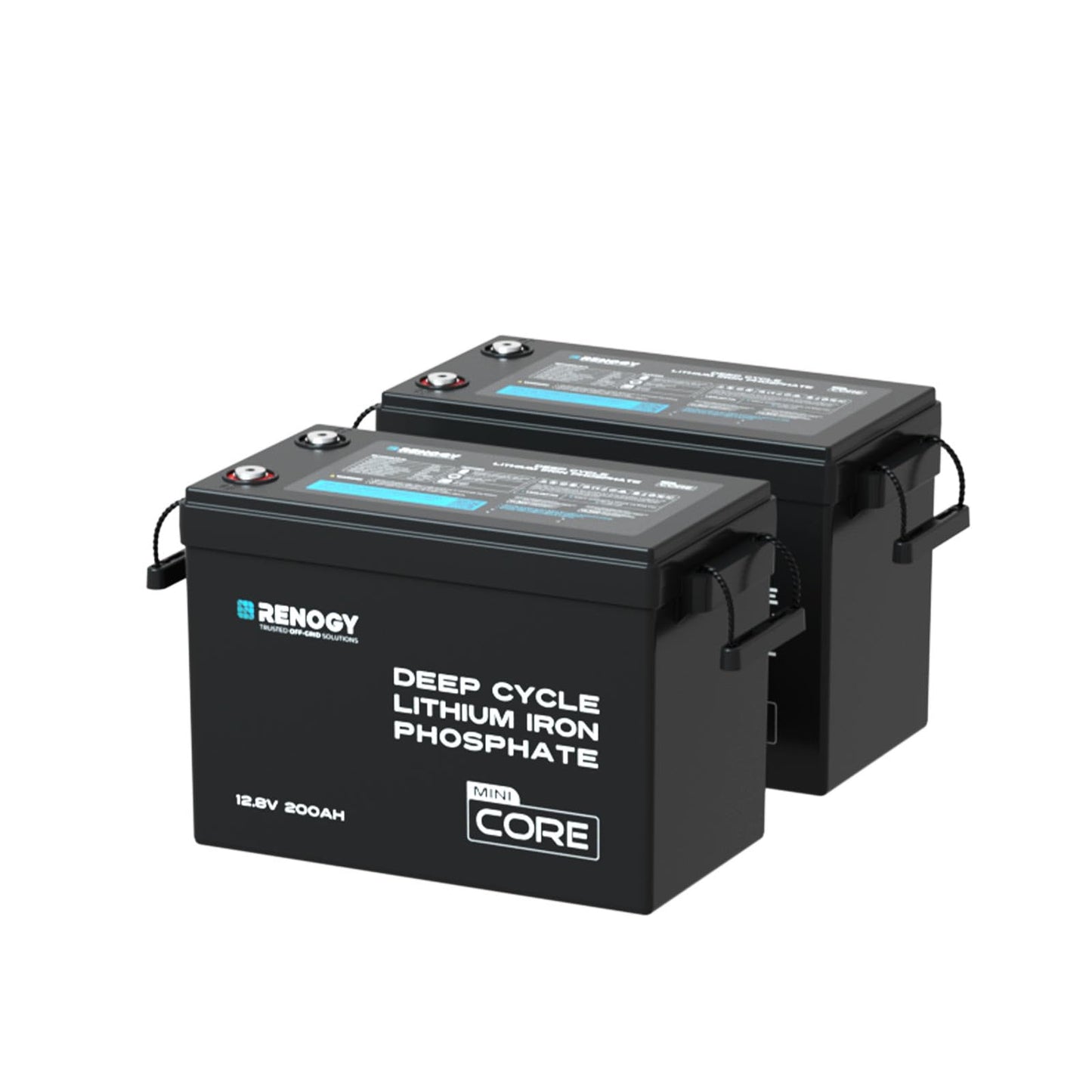

Product-family options include 100 Ah, 200 Ah and 300 Ah models

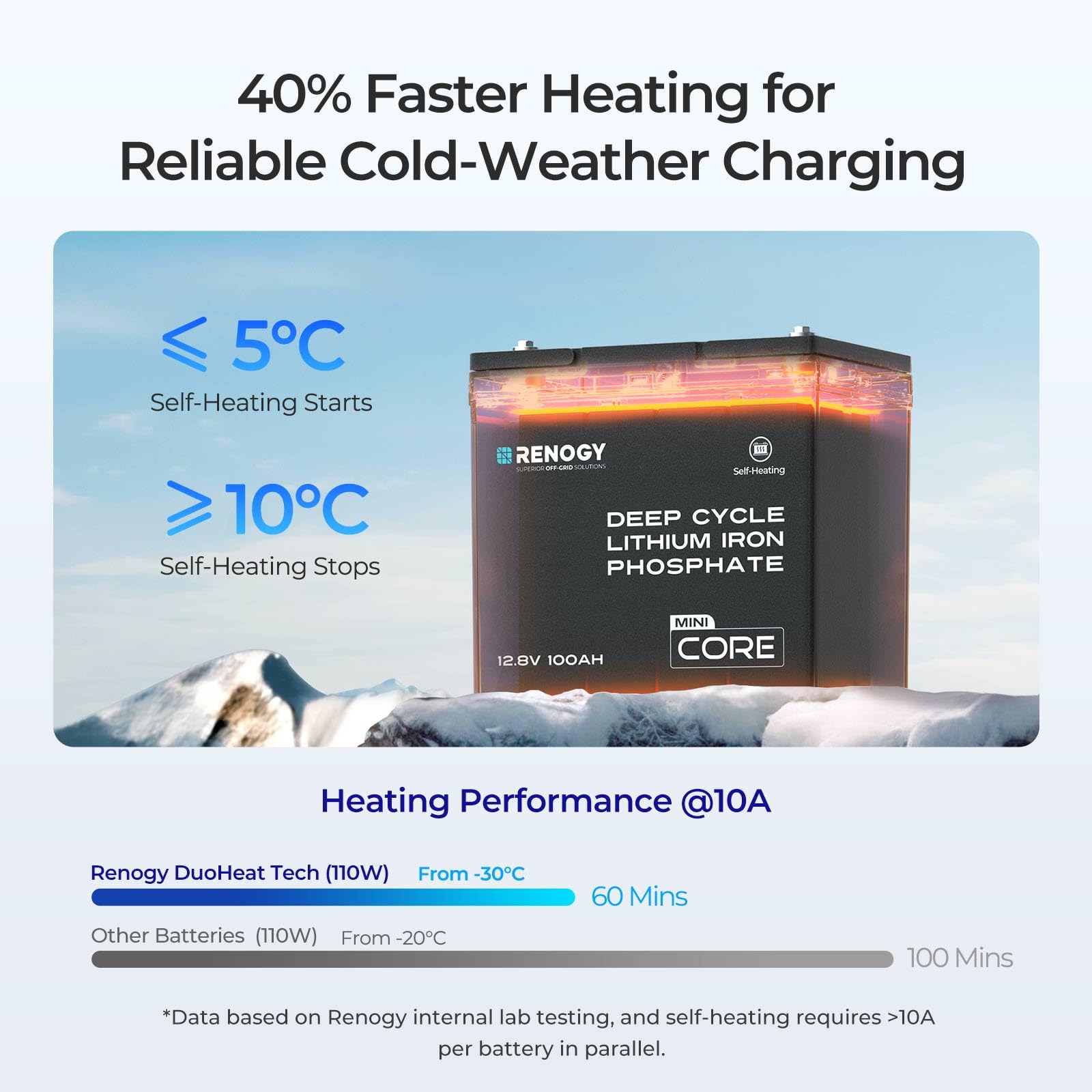

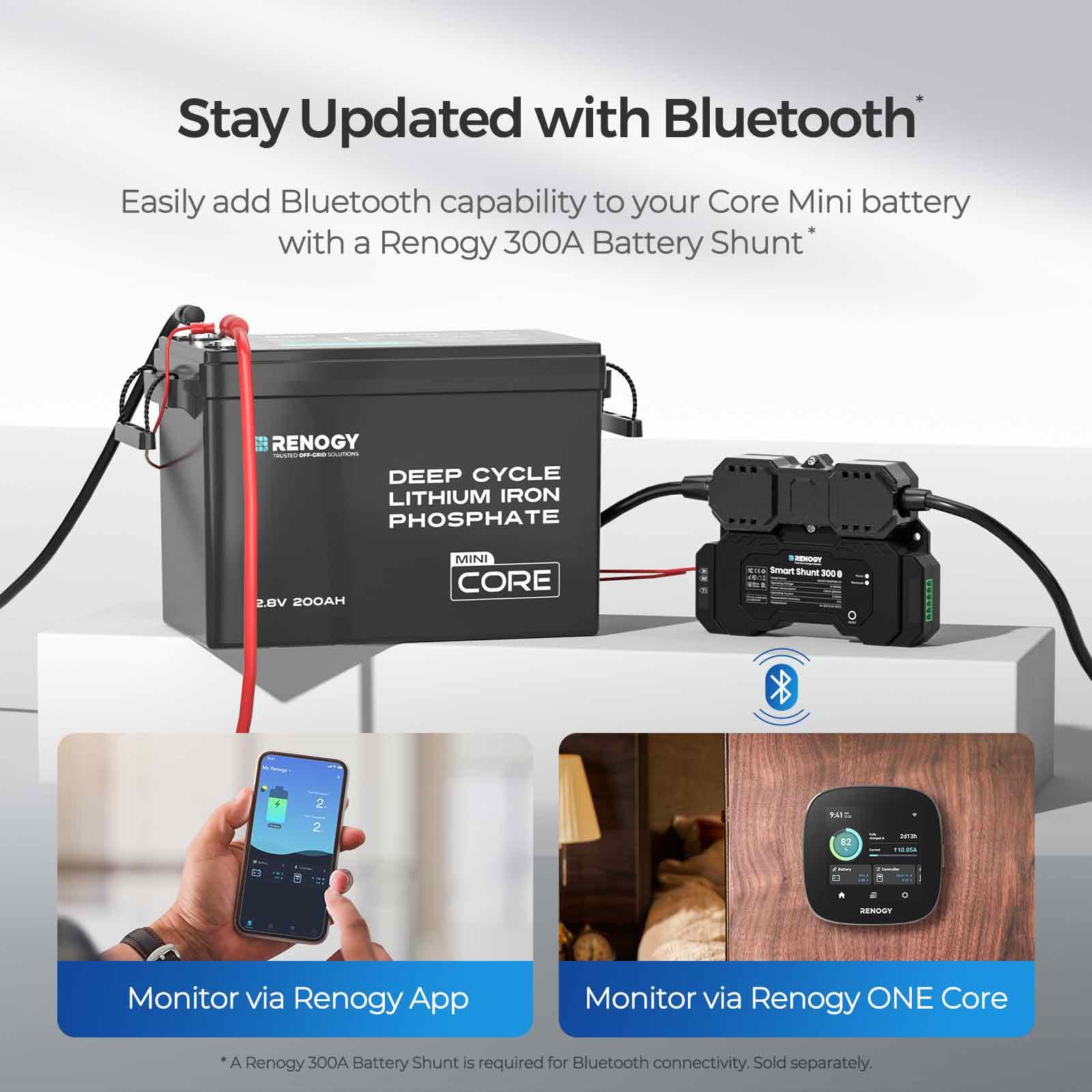

Selected options include standard, DuoHeat and Bluetooth versions
Nominal voltage: 12.8 V

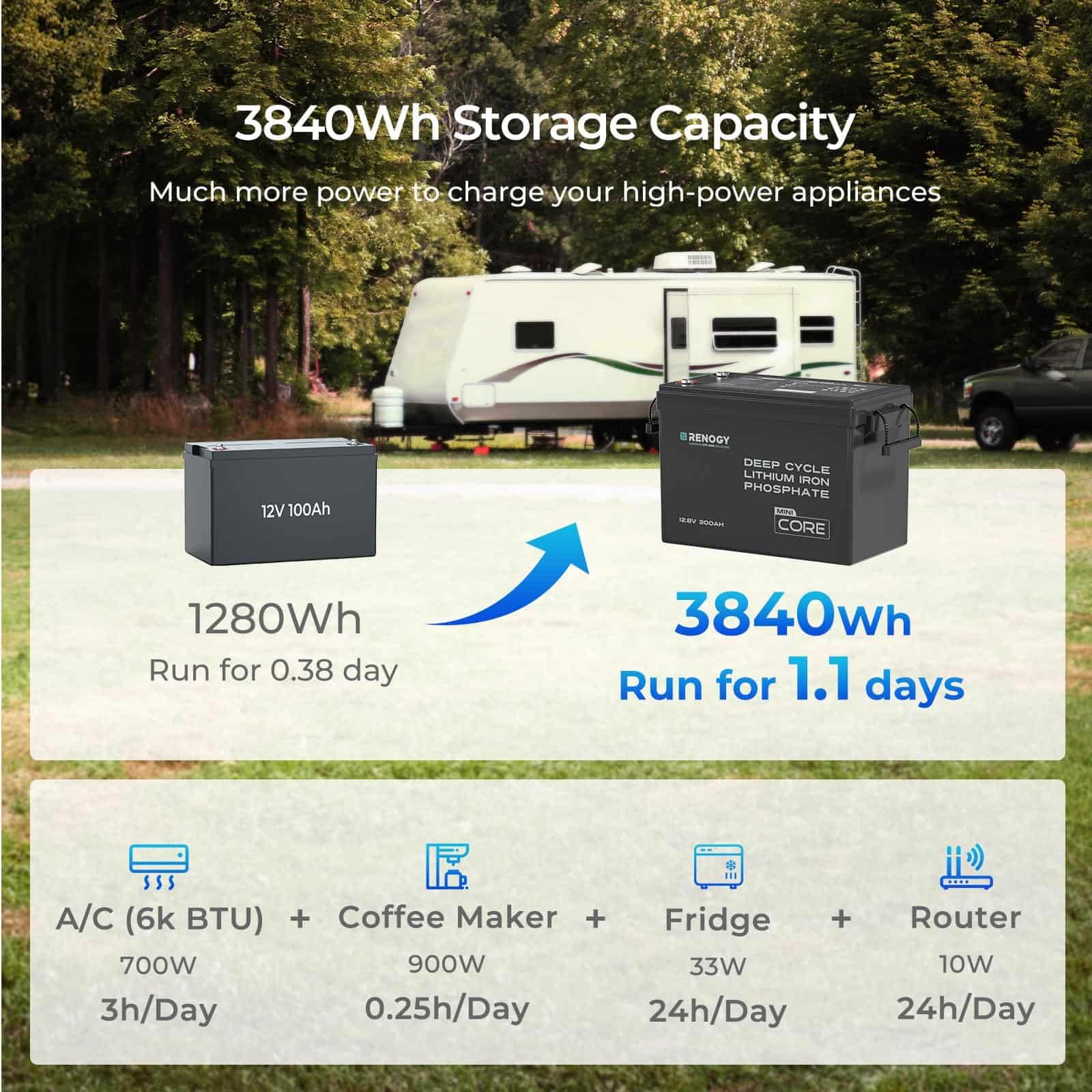

Rated energy: 3840 Wh
Operating-voltage range: 10–14.8 V
Maximum continuous charge current: 150 A
Maximum continuous discharge current: 200 A
Peak discharge current: 380 A for 10 seconds

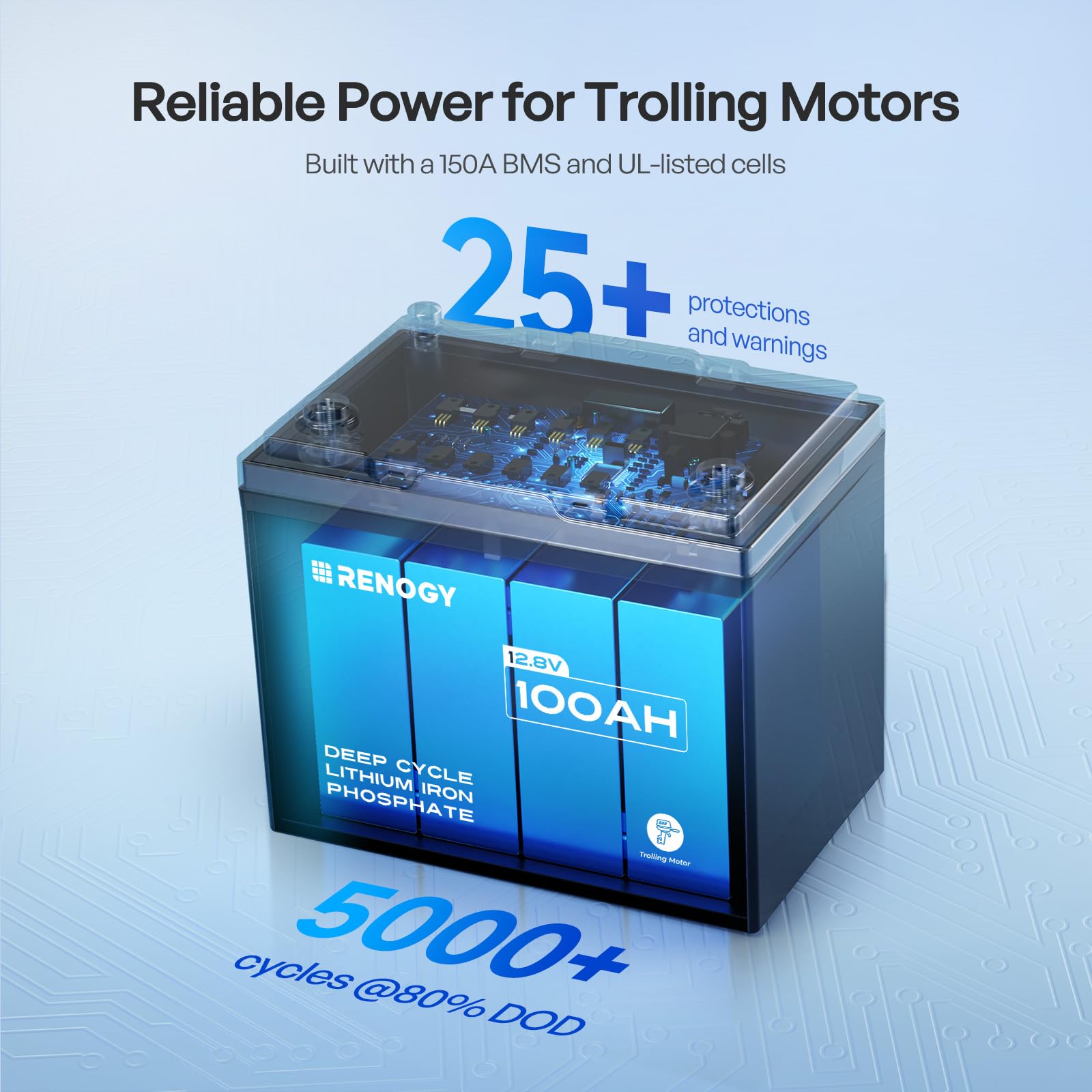

Cycle life: 5000+ cycles at 80% depth of discharge

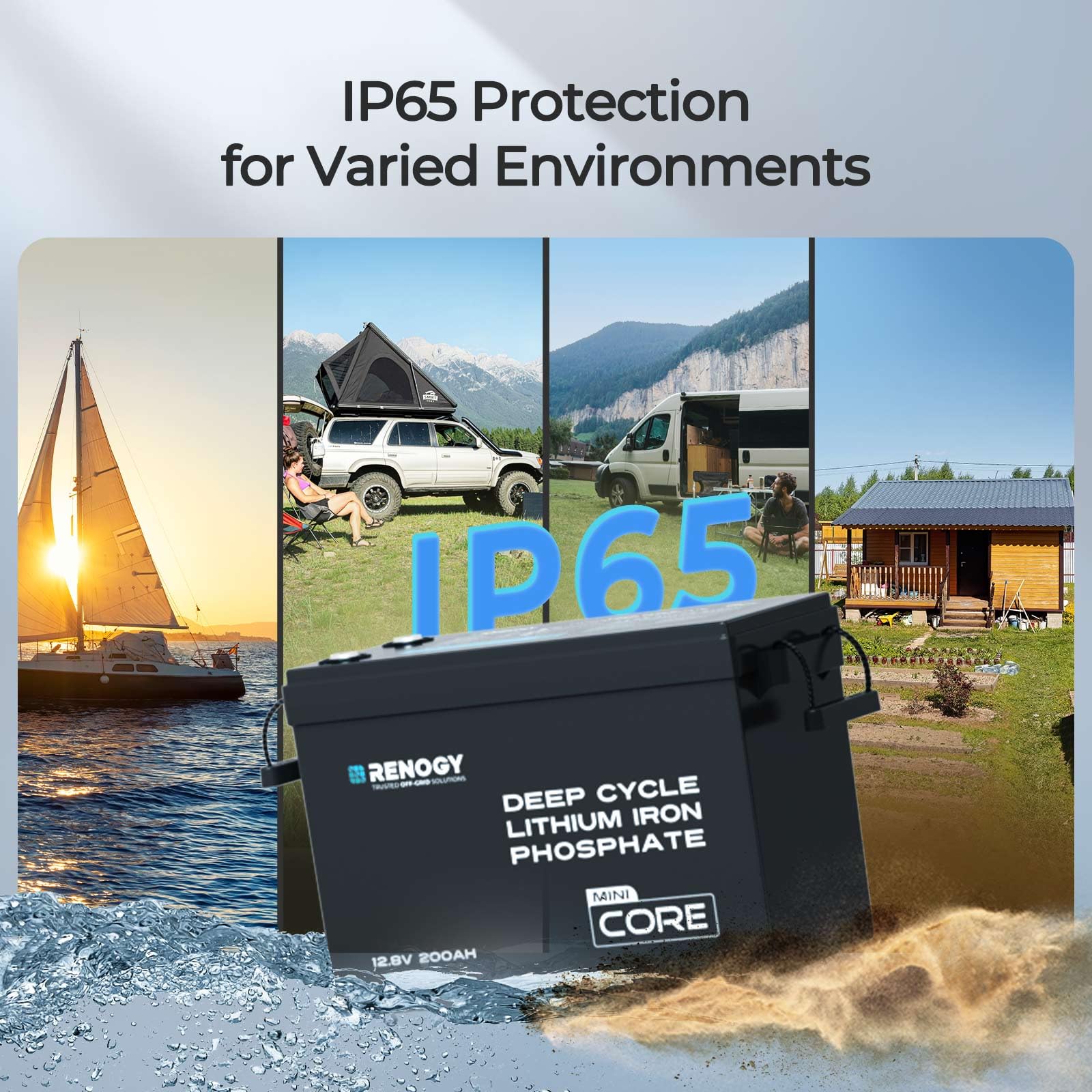

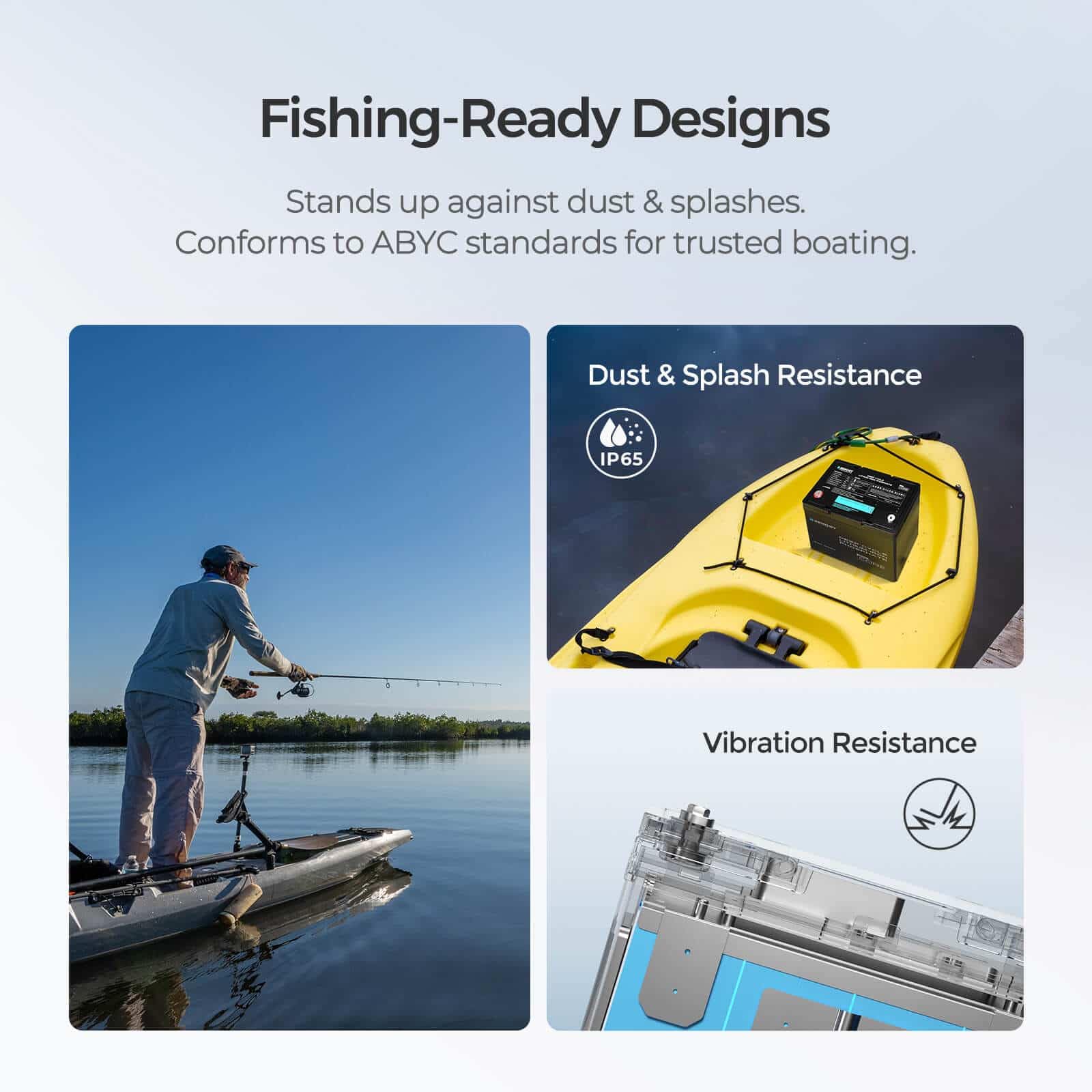

Ingress protection: IP65

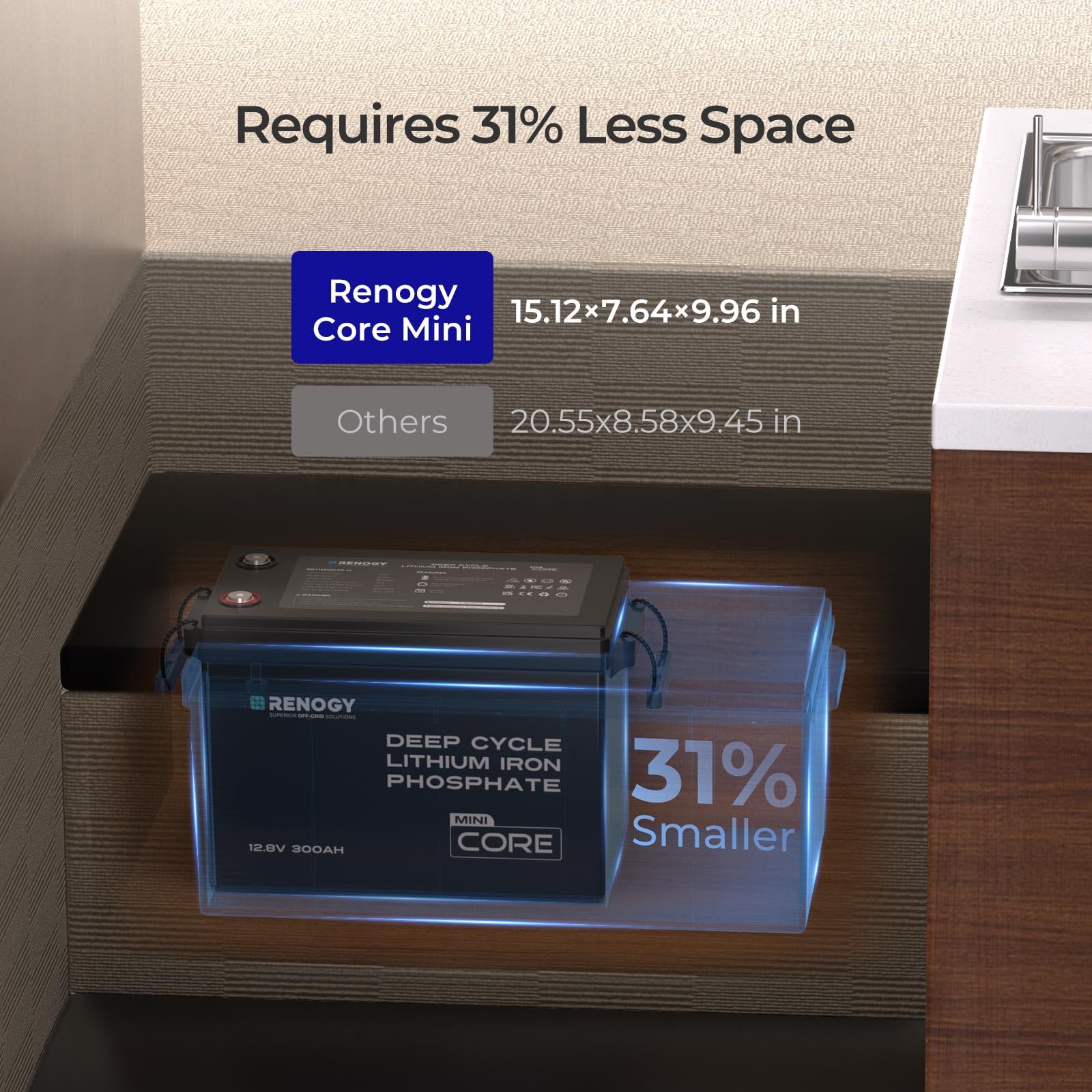

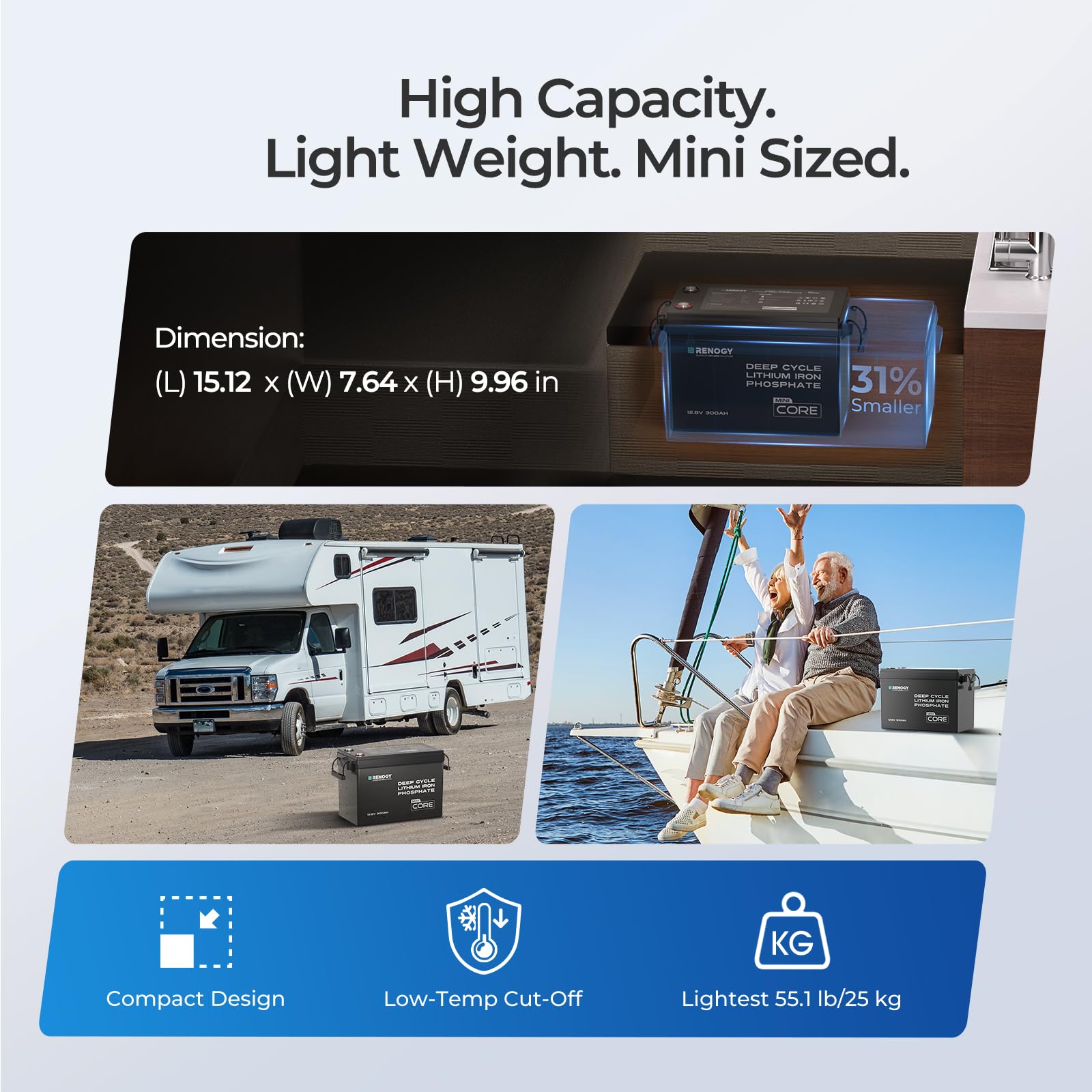

Dimensions: 15.12 × 7.64 × 9.96 in / 384 × 194 × 253 mm
Weight: 55.1 lb / 25 kg

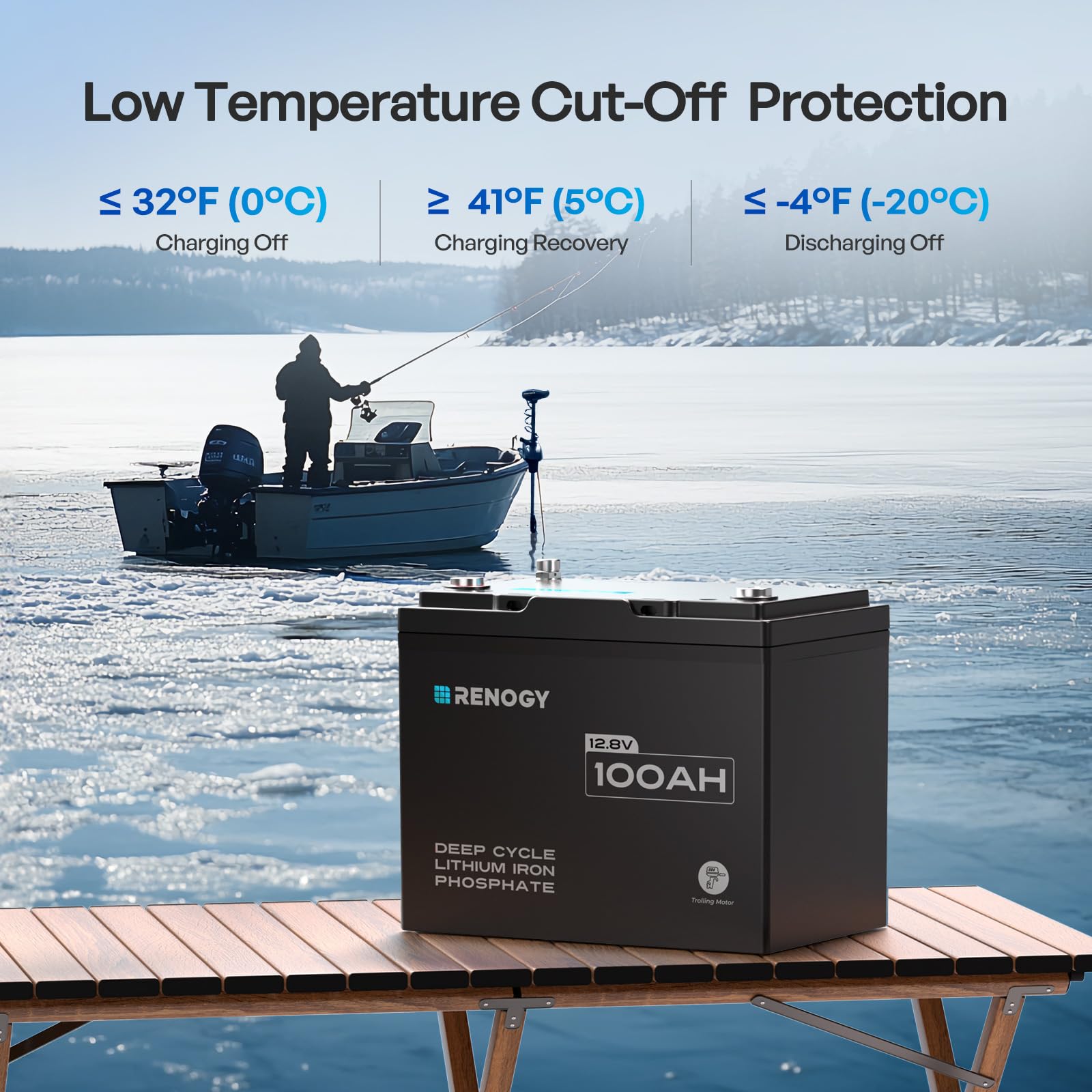

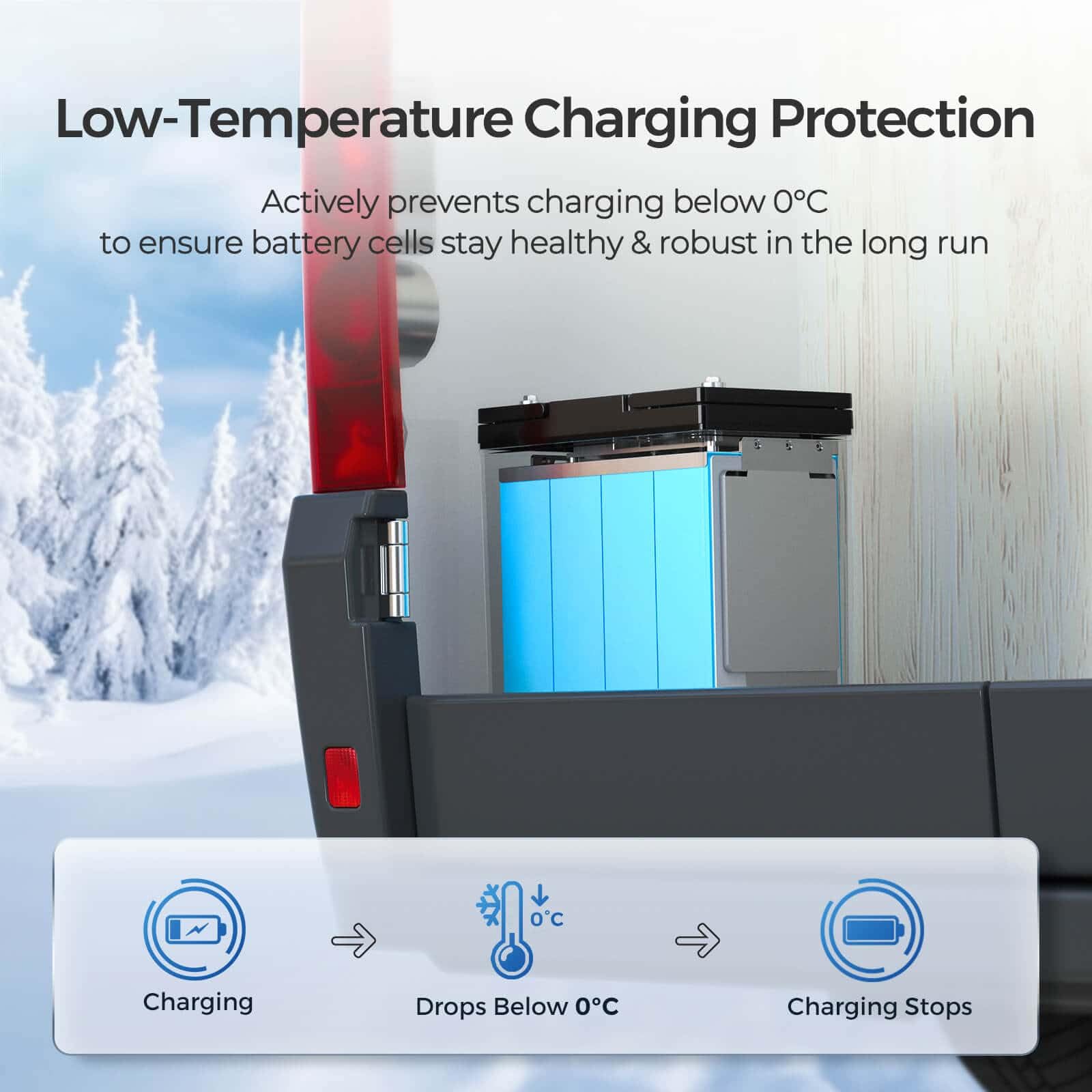

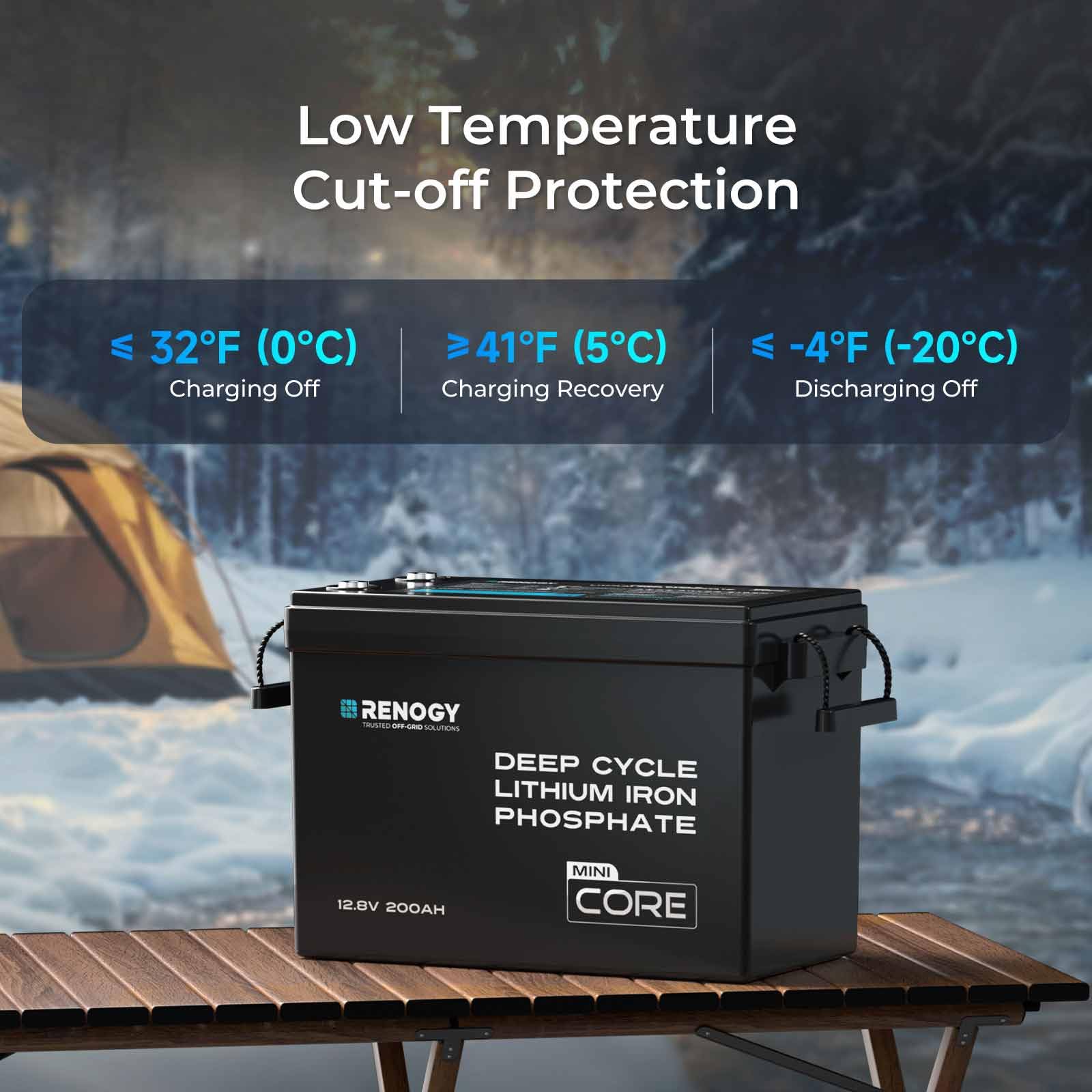

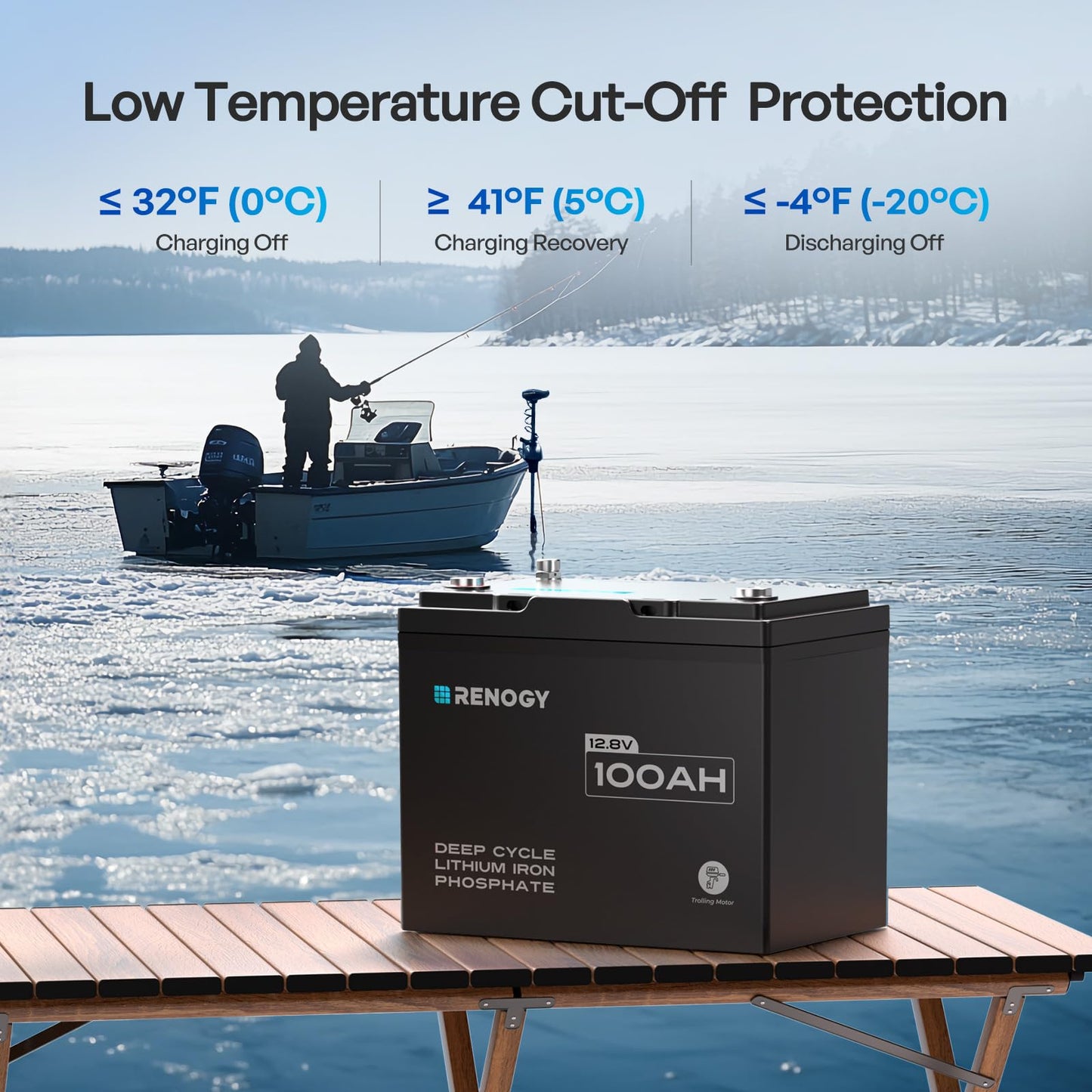

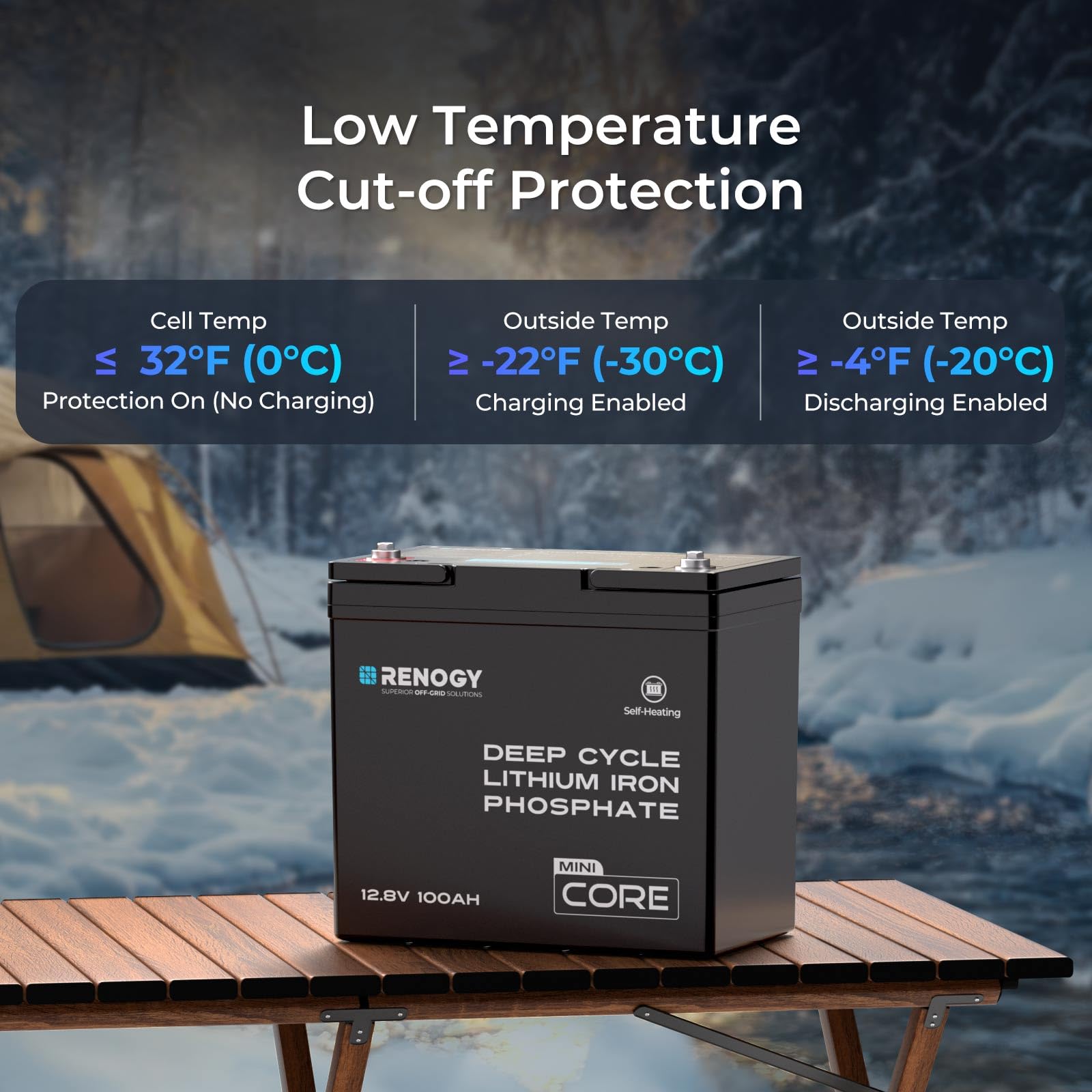

Charge-temperature range: 0°C to 60°C
Discharge-temperature range: -20°C to 65°C
Terminal hardware: M8 bolts
Bank expansion: Up to 4 series × 4 parallel when manufacturer requirements are followed
Maximum stated bank energy: 61.44 kWh
Product overview

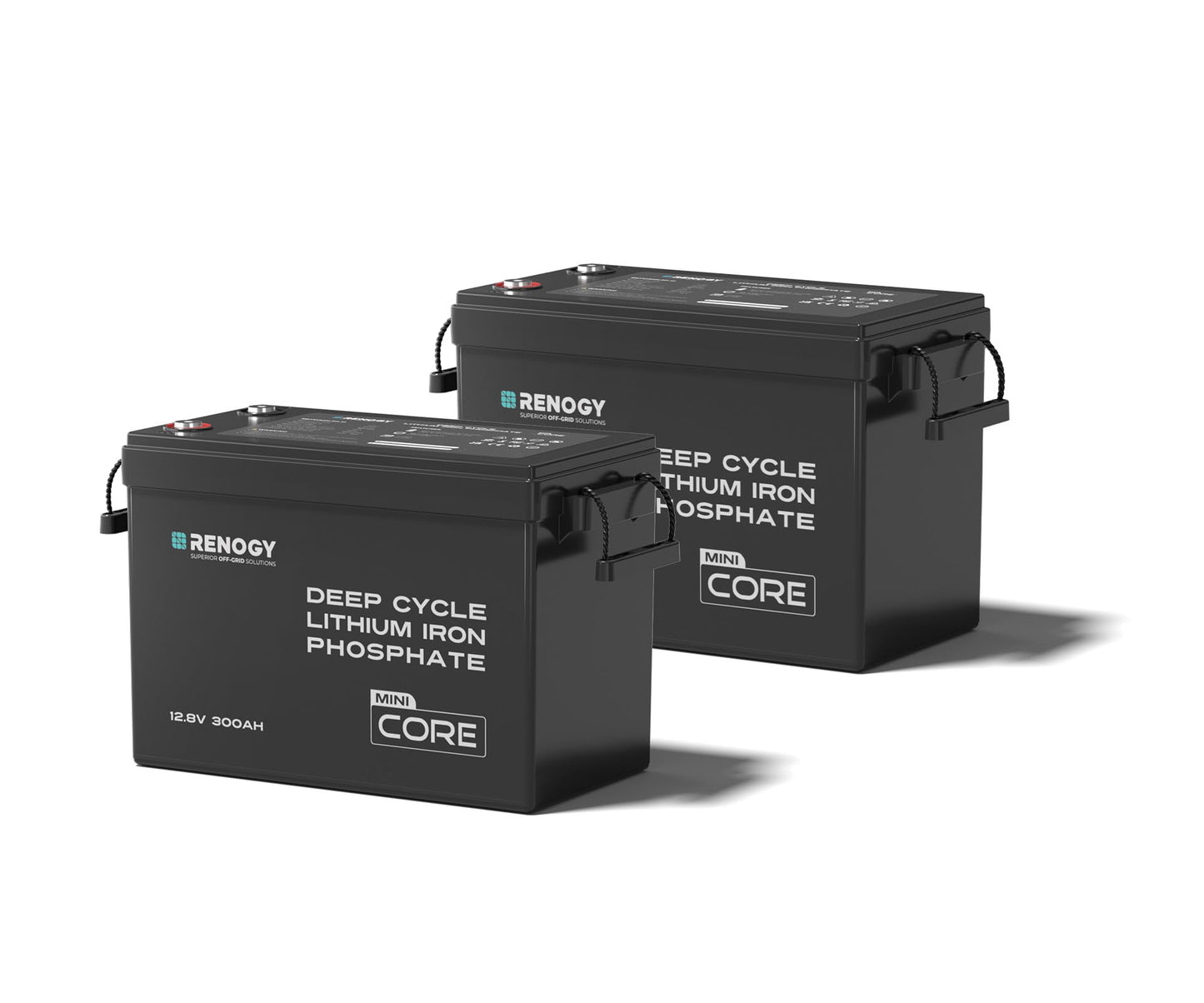

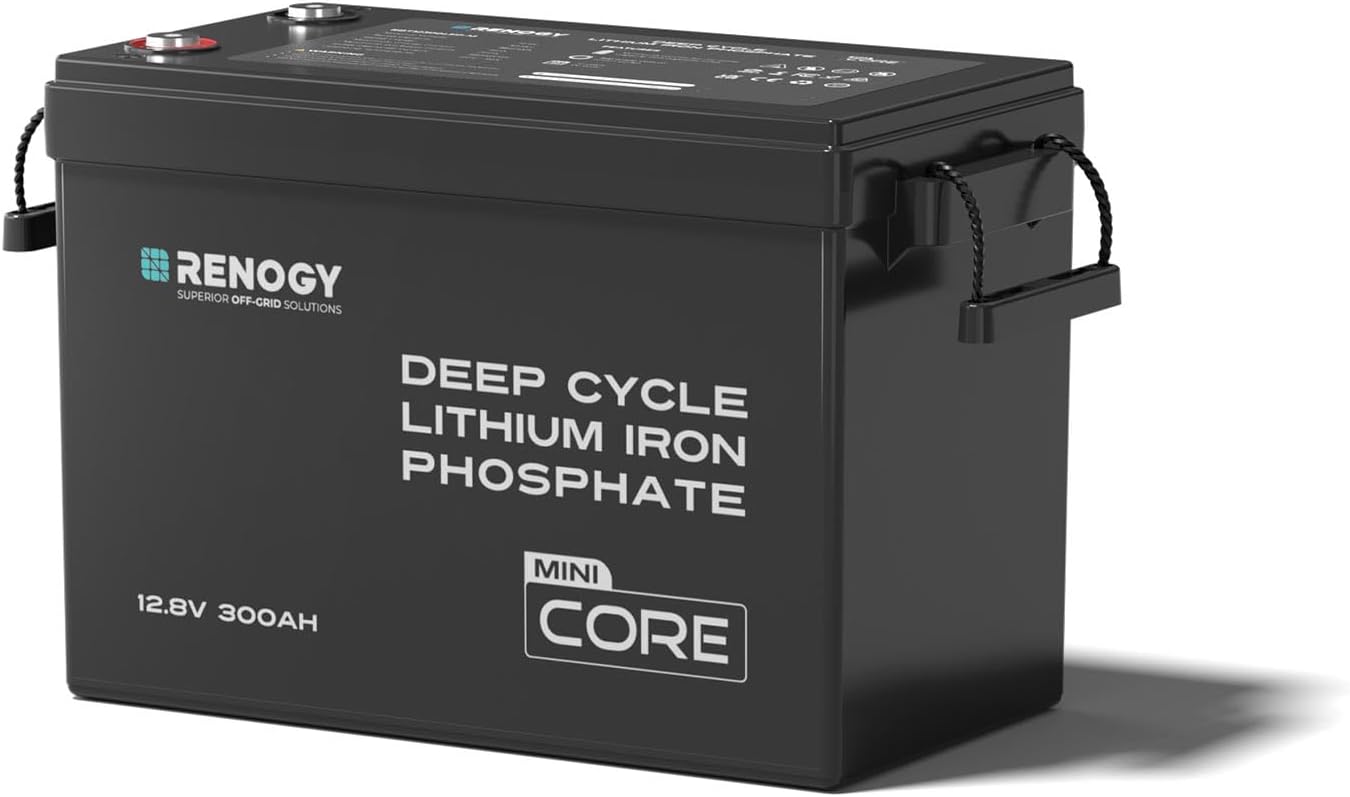

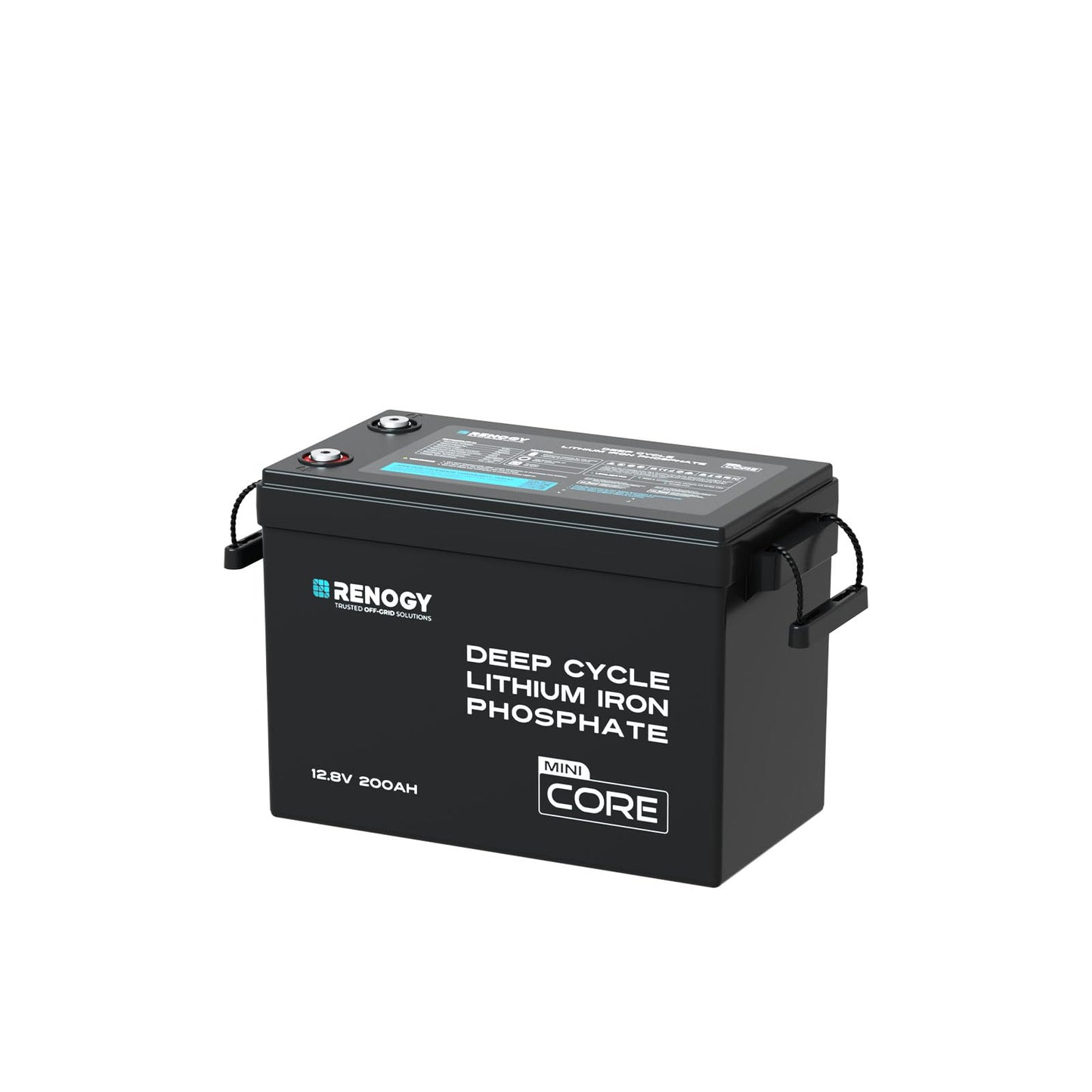

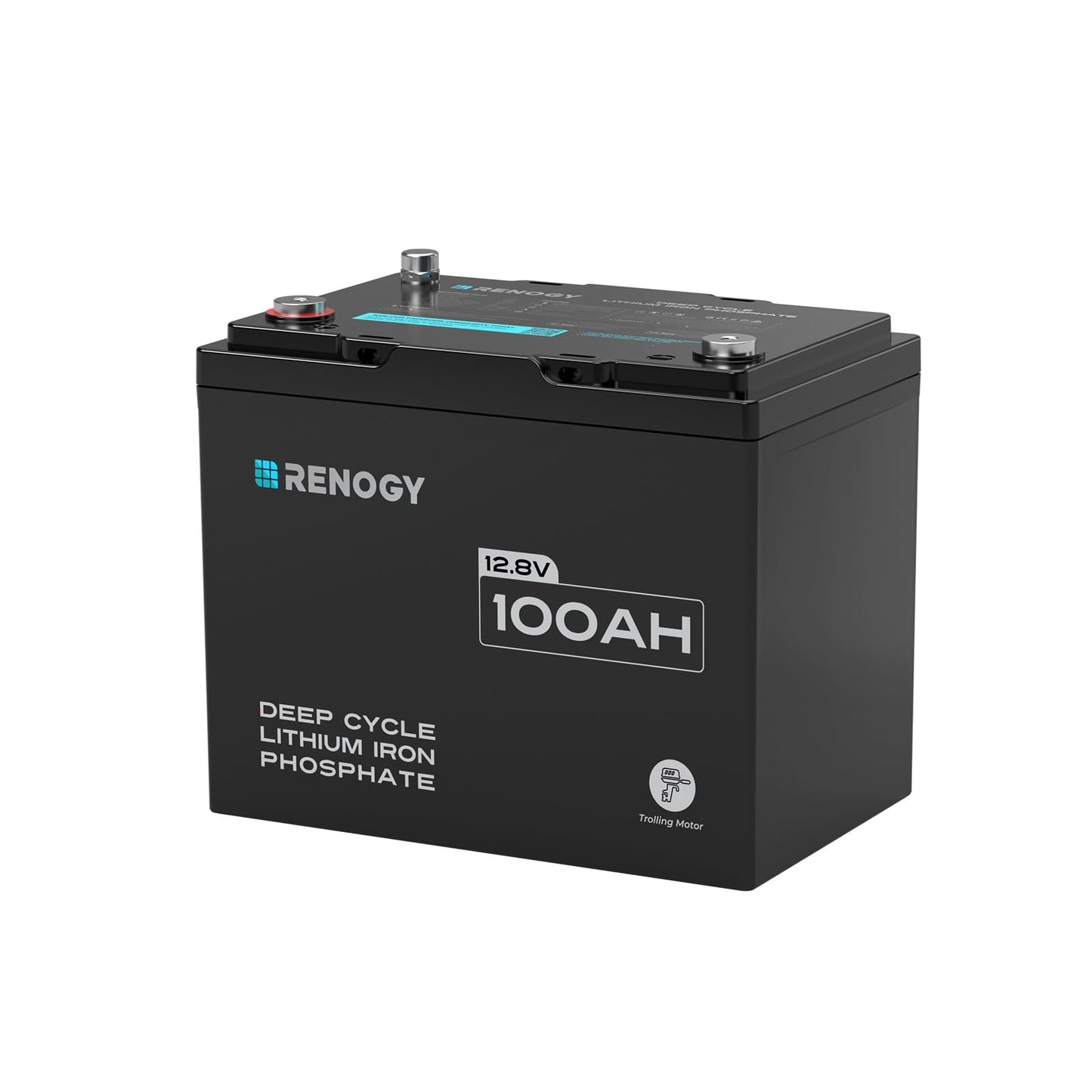

The Renogy Core Mini is a compact lithium battery intended for energy storage where usable capacity and installation space both matter. Multiple capacities and feature packages are grouped in this listing, so the selected option determines the exact battery supplied.
Suitable applications
RV, marine, cabin, backup-power and off-grid solar battery banks designed for the selected 12 V LiFePO4 model.
Before ordering
Use a charger and inverter profile approved for the selected battery. Confirm continuous and peak current, operating-temperature limits, series/parallel permissions, dimensions, terminal layout and required certifications before building the bank.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
