Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
PV input voltage range: 60–150 V DC
Maximum PV input power: 4400 W
Battery voltage: 48 V
Rated inverter power: 3500 W
Product type: Hybrid all-in-one inverter
Integrated MPPT controller rating listed: 150 V, 80 A
Other product-family options include 12 V, 2000 W and 3000 W models
Peak surge output: 7000 W
Integrated AC charger: 40 A
UPS switchover time: 10 ms
Idle consumption: 48 W

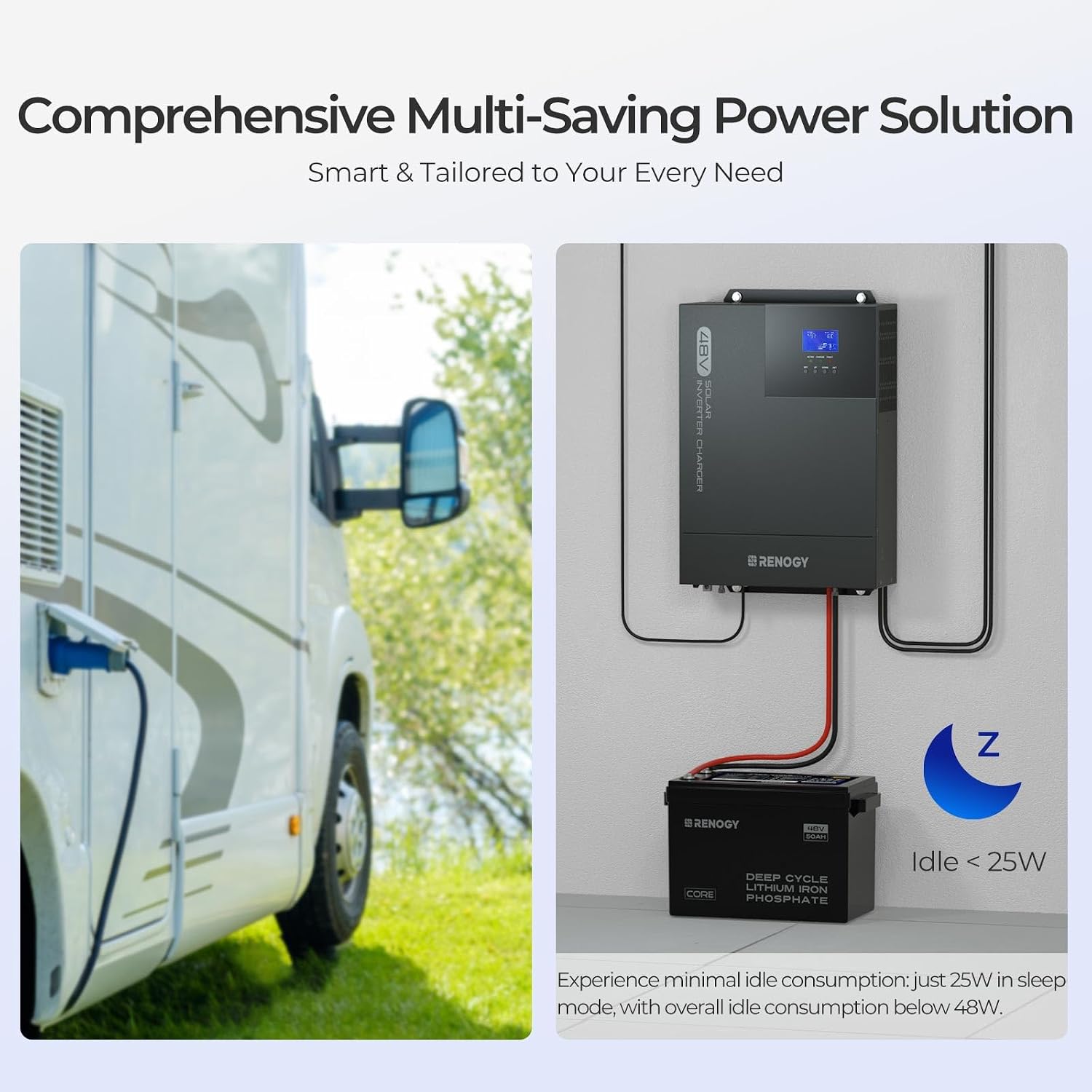

Power-saving-mode consumption: 25 W
Battery compatibility: AGM/sealed, gel, flooded and lithium 48 V batteries

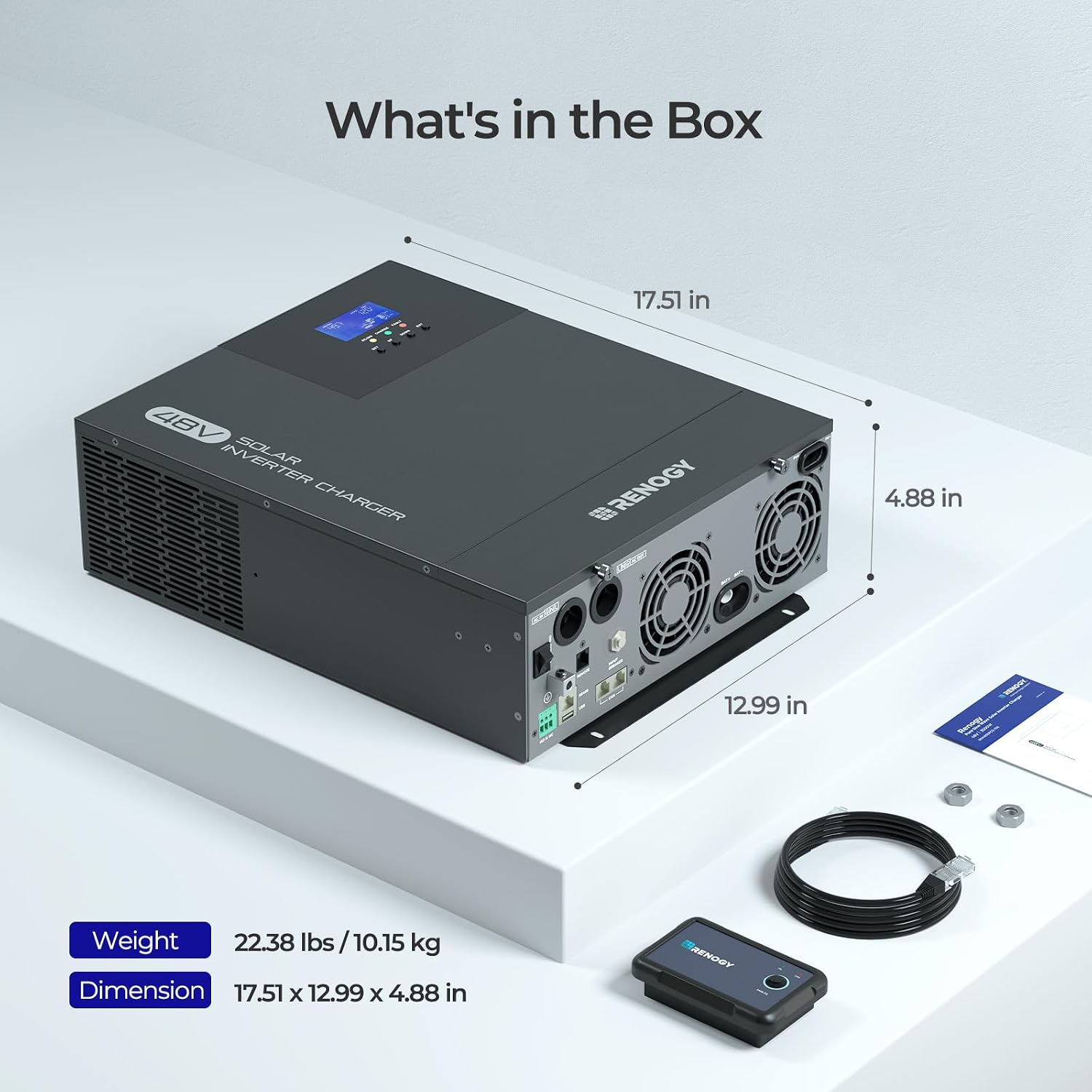

Dimensions: 17.51 × 12.99 × 4.88 in / 444.8 × 330 × 124 mm

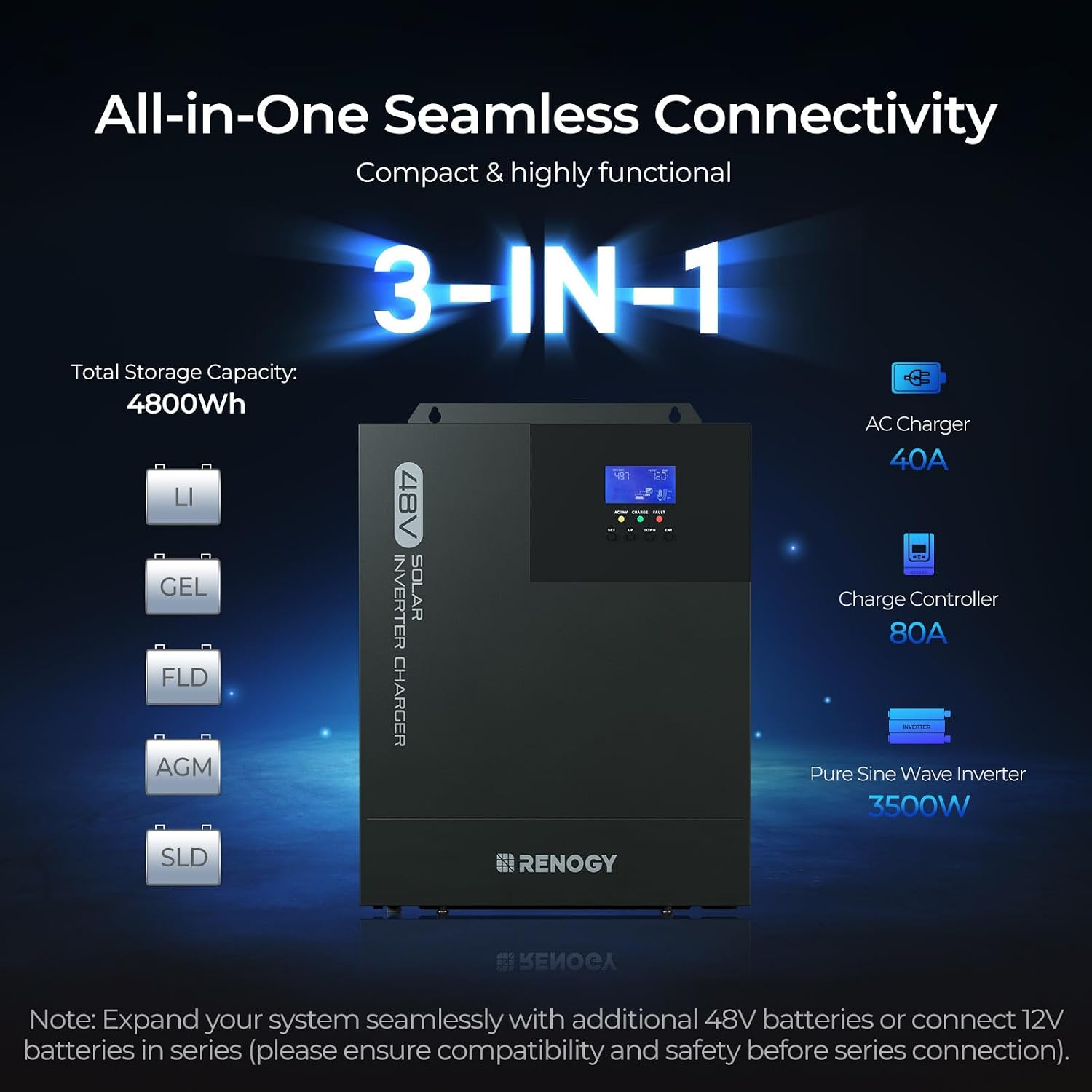

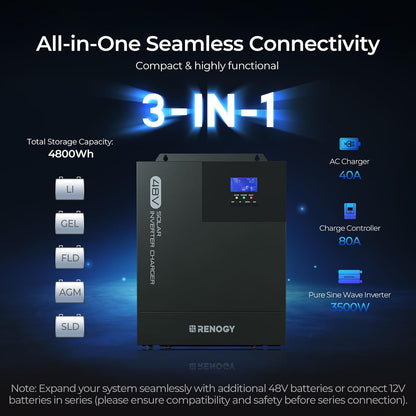

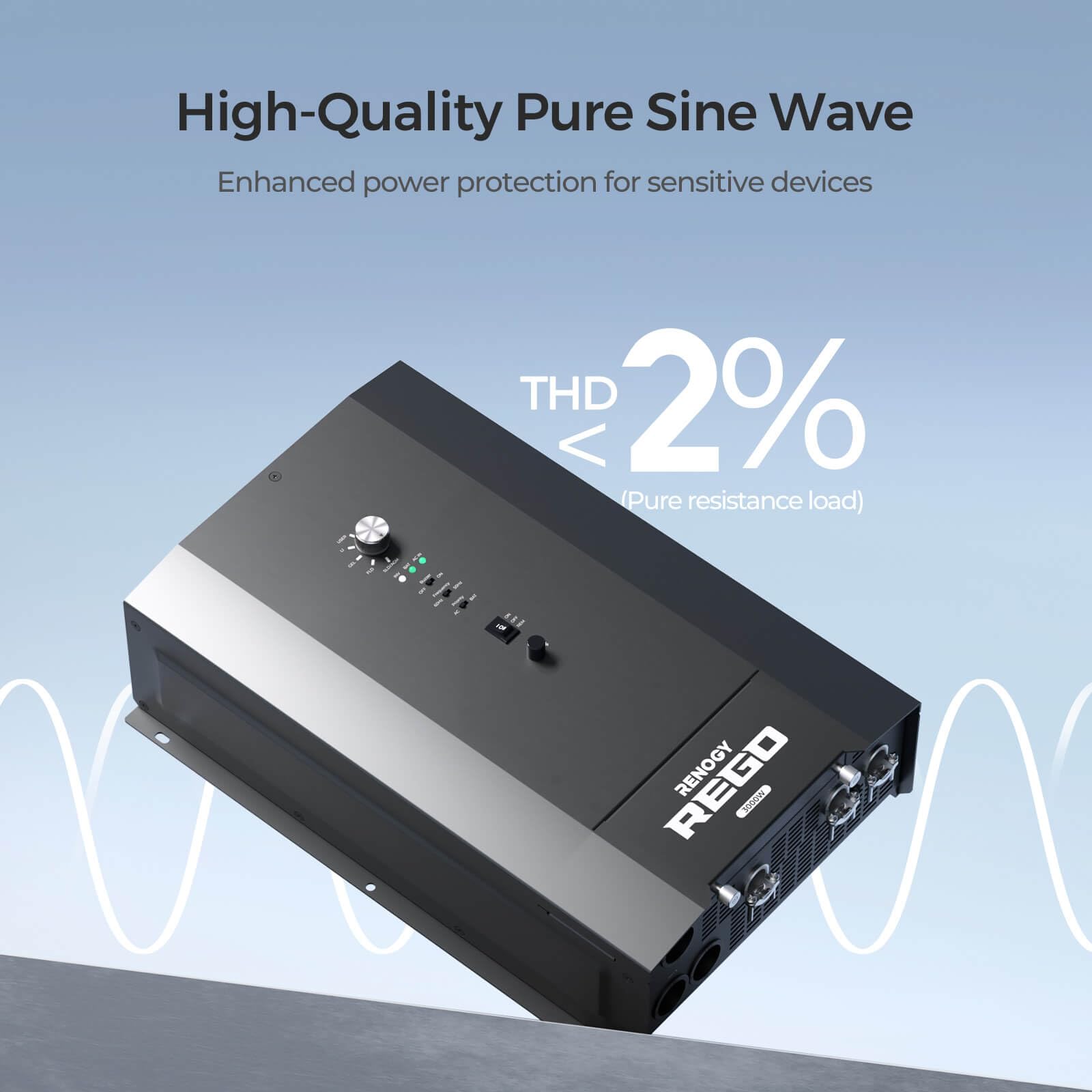

Operating mode: Pure sine-wave all-in-one inverter, solar controller and charger
Product overview

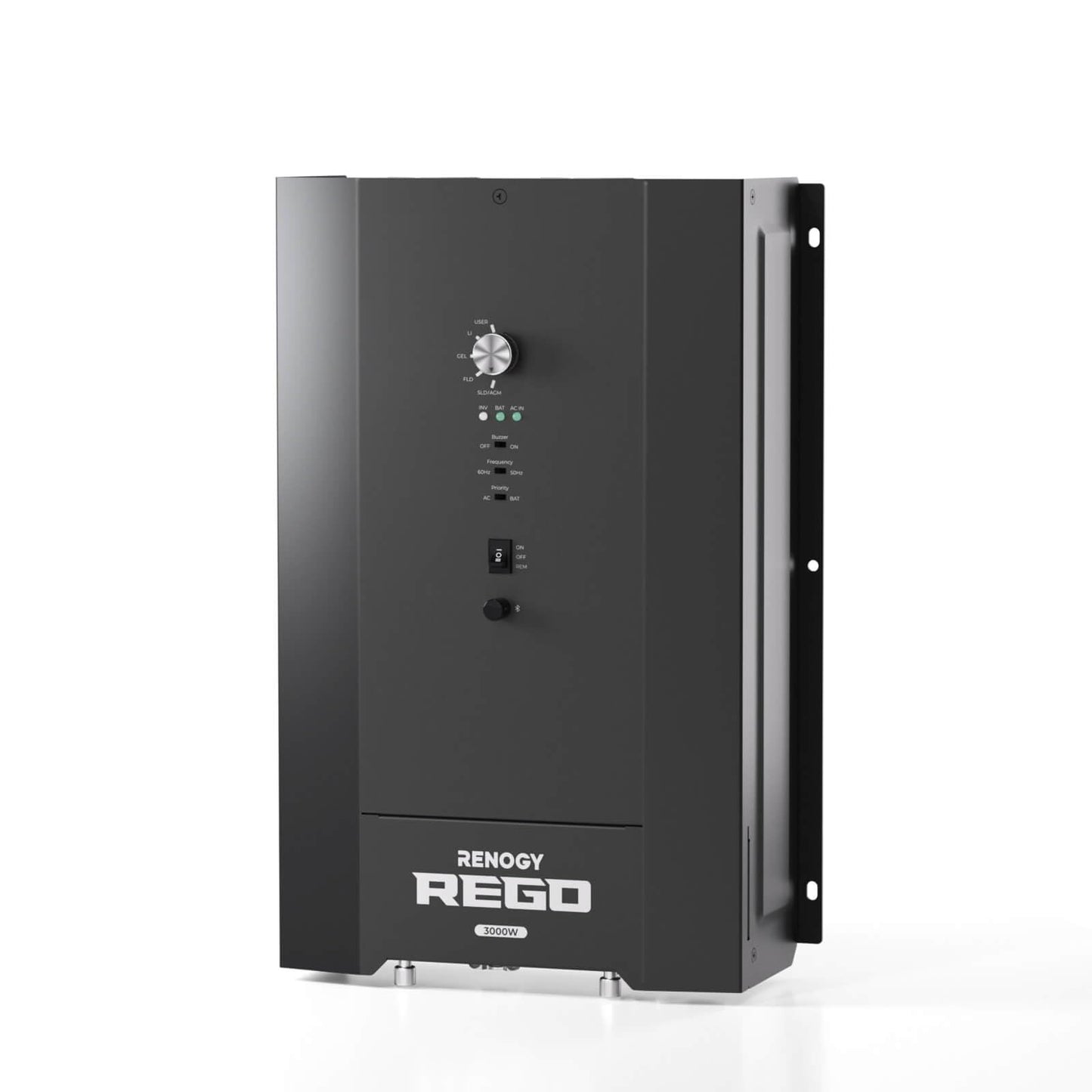

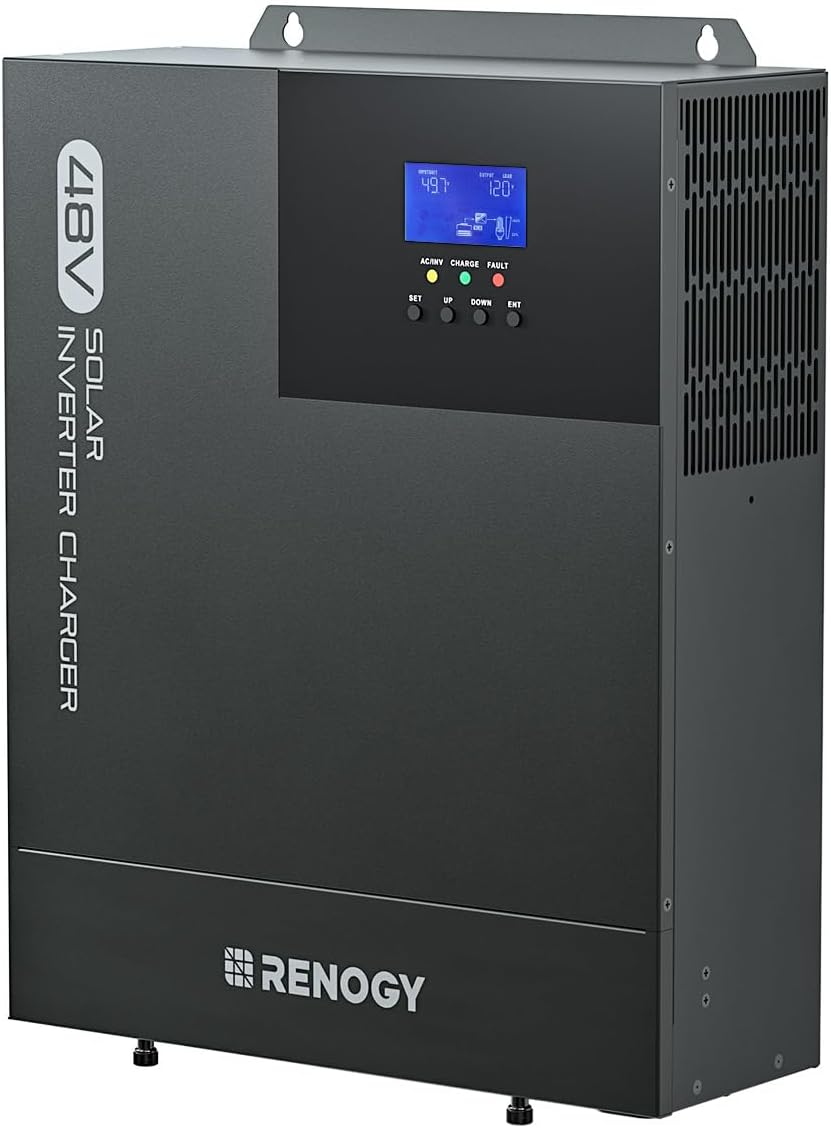

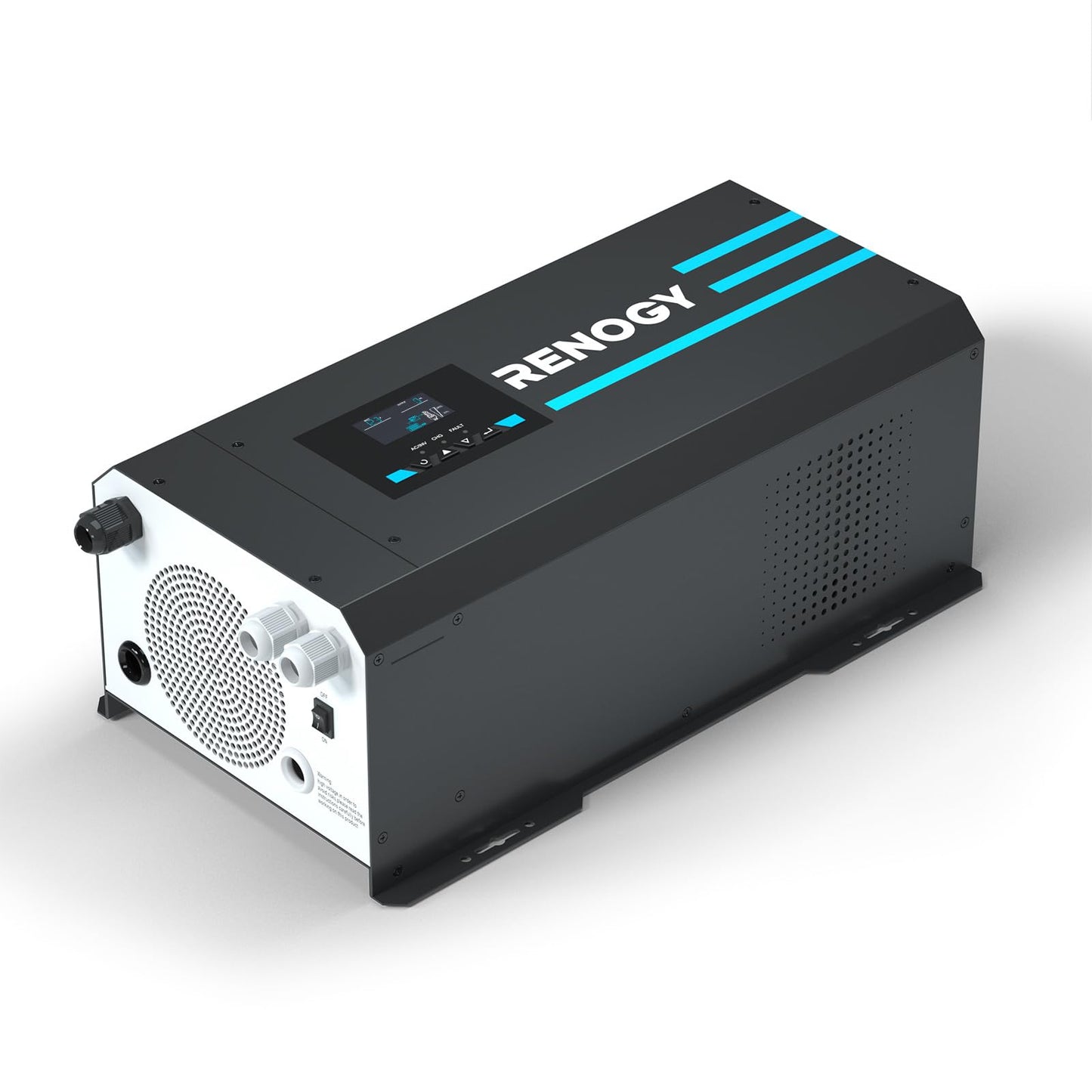

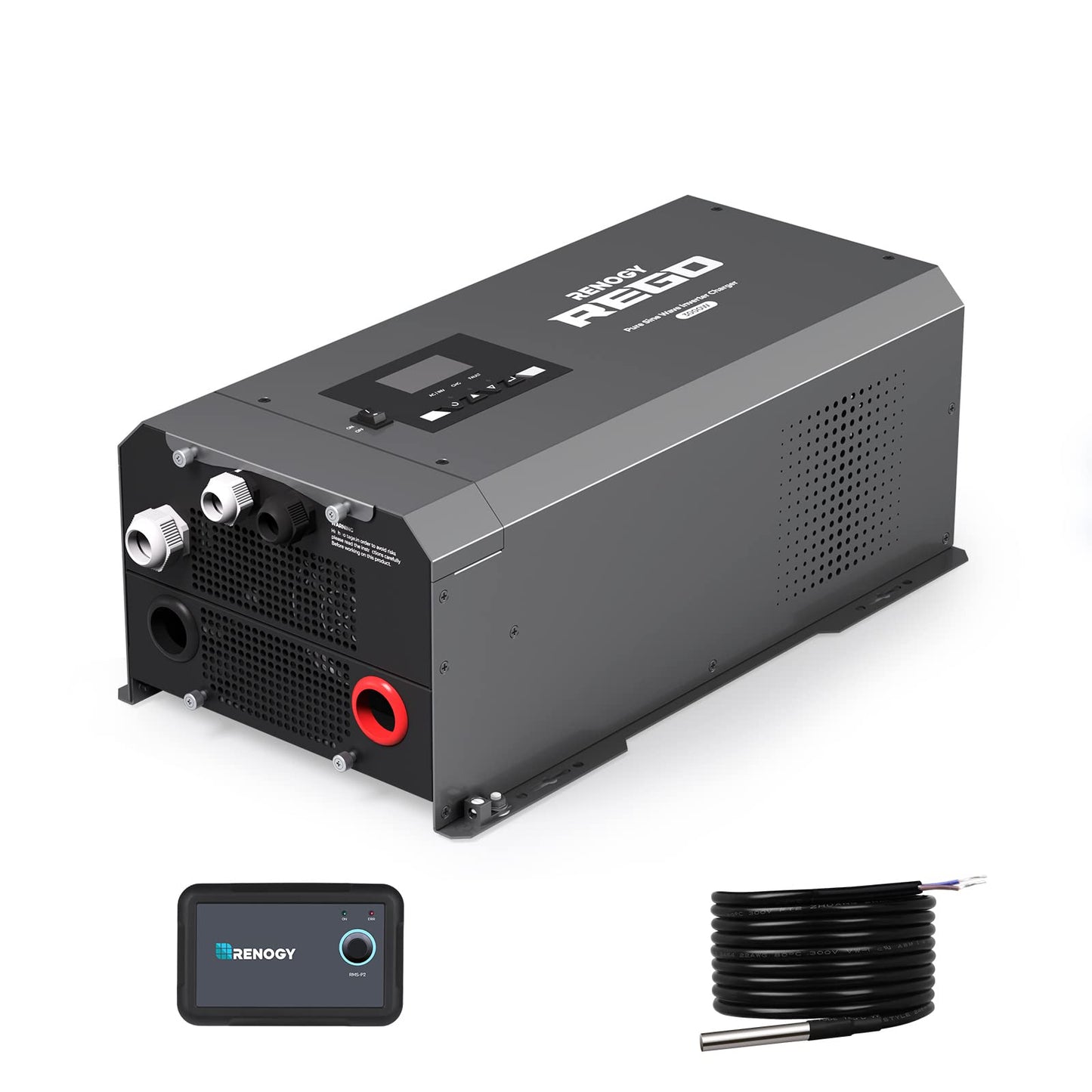

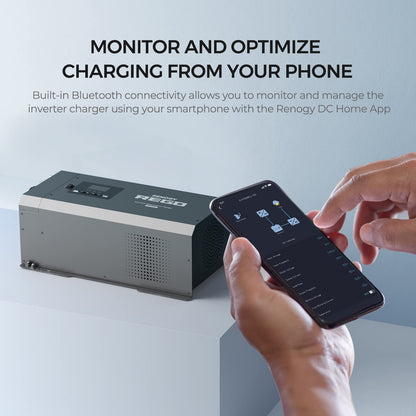

This Renogy hybrid inverter combines a 48 V, 3500 W inverter with an integrated MPPT solar charge controller. The all-in-one arrangement can reduce separate components in a compatible off-grid or backup installation.
Suitable applications
48 V solar battery systems whose PV array, battery bank and AC loads fit the selected inverter’s complete technical limits.
Before ordering
Confirm battery voltage, continuous and surge output, PV input window, charging limits, neutral/ground arrangement, conductor size and overcurrent protection. High-power inverter installation should be completed or reviewed by a qualified person.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
