Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
Headline wire size: 12 AWG
Headline length: 20 ft per cable
Quantity: One red/black pair

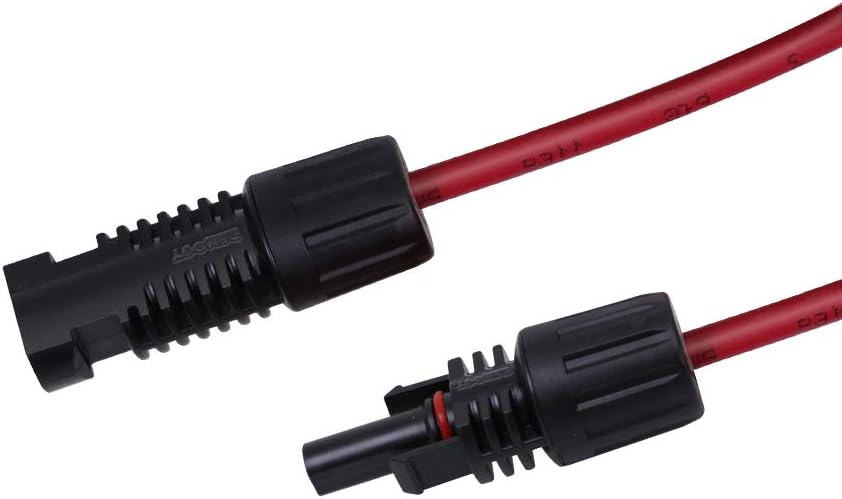

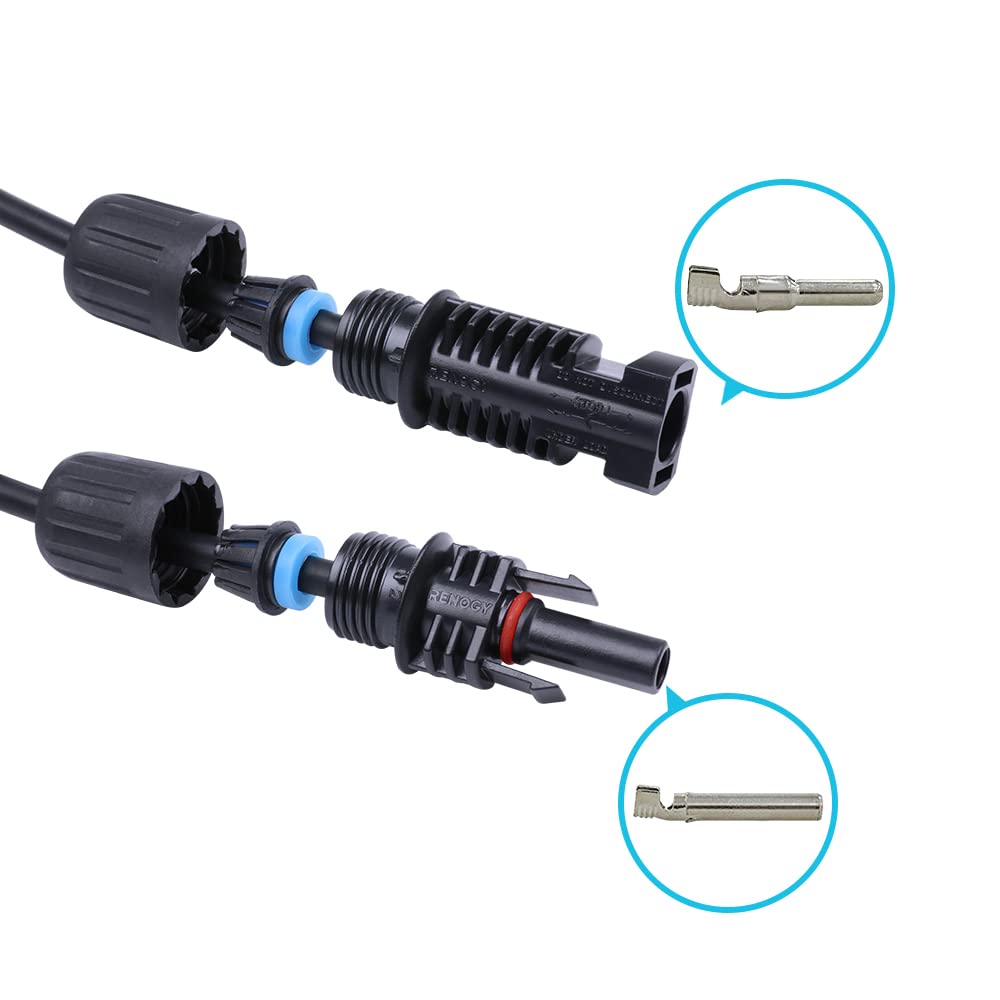

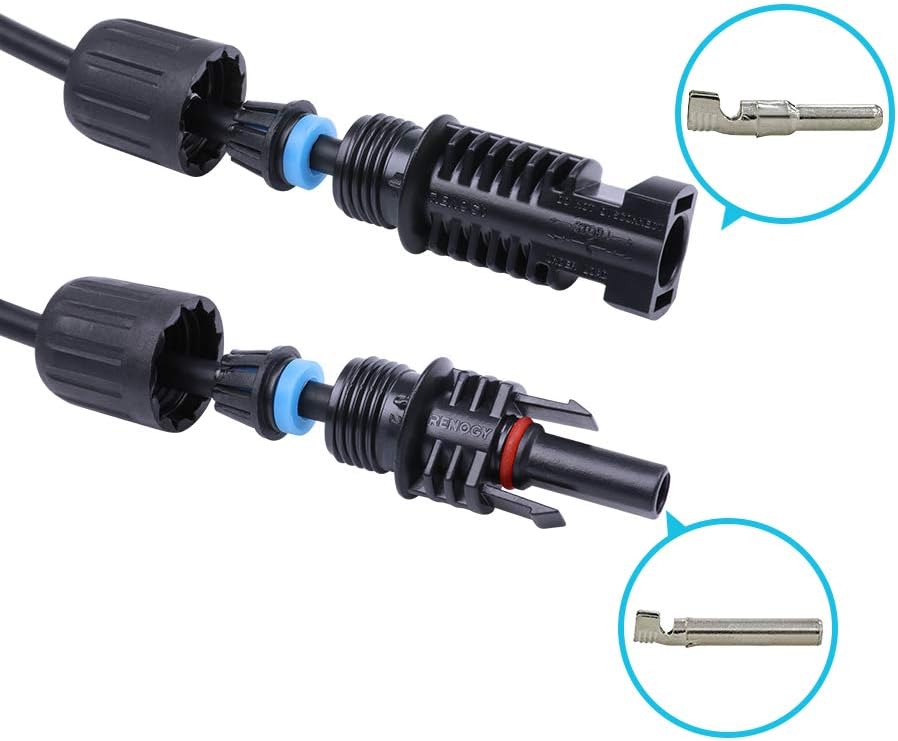

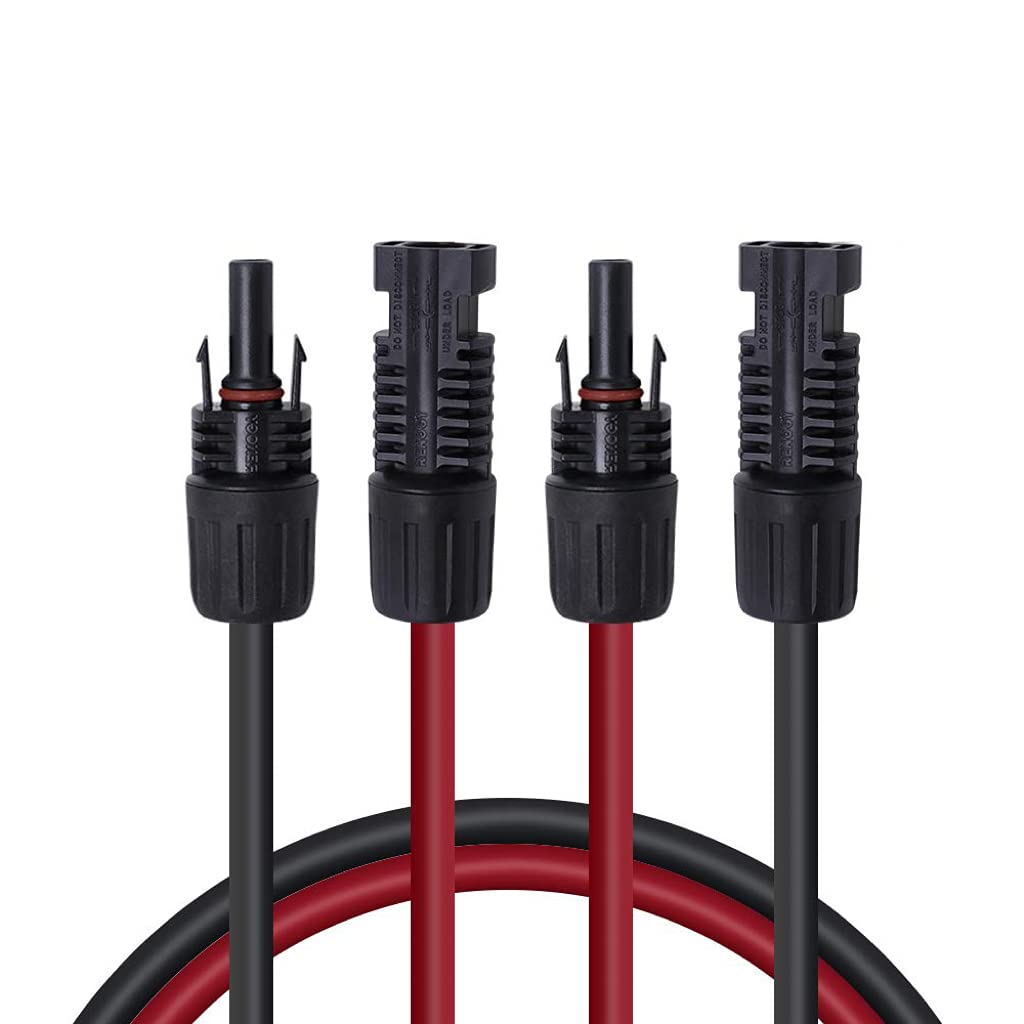

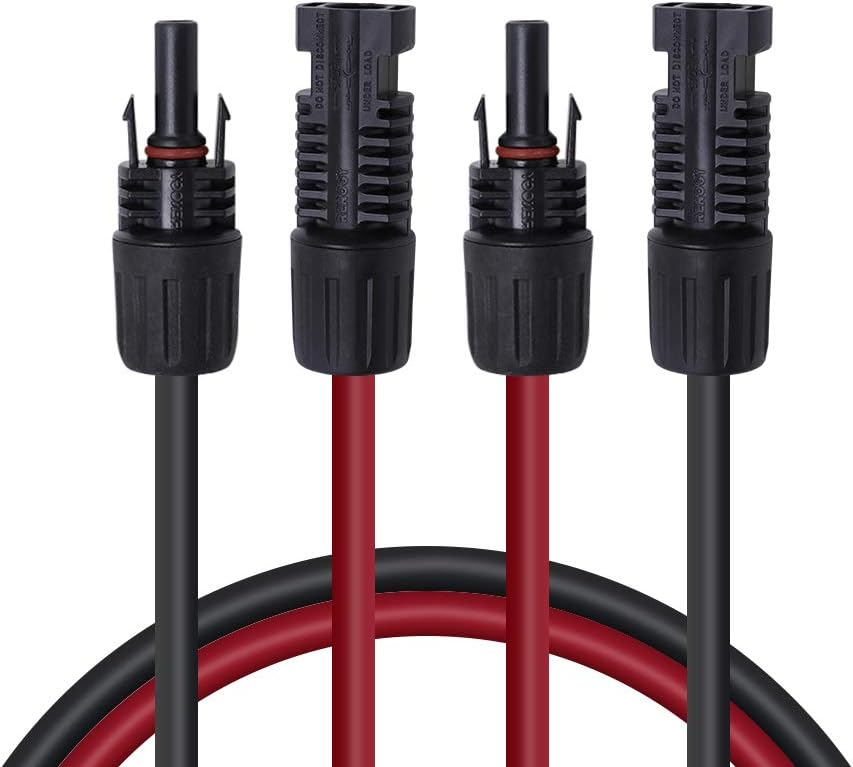

Connections: Female and male solar connectors
Other listed options: 5 ft or 10 ft in 12 AWG, and 10 ft in 10 AWG
Rated voltage: 600/1000 V
Temperature range: -40°F to 185°F / -40°C to 85°C
Conductor cross-sectional area: 4.0 mm²
Number of conductor strands listed: 56

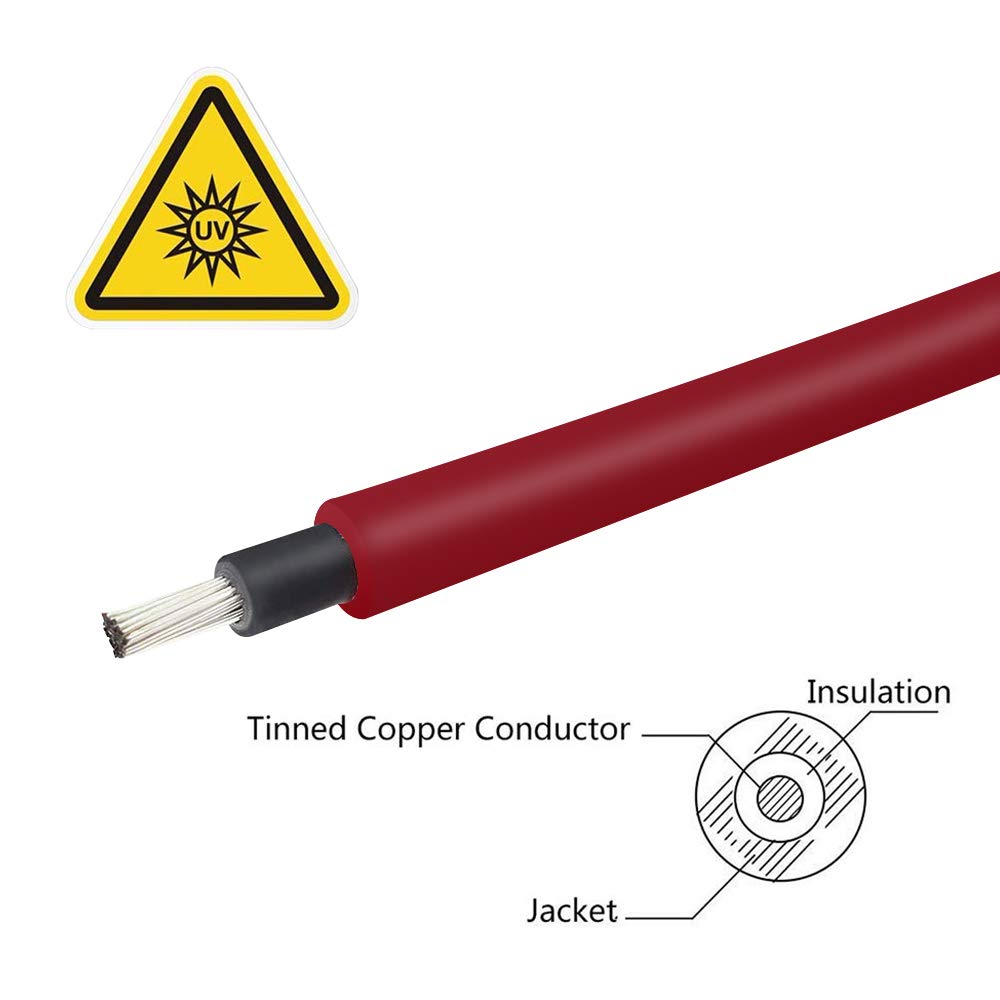

Minimum insulation-wall thickness: 0.78 mm
Minimum sheath-wall thickness: 0.97 mm

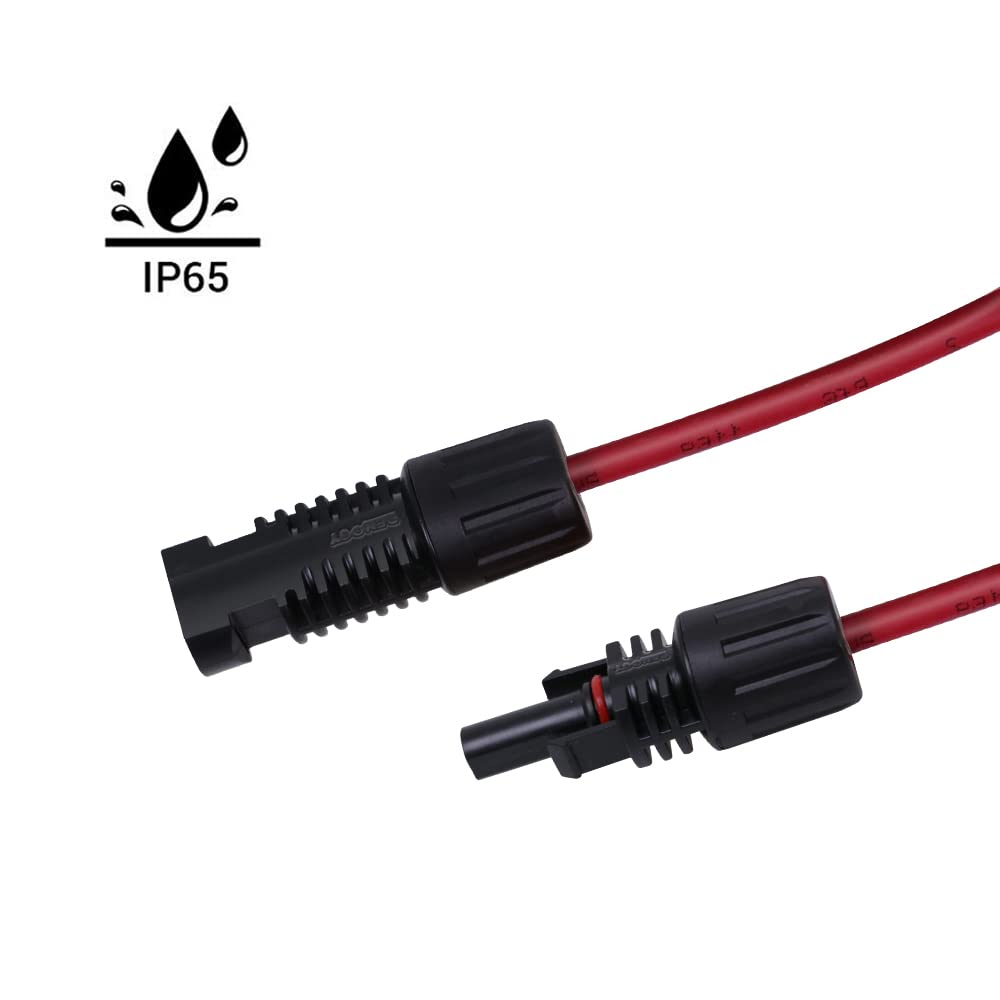

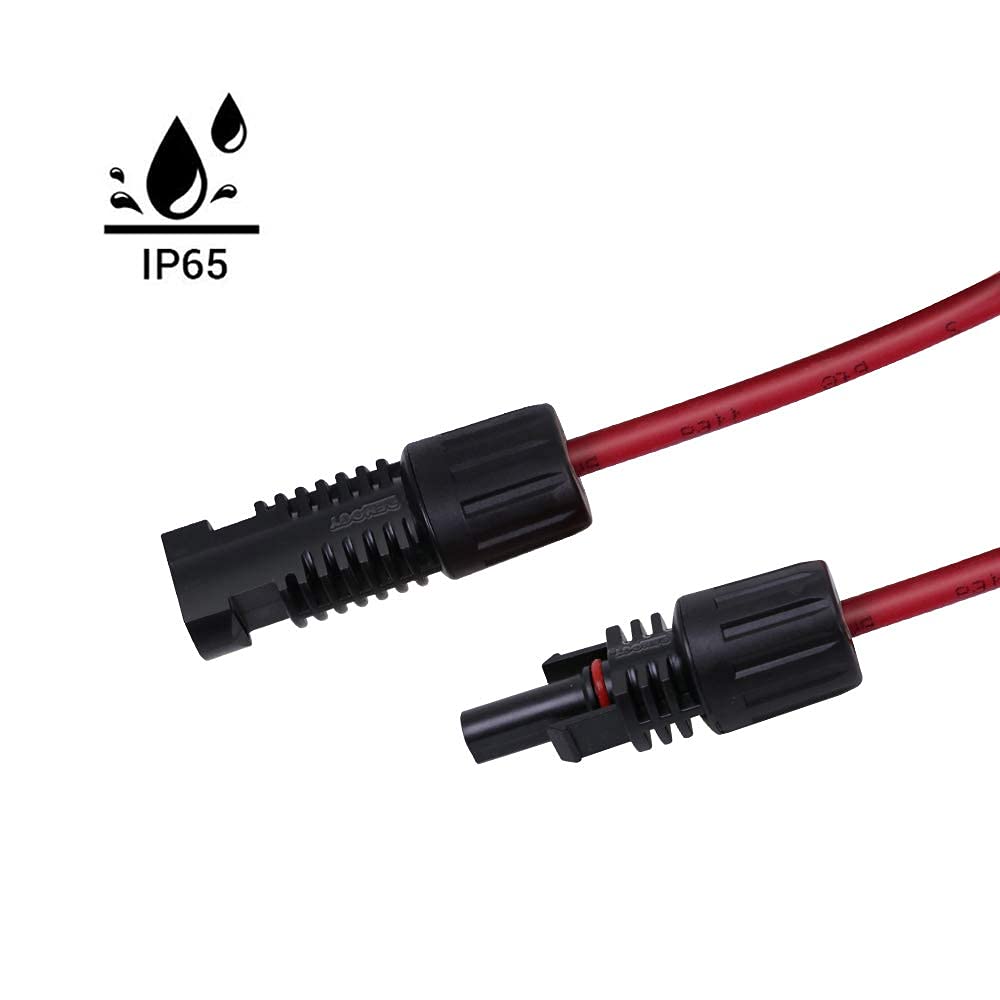

Connector ingress protection: IP65

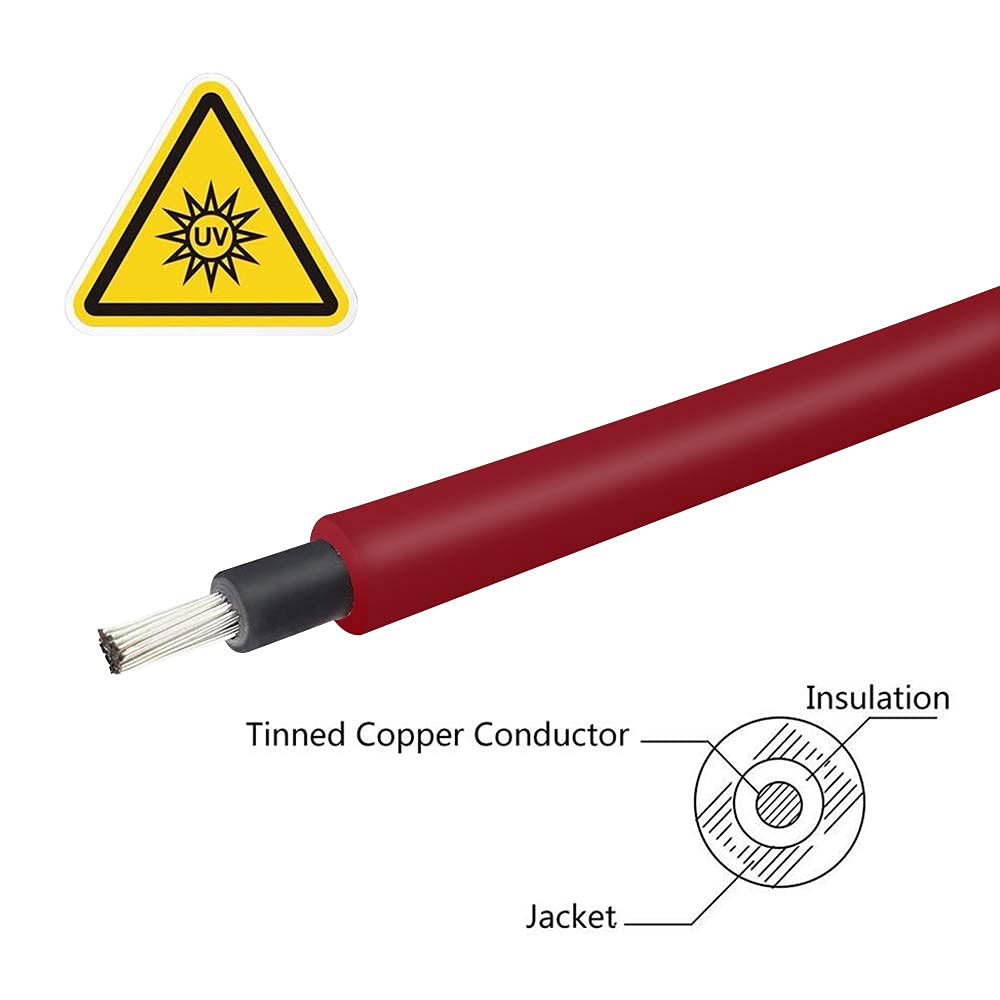

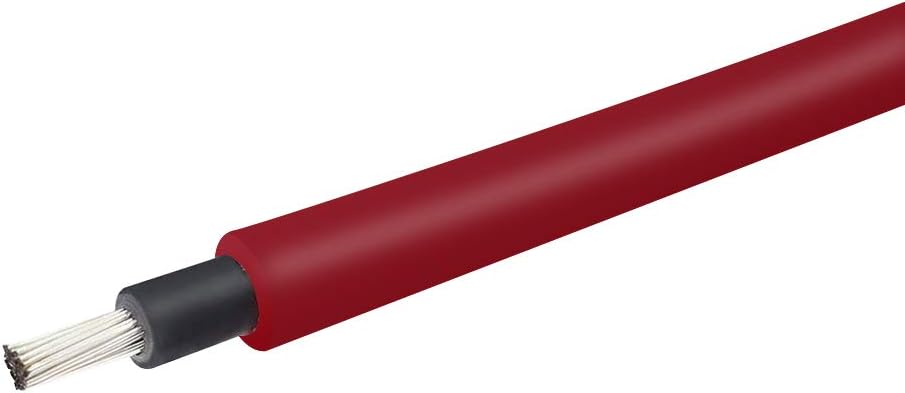

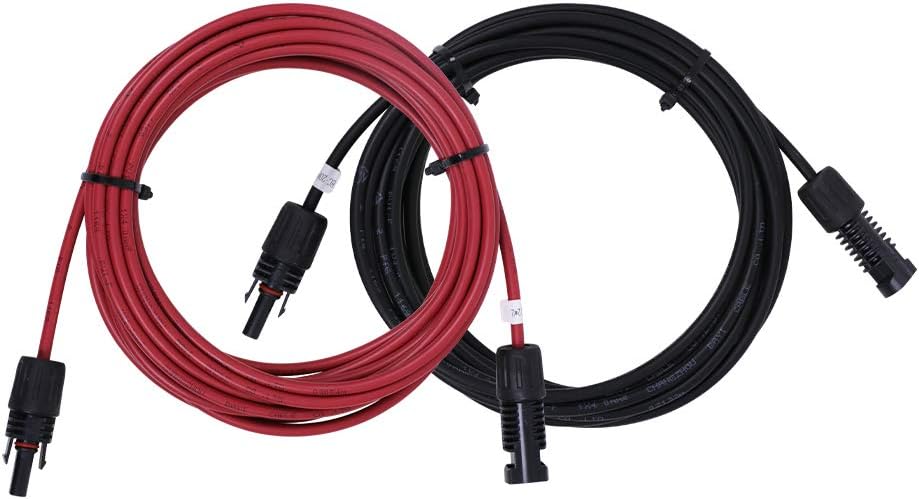

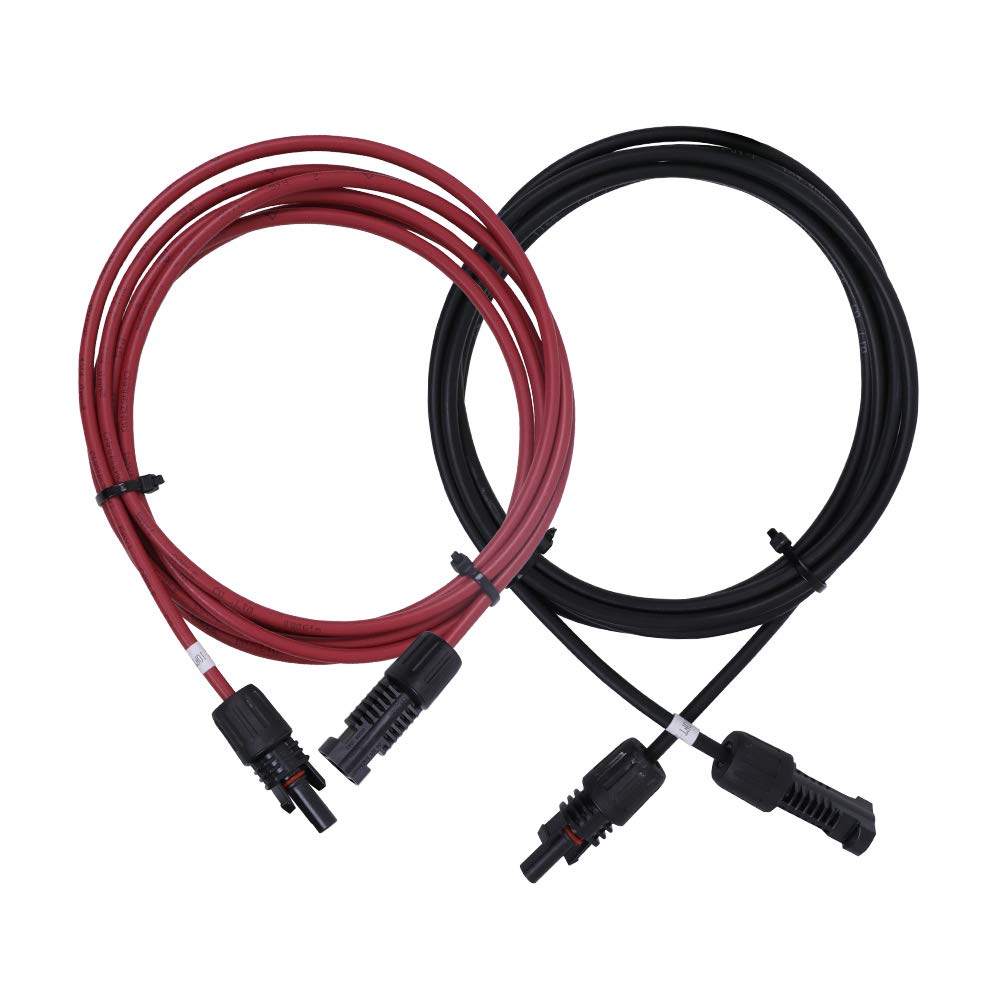

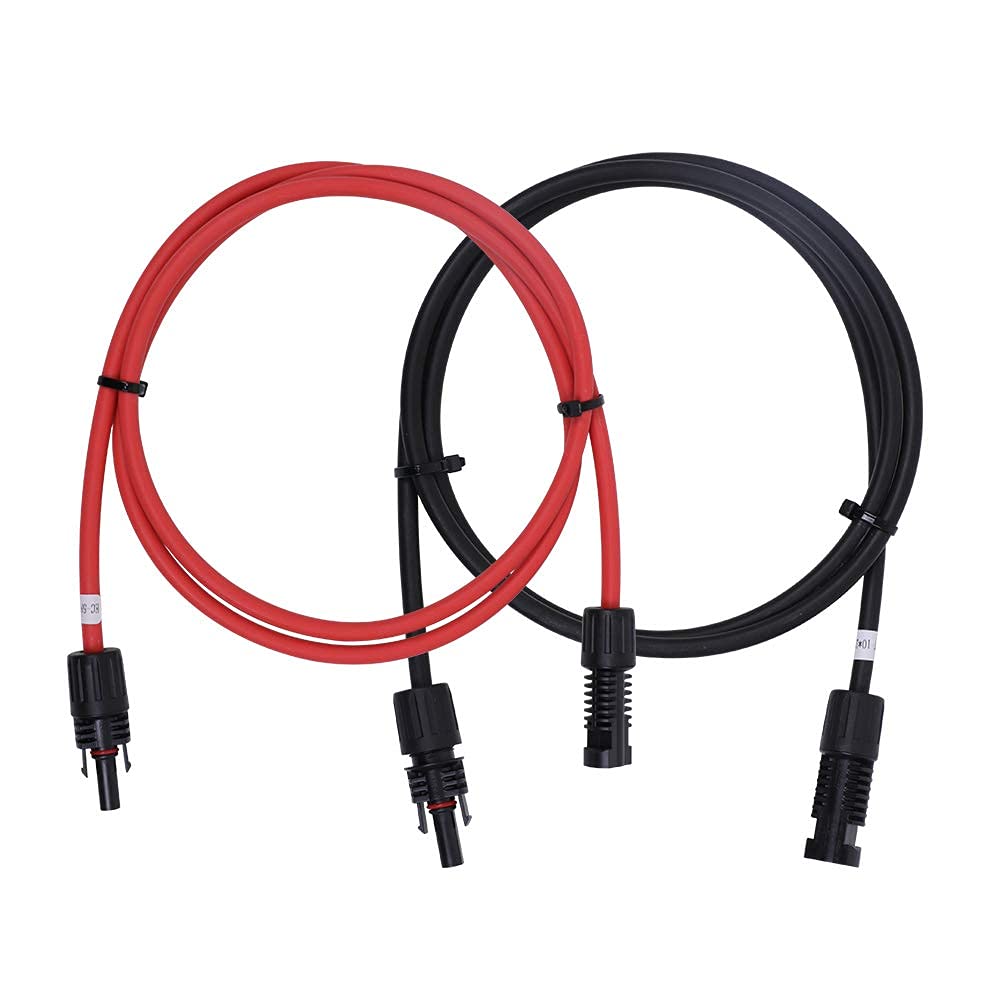

Cable construction: One 20 ft red lead and one 20 ft black lead
Product overview
This Renogy red-and-black extension pair is designed to increase the distance between compatible solar components without field-splicing the supplied leads. Multiple lengths and gauges are available in the same listing.
Suitable applications

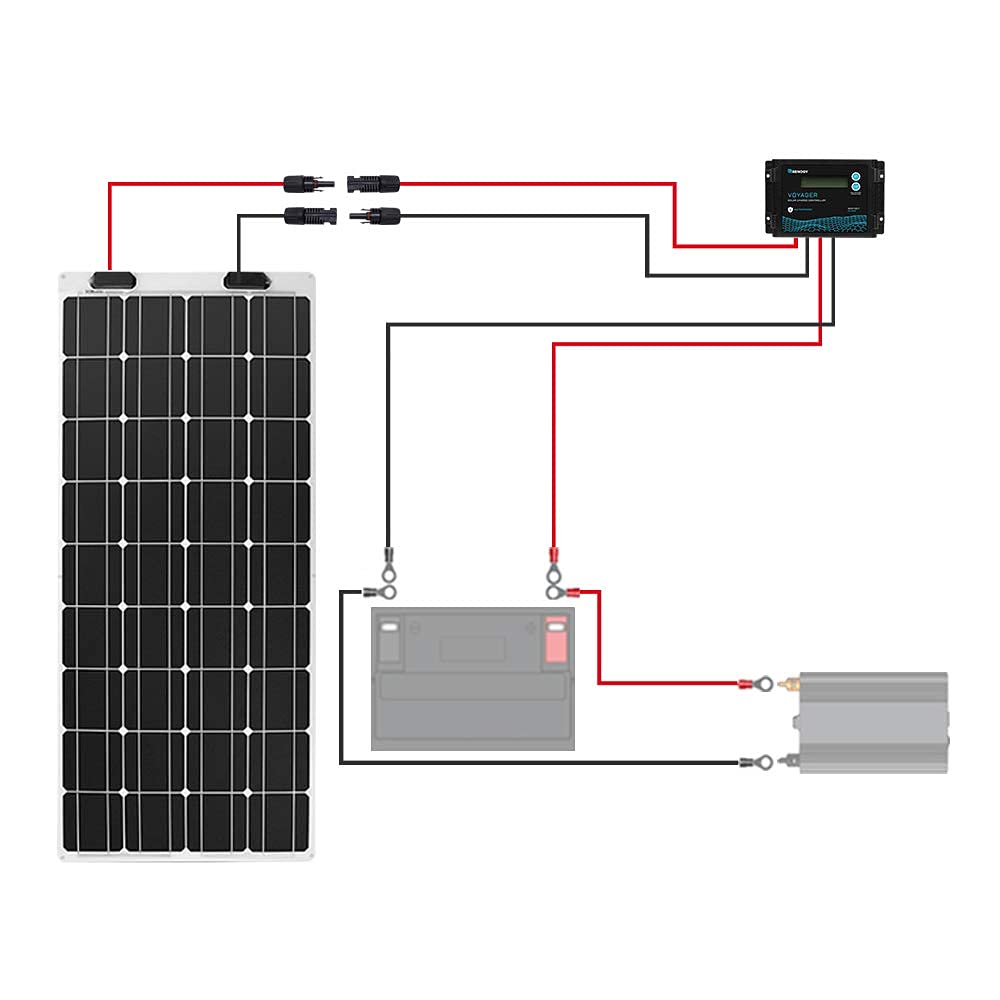

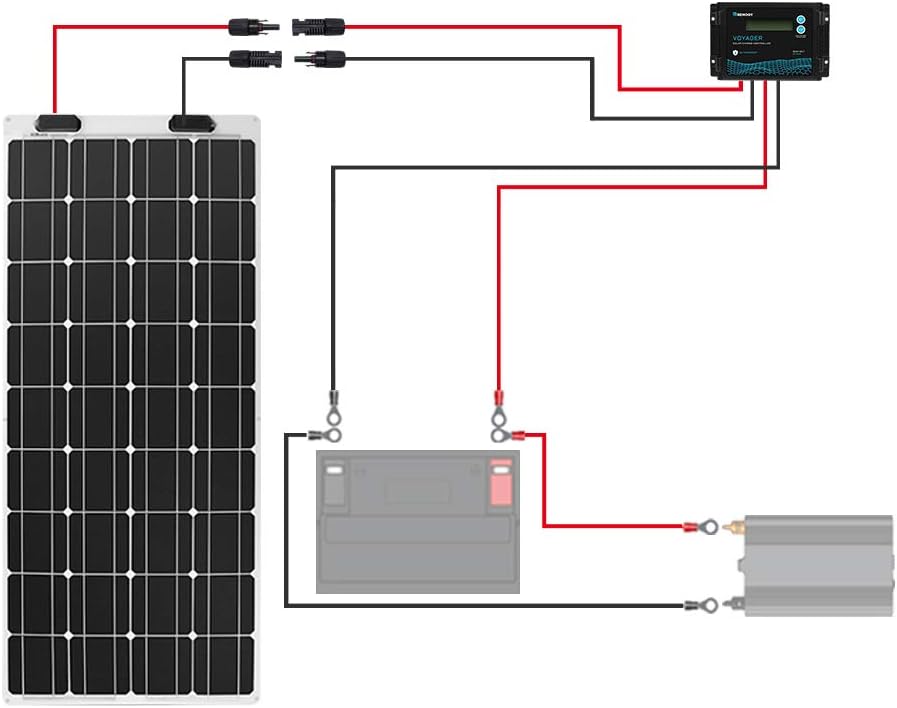

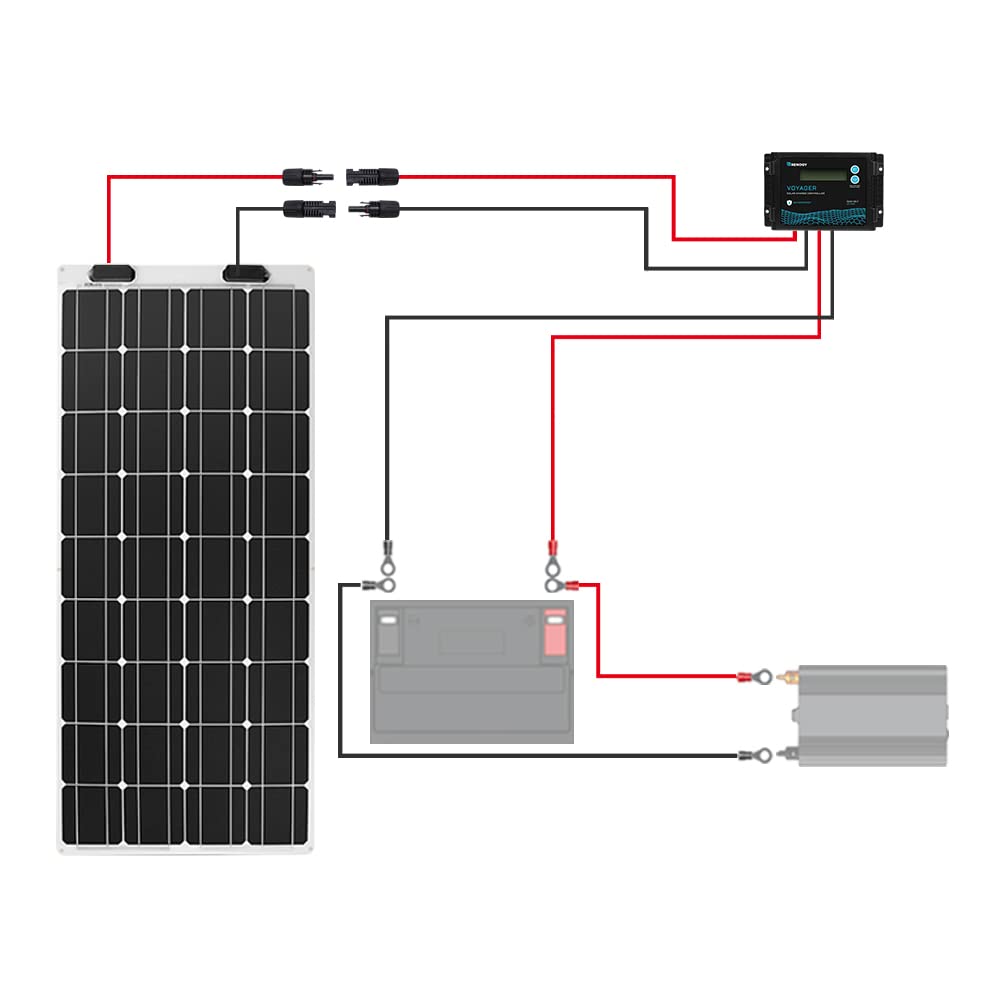

PV wiring between compatible panels and balance-of-system equipment where the selected cable meets ampacity and voltage-drop requirements.
Before ordering
Confirm conductor material, gauge, insulation rating, polarity, connector compatibility, ampacity and voltage drop for the full circuit length. Use correctly rated overcurrent protection and approved termination tools.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
