Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
Rated output power: 2000 W
Input voltage: 12 V DC
Output voltage: 110 V AC
Waveform: Pure sine wave
Listed conversion efficiency: Over 90%

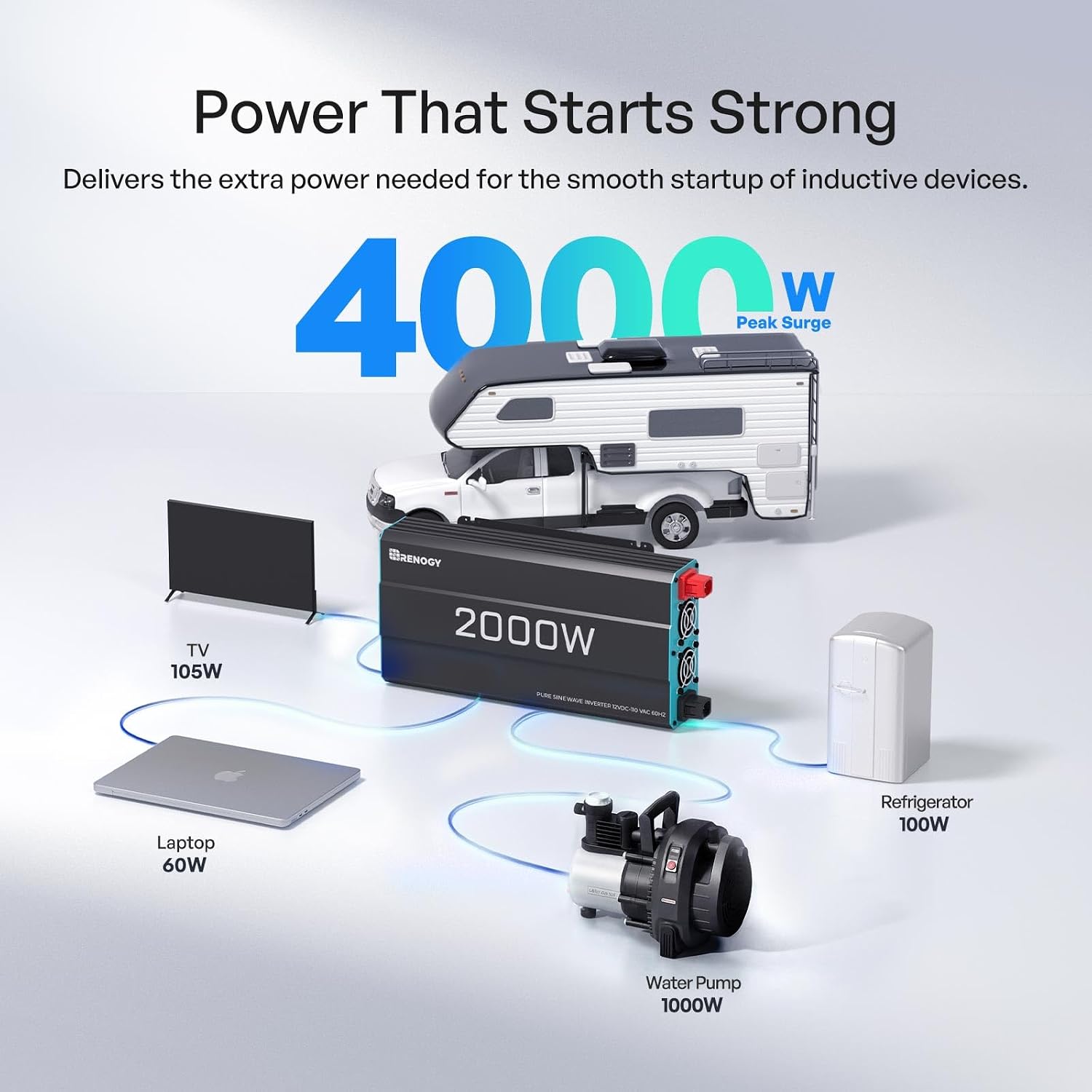

Surge power: 4000 W
Output voltage and frequency: 120 V AC, 60 Hz ±0.1%

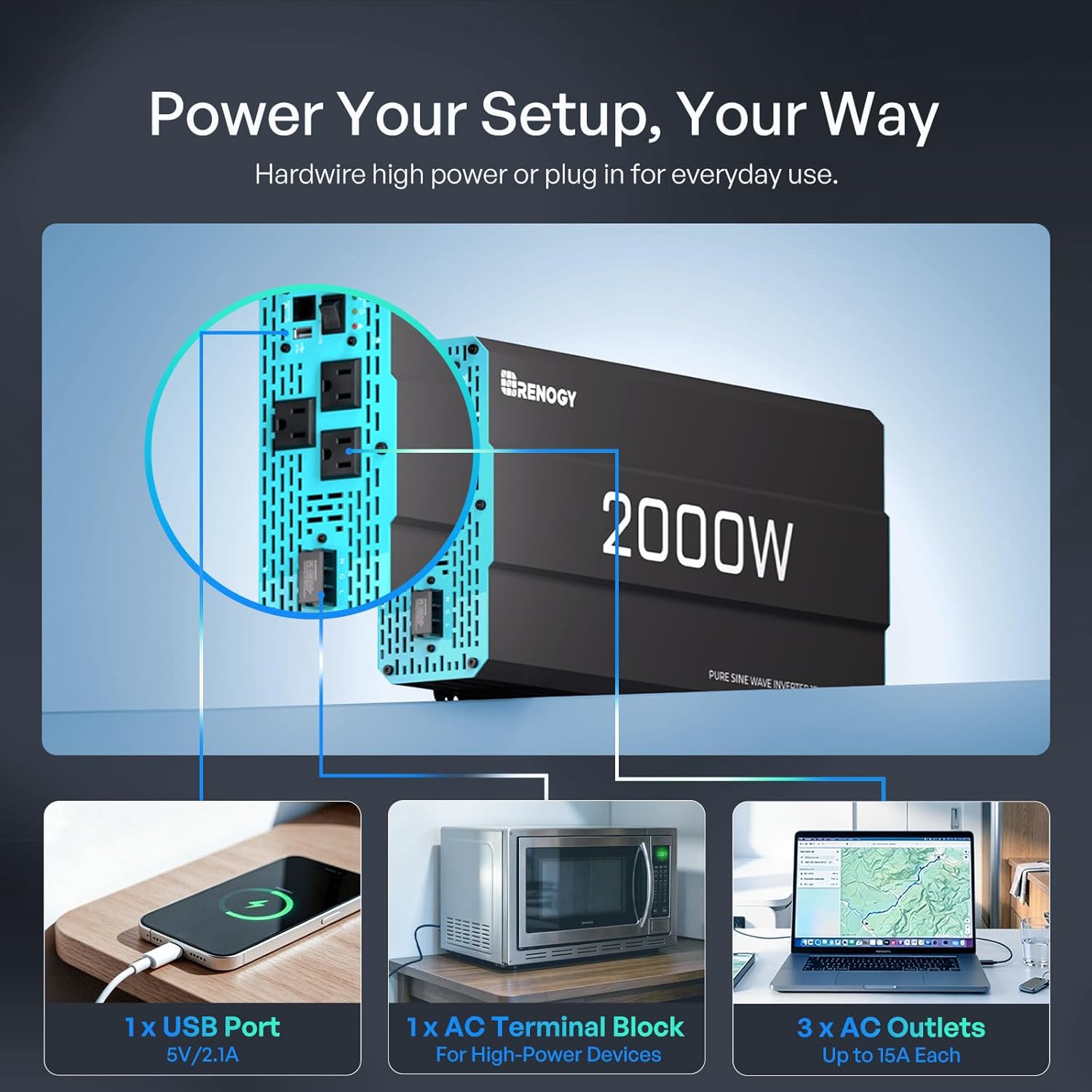

AC connections: Three receptacles plus one terminal block
USB output: 5 V / 2.1 A
Battery terminal size: M8
Low-battery alarm: 10.5 V ±0.5 V DC
Low-voltage shutdown: 10.0 V ±0.5 V DC
Over-voltage shutdown: 16.5 V ±0.5 V DC
No-load current draw: Under 2 A

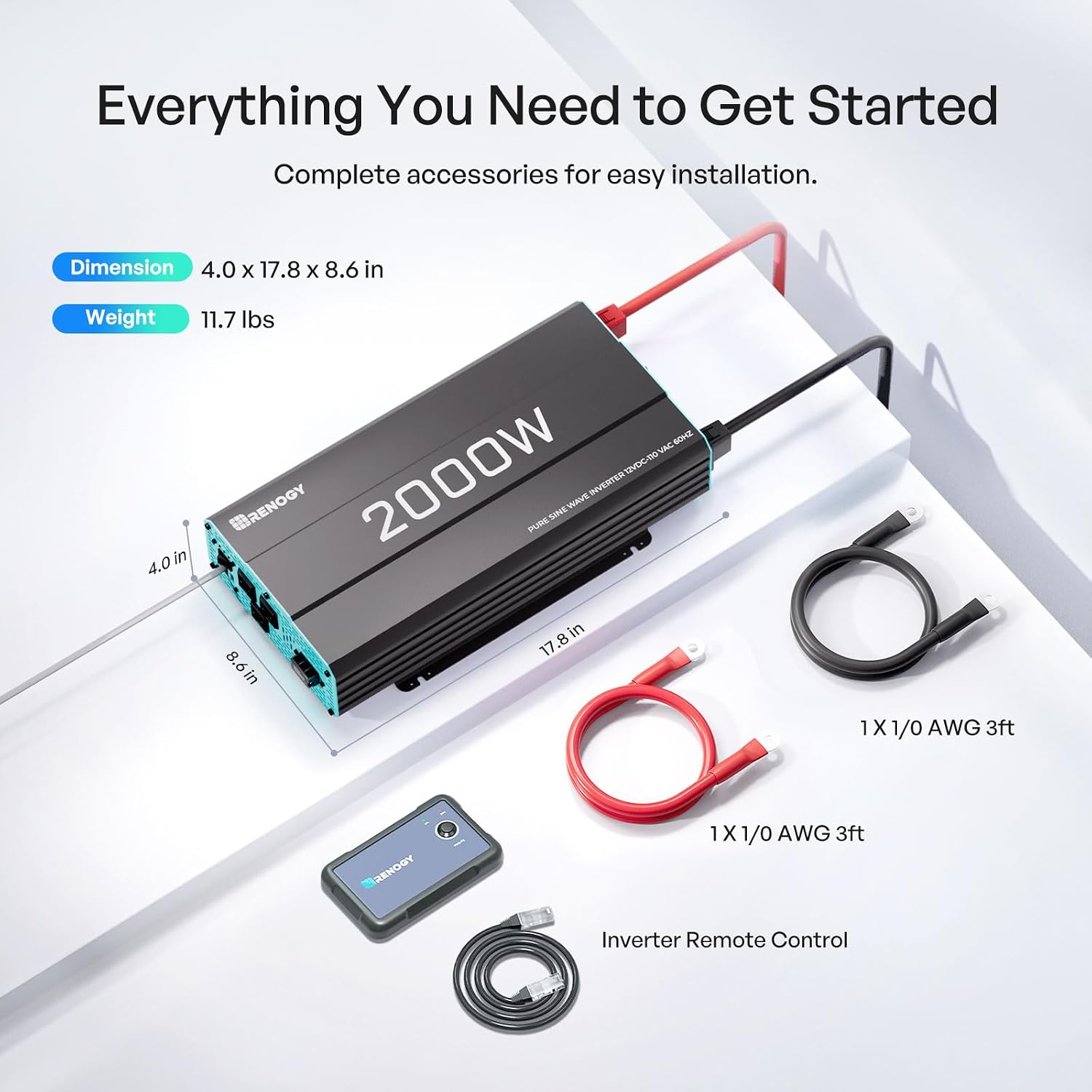

Dimensions: 17.8 × 8.6 × 4 in
Weight: 11.7 lb

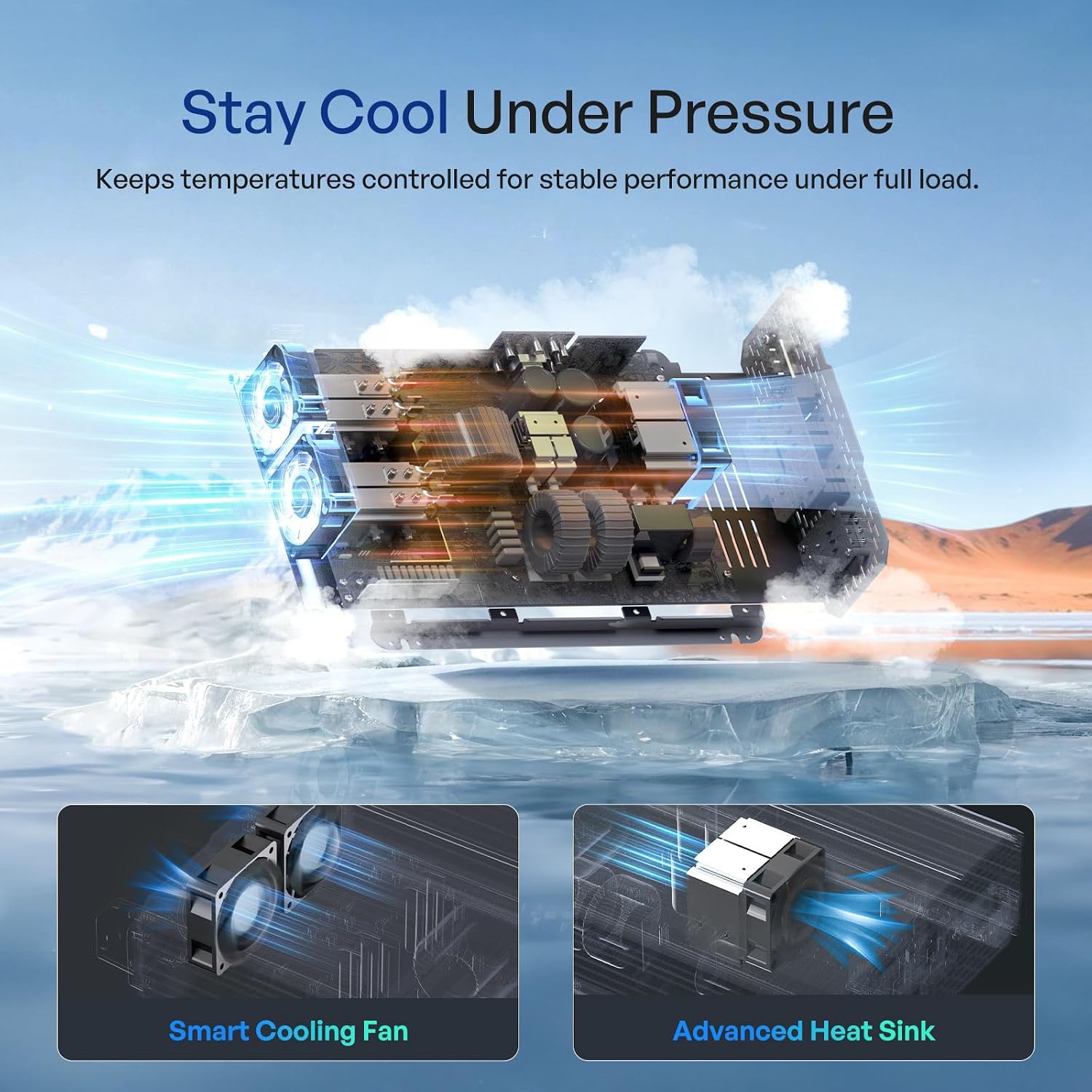

Cooling: Thermally controlled fan
Operating-temperature range: -4°F to 158°F / -20°C to 70°C

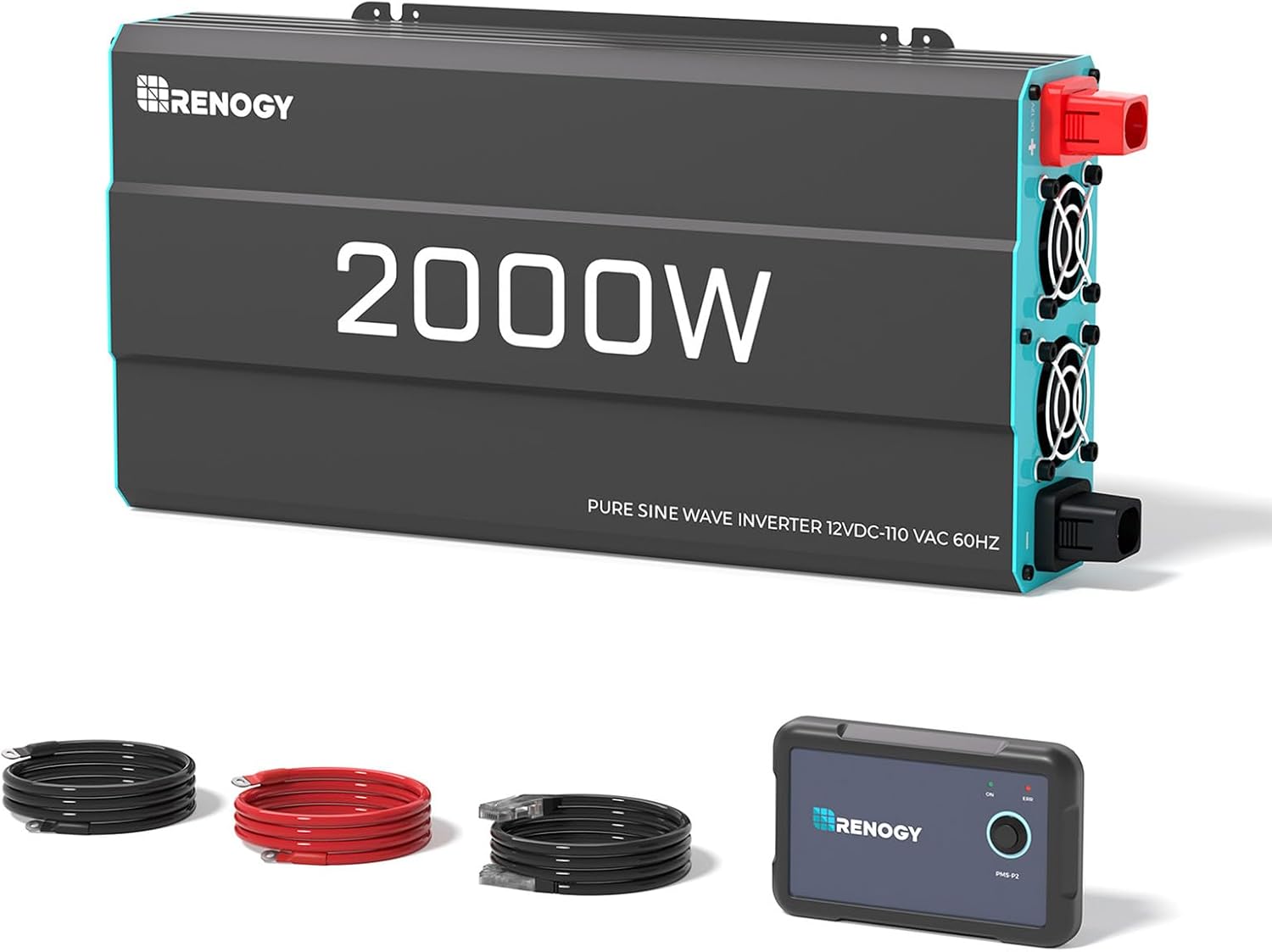

Included cables: One pair of 3 ft inverter cables
Certifications: ETL listed to UL 458 and CSA C22.2 No. 107.1-01; FCC Part 15 Class B
Product overview
This Renogy inverter converts 12 V battery power into pure sine-wave 110 V AC. The 2000 W rating supports larger compatible loads than lower-power models, but it also requires substantial DC current and appropriately sized conductors.
Suitable applications
RVs, cabins, mobile work and off-grid battery systems designed for 12 V input and compatible 110 V loads.
Before ordering
Confirm battery voltage, continuous and surge output, PV input window, charging limits, neutral/ground arrangement, conductor size and overcurrent protection. High-power inverter installation should be completed or reviewed by a qualified person.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
