Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
Rated output power: 1000 W
Input voltage: 12 V DC
Output voltage: 110 V AC
Waveform: Pure sine wave
Listed conversion efficiency: Over 90%
Surge power: 2000 W
Output voltage and frequency: 120 V AC, 60 Hz ±0.1%
AC connections: Two receptacles plus one terminal block
USB output: 5 V / 2.1 A

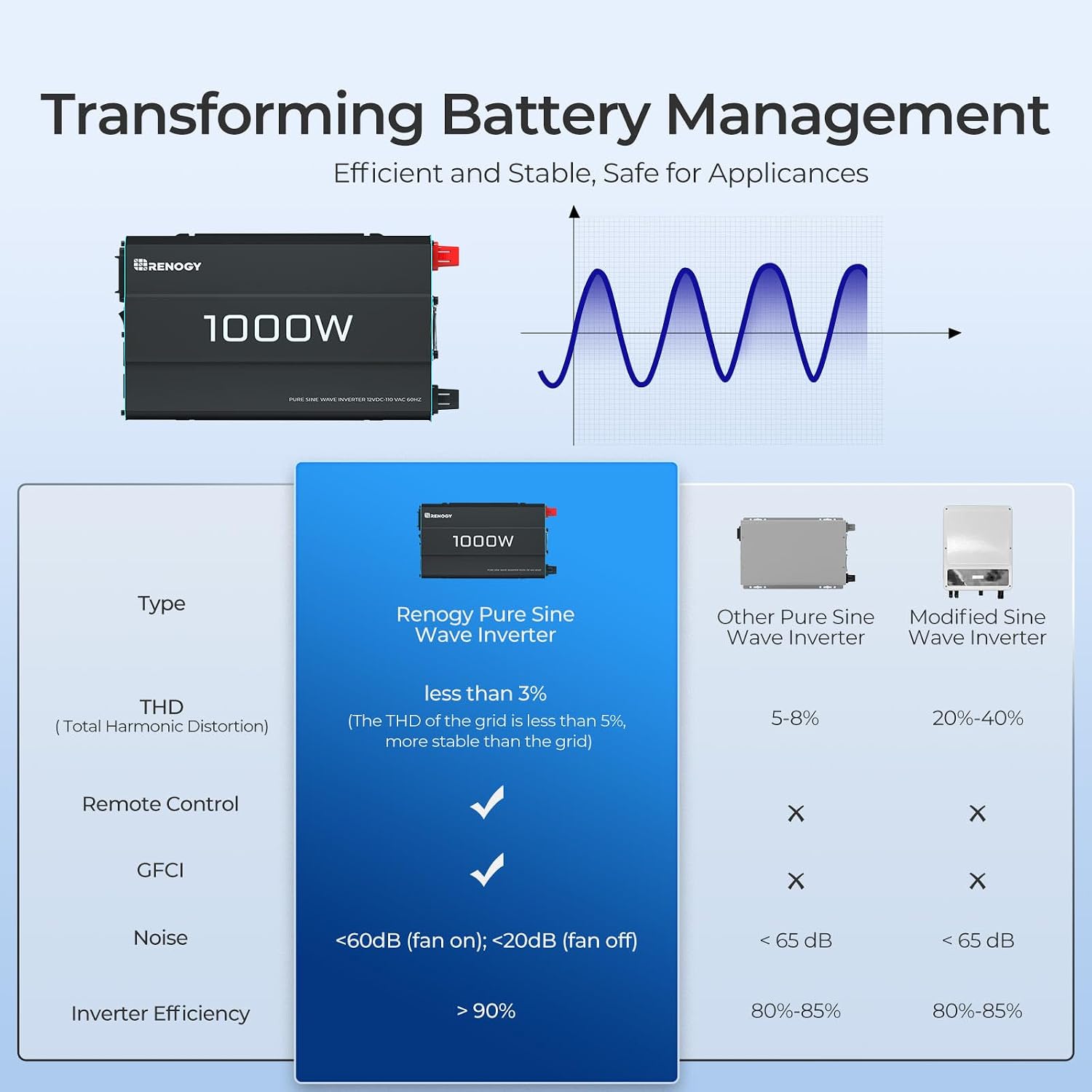

Total harmonic distortion: Under 3% with linear loads; under 5% with non-linear loads
Low-battery alarm: 10.5 V ±0.5 V DC
Low-voltage shutdown: 10.0 V ±0.5 V DC
Over-voltage shutdown: 16.5 V ±0.5 V DC
No-load current draw: Under 1 A
Dimensions: 12.9 × 6.8 × 3.3 in
Weight: 6.0 lb

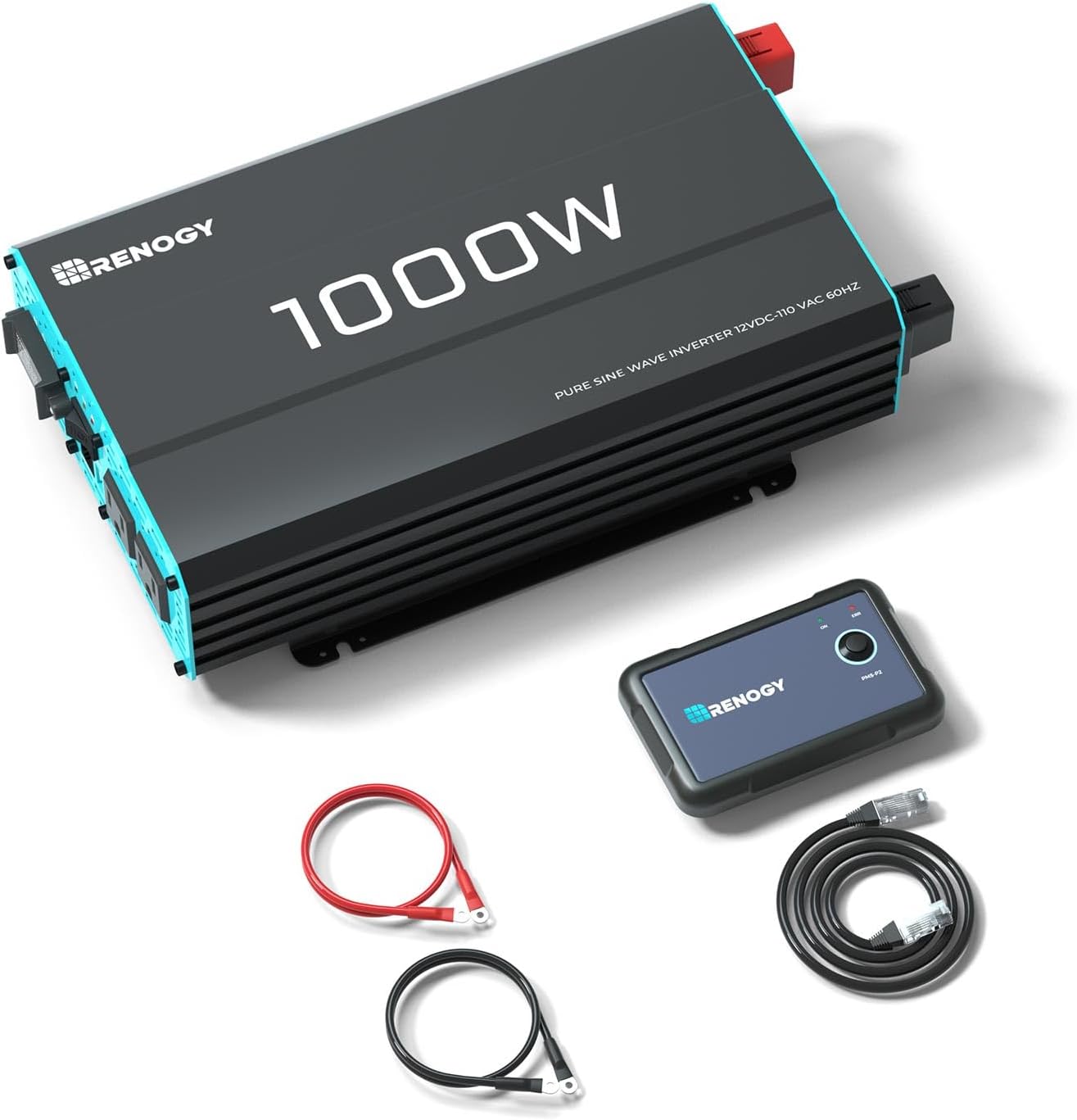

Included cables: One pair of 4 AWG, 3 ft inverter cables

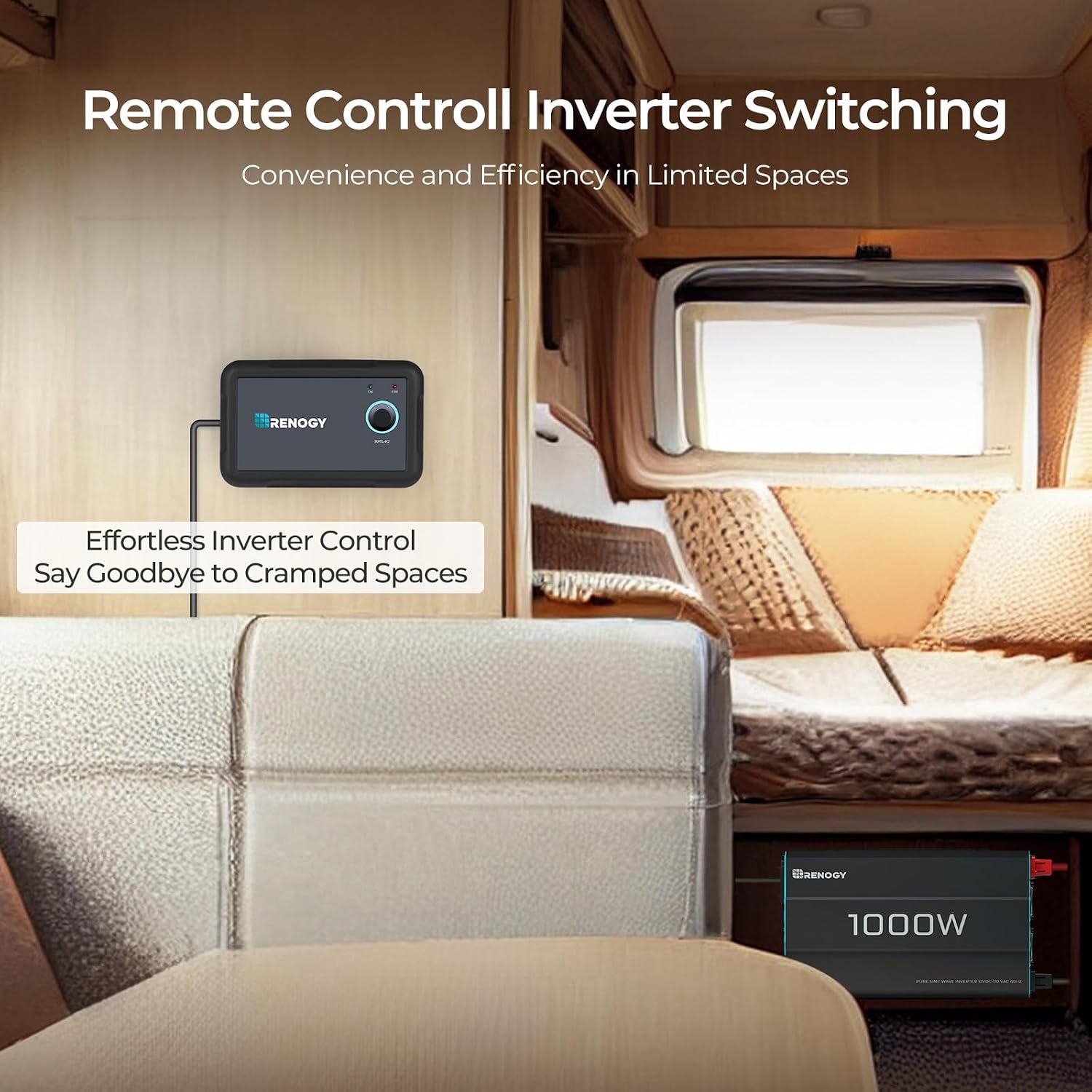

Remote-control cable listed: Approximately 19.8 ft
Certifications: ETL listed to UL 458 and CSA C22.2 No. 107.1-01; FCC Part 15 Class B
Product overview

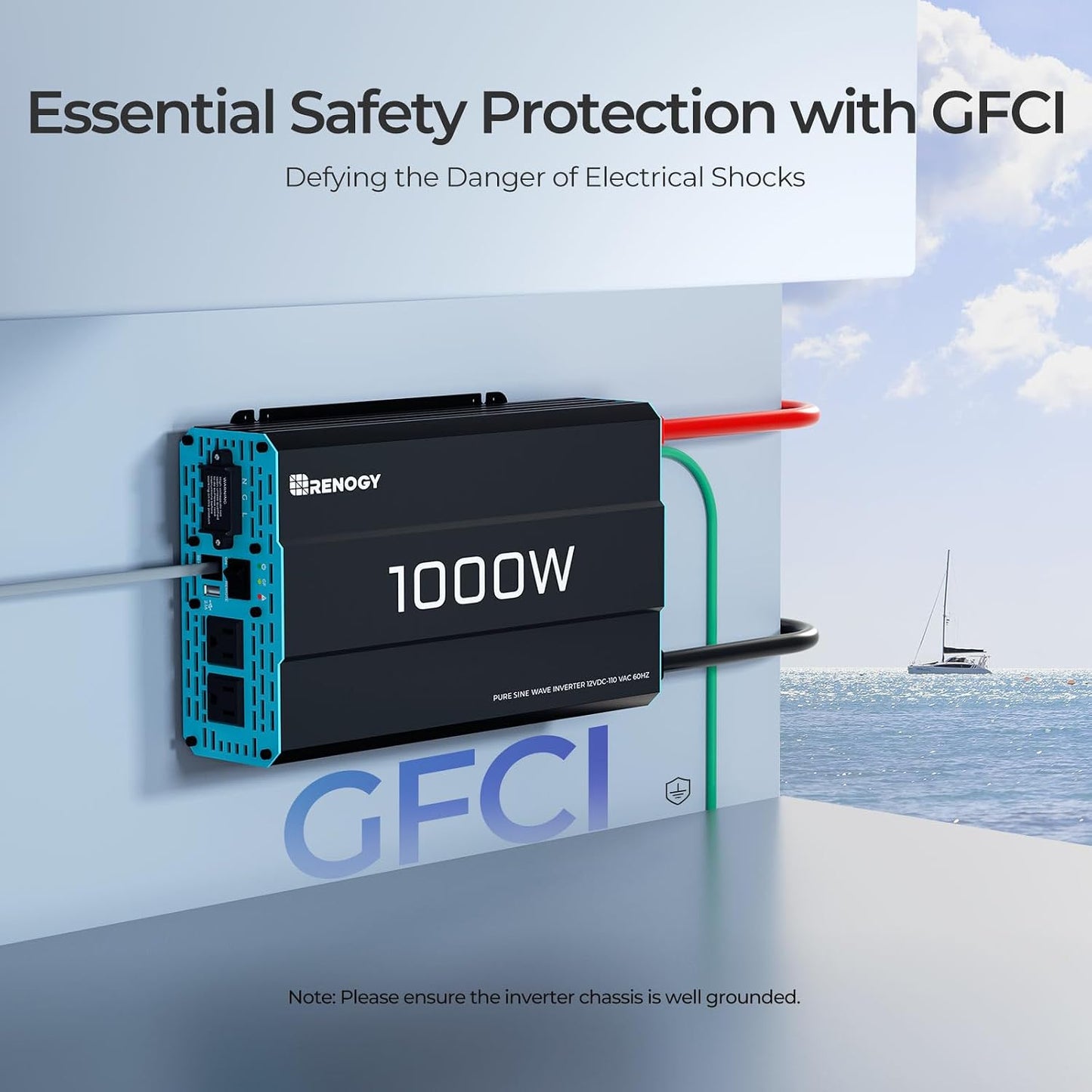

This Renogy inverter supplies pure sine-wave AC from a 12 V battery bank. Its 1000 W rating is suited to modest loads when the battery, cabling, fuse and operating environment are sized correctly.
Suitable applications

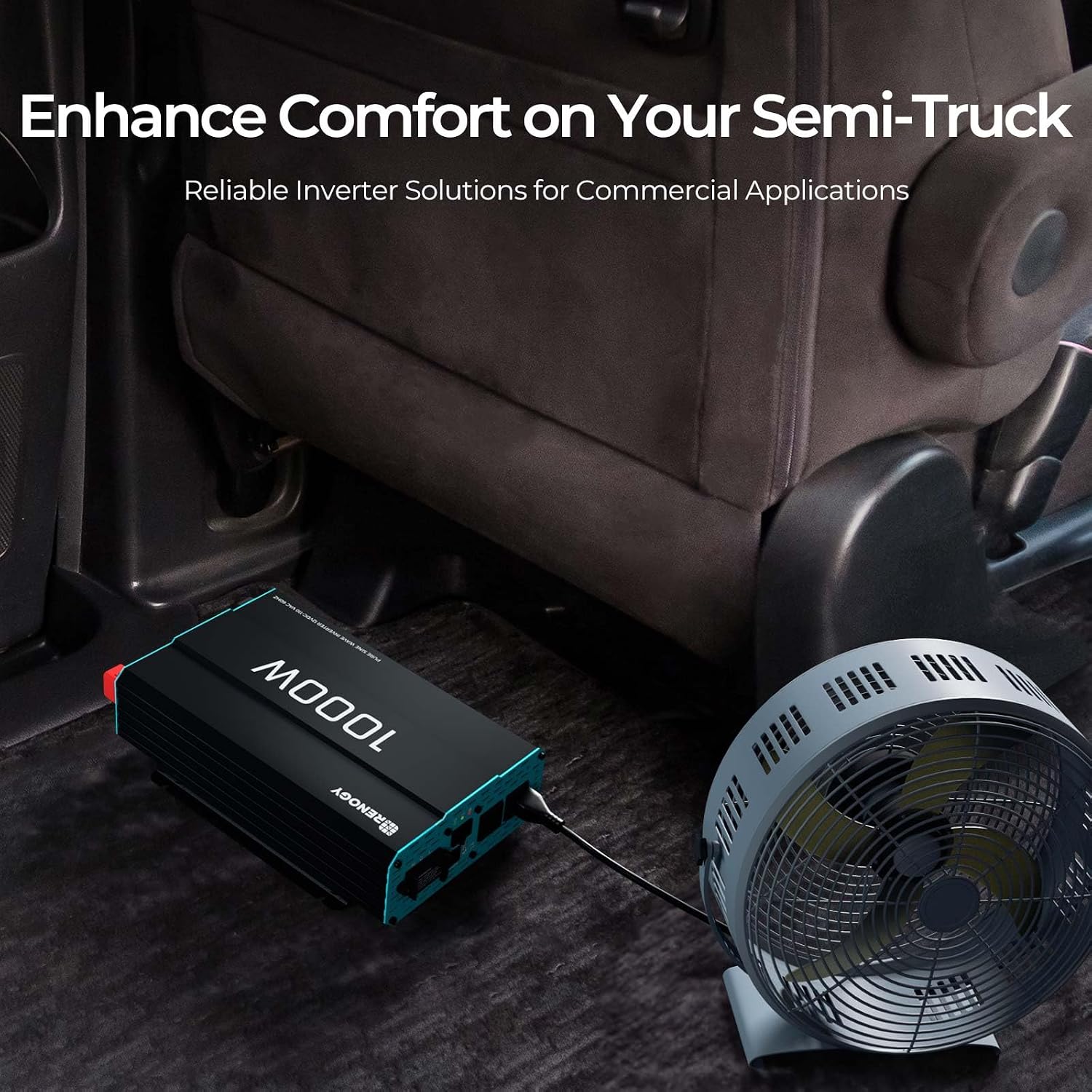

Small RV, cabin, vehicle and off-grid systems powering compatible 110 V appliances and electronics.
Before ordering
Confirm battery voltage, continuous and surge output, PV input window, charging limits, neutral/ground arrangement, conductor size and overcurrent protection. High-power inverter installation should be completed or reviewed by a qualified person.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
