Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.

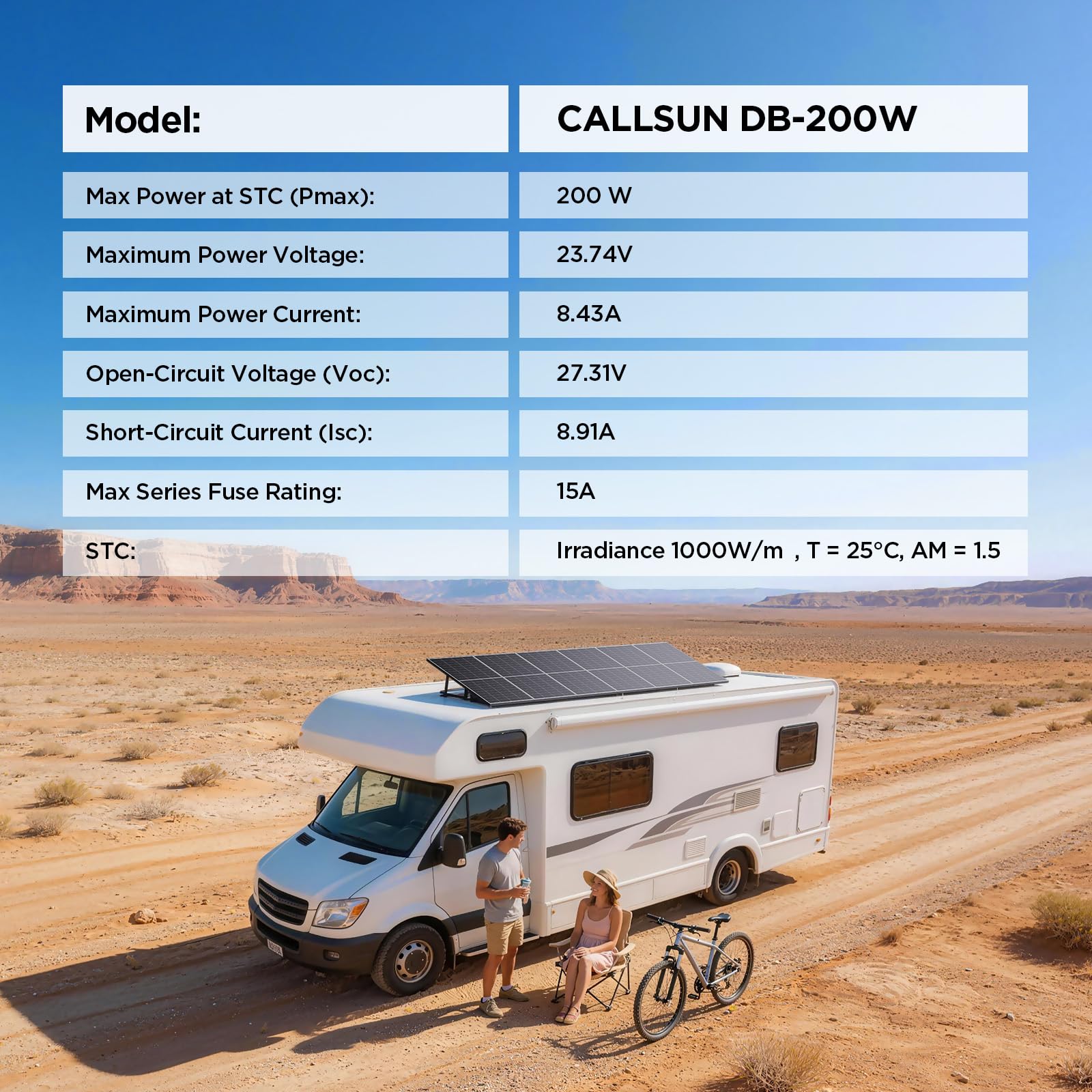

- Maximum power (Pmax): 200 W per panel; 400 W combined nameplate power for the 2-panel package
- Voltage at maximum power (Vmp): 23.74 V per panel
- Current at maximum power (Imp): 8.43 A per panel

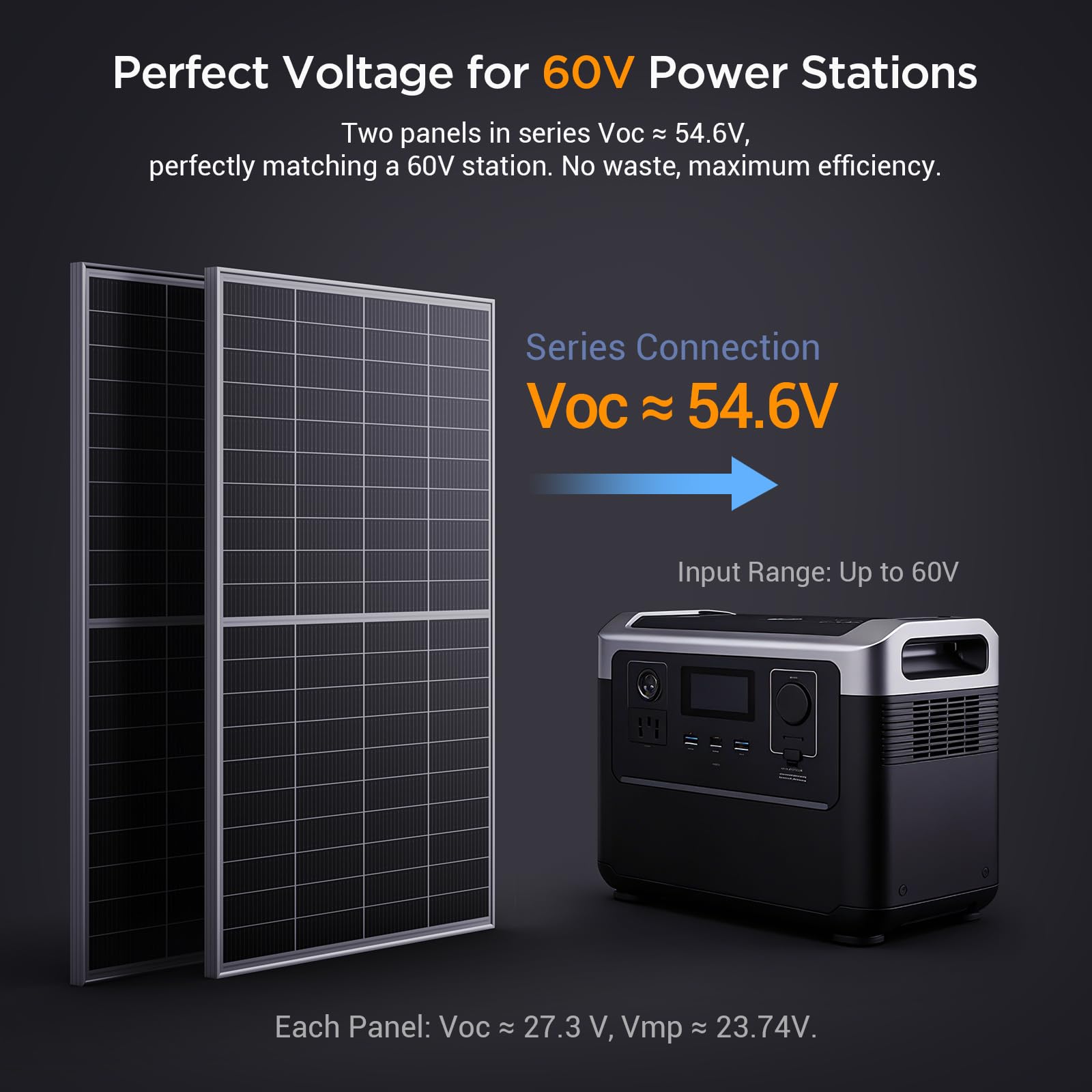

- Open-circuit voltage (Voc): 27.31 V per panel
- Short-circuit current (Isc): 8.91 A per panel
- Maximum system voltage: 1000 V DC

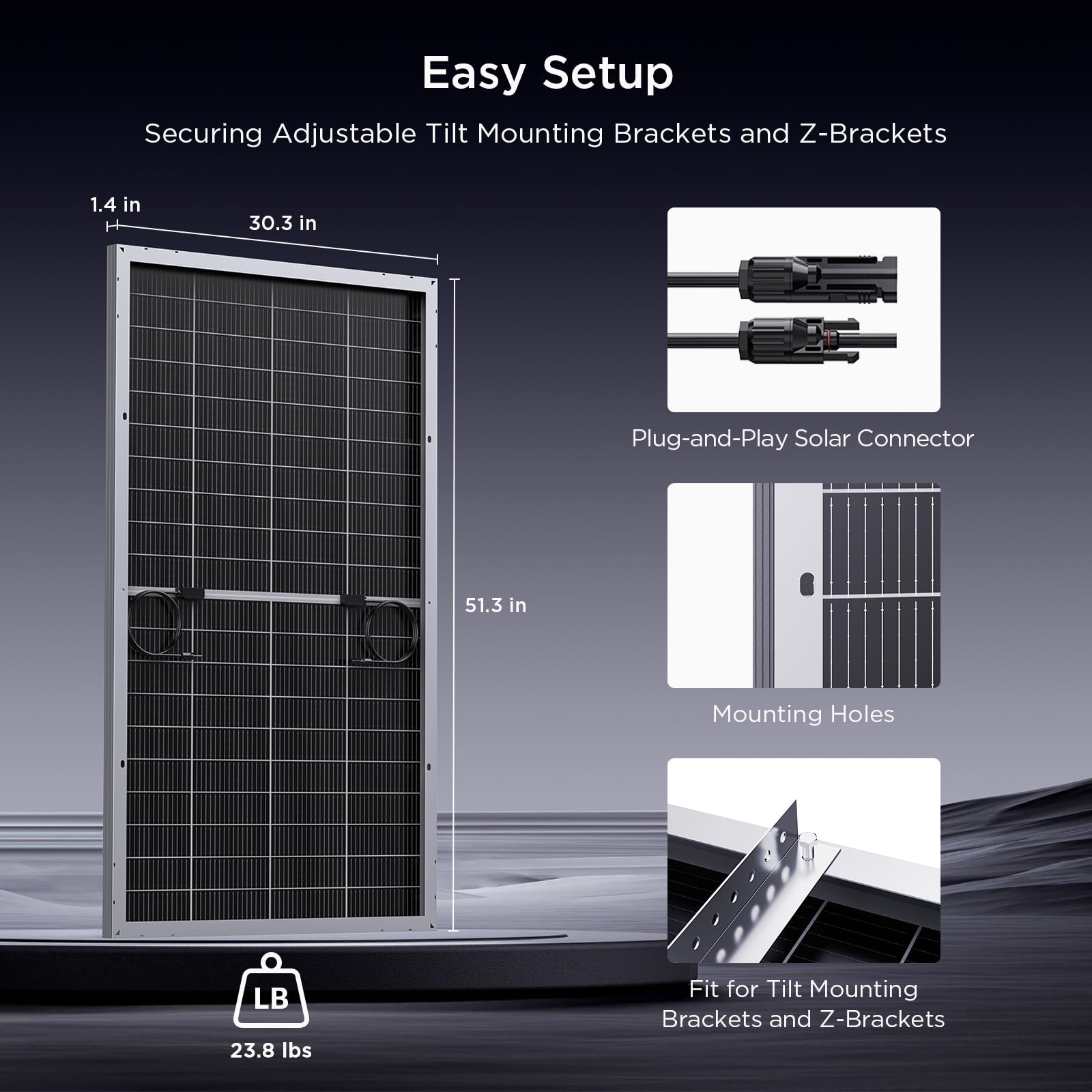

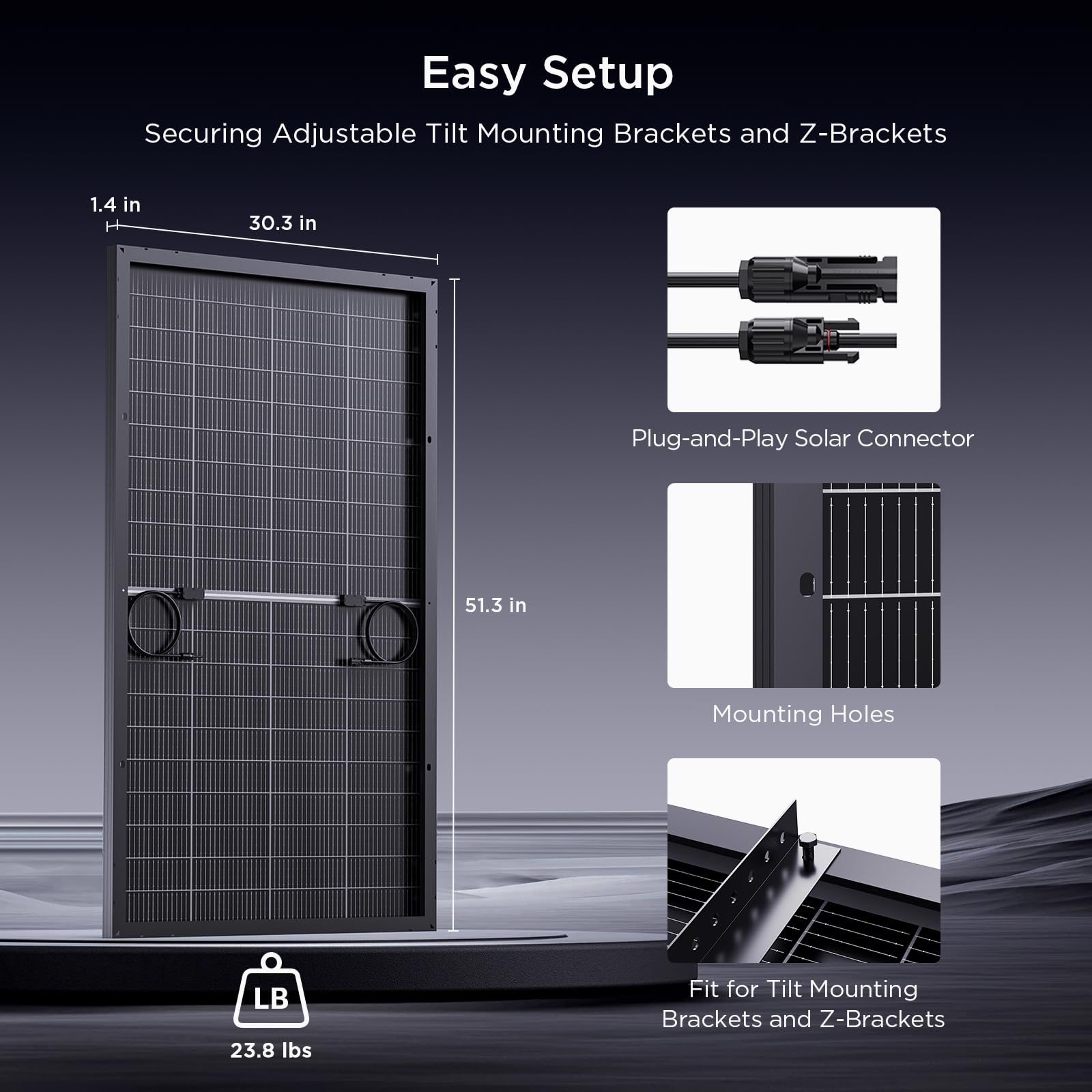

- Dimensions: 51.3 × 30.3 × 1.3 in / approximately 130.3 × 77.0 × 3.6 cm per panel
- Weight: 10.8 kg / 23.8 lb per panel
- Output cable length: Not published on the current Amazon or manufacturer listing.
- Temperature coefficient of Pmax: −0.30%/K
- Temperature coefficient of Voc: Not published on the current Amazon or manufacturer listing.
- Temperature coefficient of Isc: Not published on the current Amazon or manufacturer listing.
- Operating temperature: −40°C to +85°C / −40°F to 185°F
- Total headline power: 400 W
- Module configuration: Two 200 W panels
- Nominal system class: 12 V

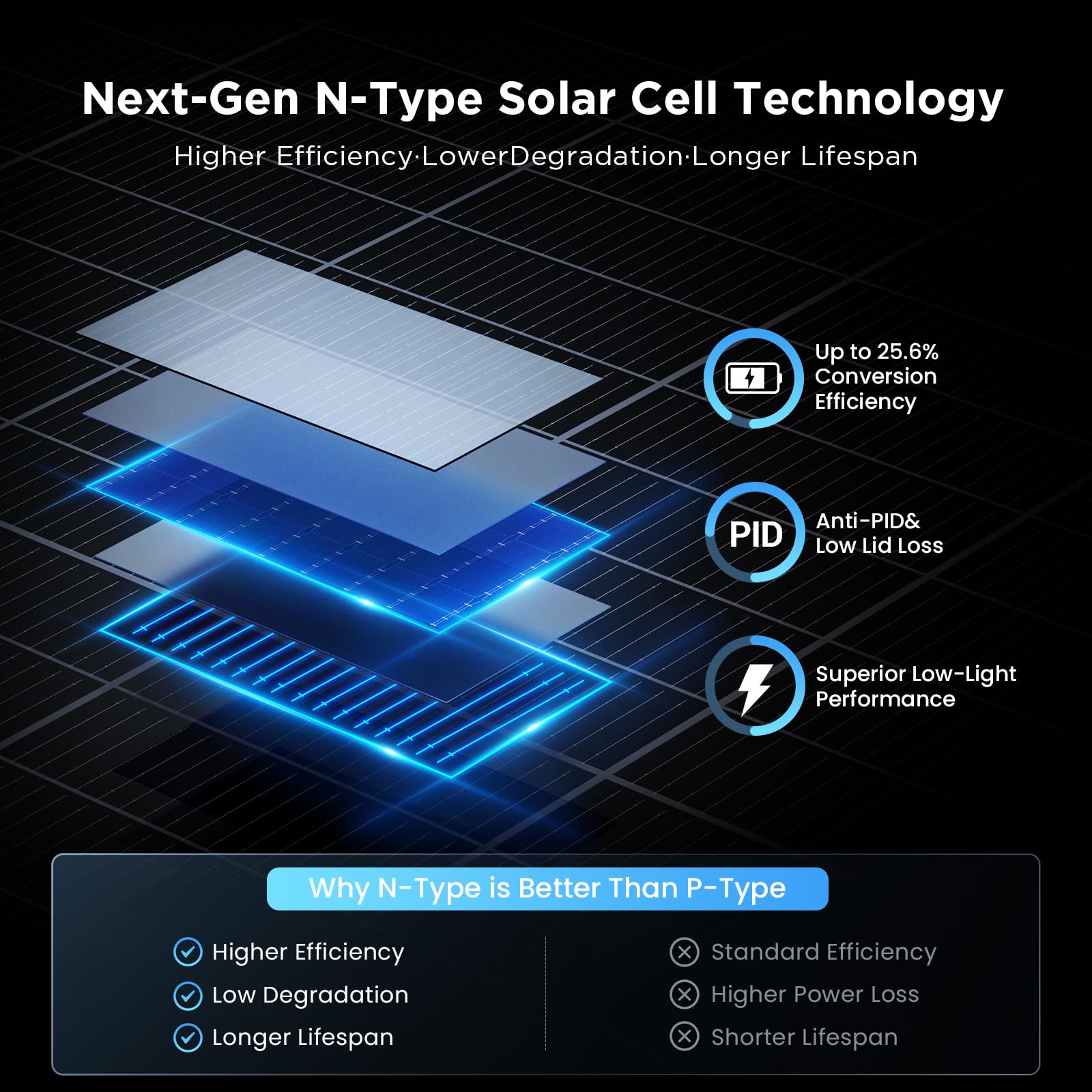

- Cell technology: N-type, 16-busbar
- Construction: Bifacial
- Listed efficiency: 25%
- Array design: Dual-module parallel anti-shade layout

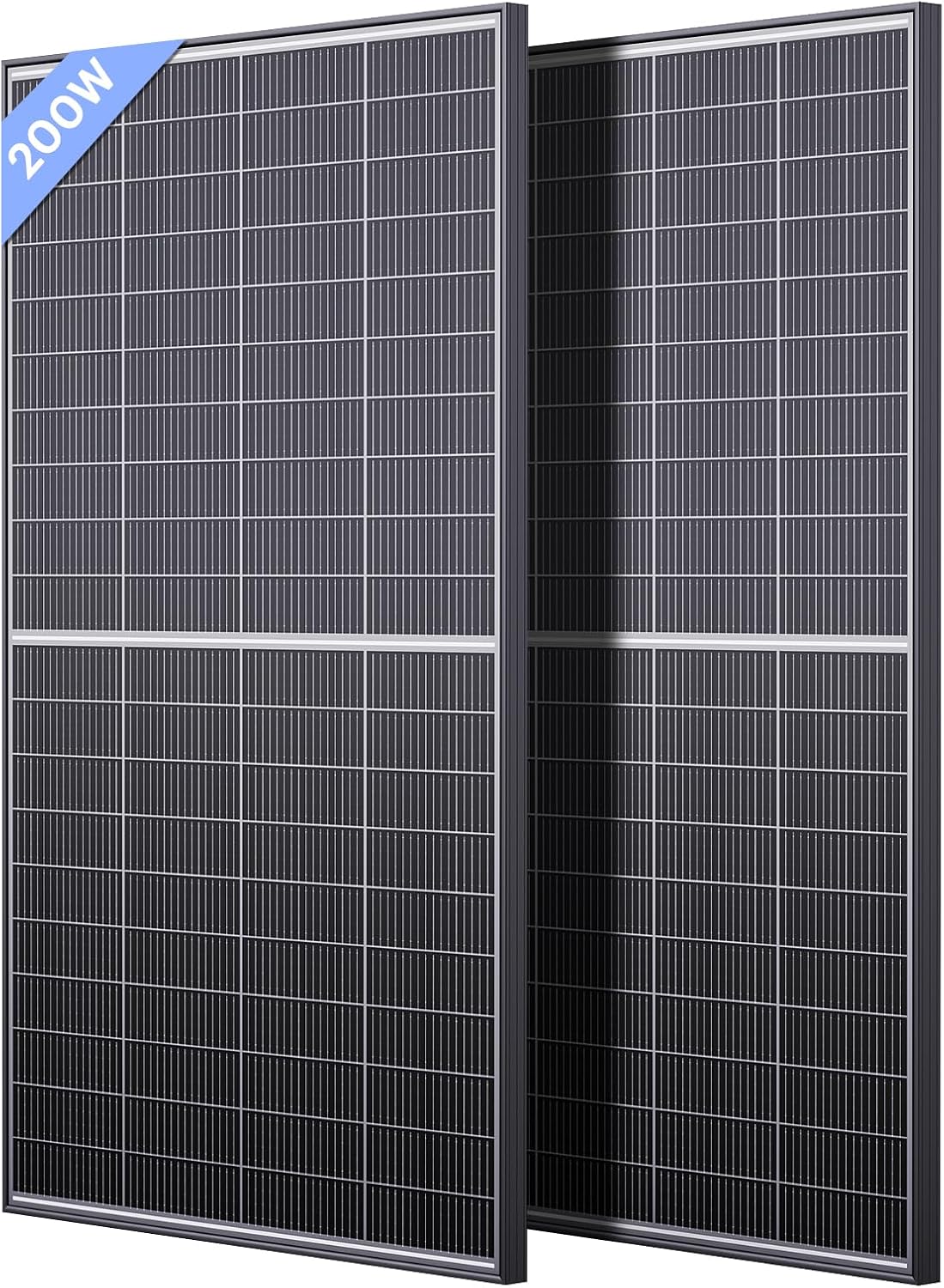

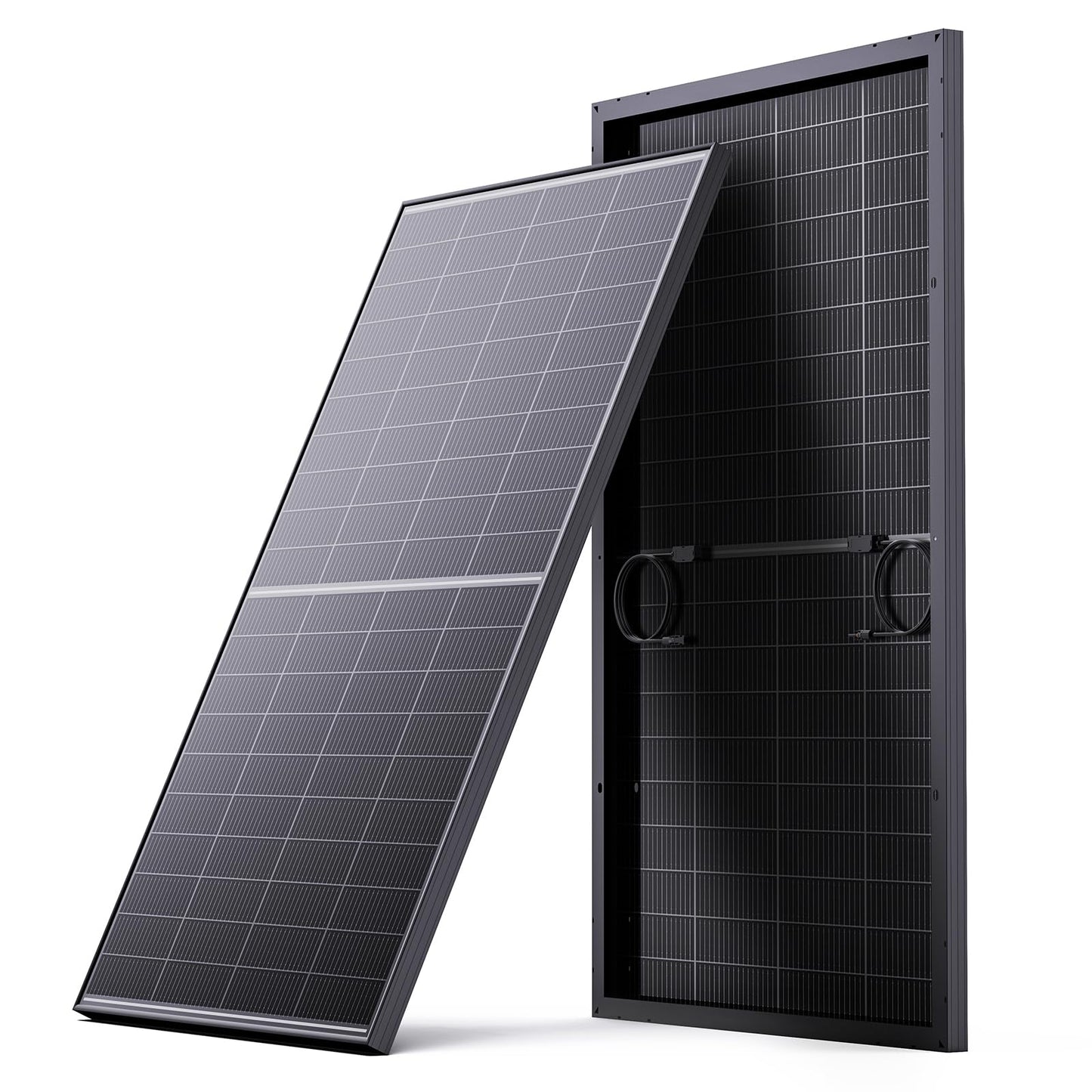

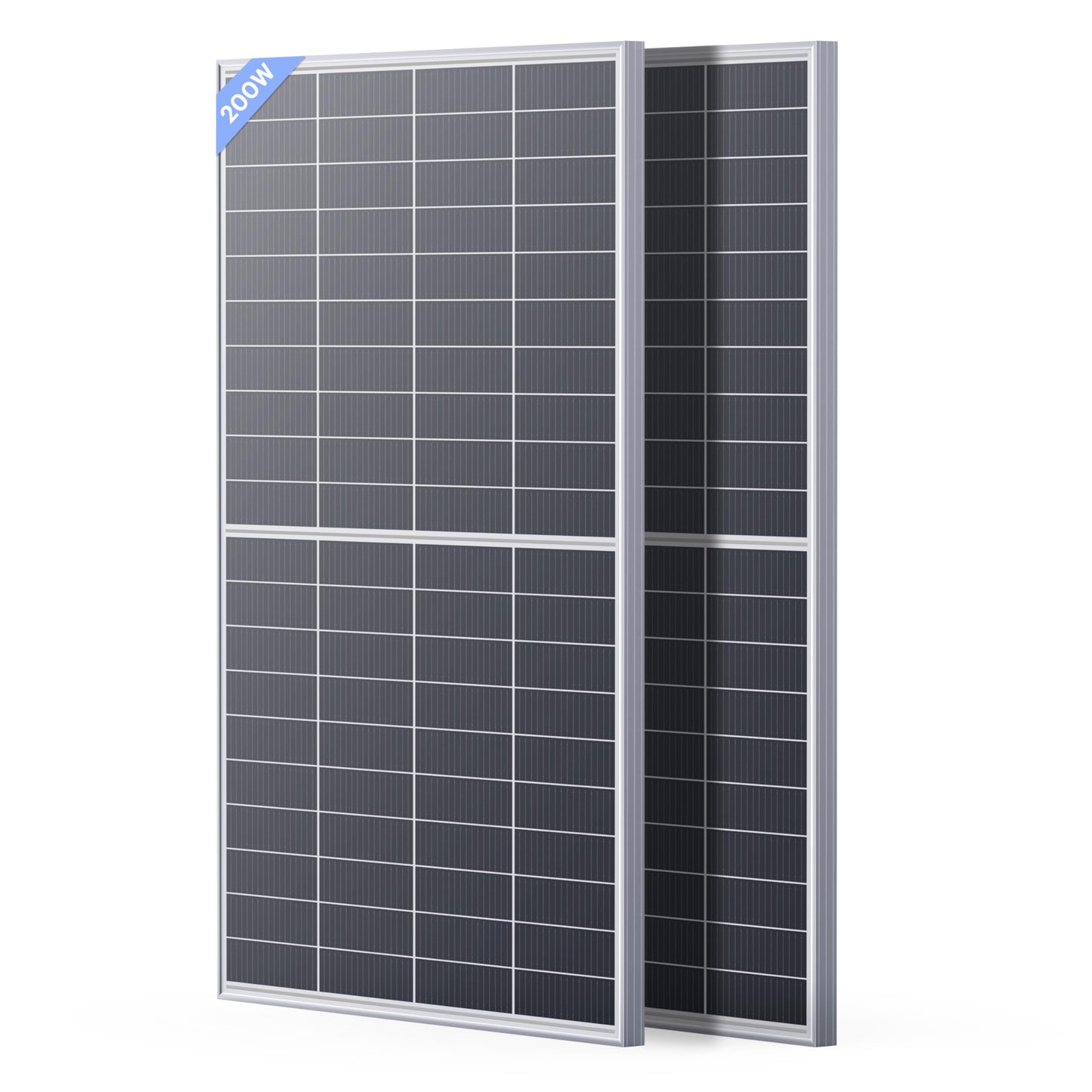

- Options include single or two-panel packs in black or silver
- Module materials: Aluminum frame, monocrystalline silicon and tempered glass
- Model number: Callsun-DB200W
- Bifacial / anti-shade design: Two separate modules intended for a parallel layout when controller limits permit
Product overview

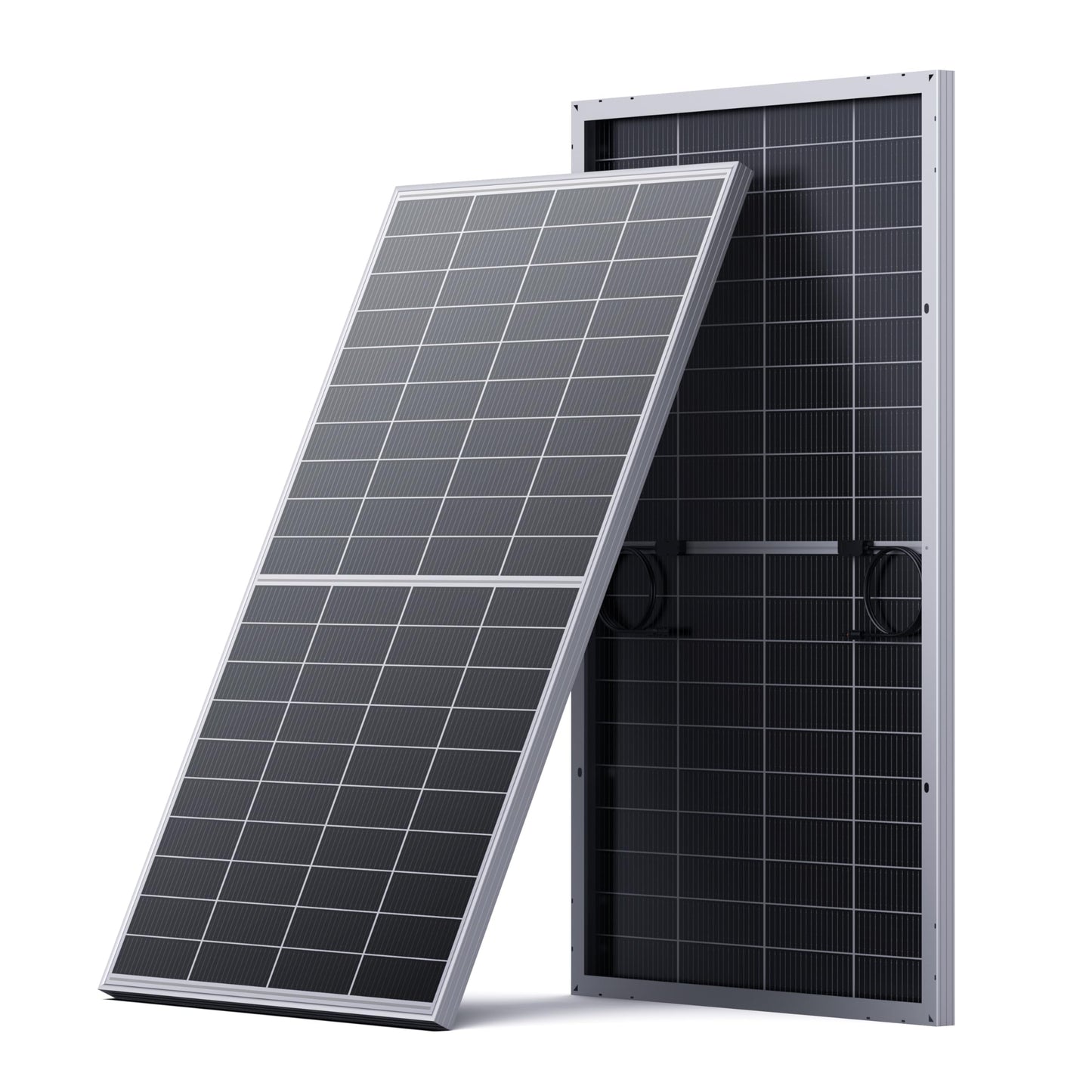

This bifacial 400 W set uses two 200 W N-type modules in a layout promoted for improved shade tolerance. Separate modules provide flexibility for roof placement and for configuring the array within a compatible controller’s input limits.
Suitable applications
RVs, vans, boats, home rooftops and off-grid systems designed around the modules’ verified Voc, Vmp, Isc and Imp values.
Before ordering
Confirm Voc, Vmp, Isc, Imp, dimensions, weight, connector type and mechanical-load ratings from the current datasheet. Size the series/parallel array so it remains inside the charge controller or power station input limits in all temperatures.
Technical sources
Exact Amazon.ca product listing | Callsun manufacturer specifications
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
