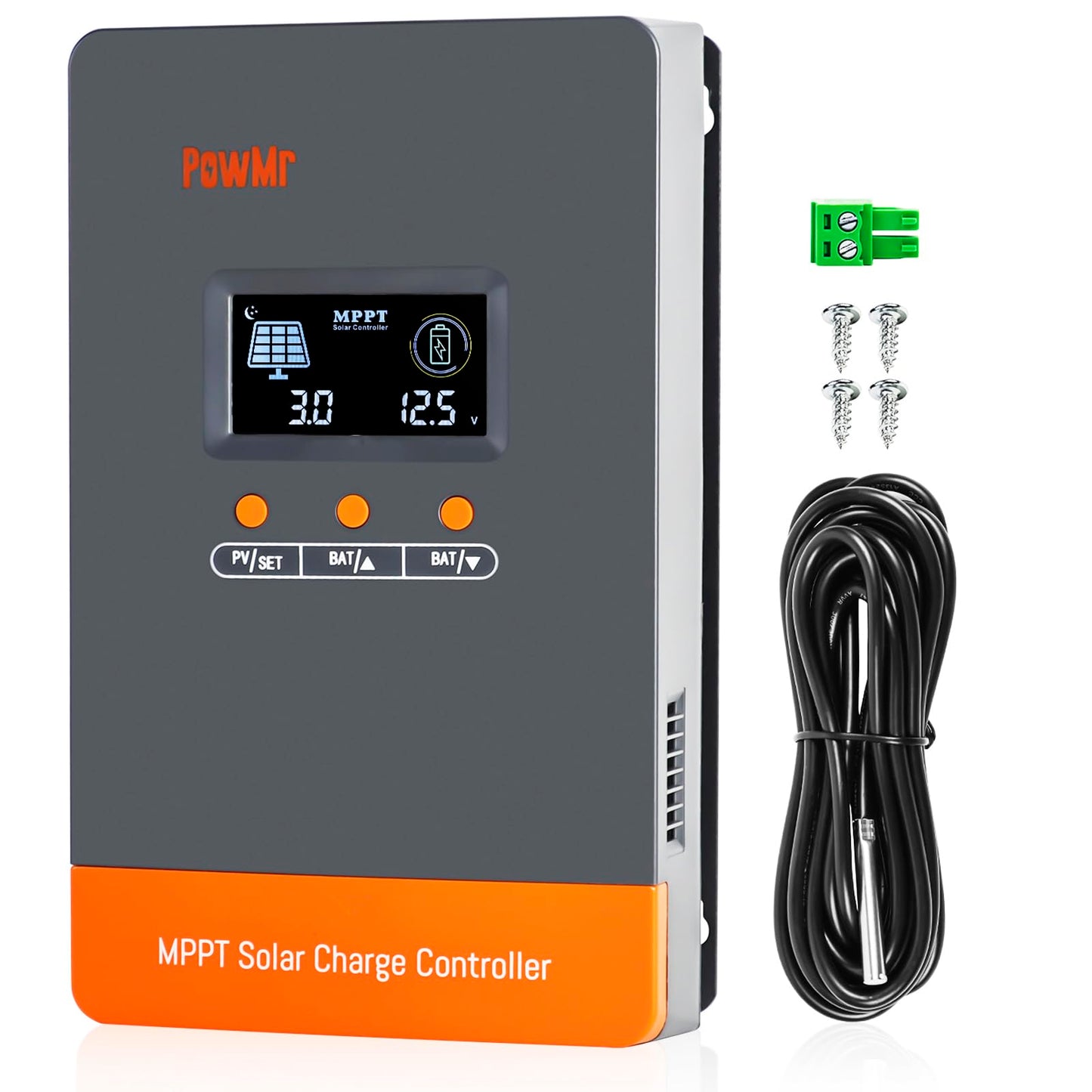

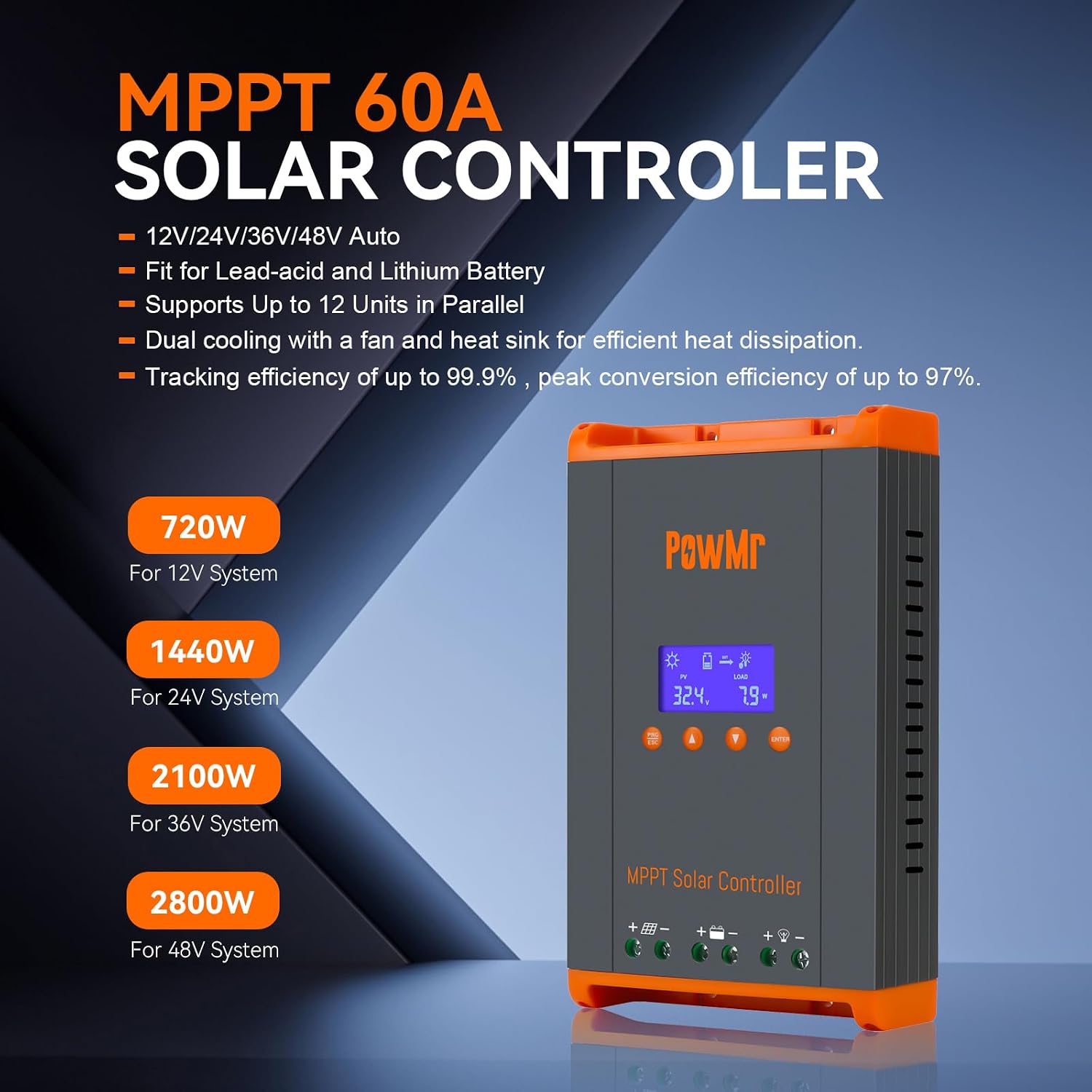

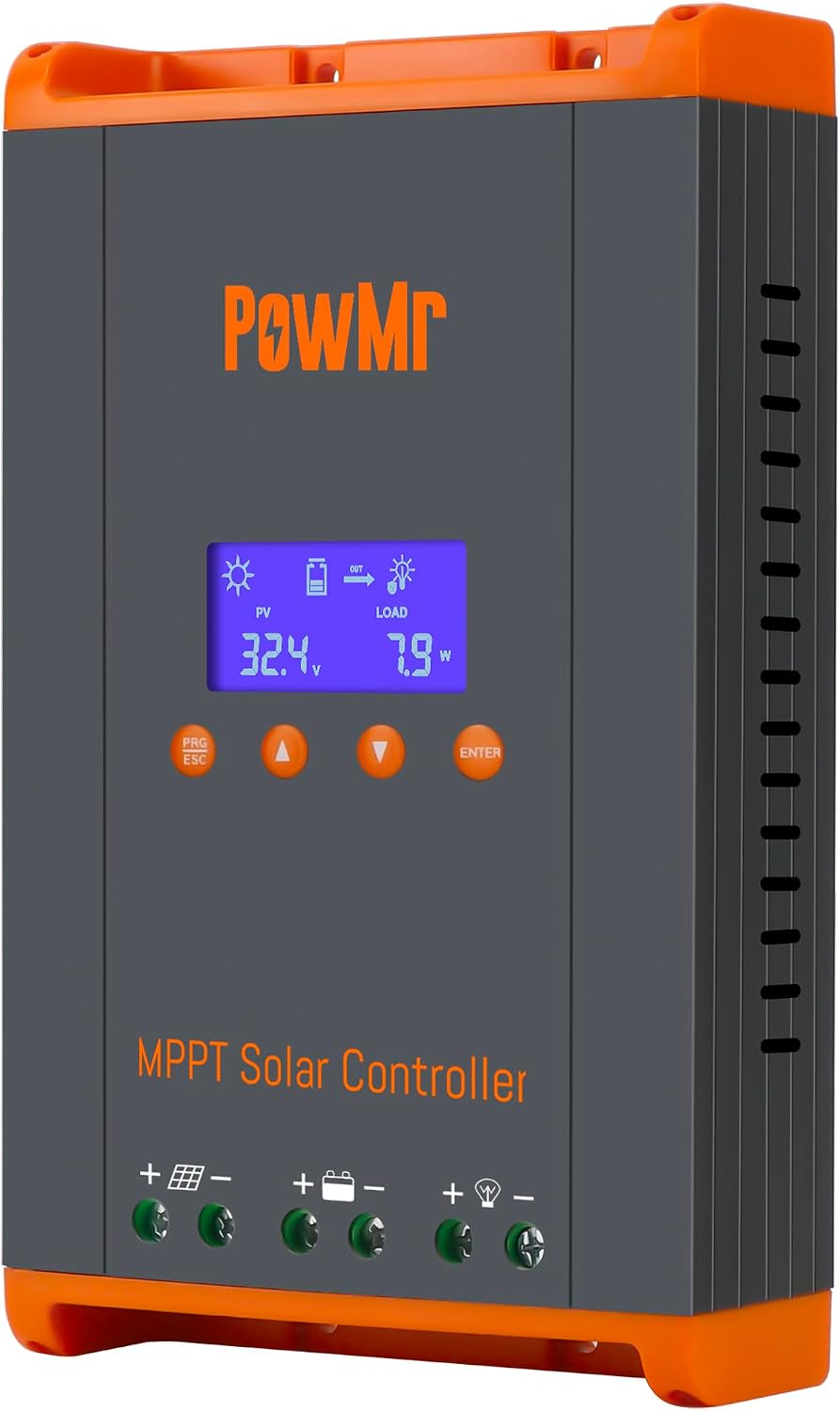

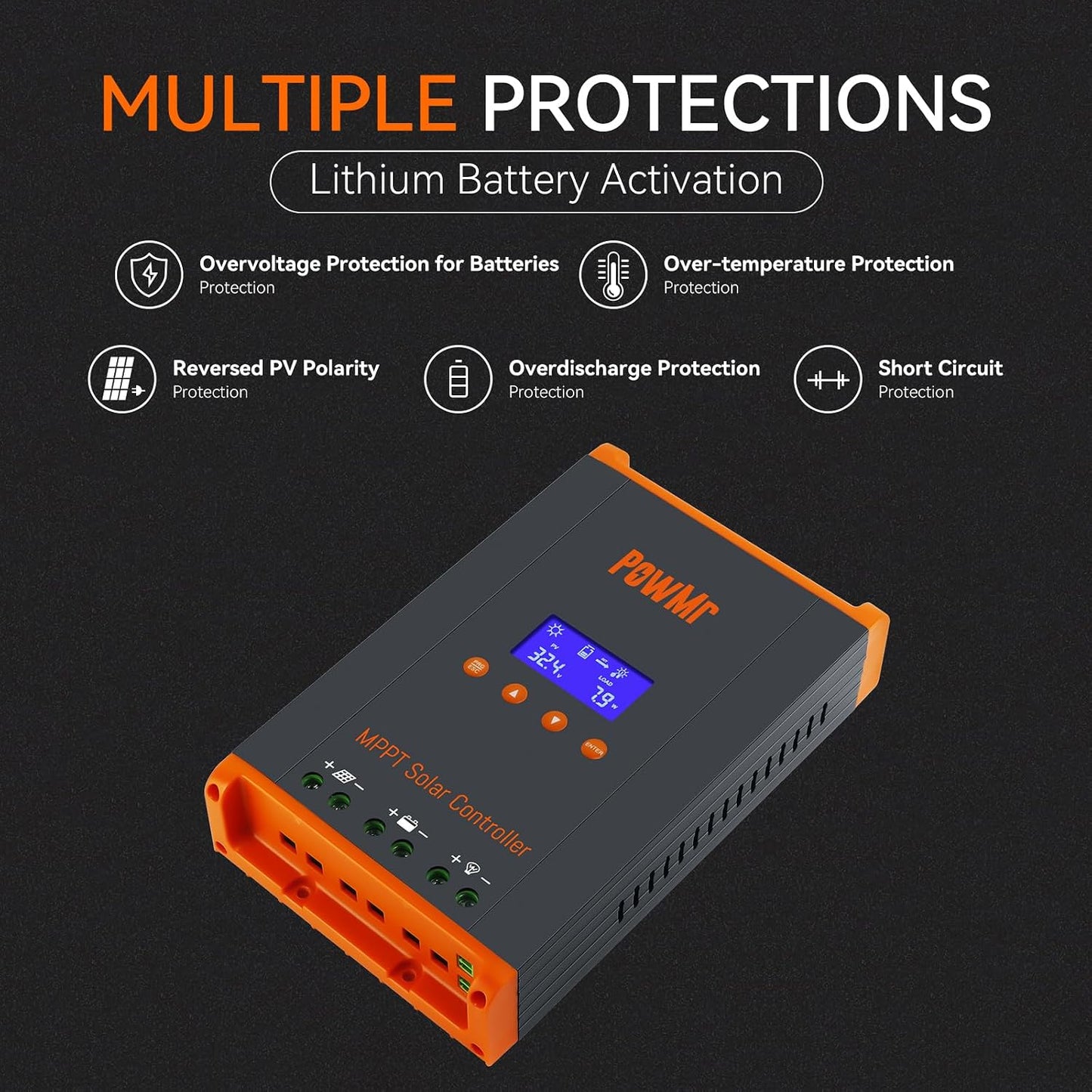

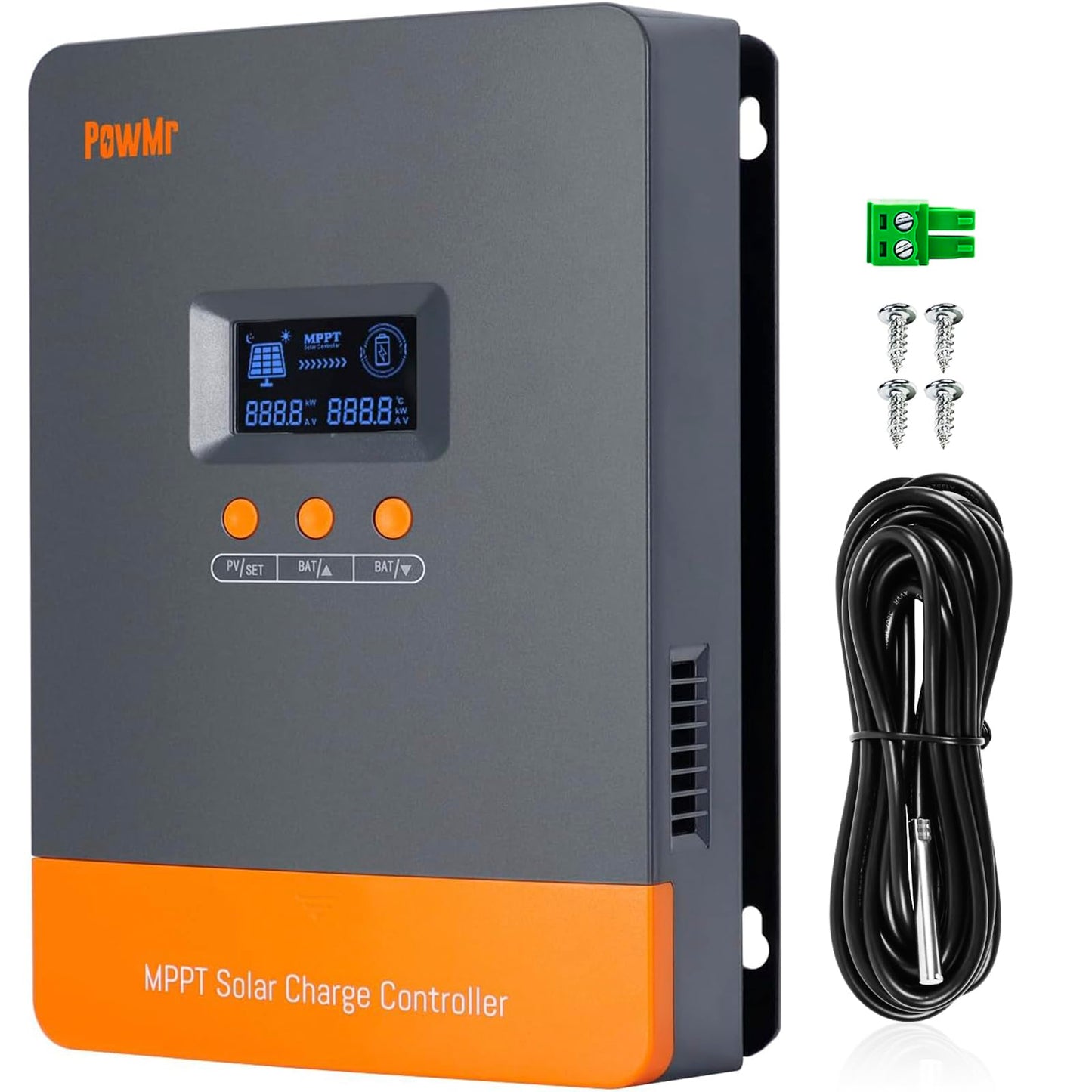

MPPT Charge Controller 60A 12V/24V/48V Auto, 60 amp Solar Charge Controller w/ LCD Display, Work with Lead-Acid and Lithium Batteries, Support 12(Max) Solar Regulator Connections in Parallel
Equipplus may earn a commission from qualifying purchases. You pay the partner directly.
Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
PV input voltage range: 20–75 V DC (12 V battery bank); 37–100 V DC (24 V); 50–155 V DC (36 V); 72–155 V DC (48 V)
Maximum PV input power: 720 W (12 V battery bank); 1440 W (24 V); 2100 W (36 V); 2800 W (48 V)
Headline charging current: 60 A
Automatic battery voltages: 12 V, 24 V and 48 V

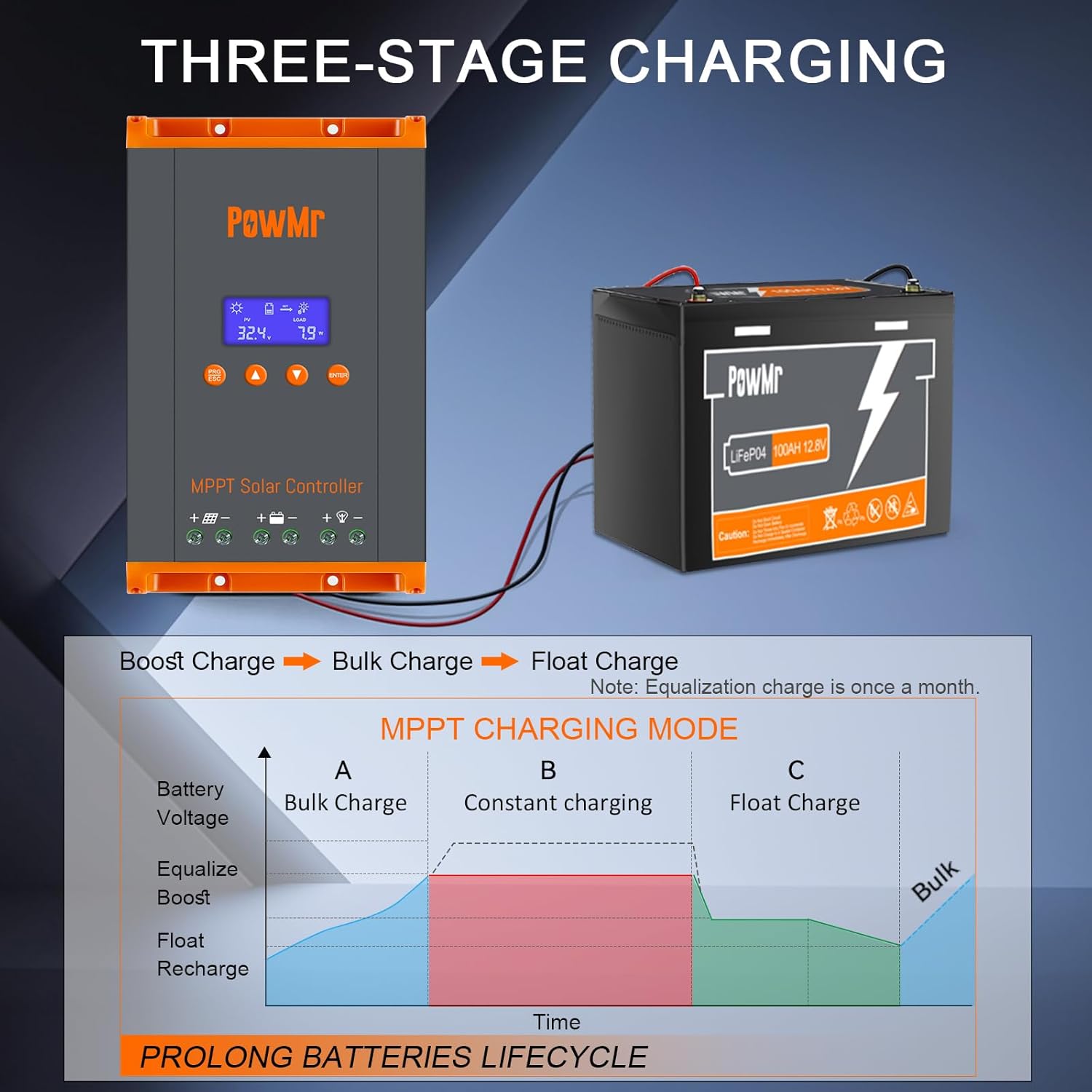

Charging technology: MPPT

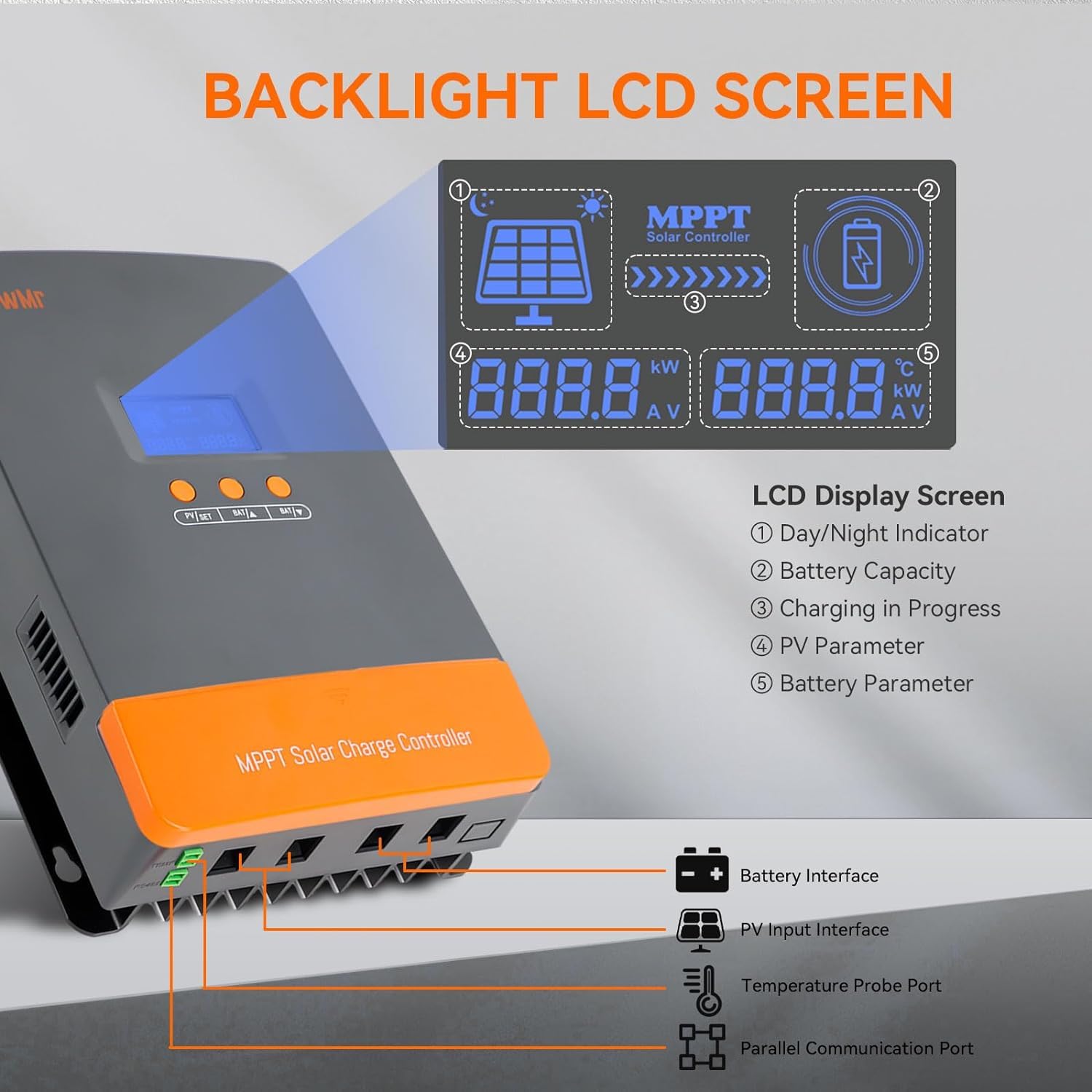

Display: LCD
Battery types listed: Lead-acid and lithium

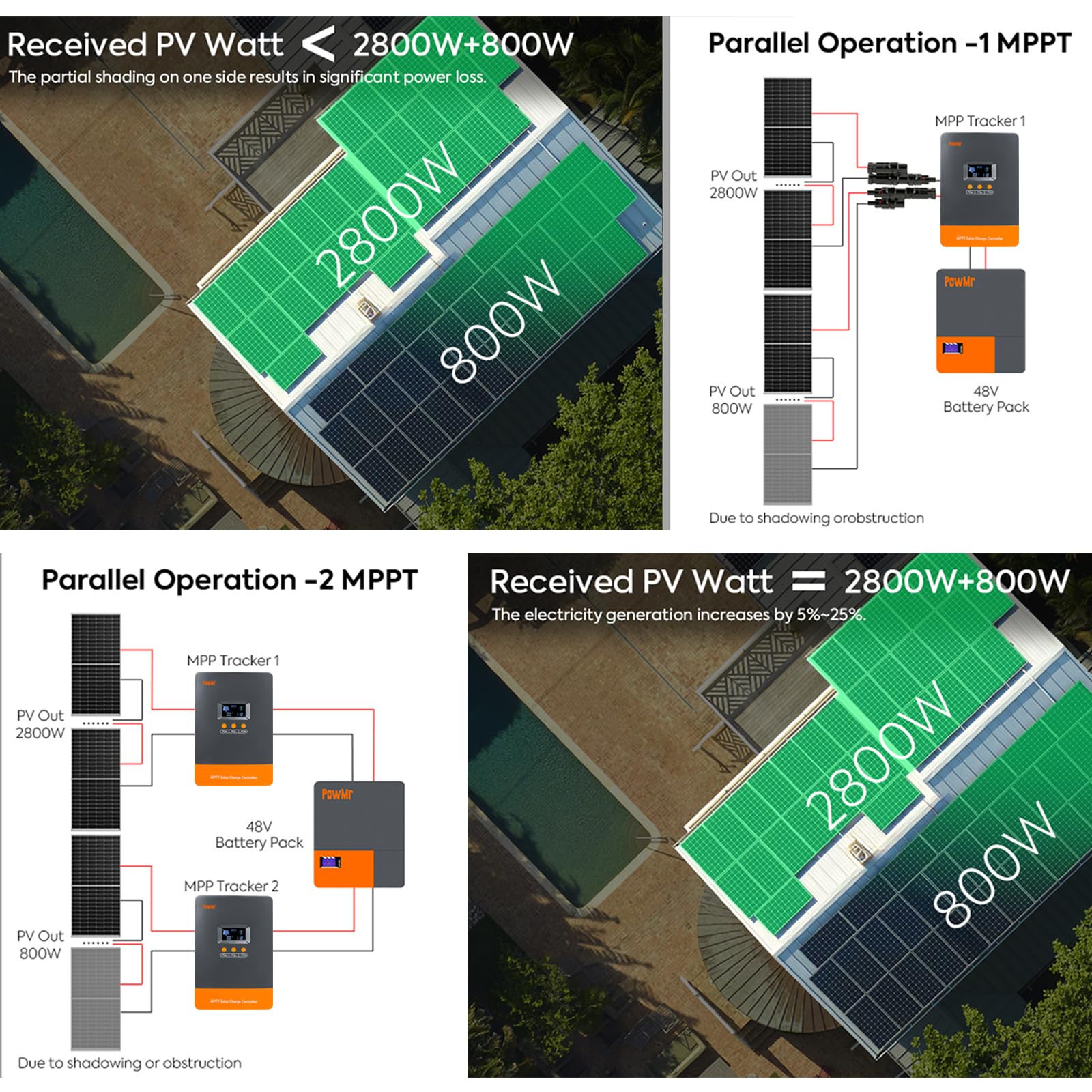

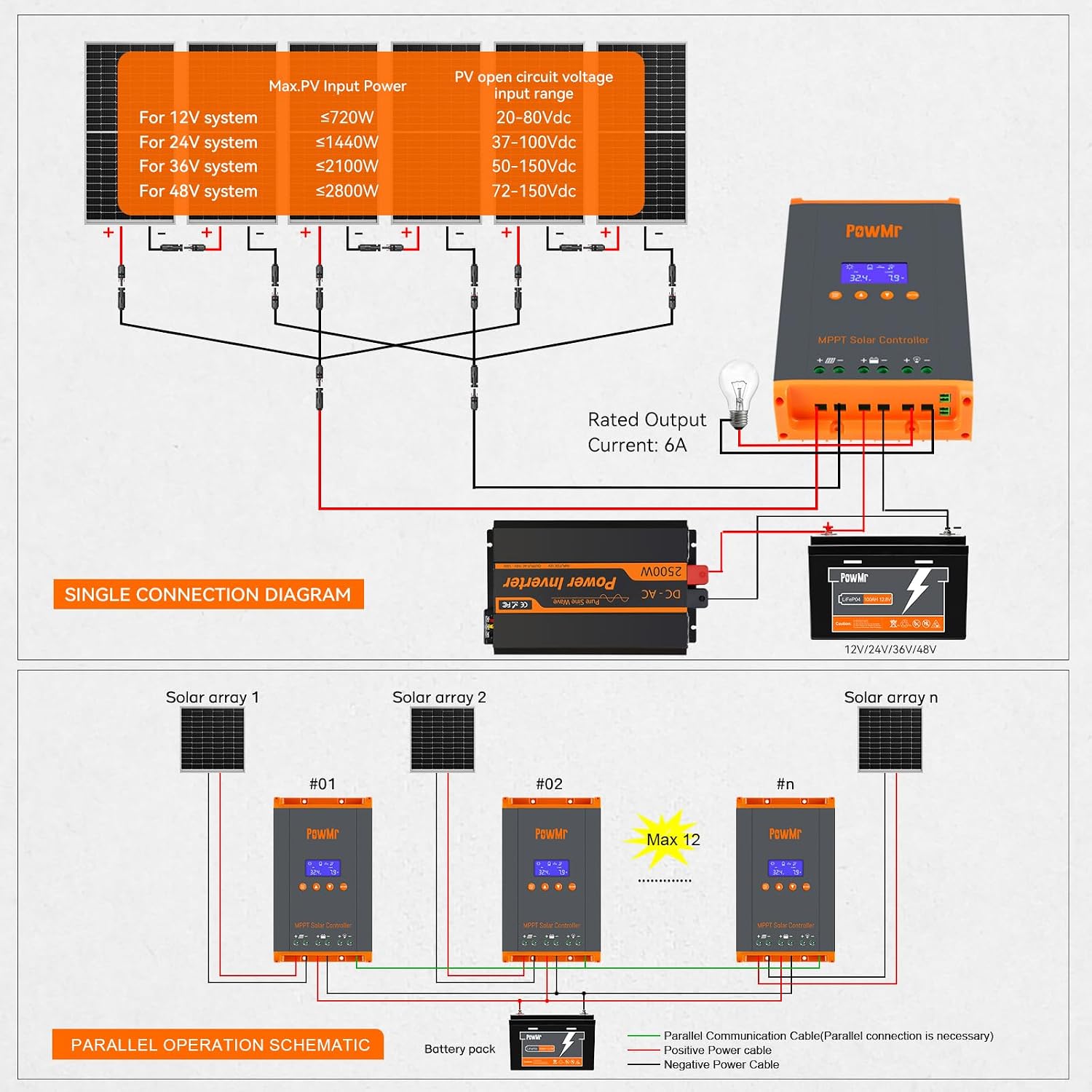

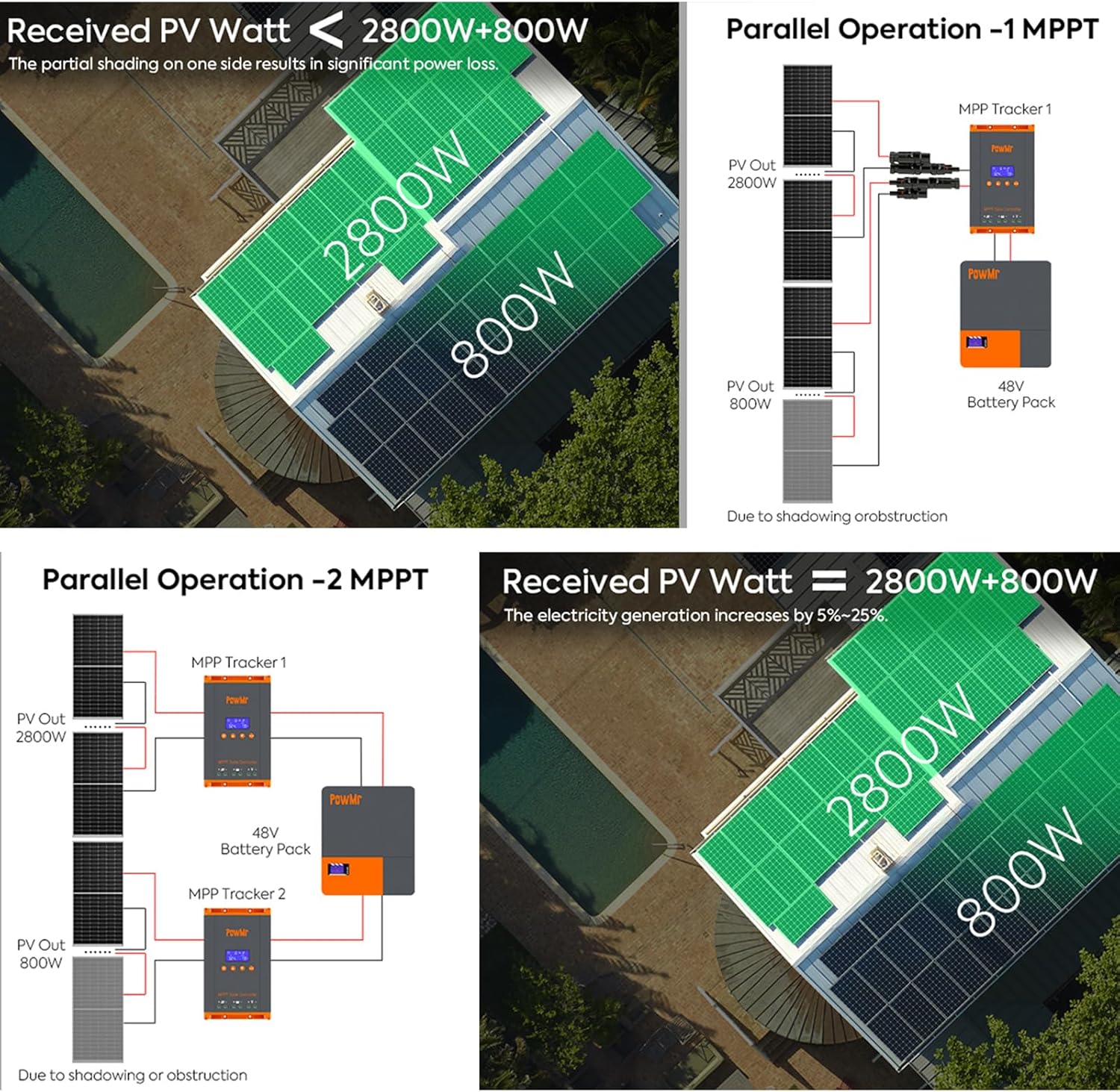

Parallel support claim: Up to 12 compatible controllers

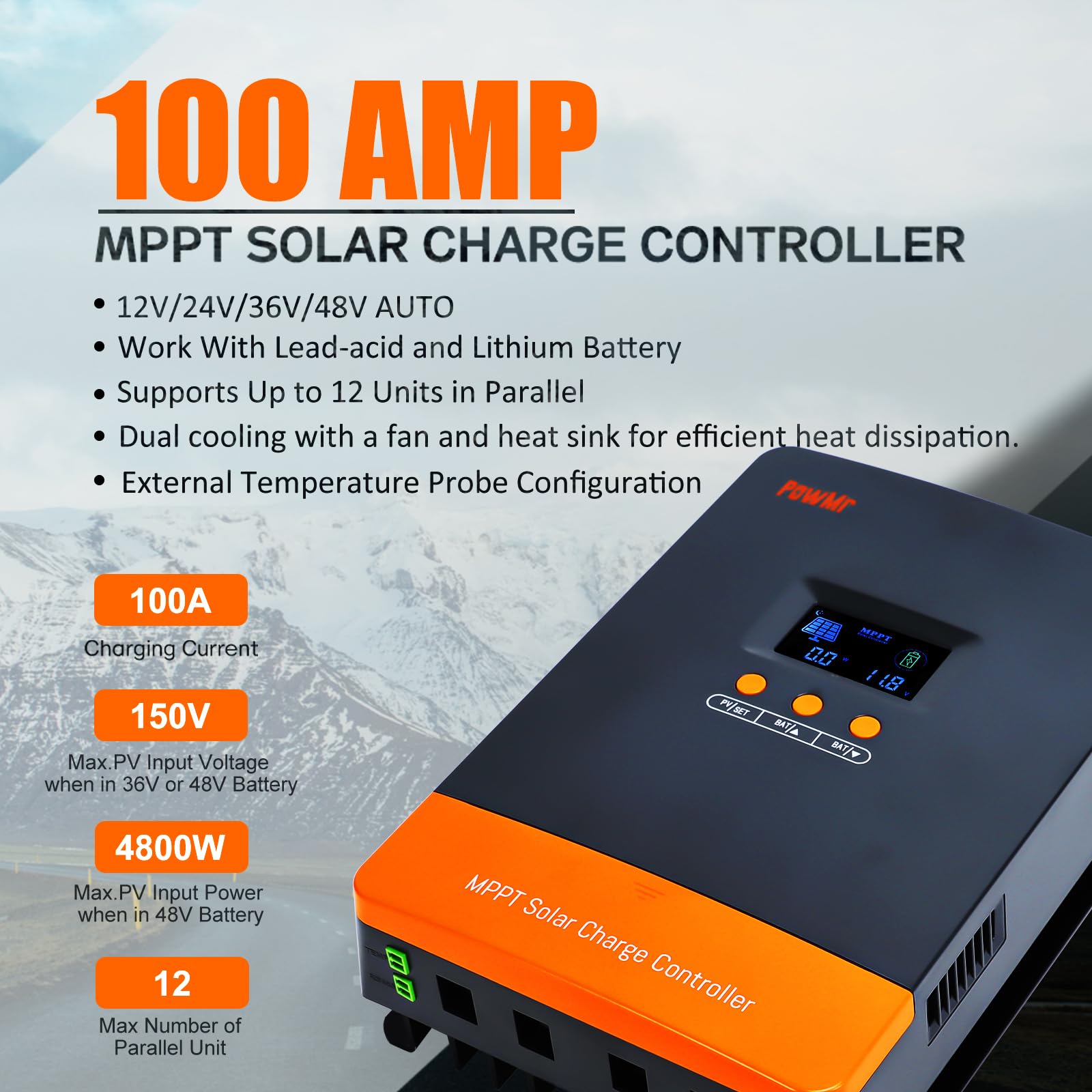

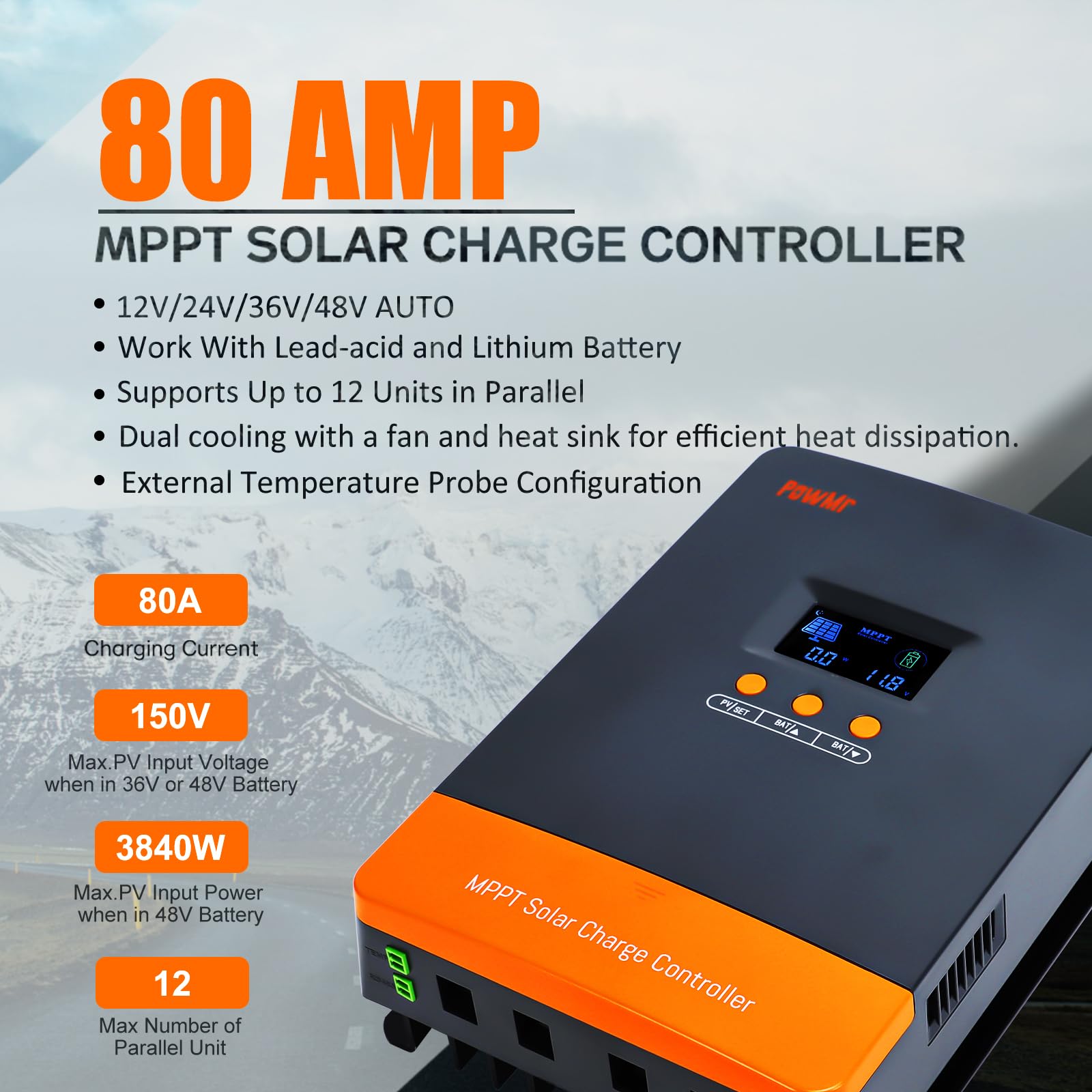

Other listed current options: 80 A and 100 A
Brand shown on the exact listing: PowMr / Temank listing family
Adjustable charging-current range listed: 2–60 A
Battery-system detection: 12 V, 24 V or 48 V
Maximum parallel count claim: 12 compatible controllers

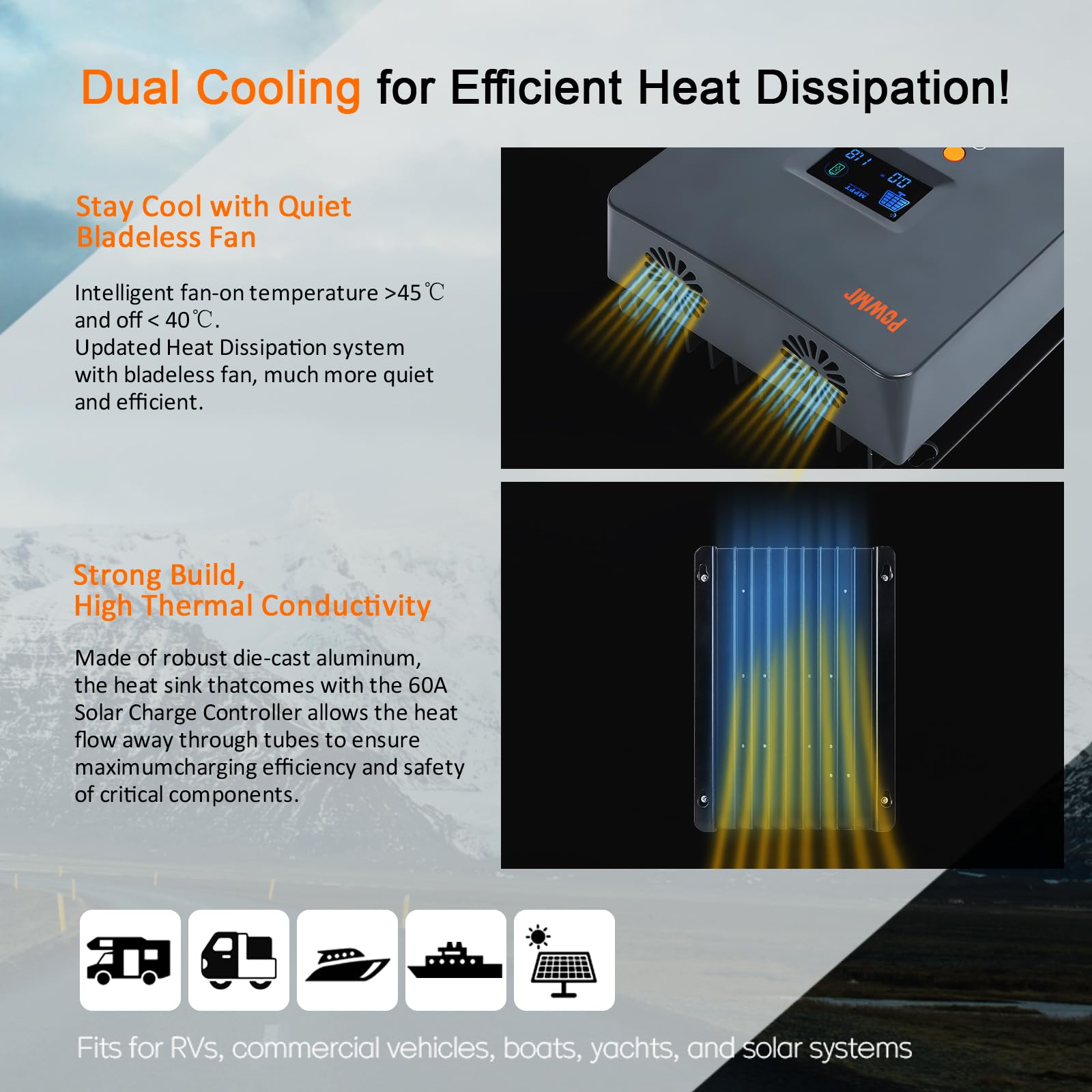

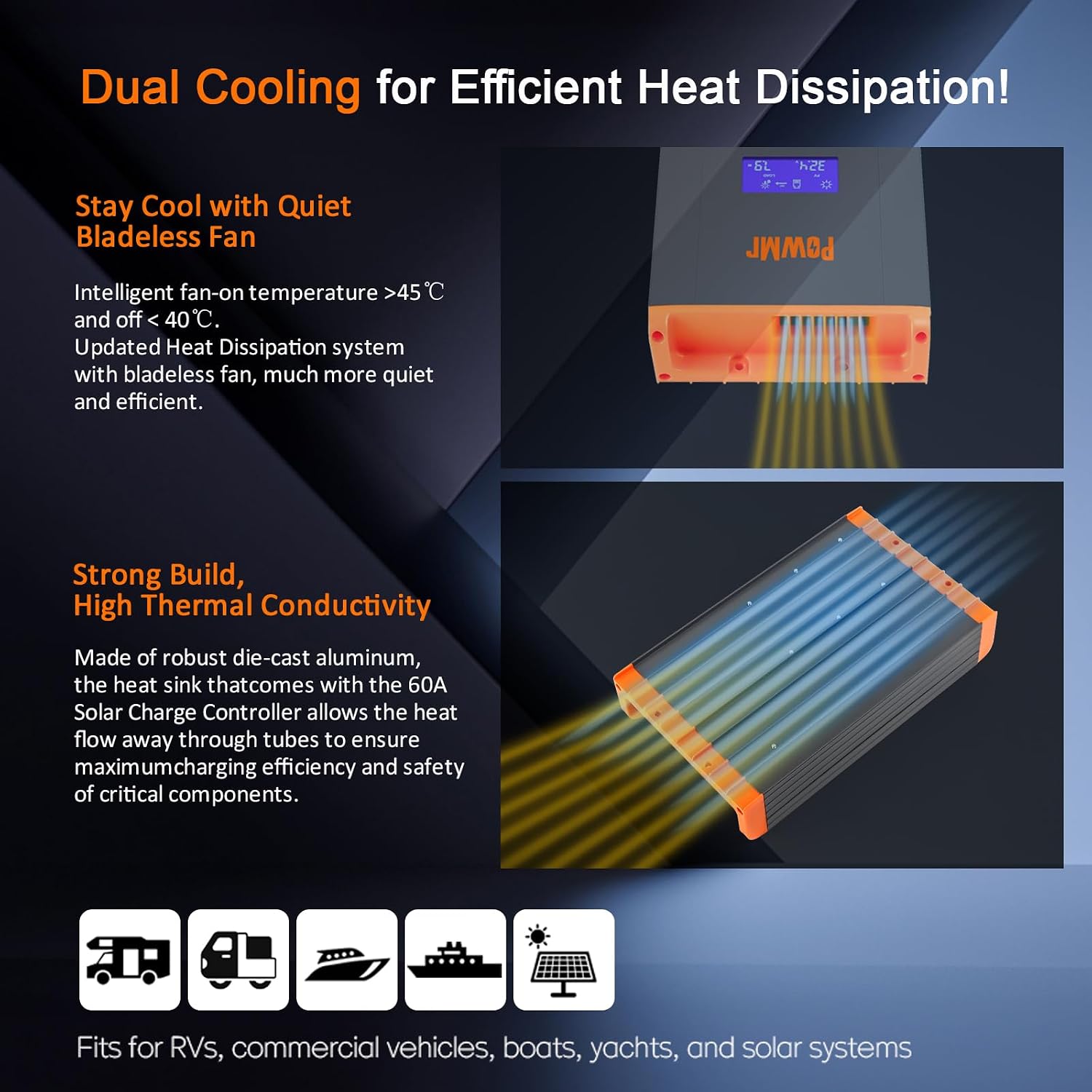

Enclosure material: Aluminum
Display type: LCD
Maximum operating-temperature figure shown: 45°C

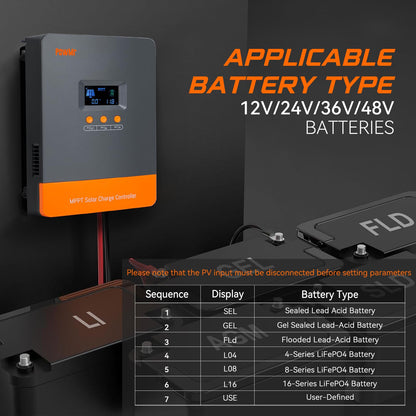

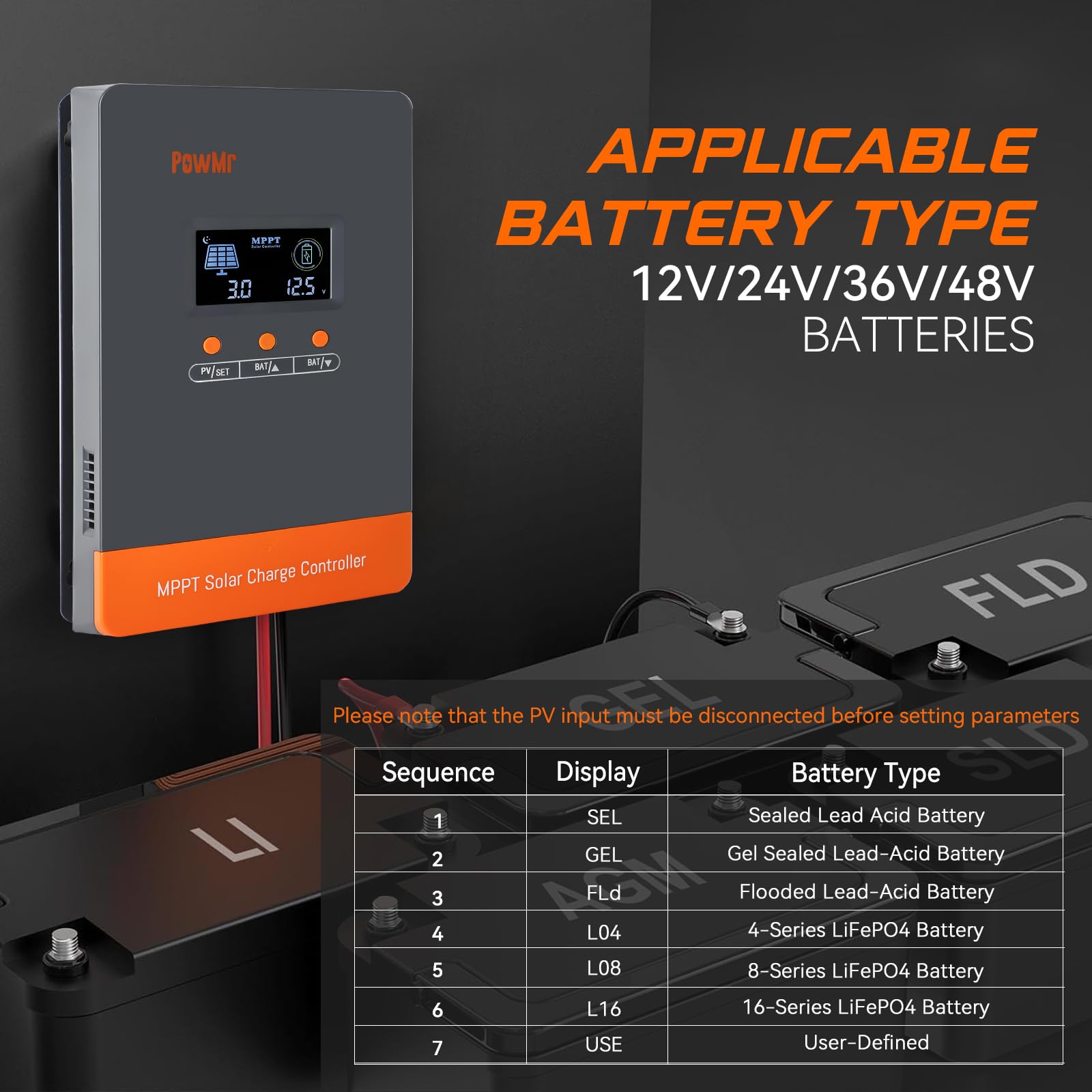

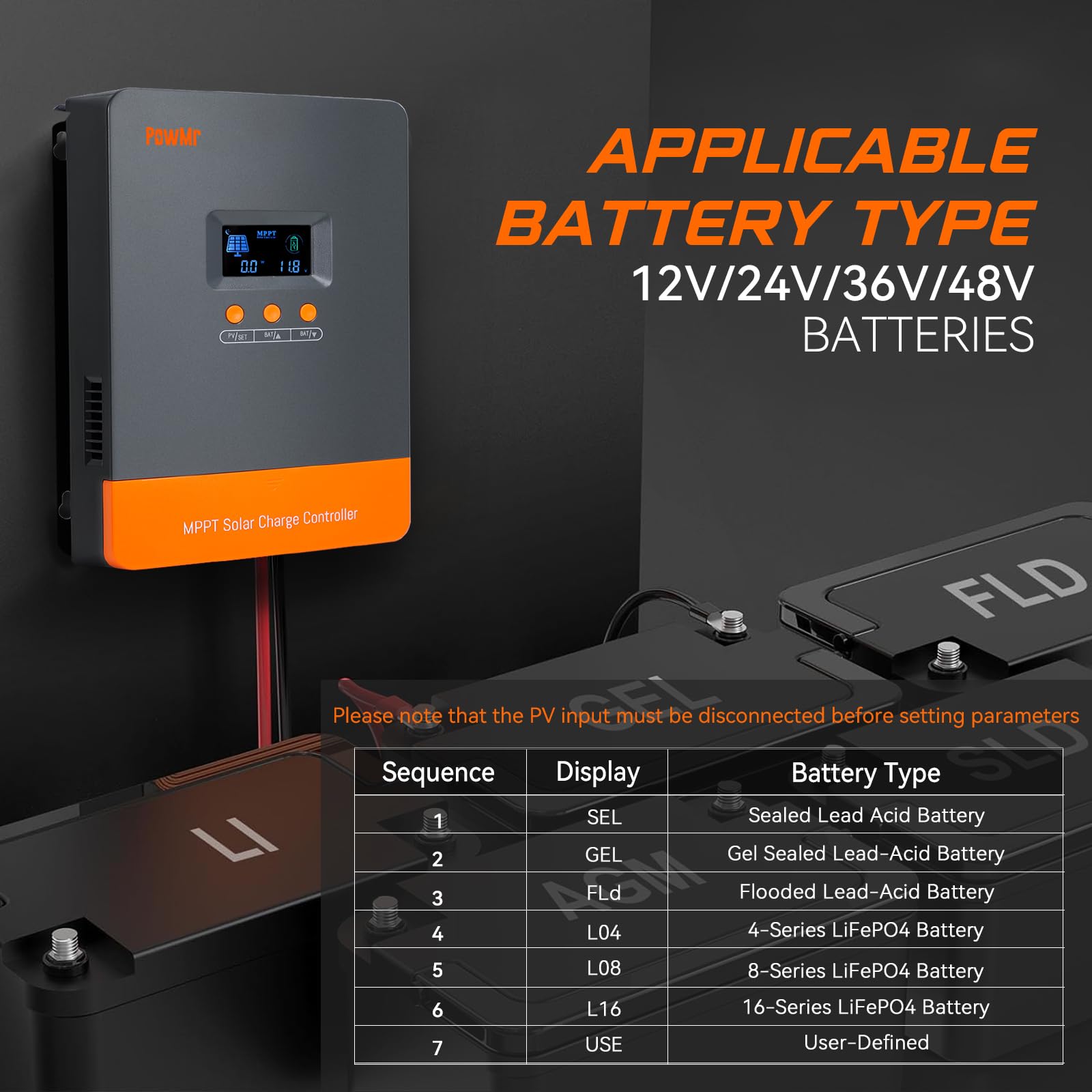

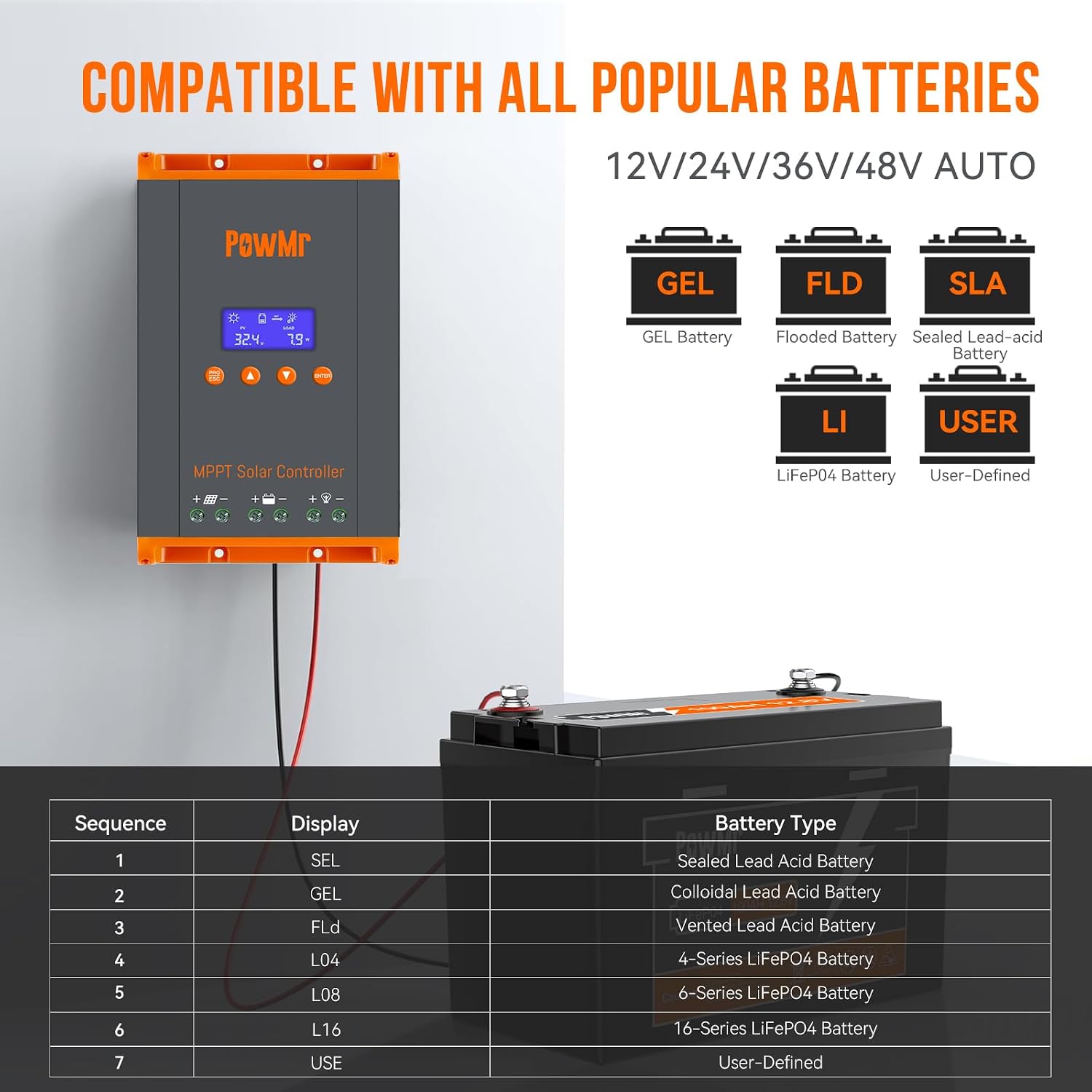

Battery profiles listed: Lead-acid, gel and lithium; select the profile required by the battery maker
Product overview
This MPPT controller is designed to regulate solar charging across several common battery-bank voltages. The LCD provides local operating information, while listed parallel capability offers an expansion path when the manufacturer’s communication and wiring requirements are followed.
Suitable applications
Off-grid solar systems using a compatible 12 V, 24 V or 48 V lead-acid or lithium battery bank.
Before ordering
Confirm maximum PV open-circuit voltage, array current and wattage, battery chemistry settings, temperature limits, conductor size and protection. Never exceed the controller’s cold-weather PV voltage limit.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
