Specifications

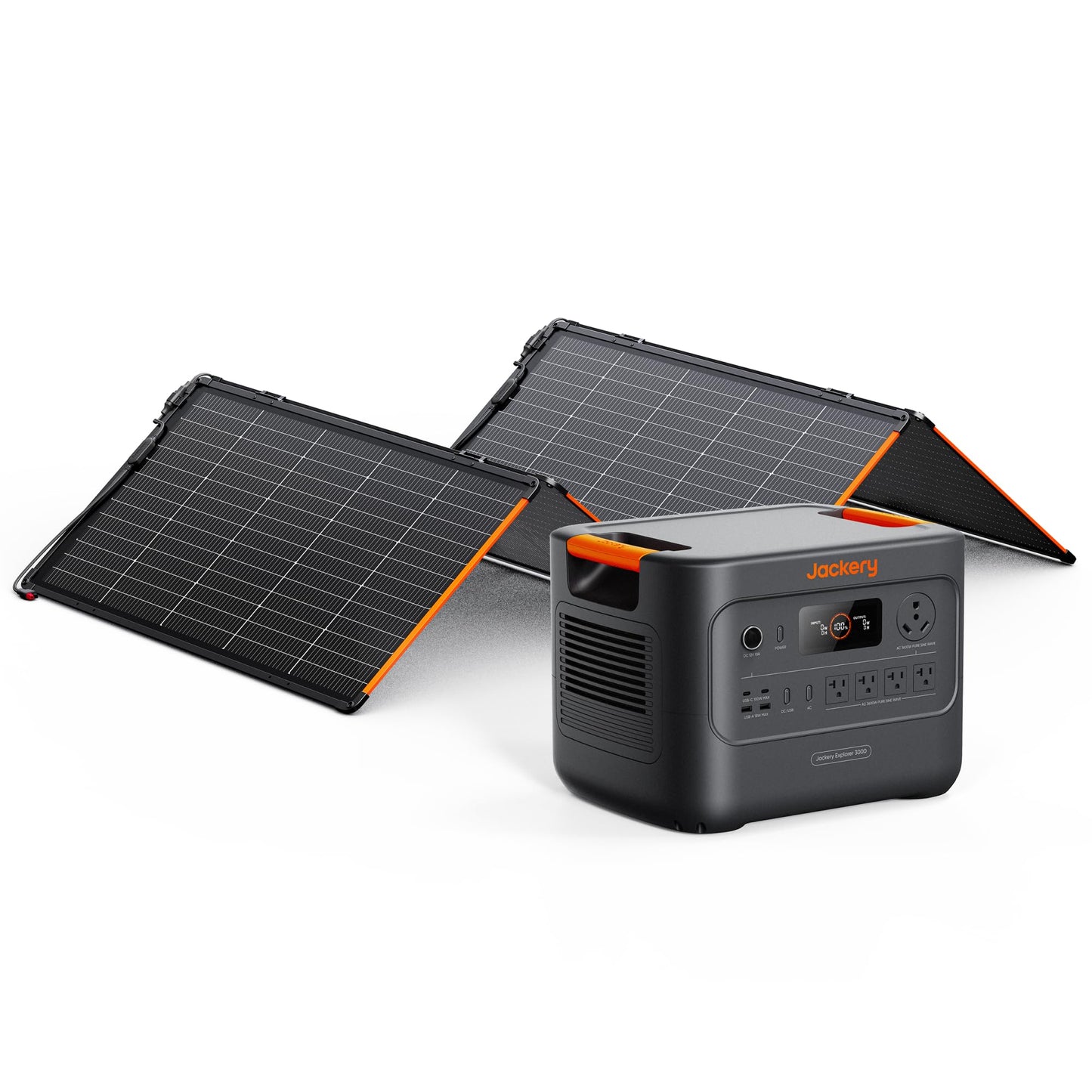

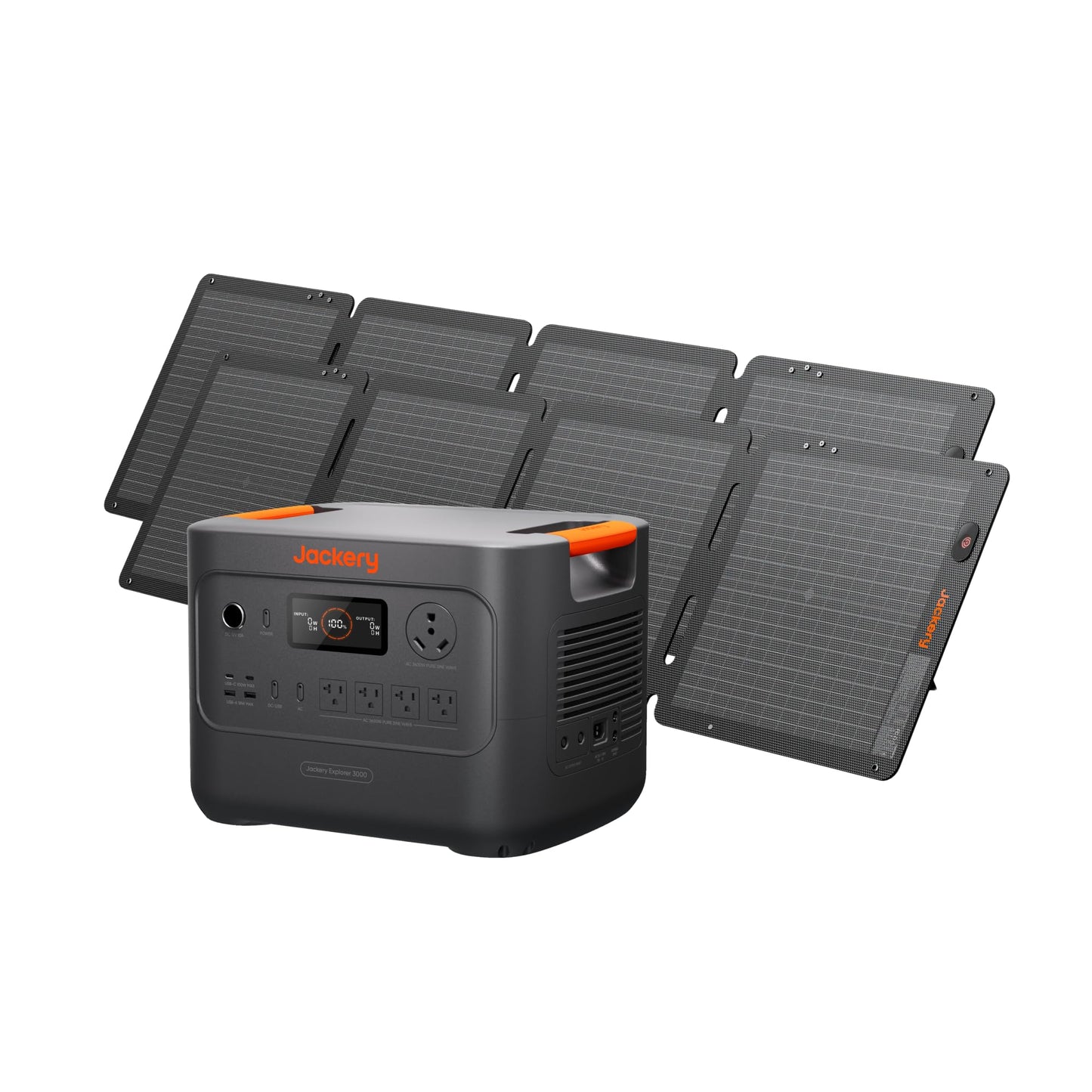

Primary configuration: Jackery HomePower 3000 portable power station with AC charging cable. Amazon ASIN: B0HF8HPVXX. Solar panels and the optional car-charging cable are not included in the identified configuration.
- PV input working-voltage range: 16–60V DC for standard solar charging
- Low-voltage DC input range: 12–16V DC
- Maximum PV input power: 1,000W total
- Solar/DC inputs: Two DC8020 8mm ports
- PV input current at 16–60V: 12A maximum per port and 24A maximum with both ports
- DC input current at 12–16V: 8A maximum; the combined dual-port limit remains 8A
- Battery capacity: 3,072Wh / 60Ah at 51.2V DC
- Battery chemistry: LFP / LiFePO4

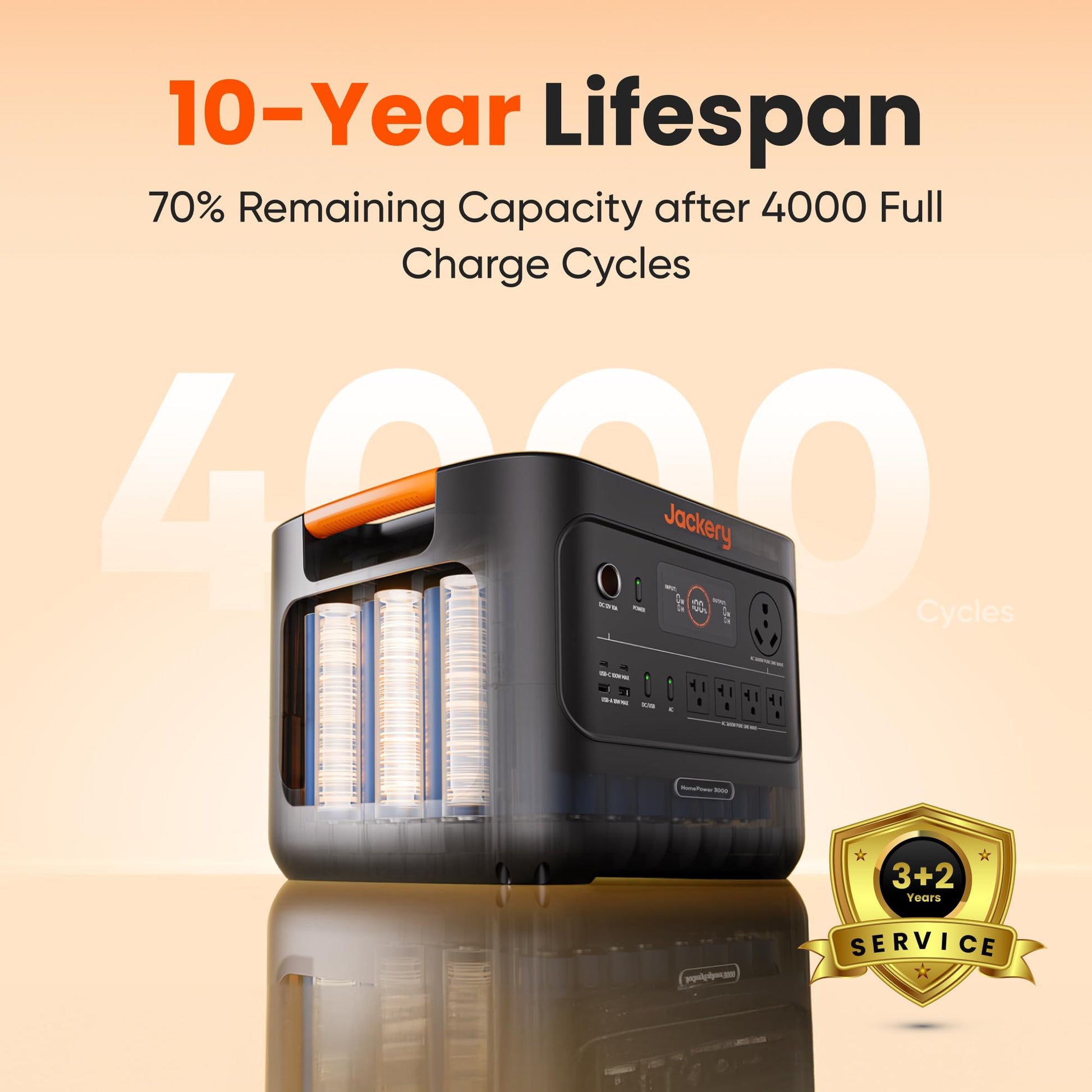

- Cycle life: 4,000 cycles to 70% or greater remaining capacity
- Continuous AC output: 3,600W total
- AC surge output: 7,200W
- AC waveform: Pure sine wave

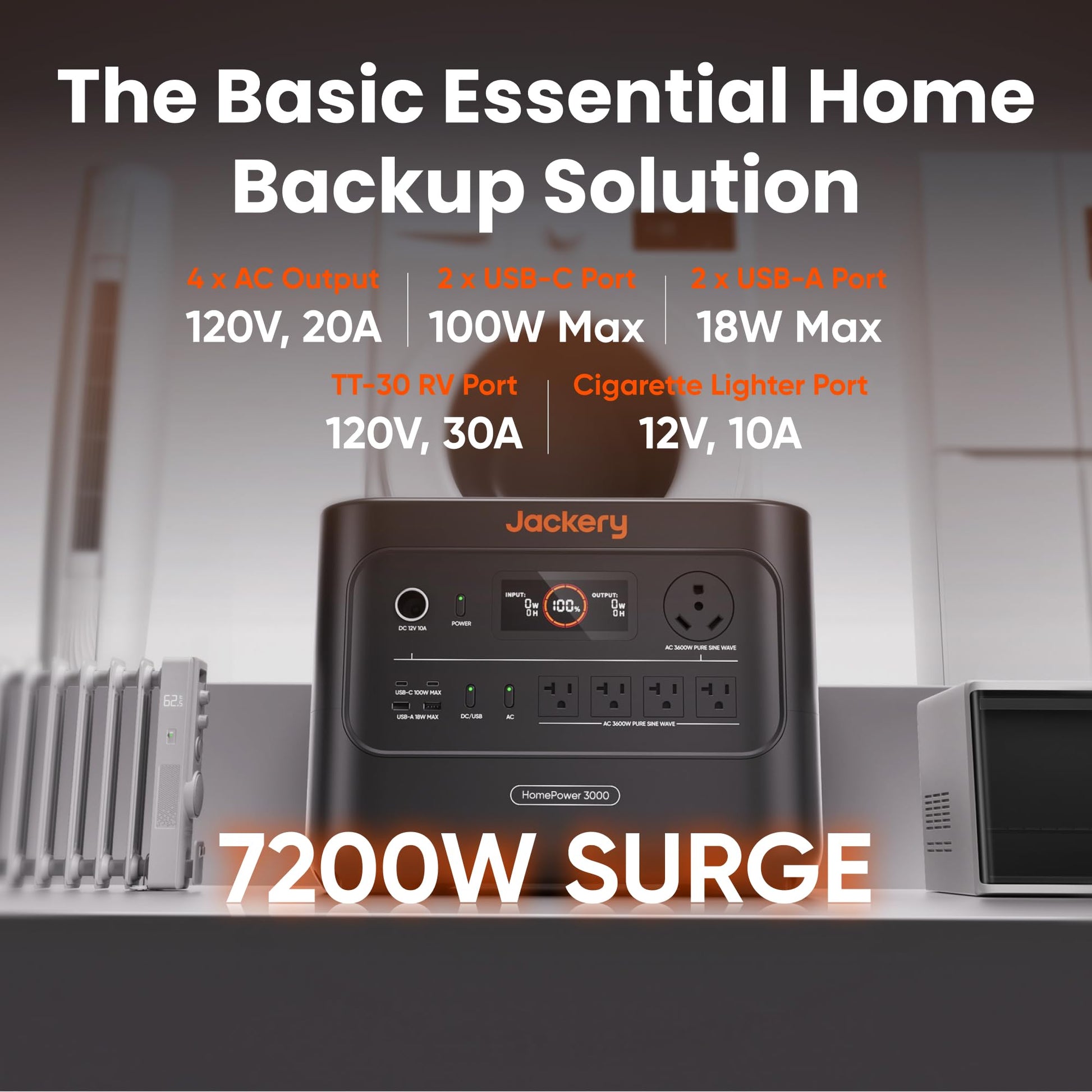

- Four standard AC outlets: 120V, 60Hz, 20A and 2,400W combined maximum
- 30A AC outlet: 120V, 30A and 3,600W maximum
- AC charging input: 100–120V, 60Hz and 15A maximum
- Bypass-mode input/output: 120V, 60Hz, 12A and 1,440W maximum
- USB-C outputs: Two ports, 100W maximum per port
- USB-A outputs: Two ports, 18W maximum per port
- 12V output: Cigarette-lighter port, 12V DC and 10A maximum

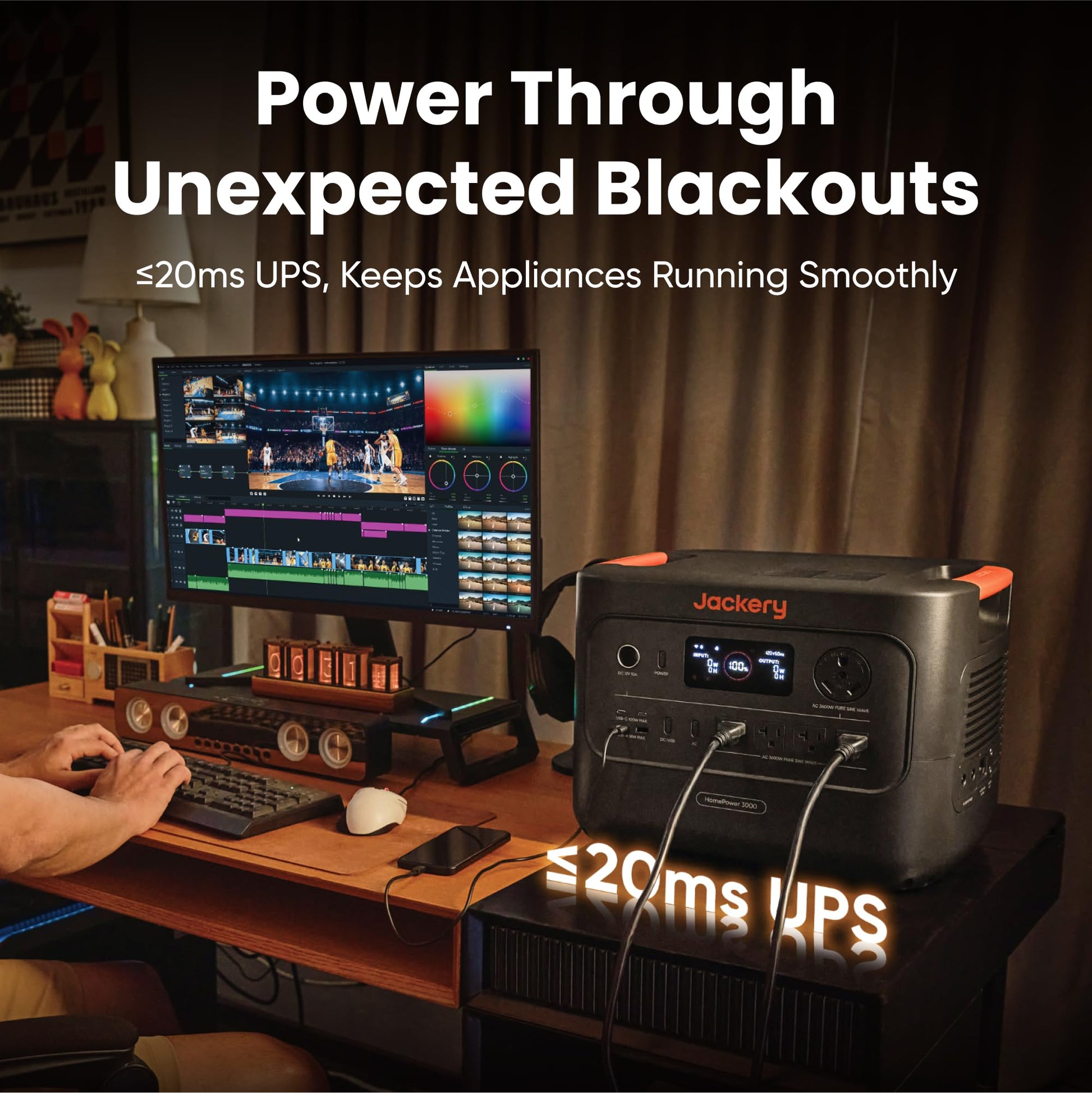

- UPS transfer time: 20ms or less

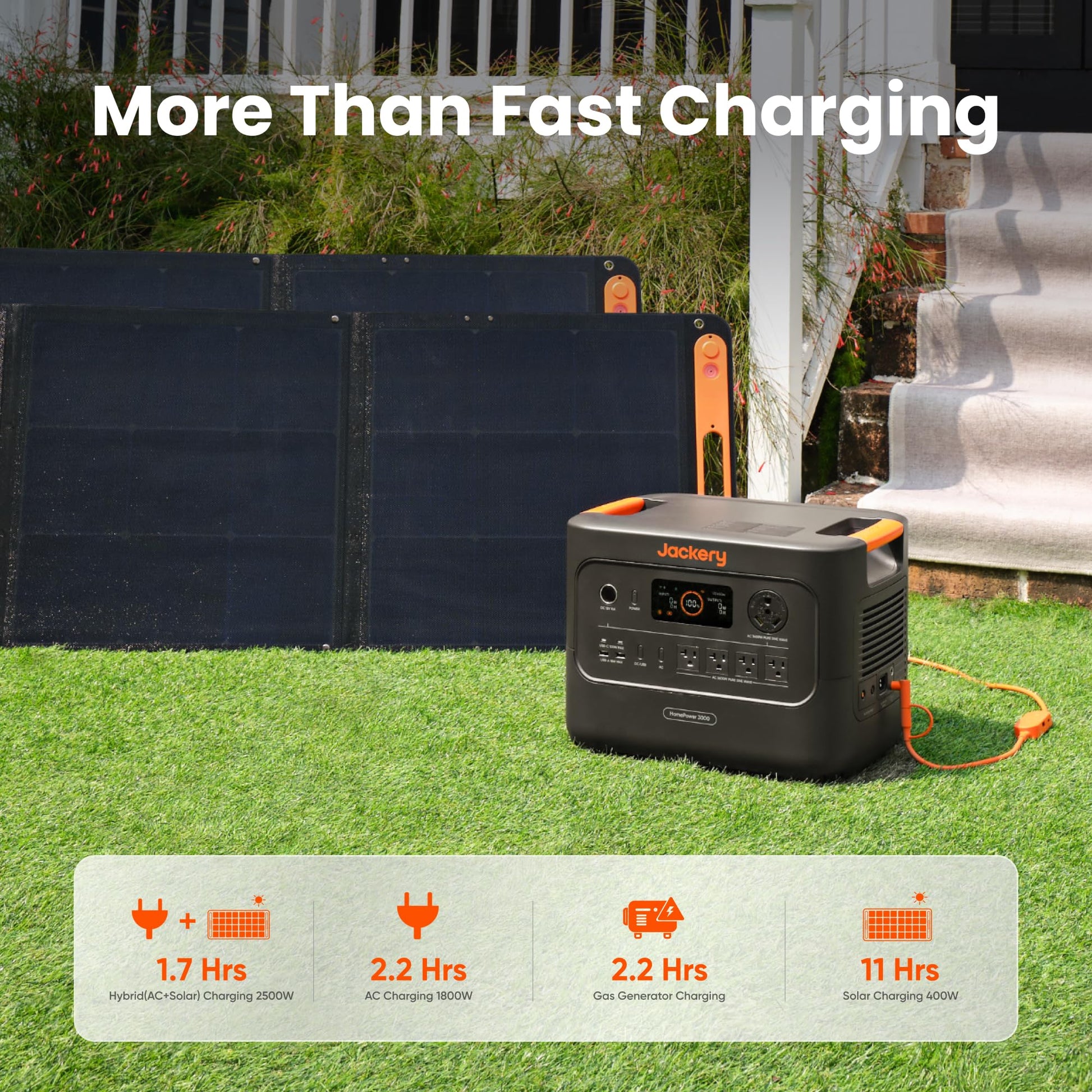

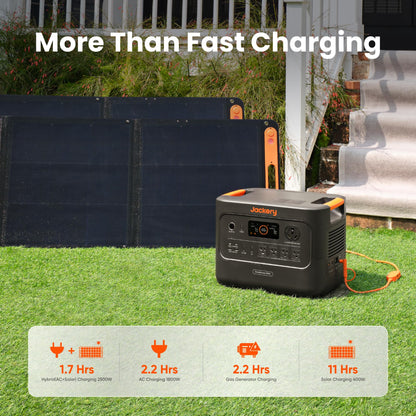

- AC charging time: Approximately 2.2 hours under specified conditions
- AC plus DC charging time: As fast as approximately 1.7 hours under specified conditions
- Connectivity: Wi-Fi and Bluetooth with Jackery app support
- Charging temperature: 0°C to 45°C / 32°F to 113°F
- Discharging temperature: −15°C to 45°C / 5°F to 113°F
- Cold-temperature limitation: Output is limited to 2,000W between −15°C and −10°C
- Dimensions: 416 × 325 × 305mm / 16.4 × 12.8 × 12in
- Weight: Approximately 27kg / 59.52lb

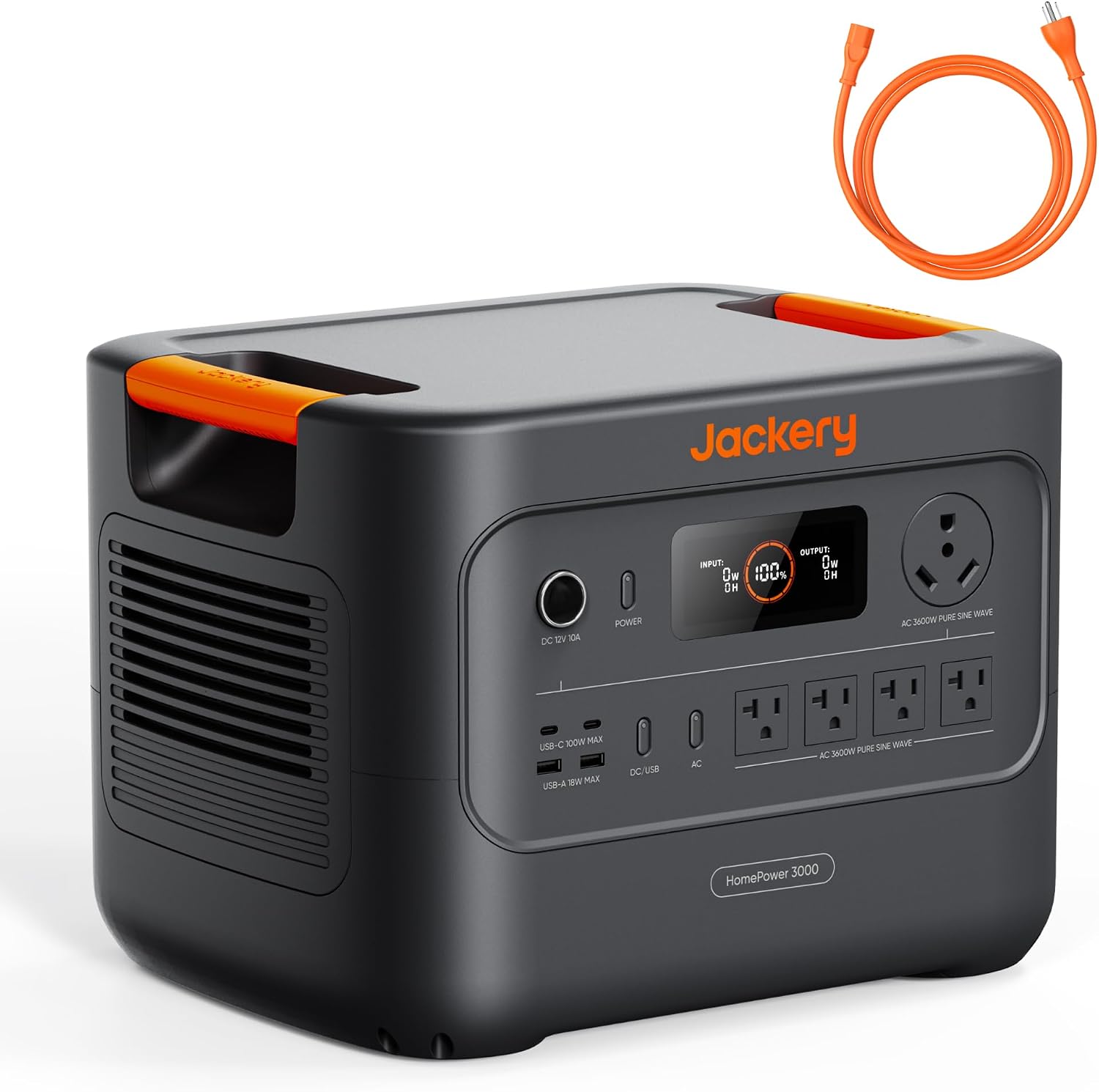

- Package contents: HomePower 3000, AC charging cable and user manual
Product overview

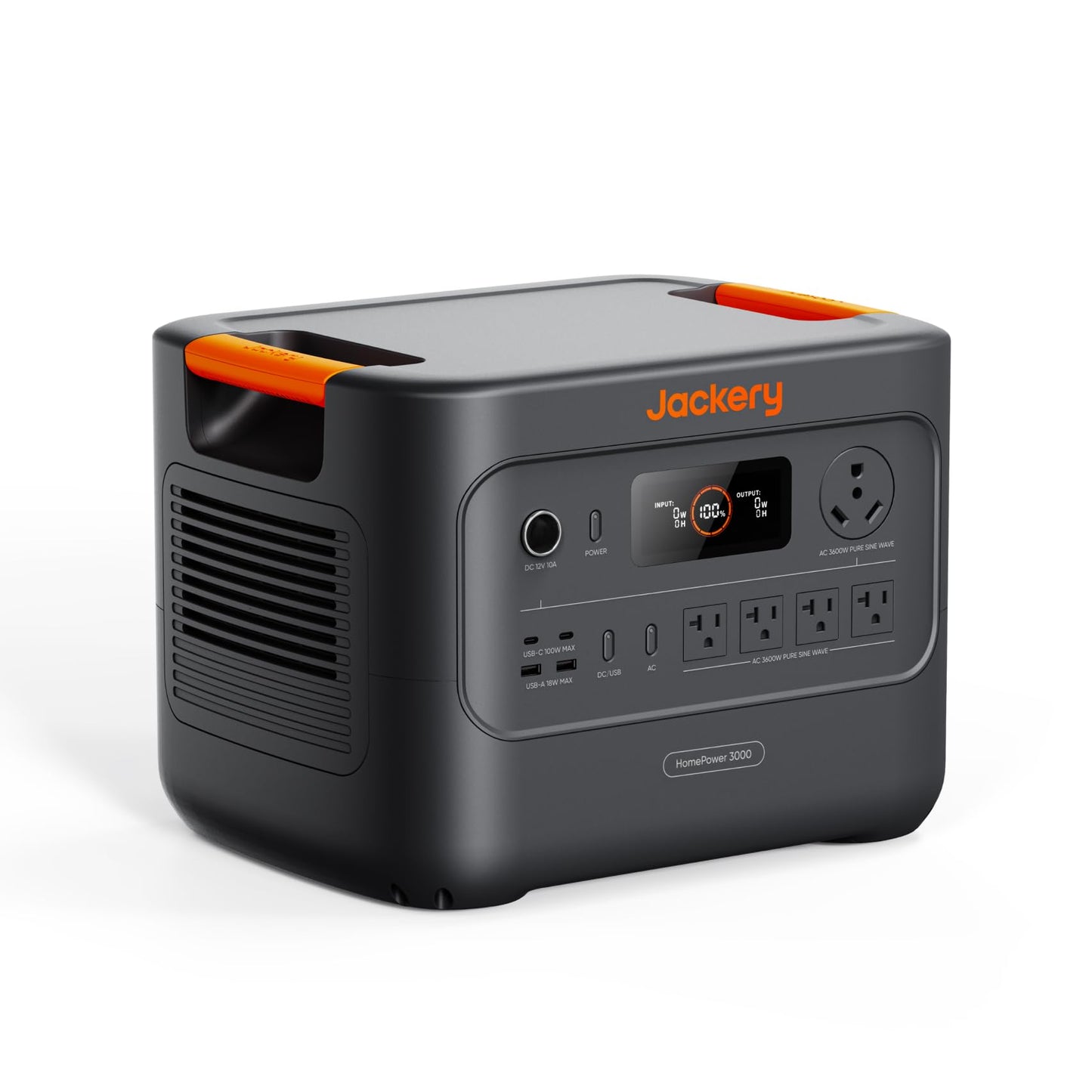

The Jackery HomePower 3000 combines a 3,072Wh LiFePO4 battery with a 3,600W pure-sine-wave inverter for household essentials, RV equipment, electronics and selected power tools. Two DC8020 solar inputs accept up to 1,000W of combined PV power.
Suitable applications

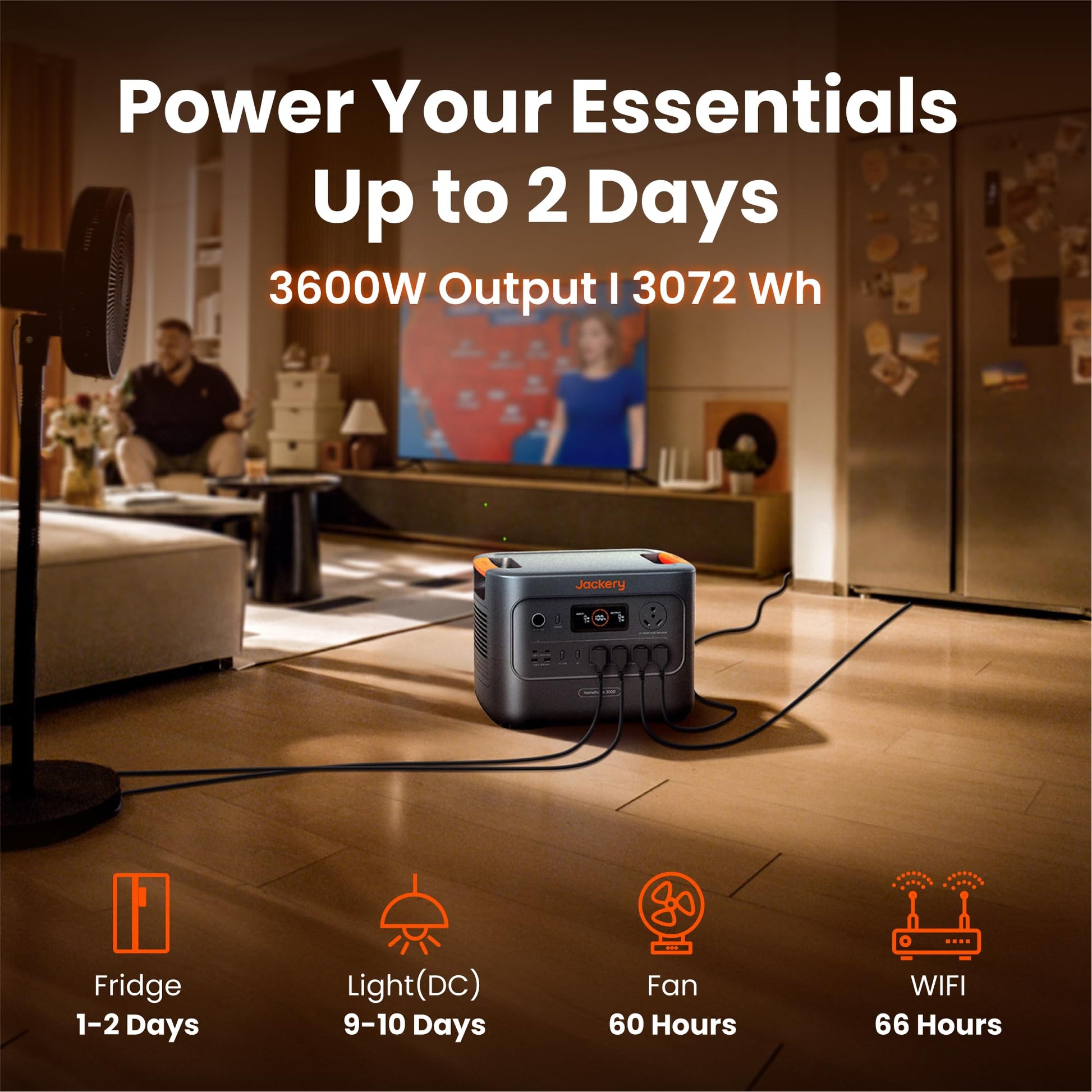

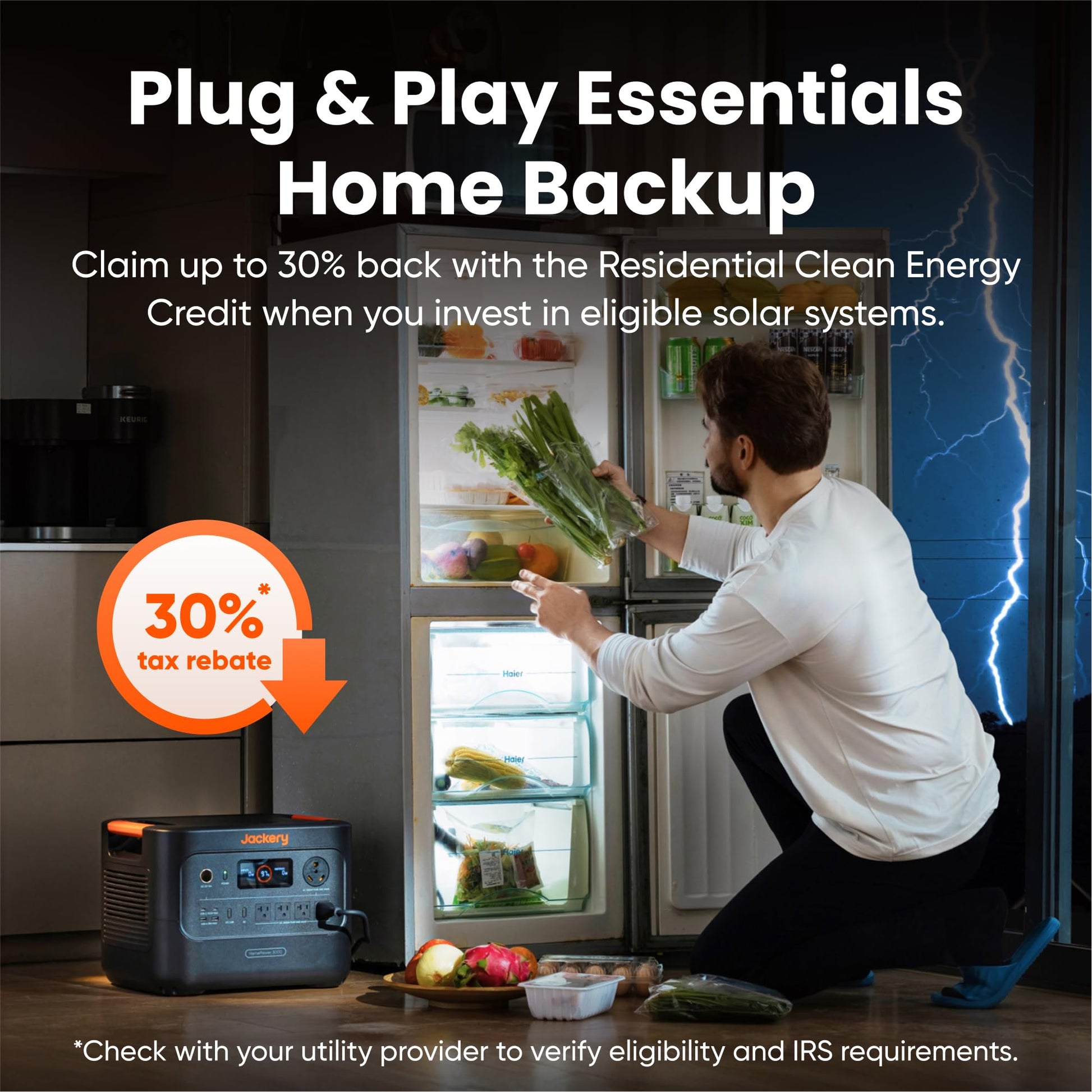

Emergency backup for refrigerators, freezers, lights and internet equipment; RV power; dry indoor off-grid-cabin use; temporary work areas; and compatible household appliances or tools within the applicable outlet limits.
Before ordering
Verify each panel's Voc, Vmp, Isc and Imp. Keep the array inside the applicable 12–16V or 16–60V input range, current limits and 1,000W total ceiling, including cold-weather Voc. The four standard outlets are limited to 2,400W combined, while total AC output is 3,600W. The manufacturer specifies indoor use in a clean, dry and ventilated environment. Building-circuit connection requires approved transfer equipment and code-compliant installation; never backfeed a receptacle or utility circuit.
Technical sources
Exact Amazon.ca product listing | Jackery Canada HomePower 3000 specifications | Jackery JHP-3000C user manual
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
