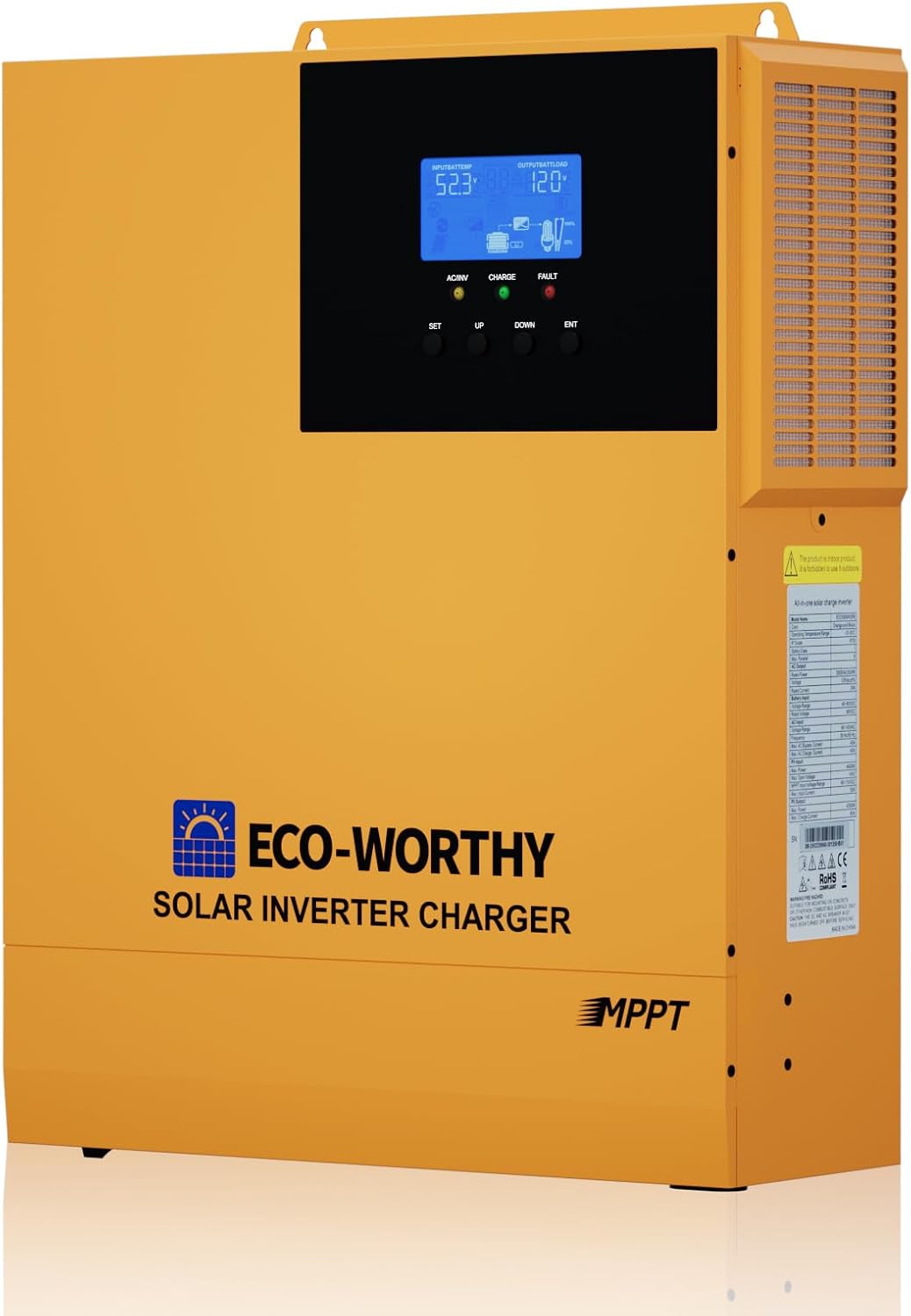

ECO-WORTHY 3500W 48V Pure Sine Wave Solar Inverter with Remote Monitoring

Specifications

Primary configuration: ECO-WORTHY 3500W all-in-one off-grid inverter/charger for a 48V battery system, with built-in MPPT solar charging and remote monitoring. Amazon ASIN: B0FNVT7MD2. Confirm the exact seller package and included accessories before ordering.

• PV operating-voltage range: 60–145V DC
• MPPT operating-voltage range: 60–115V DC
• Maximum PV input power: 4,400W
• Maximum PV open-circuit voltage: 145V DC
• Maximum PV charging current: 80A
• Rated inverter output: 3,500W
• Manufacturer technical-table peak output: 6,000W
• AC output: 120V pure sine wave
• Rated battery input: 48V DC
• Battery operating/charging-voltage range: 40–60V DC
• Minimum battery starting voltage: 44V DC

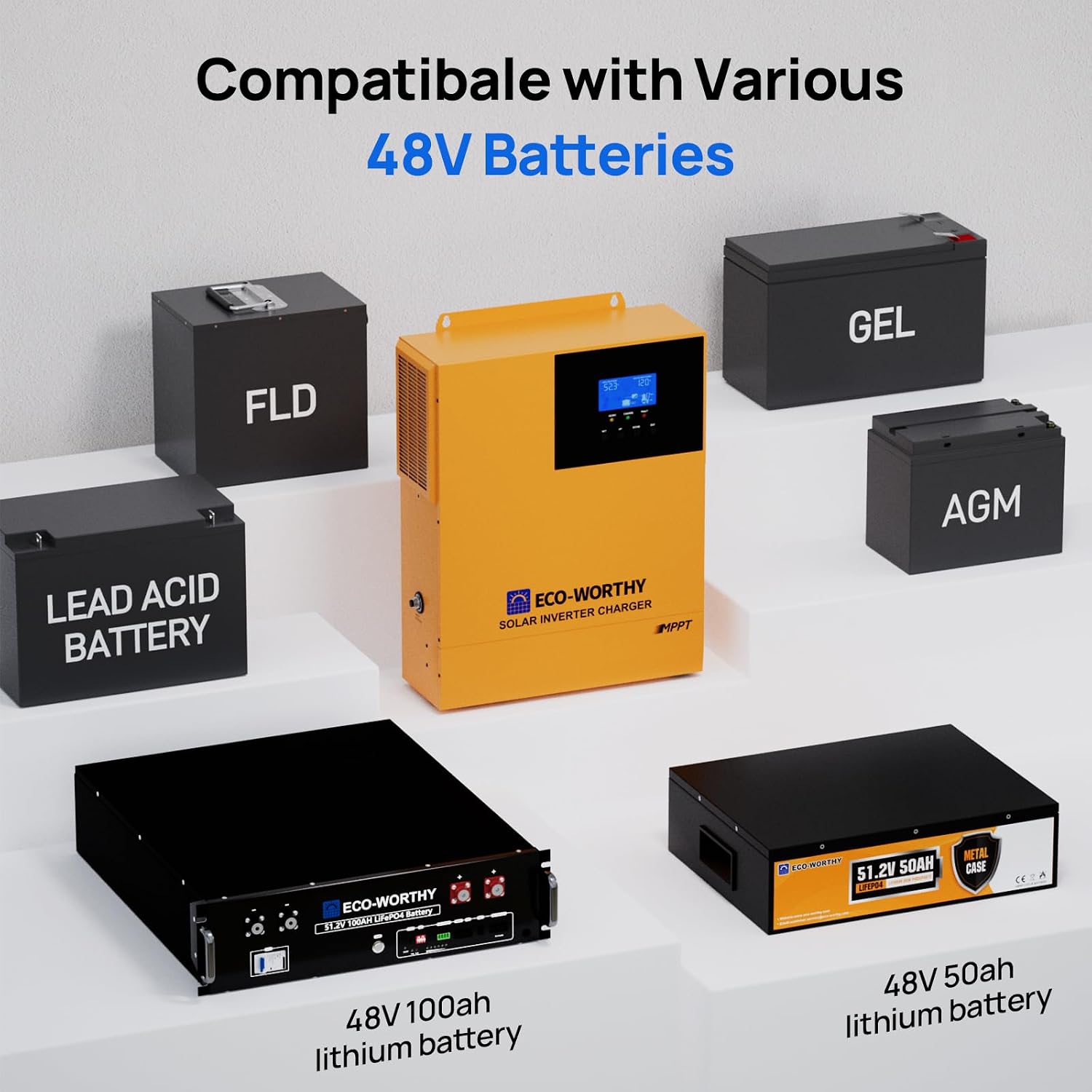

• Supported battery types: Lithium and lead-acid, subject to correct programming
• AC input rating: 110/120V AC
• AC input range: 90–140V AC
• AC frequency: 50/60Hz automatic detection
• Maximum AC battery-charging current: 40A
• Listed efficiency: 92%
• Maximum bypass current: 40A
• Parallel expansion: Up to six compatible units; manufacturer headline system output up to 21kW
• Integrated functions: Inverter, MPPT solar controller, AC charger and automatic transfer capability
• Monitoring and communication: Wi-Fi, Bluetooth and supported battery communications including compatible Pylontech-protocol batteries
• Manufacturer package list: Inverter, Wi-Fi module, parallel-connection cable, current-sharing cables, battery cables and instruction manual

Product overview

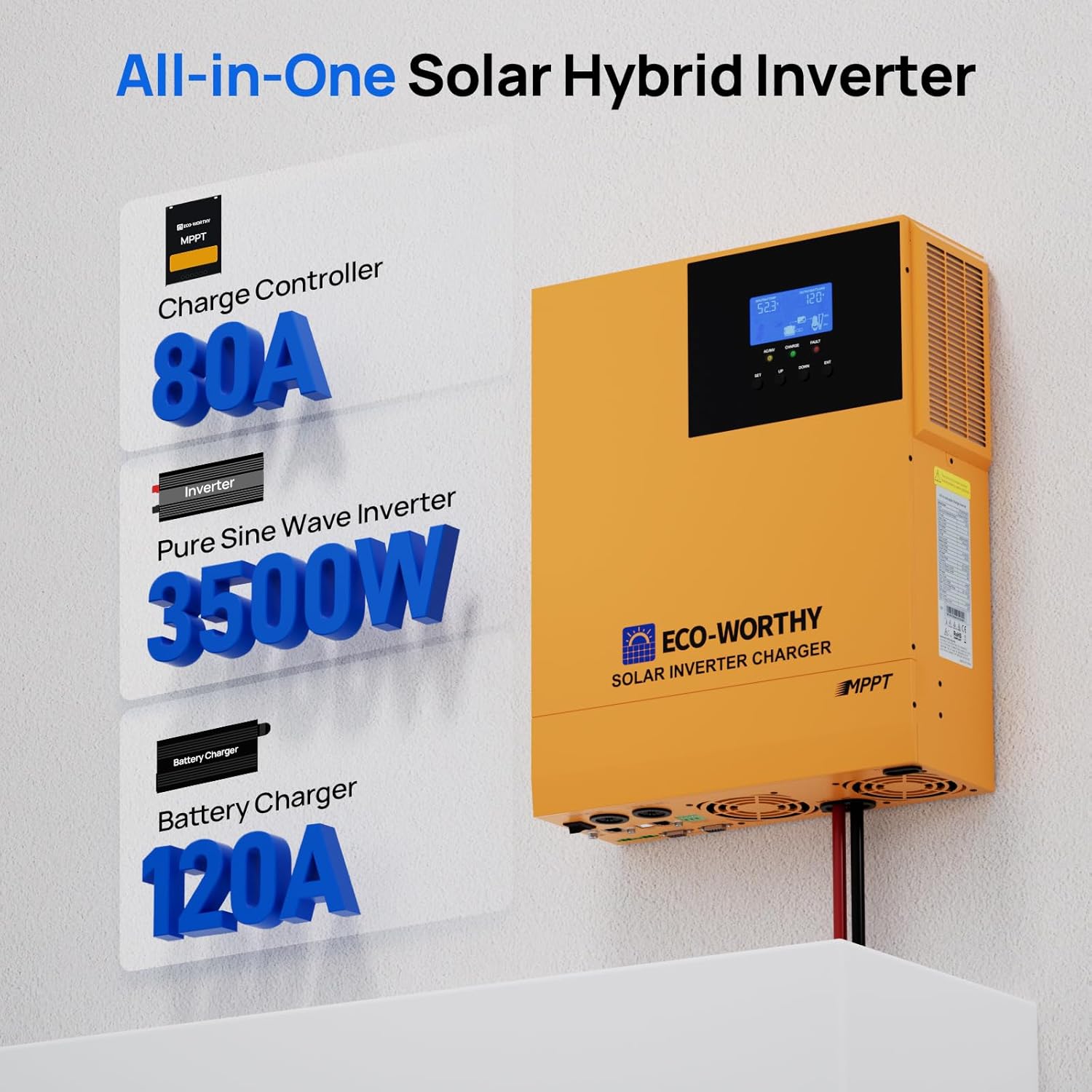

This ECO-WORTHY all-in-one unit combines a 48V battery inverter, 80A MPPT solar controller and AC battery charger in one enclosure. It is intended for off-grid systems that need 120V AC output, programmable charging and a path for compatible parallel expansion.

Suitable applications

Properly engineered 48V off-grid systems for cabins, barns, sheds, workshops, RV builds and essential backup loads that remain within the unit's electrical limits.

Before ordering

Confirm that the cold-weather array Voc remains below 145V and that normal operating voltage stays inside the 60–115V MPPT range. Verify battery chemistry, BMS communication, conductor ampacity, grounding and neutral arrangement, disconnects, overcurrent protection, ventilation and local code requirements. This is high-energy equipment and should be installed or reviewed by a qualified person; do not assume that parallel or 120/240V operation is available without the exact compatible units and accessories.

Technical sources

Exact Amazon.ca product listing  |  ECO-WORTHY Canada specifications  |  ECO-WORTHY technical table and downloads

Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
