Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
Maximum power (Pmax): 195 W
Voltage at maximum power (Vmp): 19.8 V
Current at maximum power (Imp): 9.85 A
Open-circuit voltage (Voc): 23.7 V
Short-circuit current (Isc): 10.5 A
Maximum system voltage: 1000 V DC

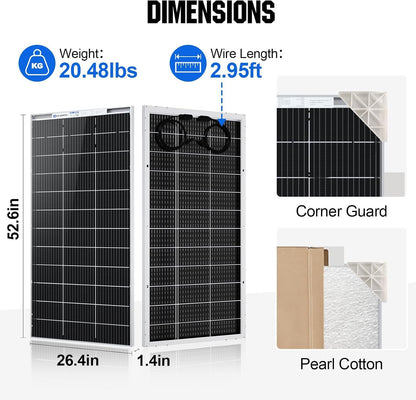

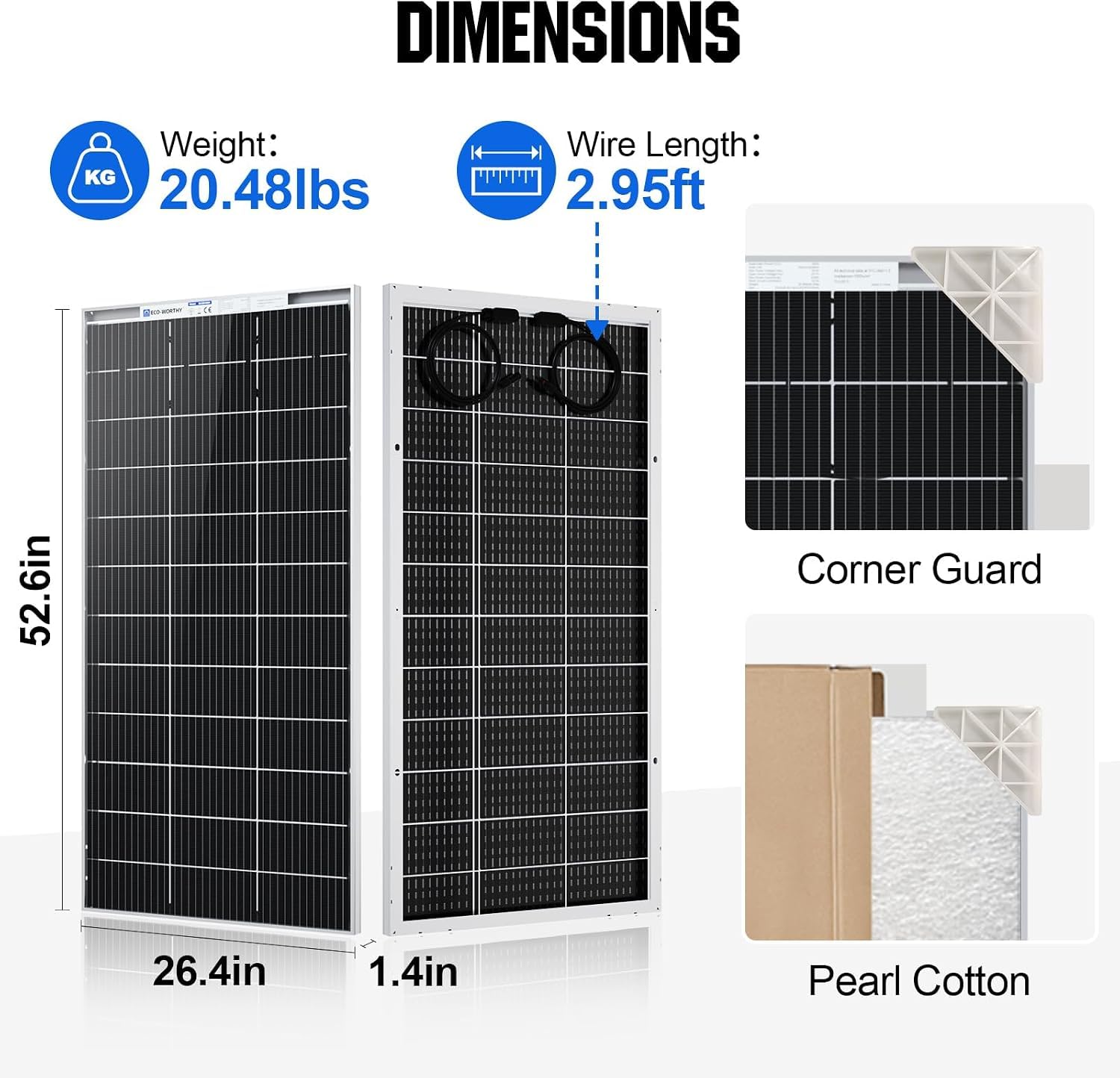

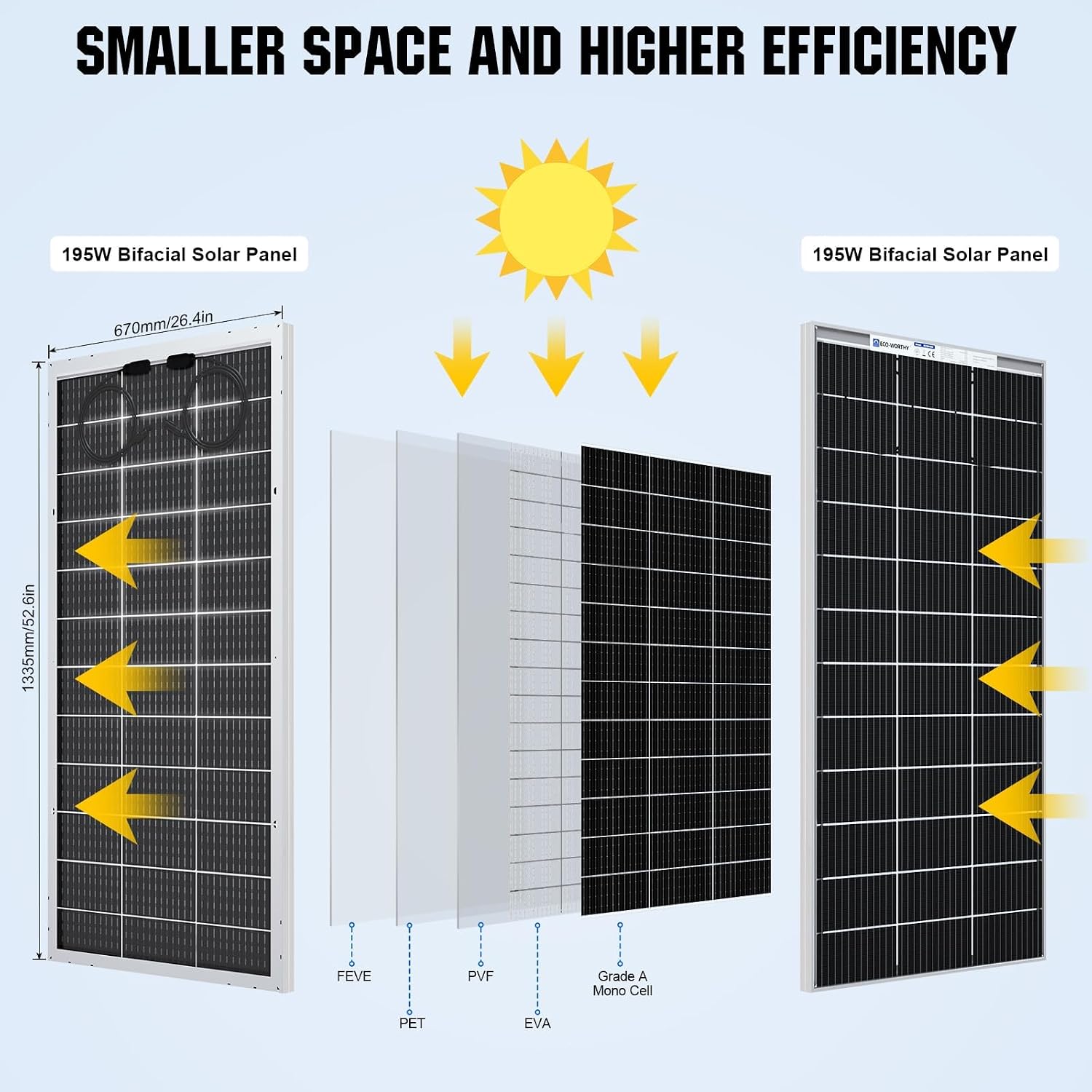

Dimensions: 1335 × 670 × 35 mm / 52.6 × 26.4 × 1.4 in
Weight: 9.20 kg / 20.48 lb
Output cable length: 90 cm / 2.95 ft
Temperature coefficient of Pmax: Not published on the current Amazon or manufacturer listing.
Temperature coefficient of Voc: −(0.38 ± 0.01)%/°C
Temperature coefficient of Isc: Not published on the current Amazon or manufacturer listing.
Operating temperature: −40°C to +80°C
Rated power per panel: 195 W
Nominal system class: 12 V

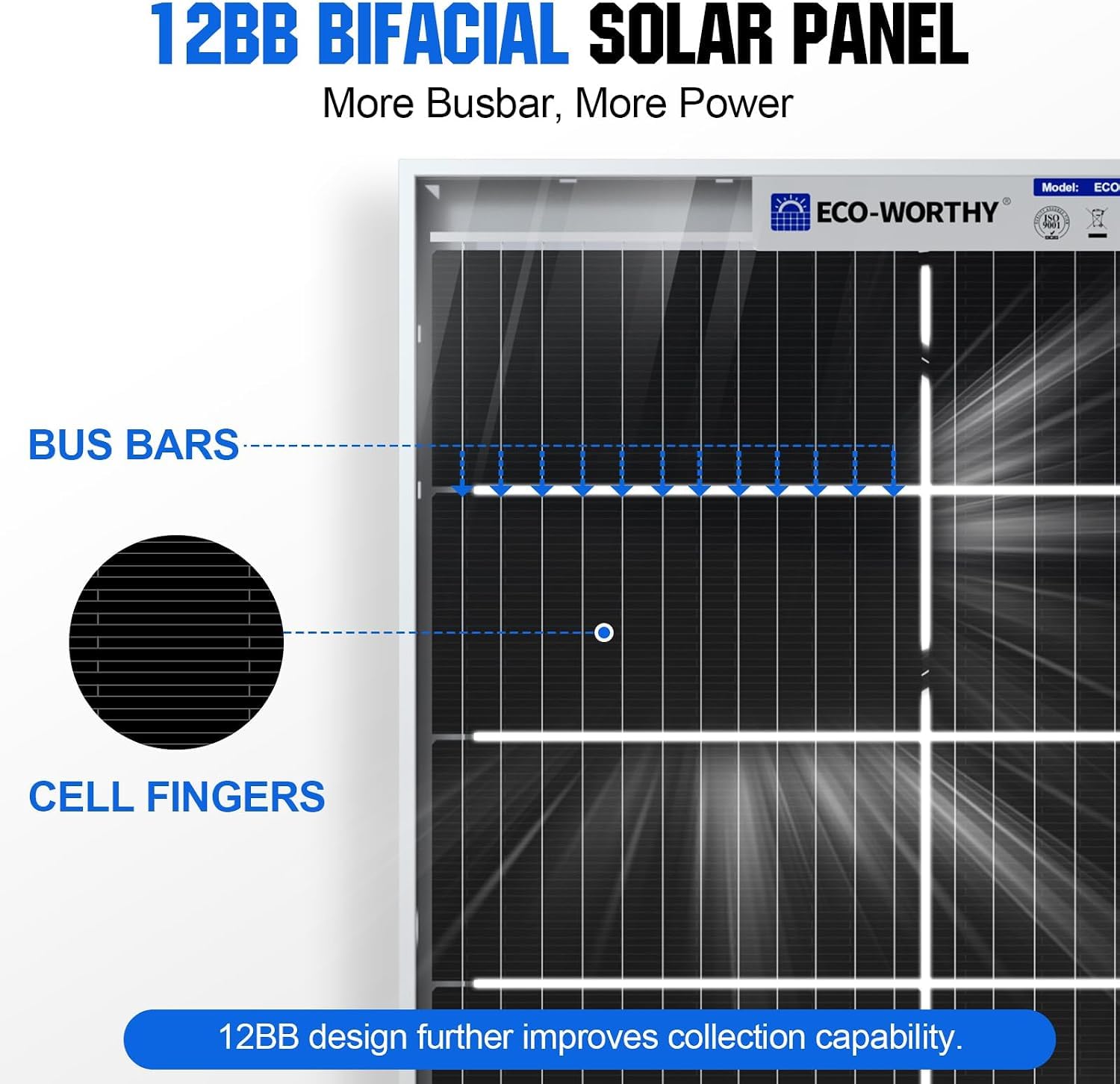

Cell technology: 12-busbar monocrystalline

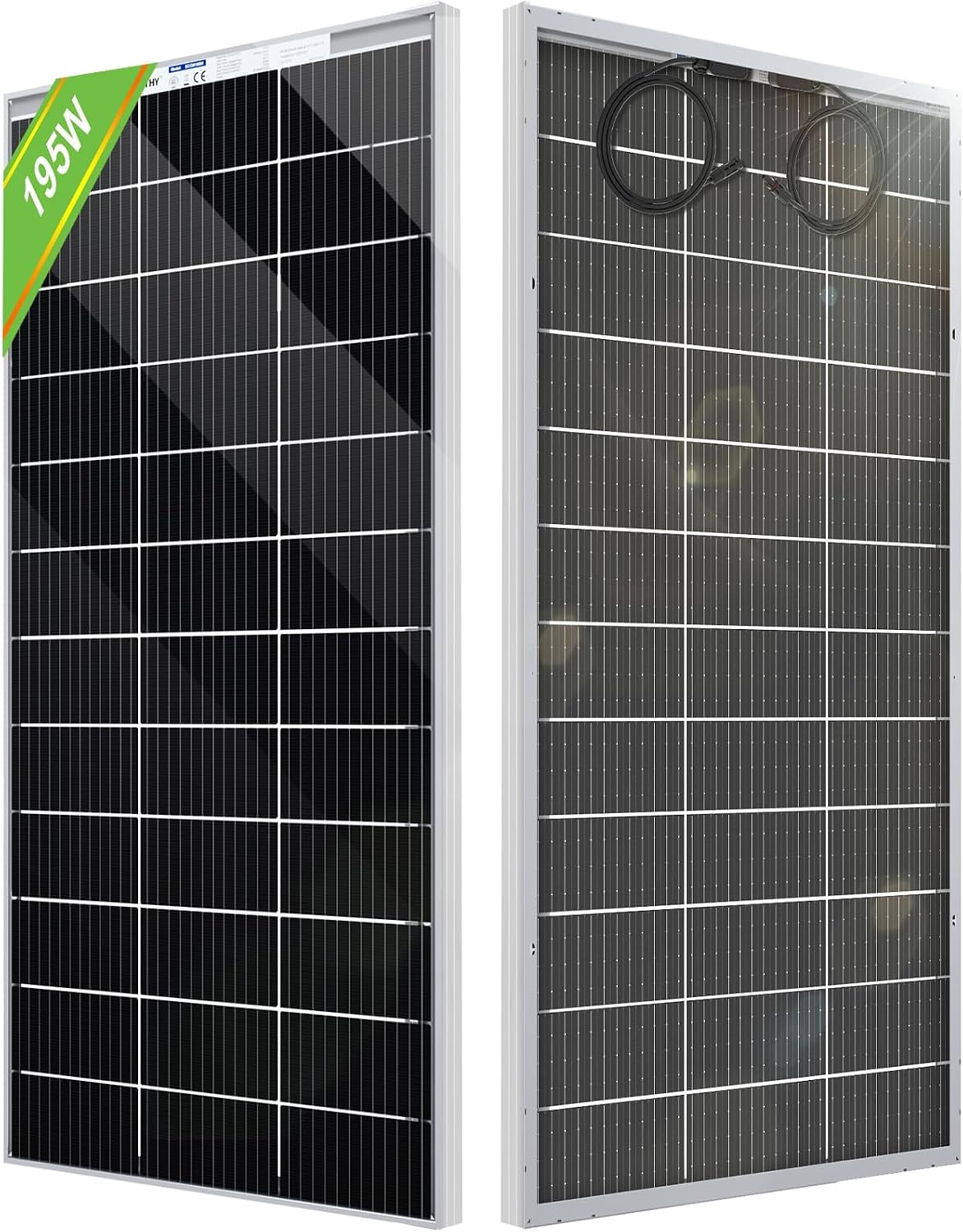

Construction: Bifacial
Available quantities: One panel or two panels
Front-side conversion-efficiency claim: 23%

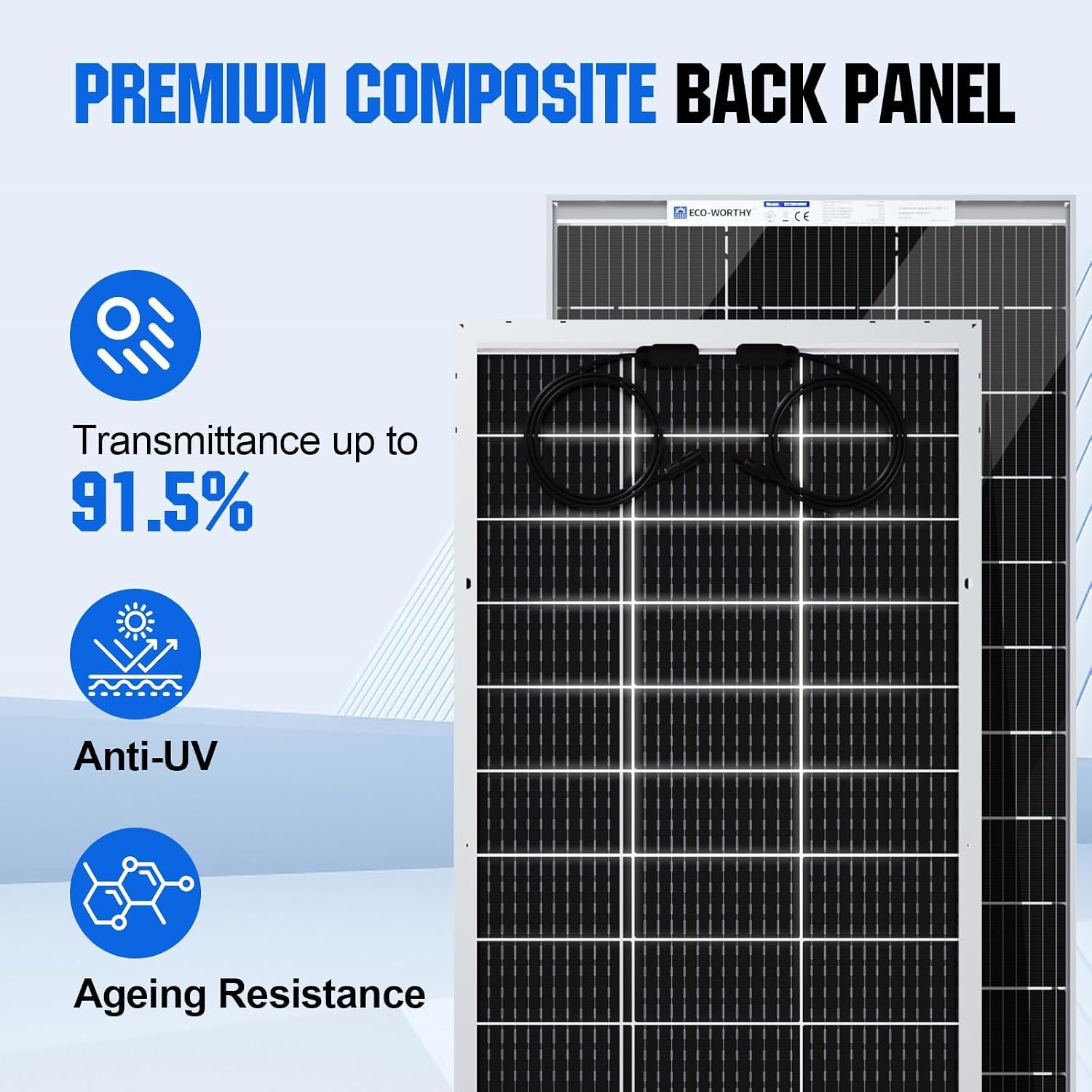

Bifacial backsheet transmittance claim: Up to 91.5%

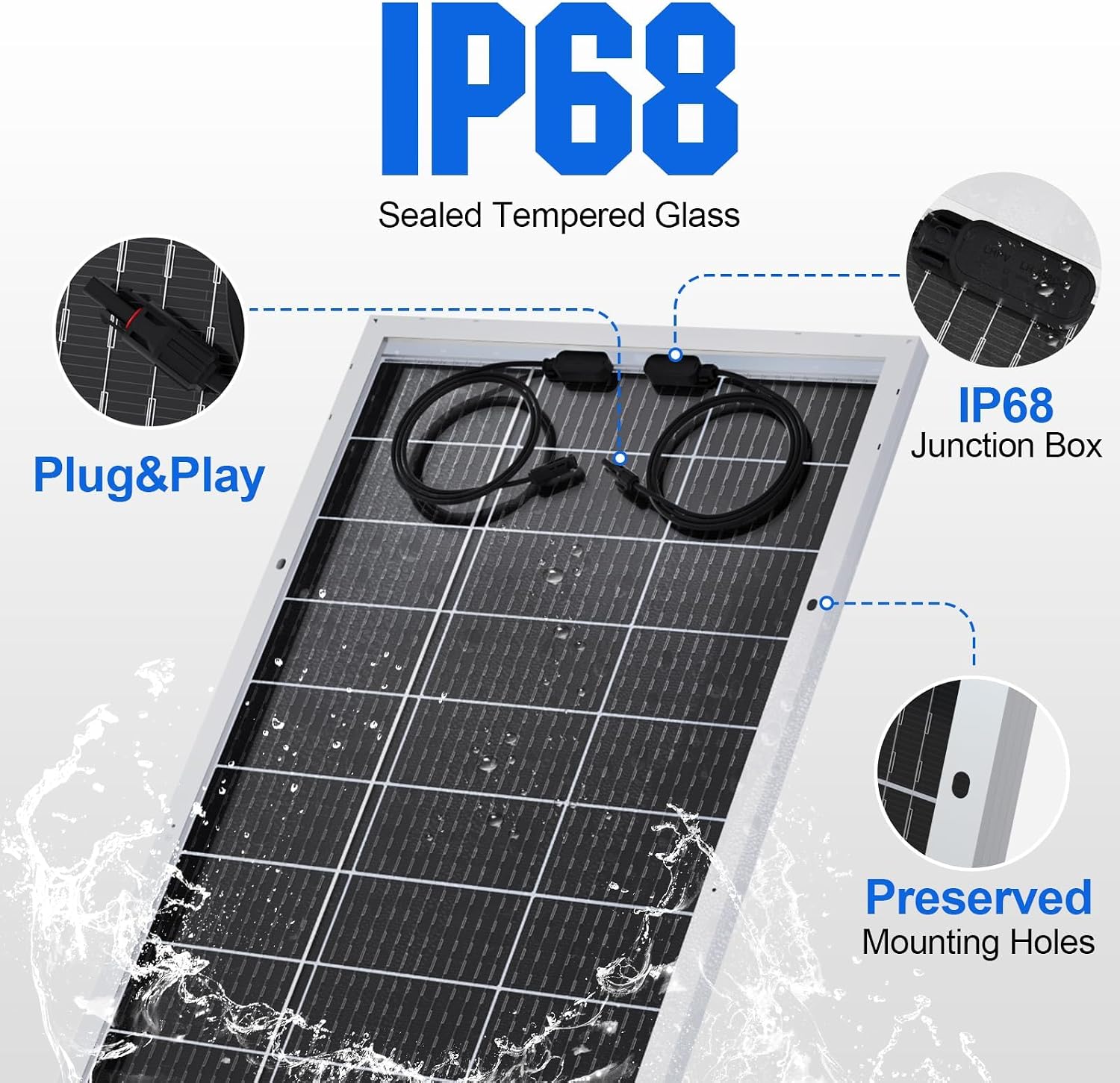

Connector type: Solar locking connector (MC4-compatible style listed)
Important rating note: The Amazon page groups nearby 195 W and 200 W options; confirm the selected module label before array design
Product overview

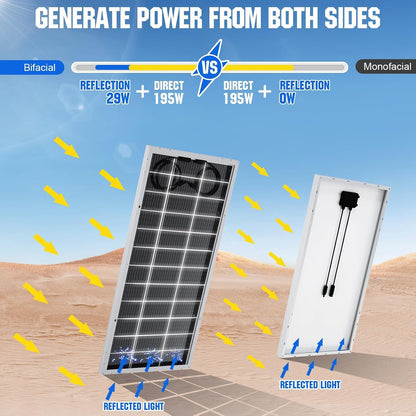

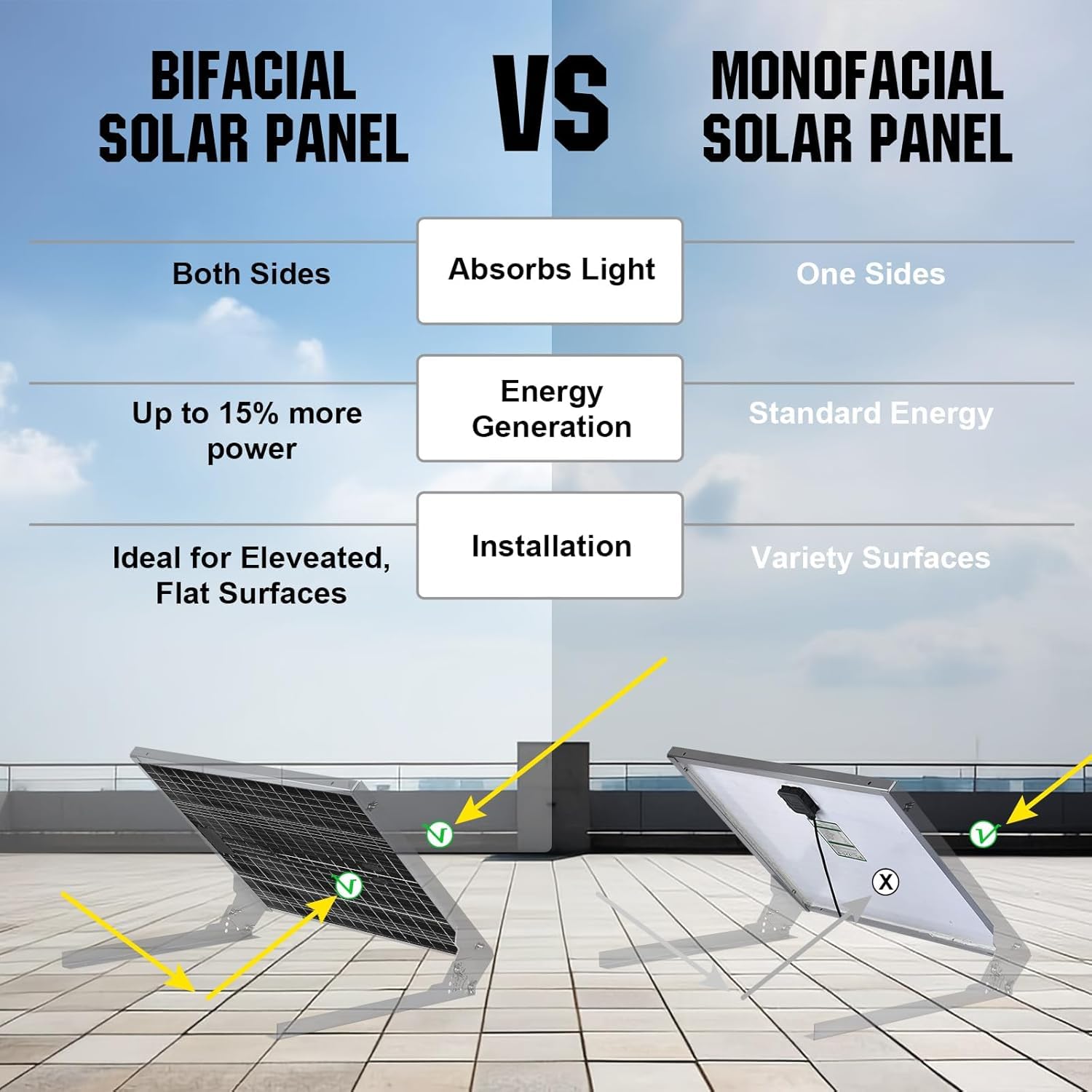

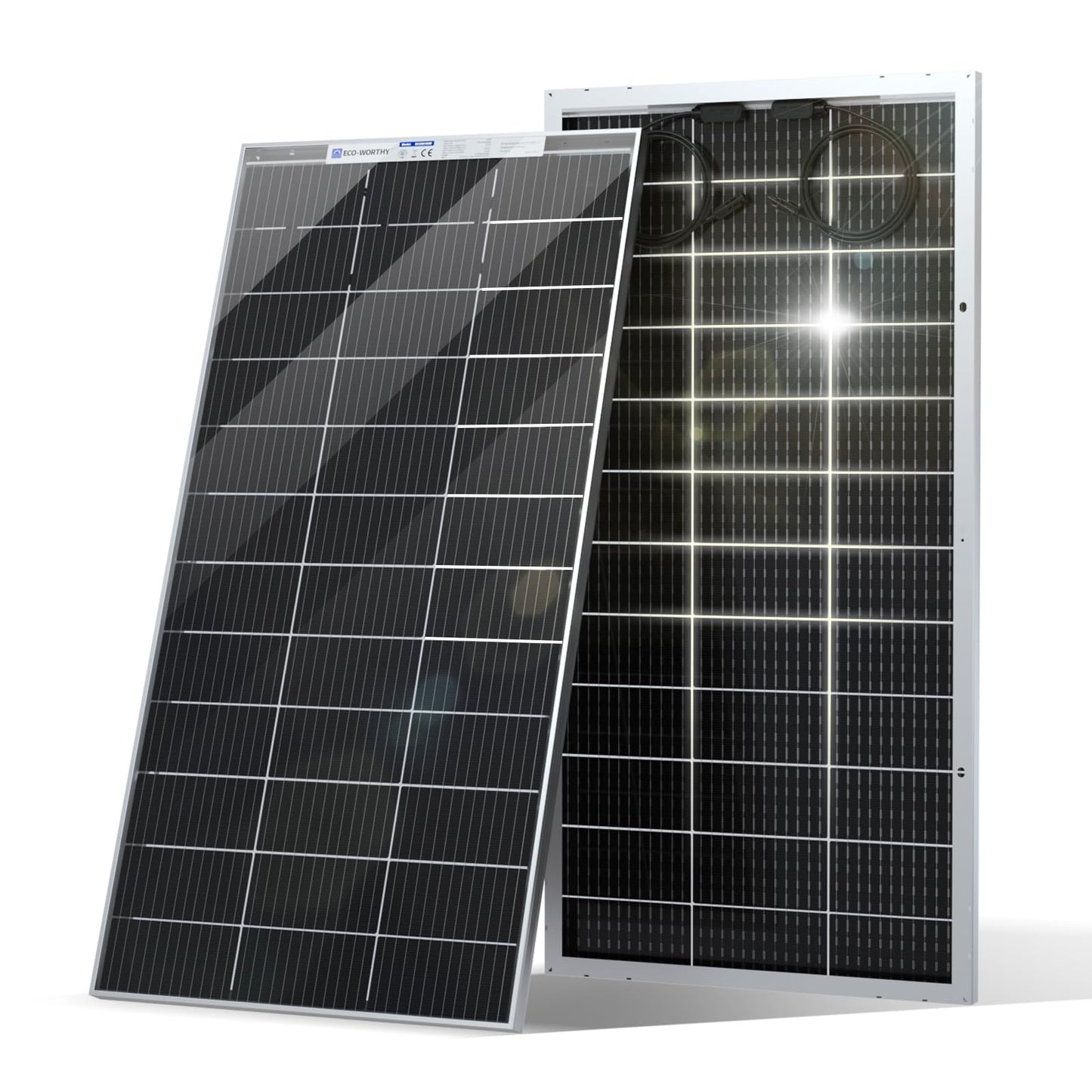

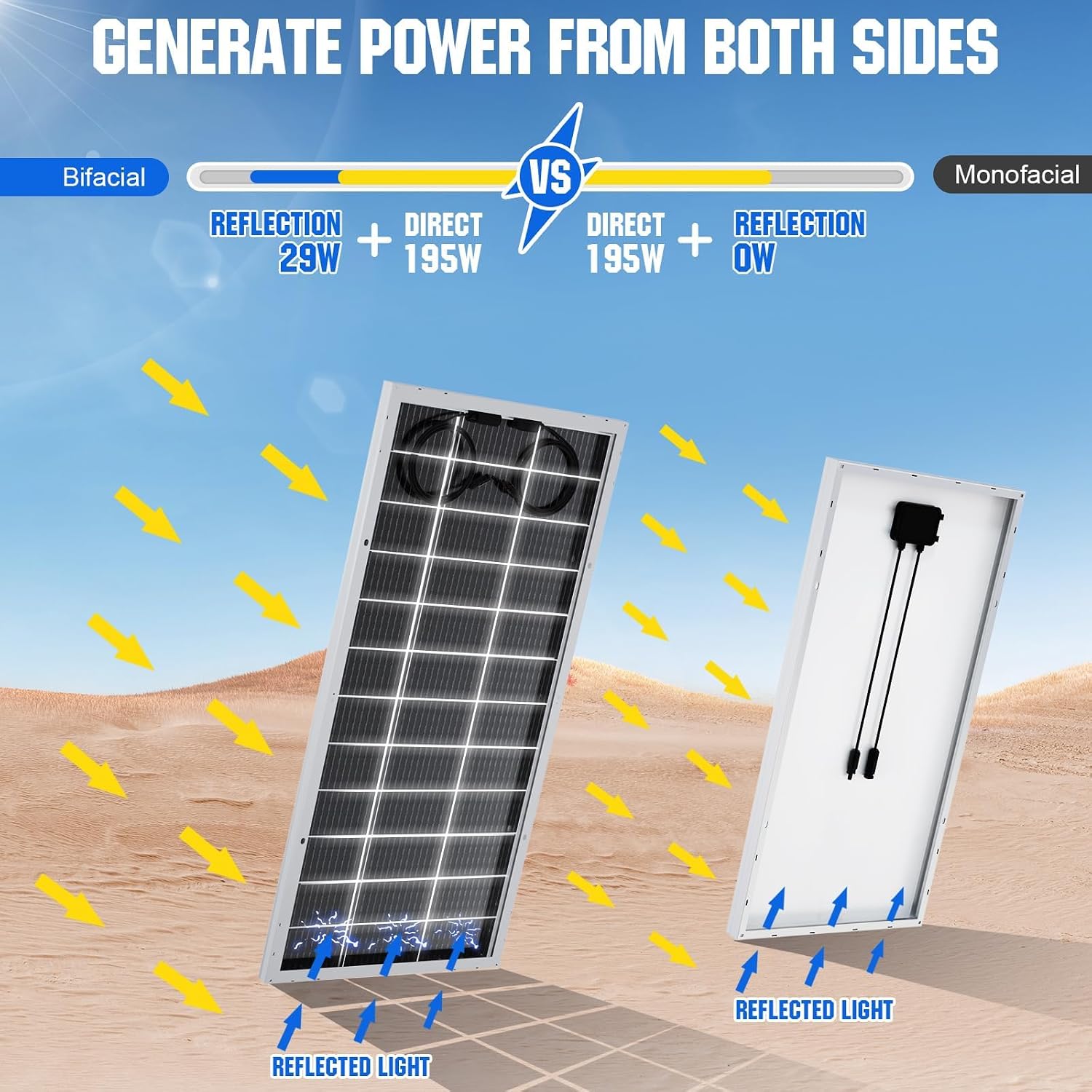

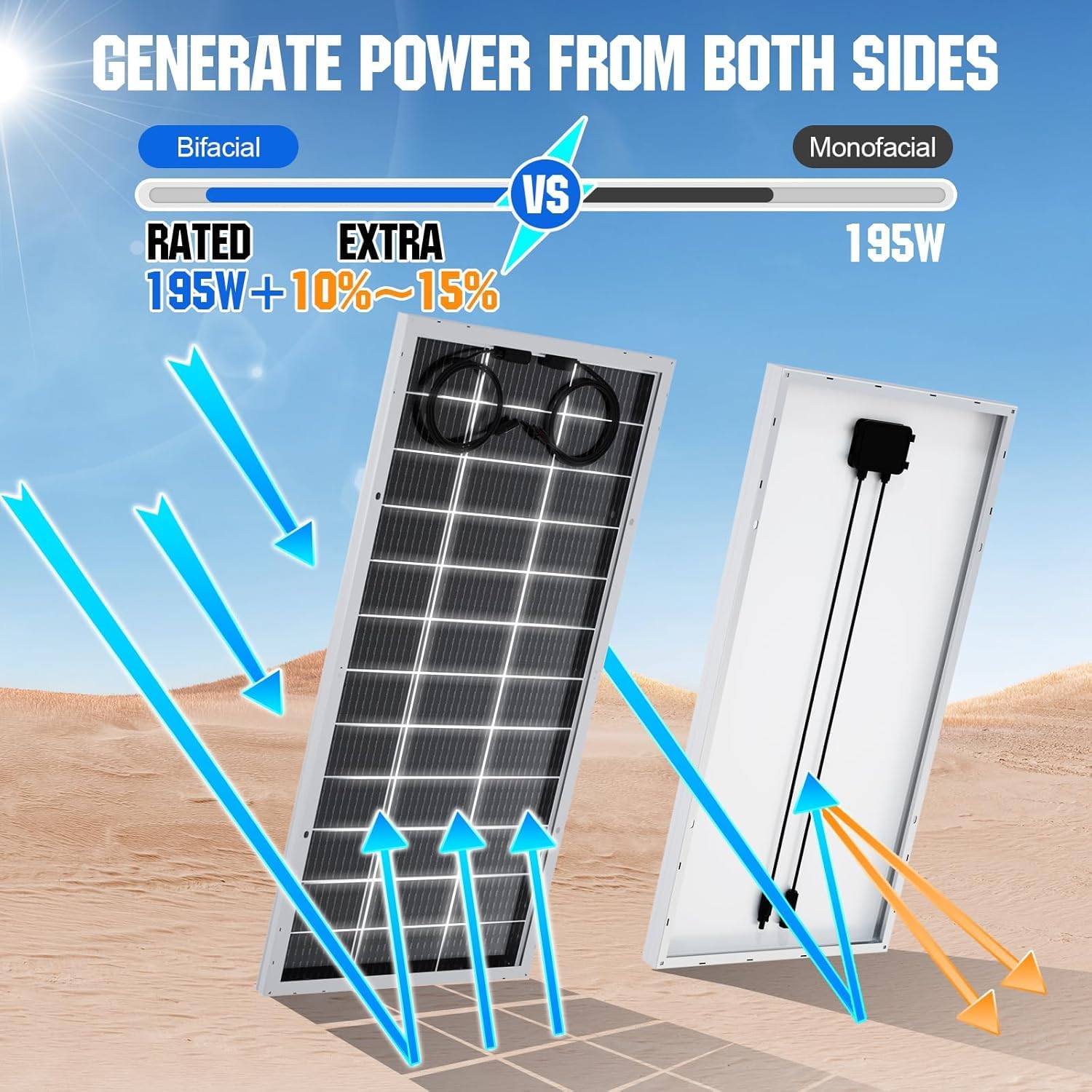

This ECO-WORTHY 195 W bifacial module is designed to collect direct light on the front and usable reflected light on the rear. One-panel and two-panel options support small arrays while keeping module sizing consistent.
Suitable applications
Compatible 12 V-class RV, marine, cabin and off-grid systems using a charge controller sized to the module’s actual electrical ratings.
Before ordering
Confirm Voc, Vmp, Isc, Imp, dimensions, weight, connector type and mechanical-load ratings from the current datasheet. Size the series/parallel array so it remains inside the charge controller or power station input limits in all temperatures.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
