Specifications

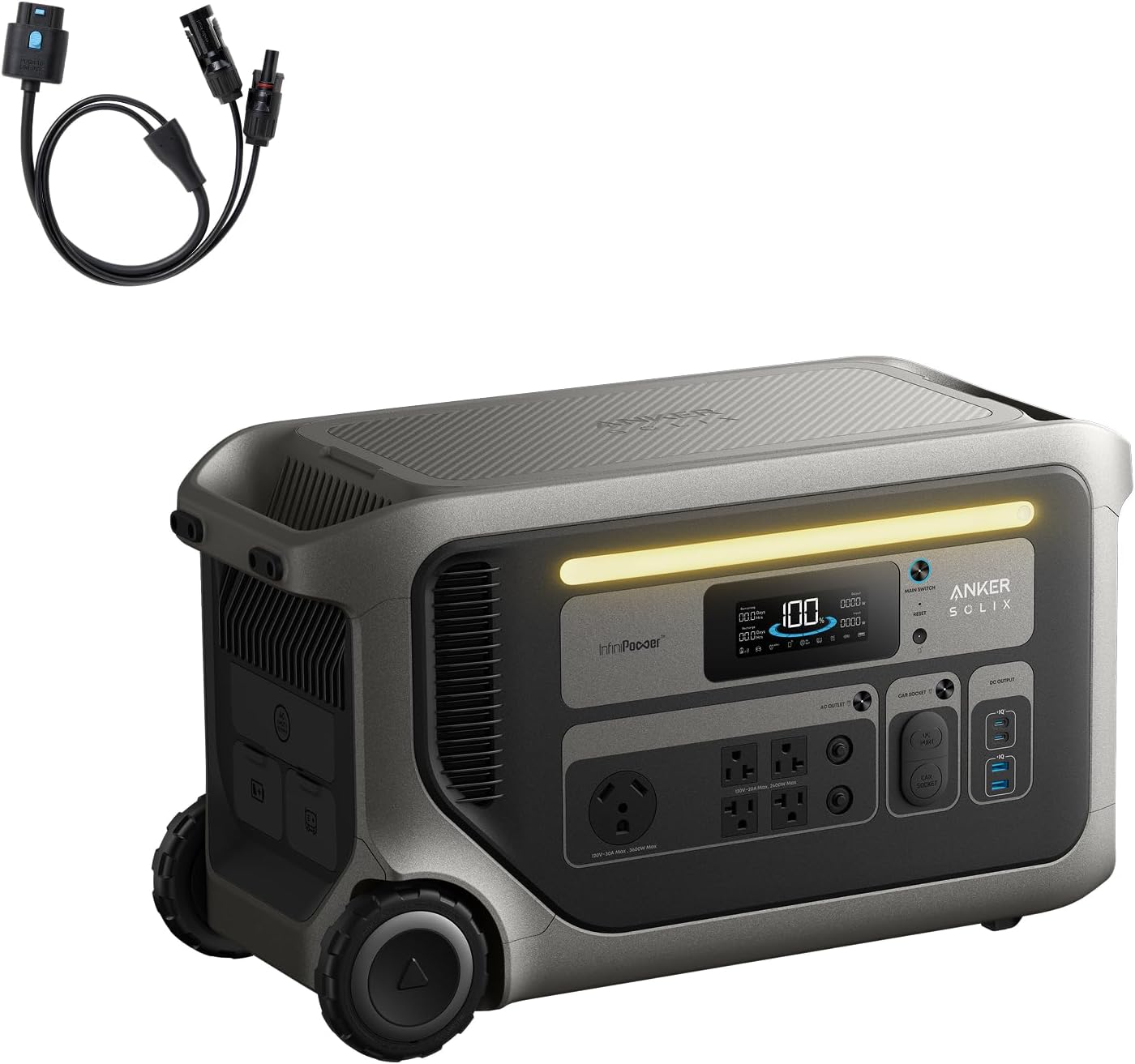

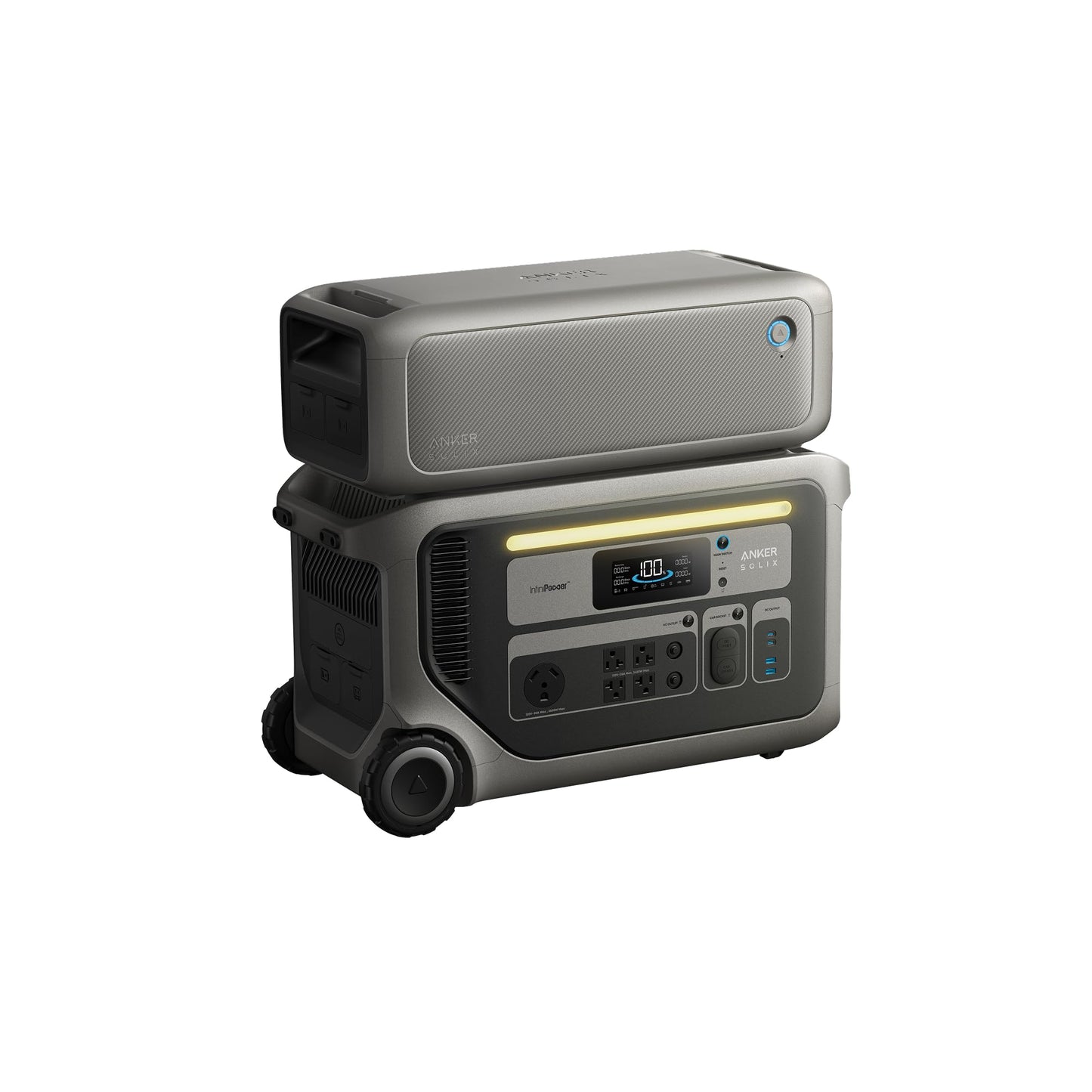

Primary configuration: Anker SOLIX F3000 portable power station with 3,072Wh internal capacity. Amazon ASIN: B0F8BC2LFS. Solar panels, expansion batteries and system-integration accessories are not assumed to be included unless shown in the selected offer.
- High-voltage PV input range: 11–165V DC
- High-voltage PV input limit: 17A maximum and 1,600W maximum
- Low-voltage PV input range: 11–60V DC
- Low-voltage PV input limit: 17A maximum and 800W maximum
- Maximum combined PV input power: 2,400W
- Battery capacity: 3,072Wh / 51.2V / 60Ah
- Battery chemistry: LFP / LiFePO4
- Cycle life: 4,000 cycles
- Continuous AC output: 3,600W total at 120V
- AC surge output: 7,200W
- SurgePad supported-device figure: 4,860W; this is not the continuous-output rating
- Standard NEMA 5-20R outlet limit: 2,400W maximum
- TT-30R output: 120V, 30A and 3,600W maximum
- Standard AC charging input: 120V, 15A and 1,800W maximum
- High-rate TT-30/compatible EV-adapter AC input: Up to 3,600W with the required accessories

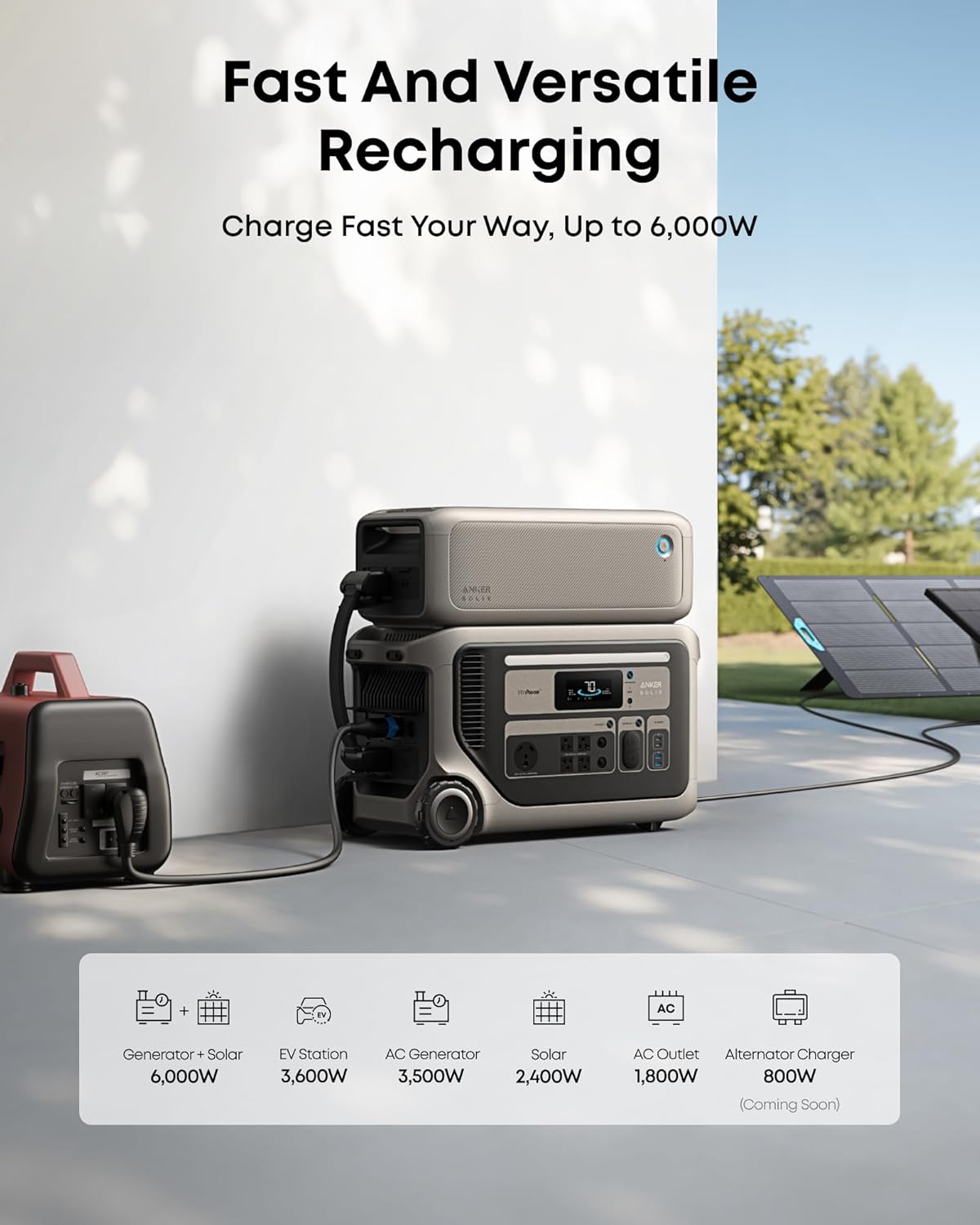

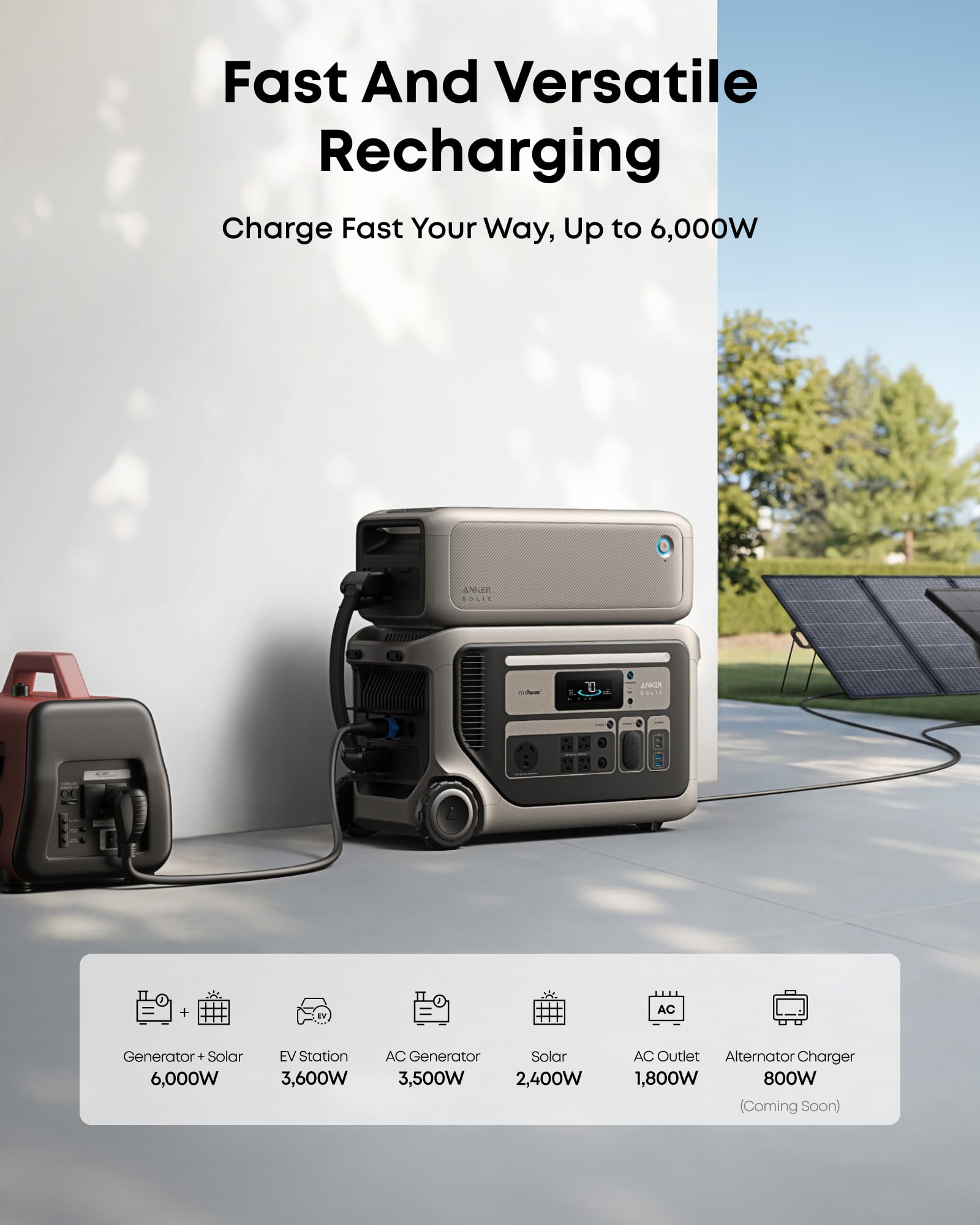

- Amazon 6,000W headline: Supported combined generator/solar recharging configuration requiring additional equipment, including an expansion battery; not continuous AC output
- USB-C outputs: Two ports, up to 100W each
- USB-A outputs: Two ports, up to 12W each
- 12V car-socket output: 10A maximum
- Anderson DC output: 13.4V DC, 30A
- UPS transfer time: 20ms
- Single-unit voltage: 120V; 240V output requires two compatible F3000 units and the specified Double Voltage Hub

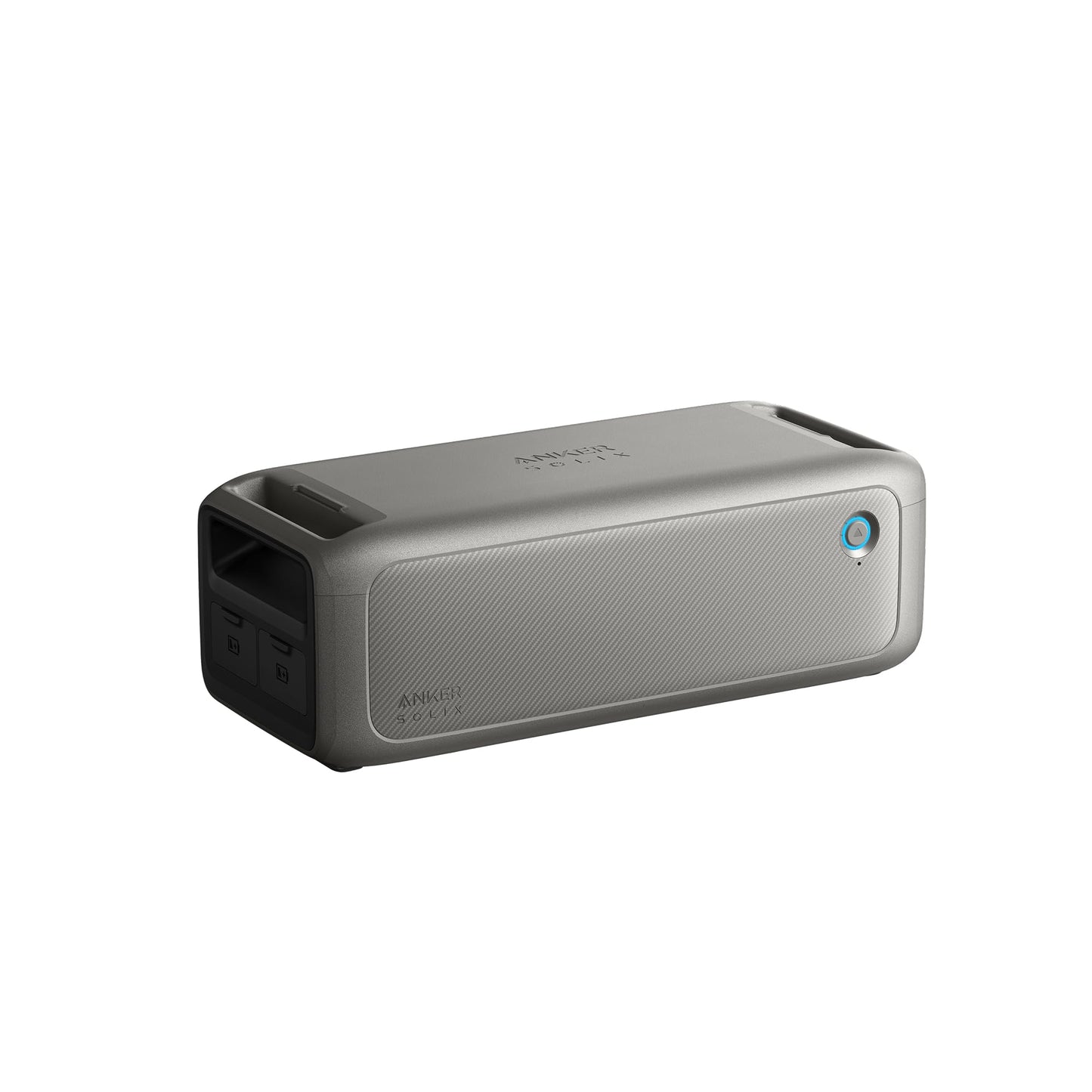

- Expansion: Manufacturer system headline up to 24kWh with additional units and expansion batteries
- Charging temperature: 0°C to 40°C / 32°F to 104°F
- Discharging temperature: −20°C to 40°C / −4°F to 104°F
- Dimensions: 651 × 300 × 377mm / 25.6 × 11.8 × 14.8in
- Net weight: 41.5kg / 91.5lb
Product overview

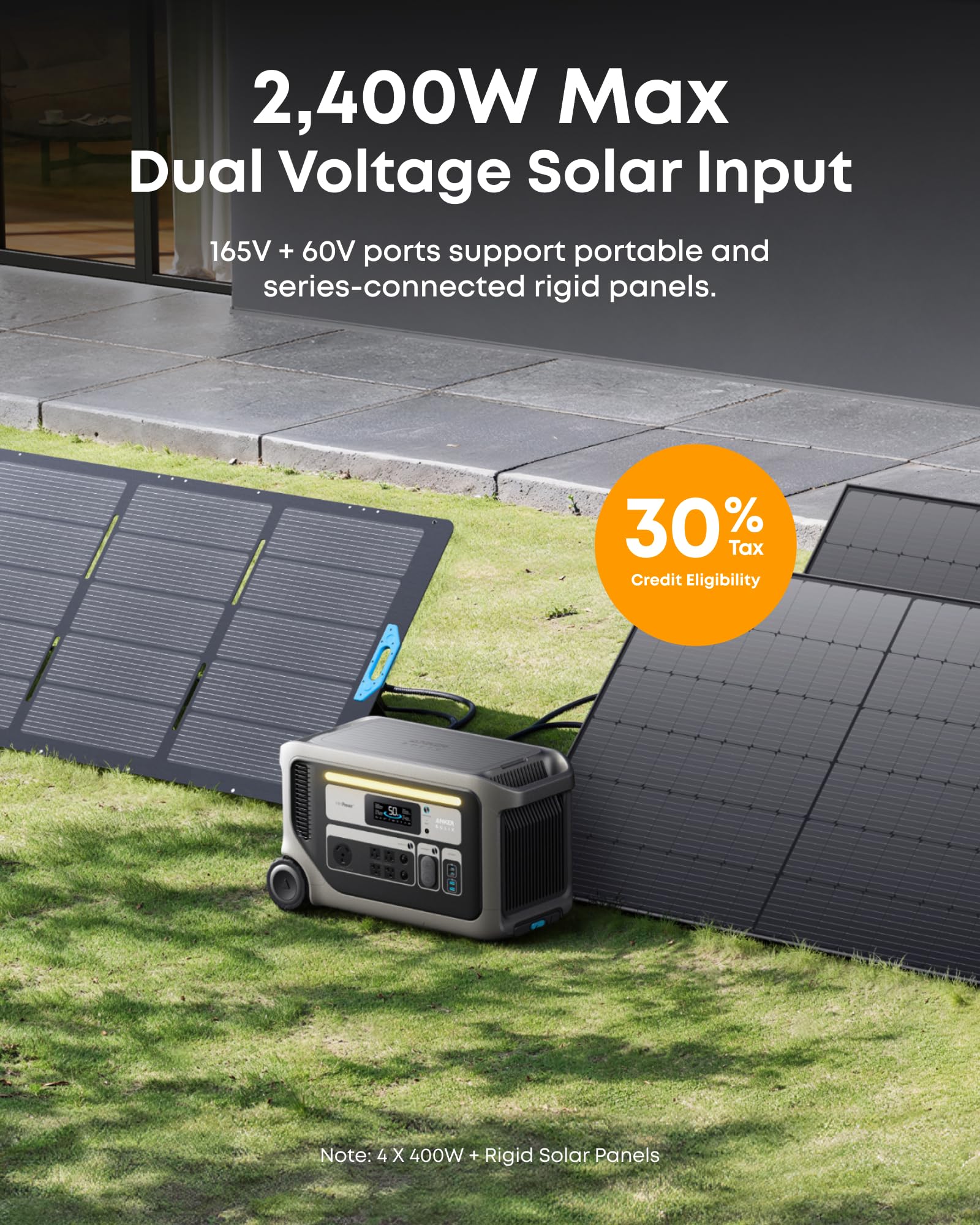

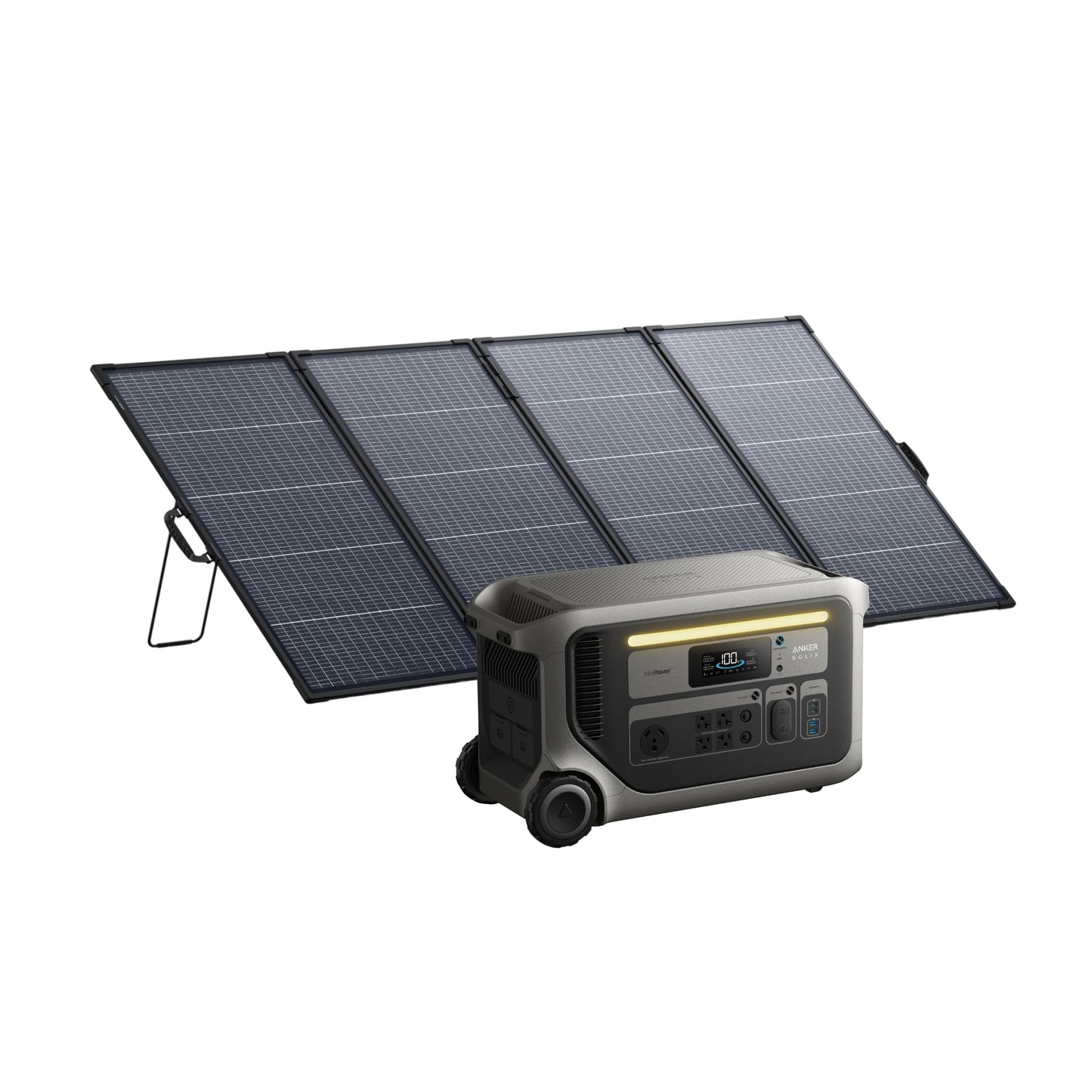

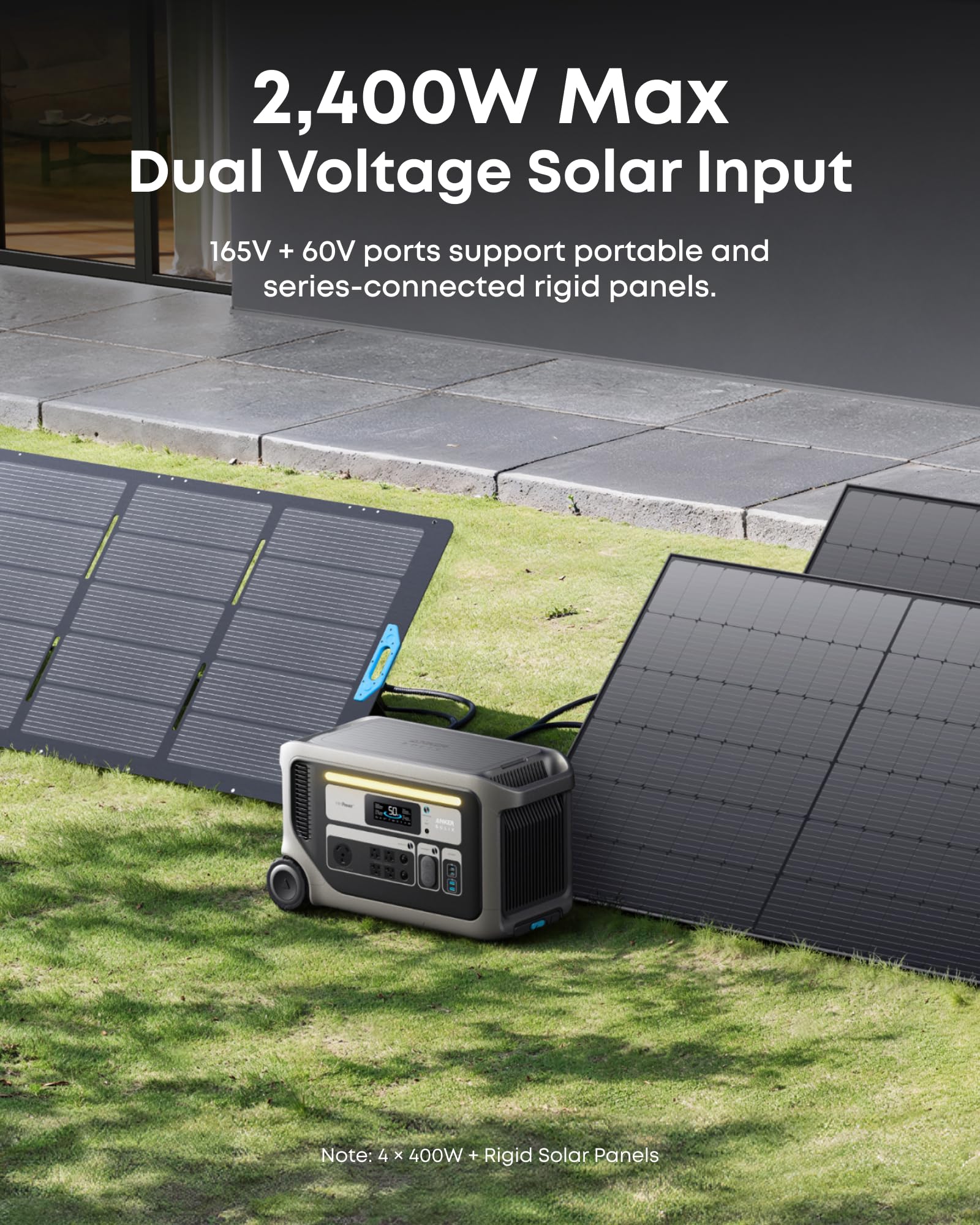

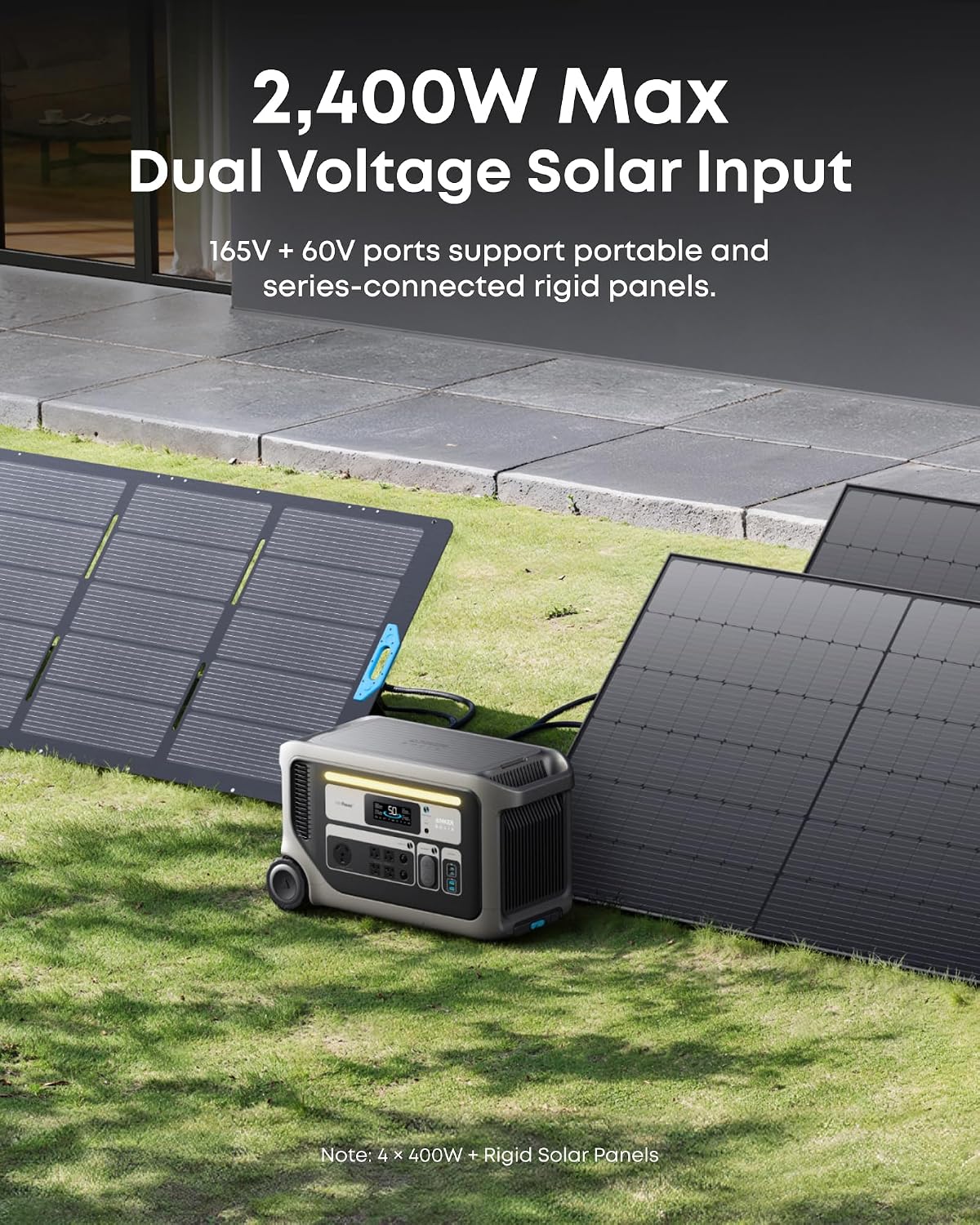

The Anker SOLIX F3000 combines a 3,072Wh LFP battery with a 3,600W, 120V power system and two independent solar-input ranges. Its high- and low-voltage PV ports can accept up to 2,400W together, giving system designers flexibility to use compatible rigid or portable solar panels.
Suitable applications
Essential home backup, RV use, mobile work, events and off-grid power where loads, charging sources and environmental conditions remain inside the confirmed ratings.
Before ordering
Do not treat the 6,000W Amazon headline as continuous AC output; the unit's continuous AC limit is 3,600W. Calculate cold-weather array Voc separately for the 165V and 60V PV ports, remain within each port's 17A current limit and do not mix incompatible panel strings. Confirm the selected package, required adapters, grounding, transfer equipment and whether 120V or a two-unit 240V configuration is required.
Technical sources
Exact Amazon.ca product listing | Anker SOLIX F3000 specifications | Anker SOLIX F3000 user guide
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
