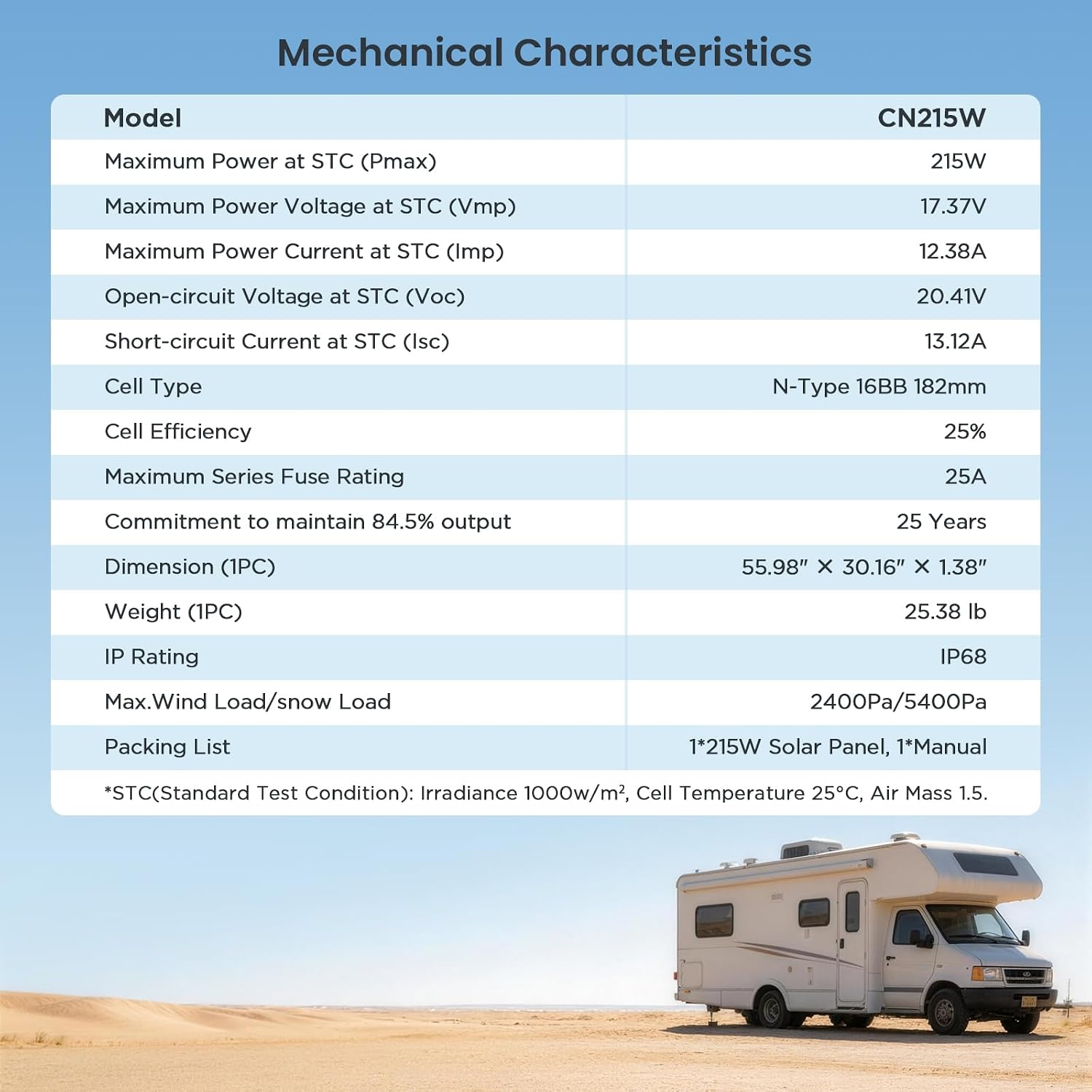

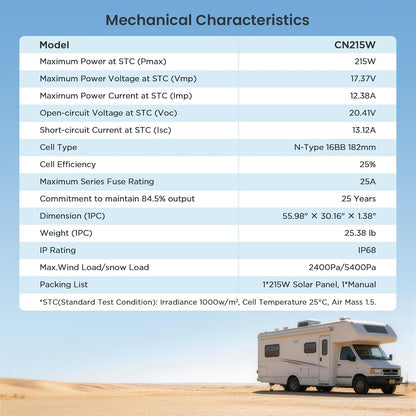

Specifications
Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.
Maximum power (Pmax): 215 W per panel; 430 W combined nameplate power for the 2-panel package
Voltage at maximum power (Vmp): 17.37 V per panel
Current at maximum power (Imp): 12.38 A per panel
Open-circuit voltage (Voc): 20.41 V per panel
Short-circuit current (Isc): 13.12 A per panel
Maximum system voltage: 1000 V DC

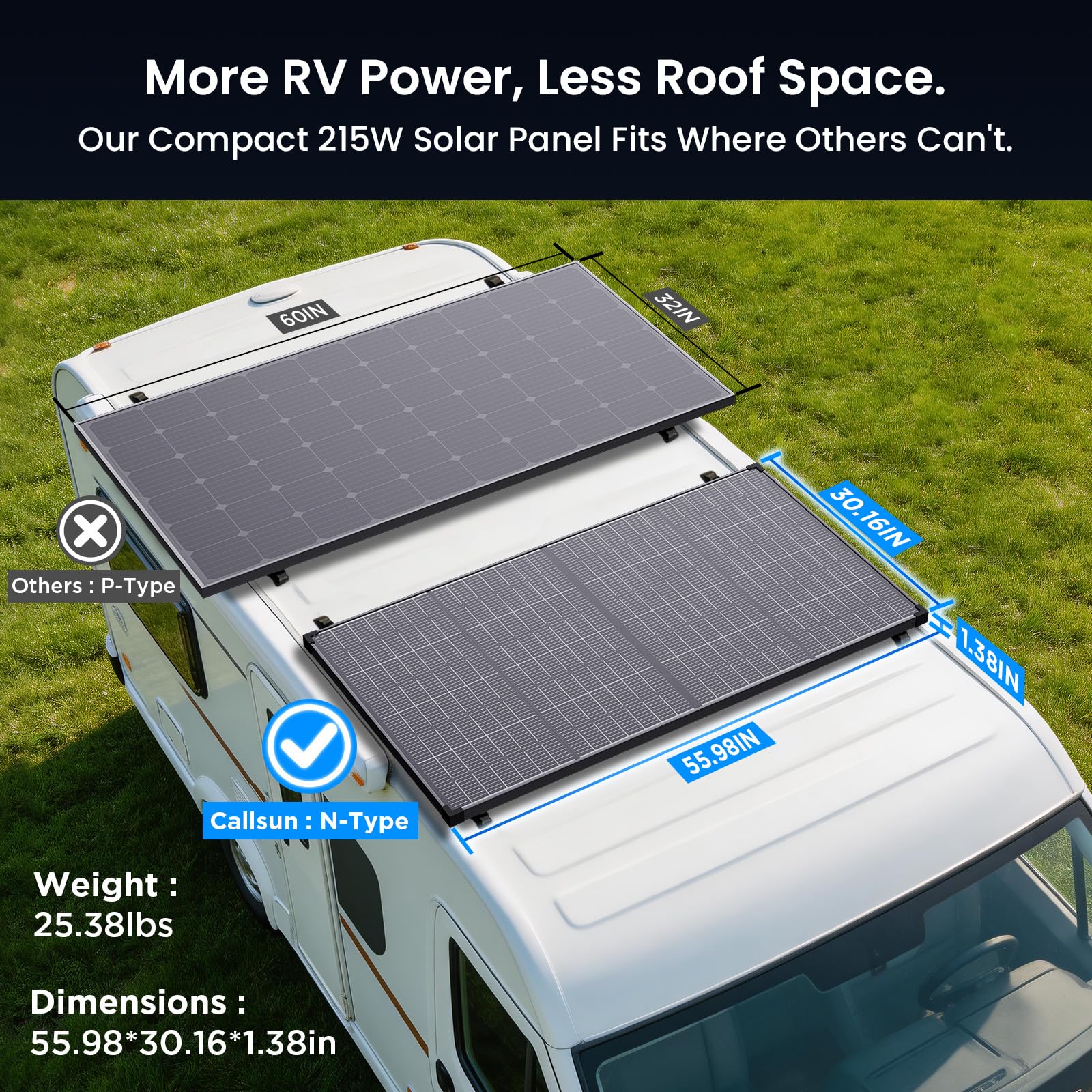

Dimensions: 1422 × 766 × 35 mm / 56.0 × 30.2 × 1.4 in per panel
Weight: 11.5 kg / 25.4 lb per panel
Output cable length: Not published on the current Amazon or manufacturer listing.
Temperature coefficient of Pmax: −0.30%/K (manufacturer-listed module temperature coefficient)
Temperature coefficient of Voc: Not published on the current Amazon or manufacturer listing.
Temperature coefficient of Isc: Not published on the current Amazon or manufacturer listing.
Operating temperature: Not published on the current Amazon or manufacturer listing.

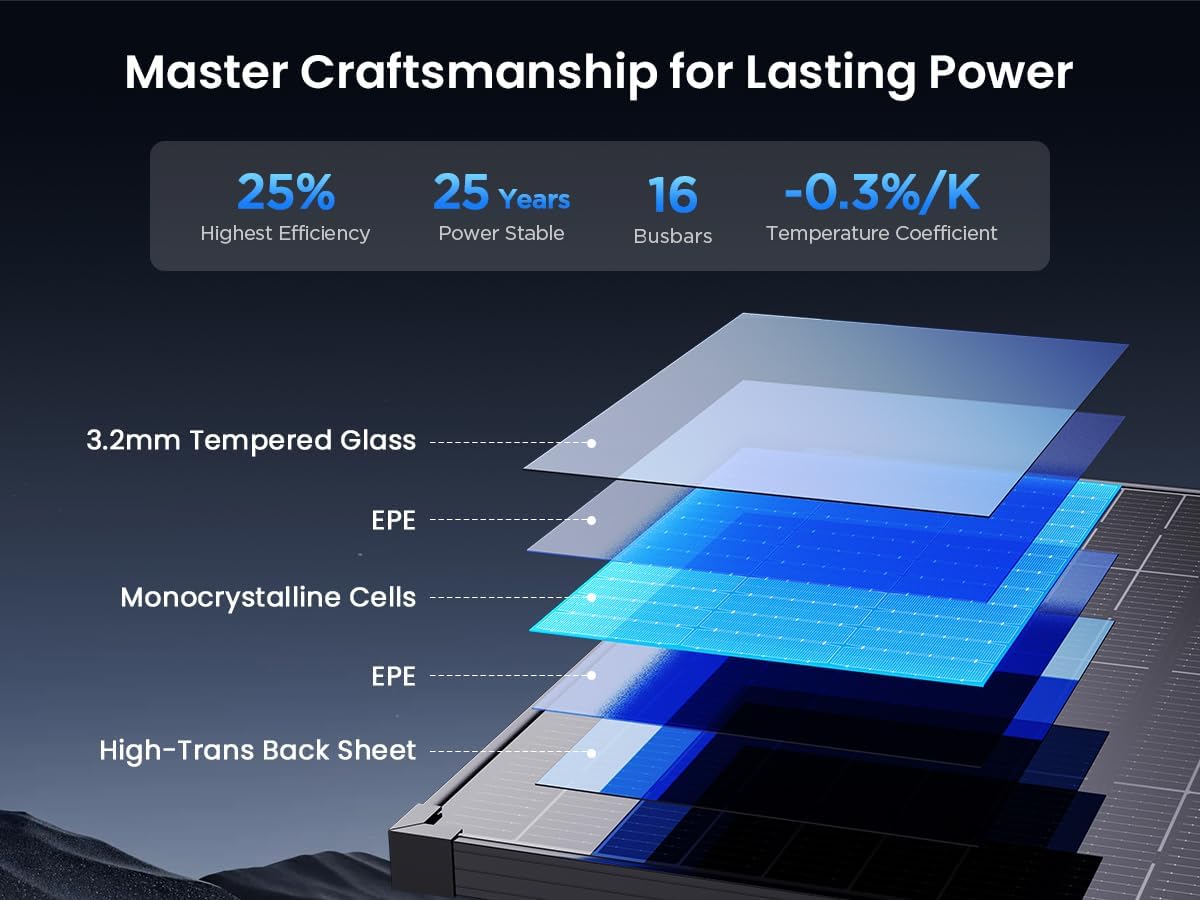

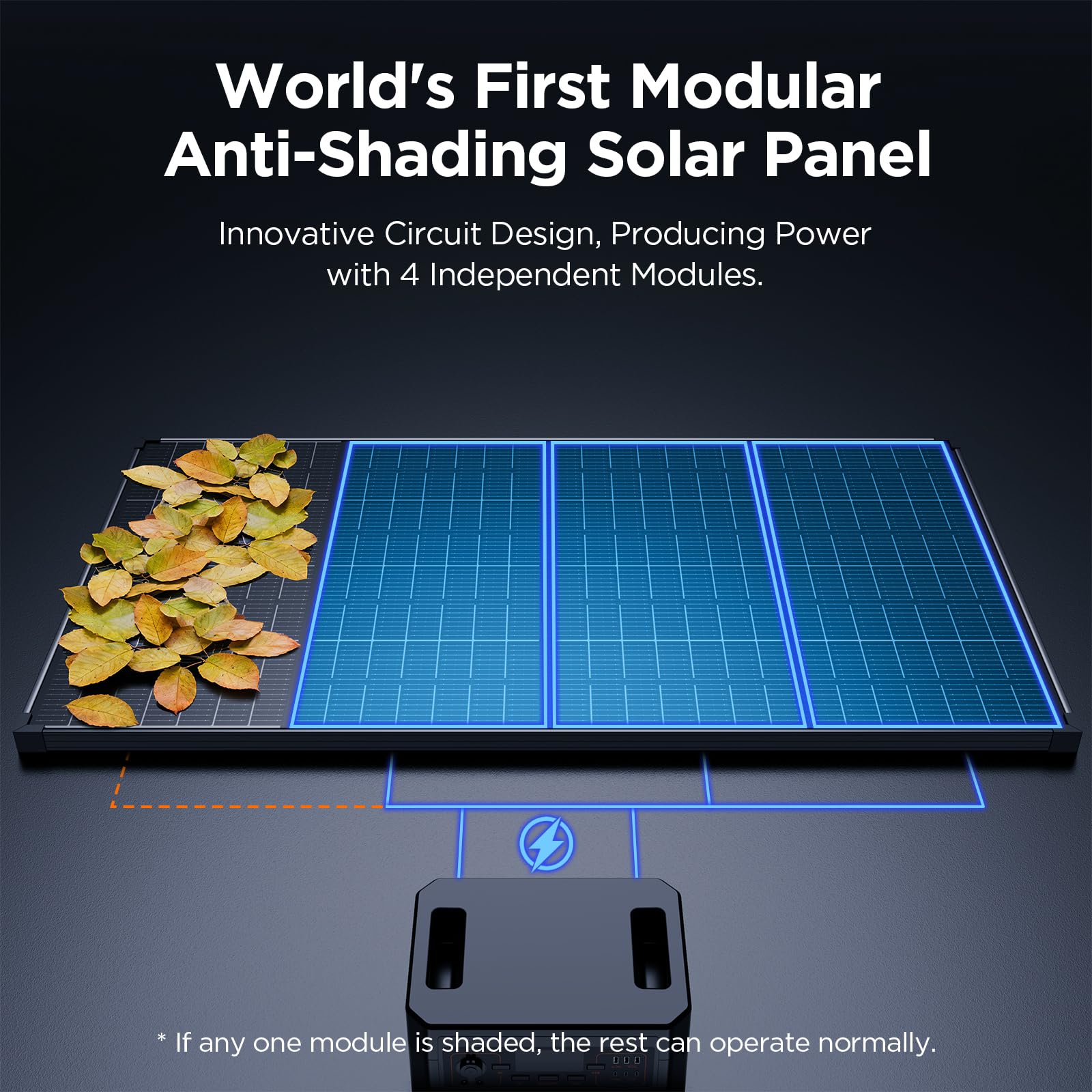

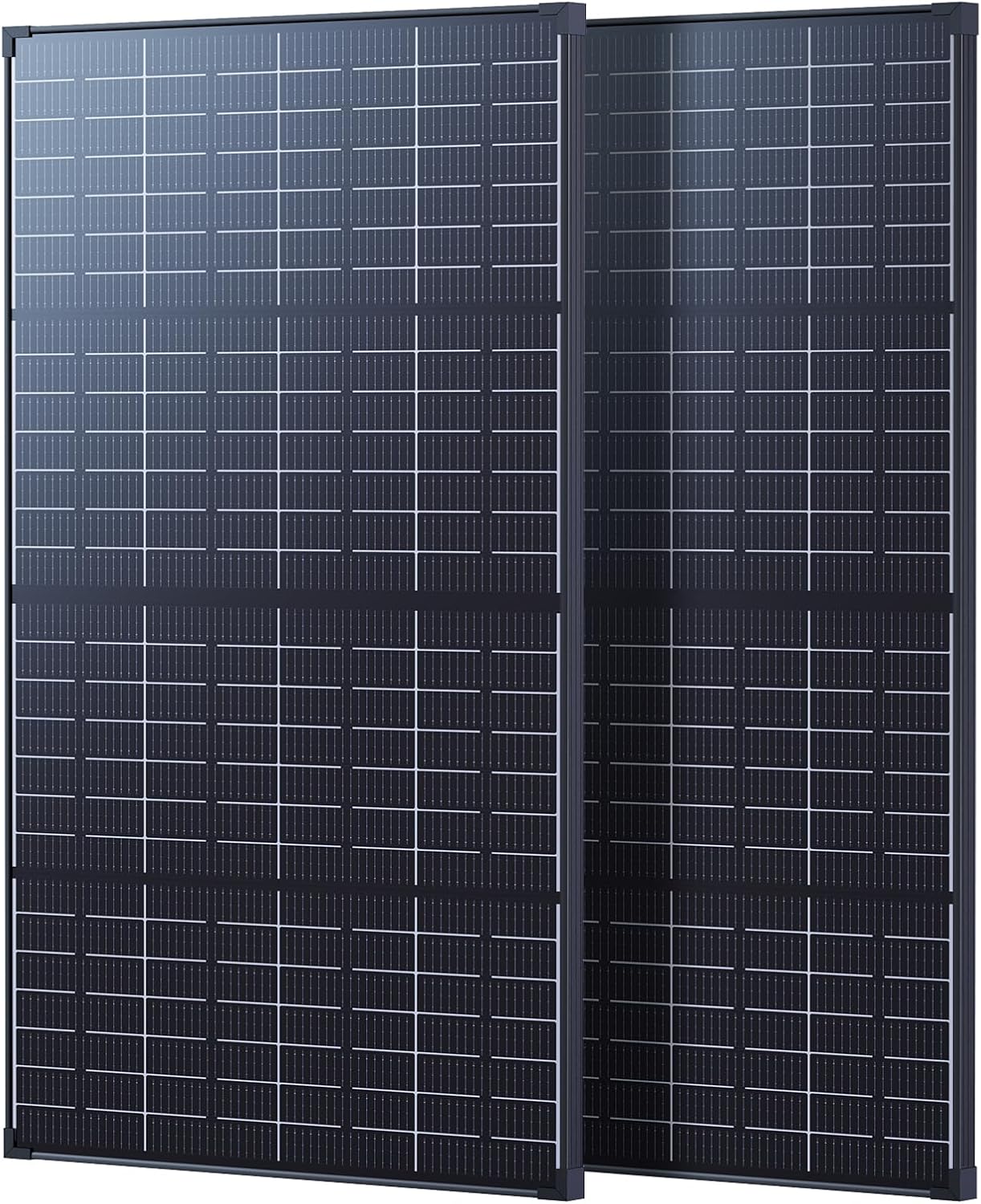

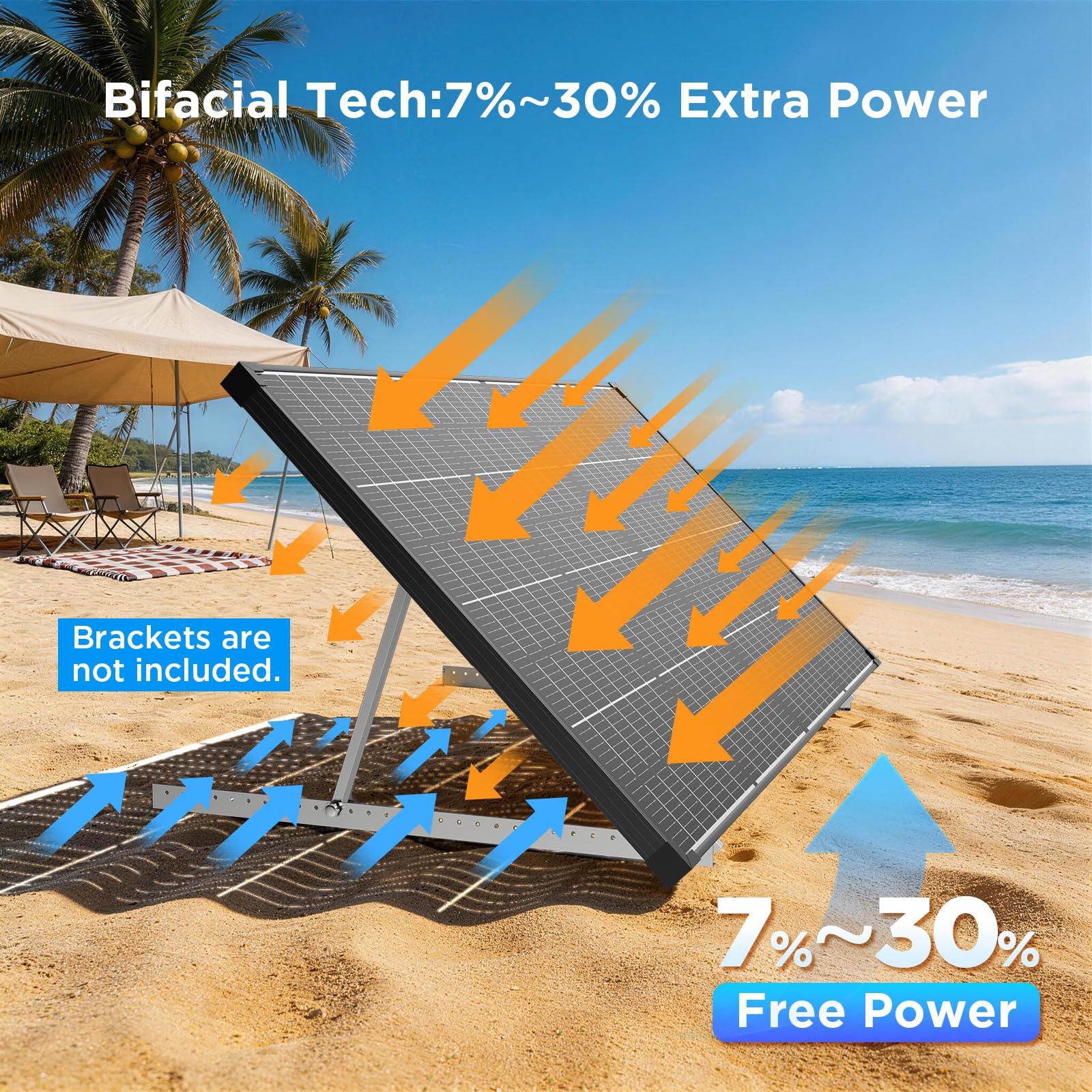

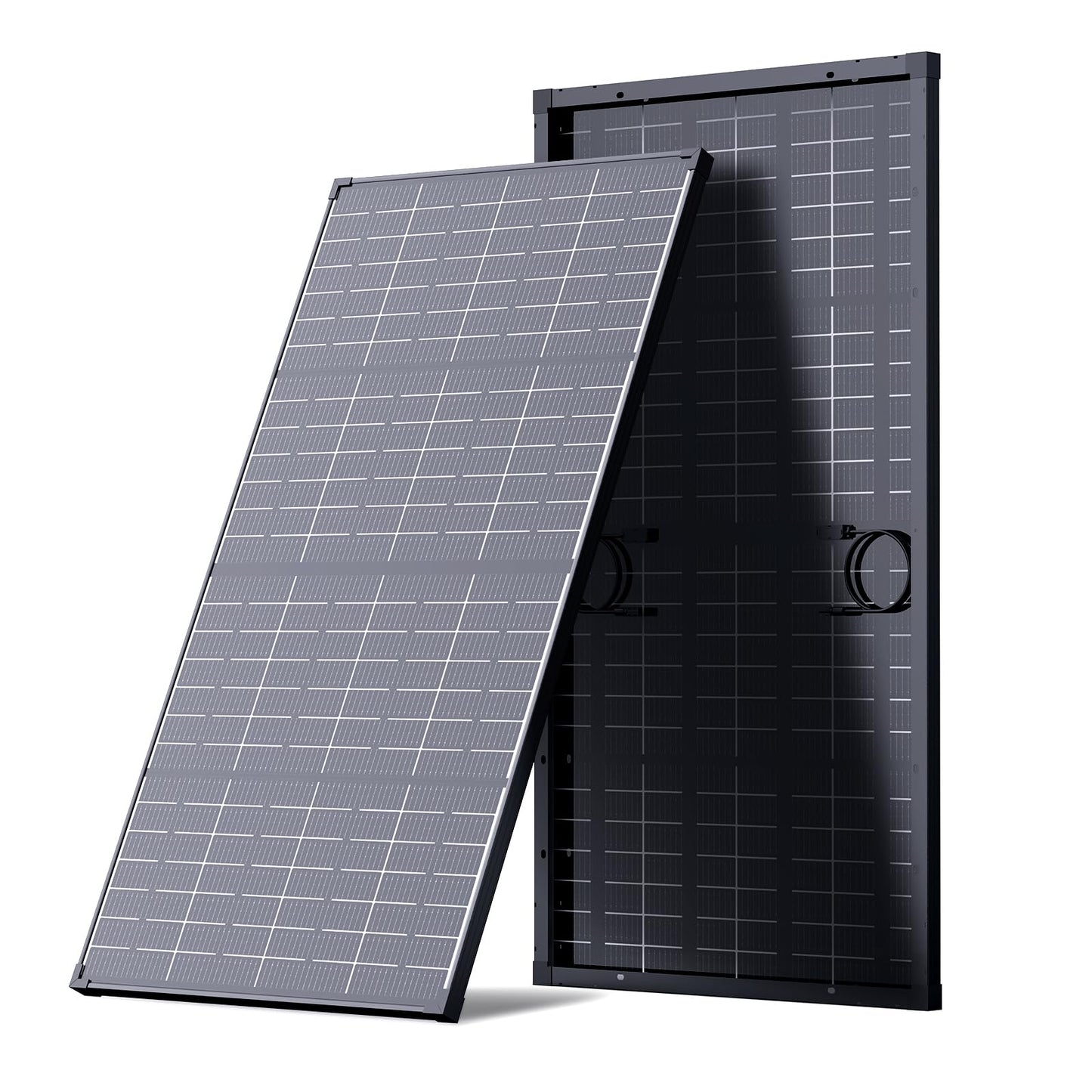

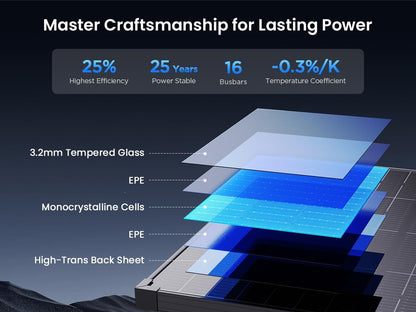

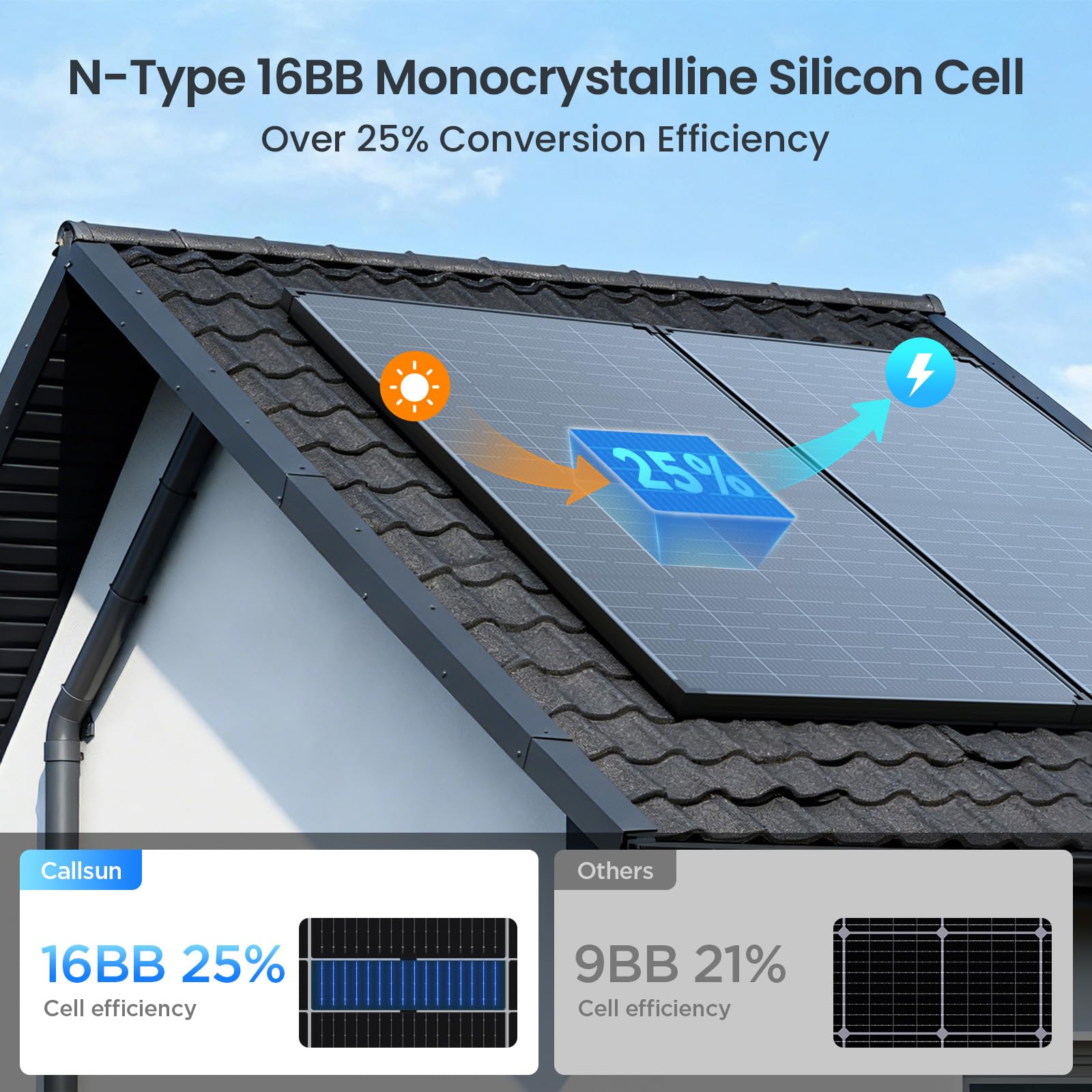

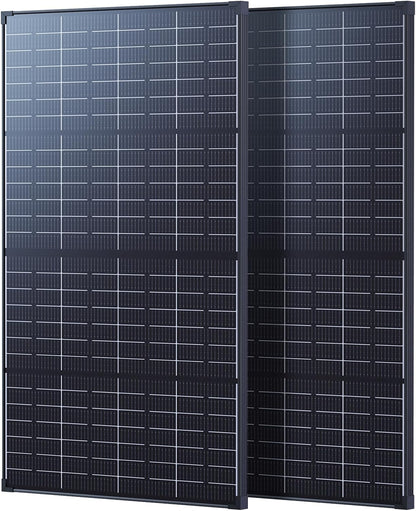

This Callsun bifacial panel set uses N-type monocrystalline cells and an anti-shading design for compact solar arrays. The two-panel option provides 430 W of combined nameplate power while allowing the modules to be arranged to suit the controller and mounting area.
Suitable applications

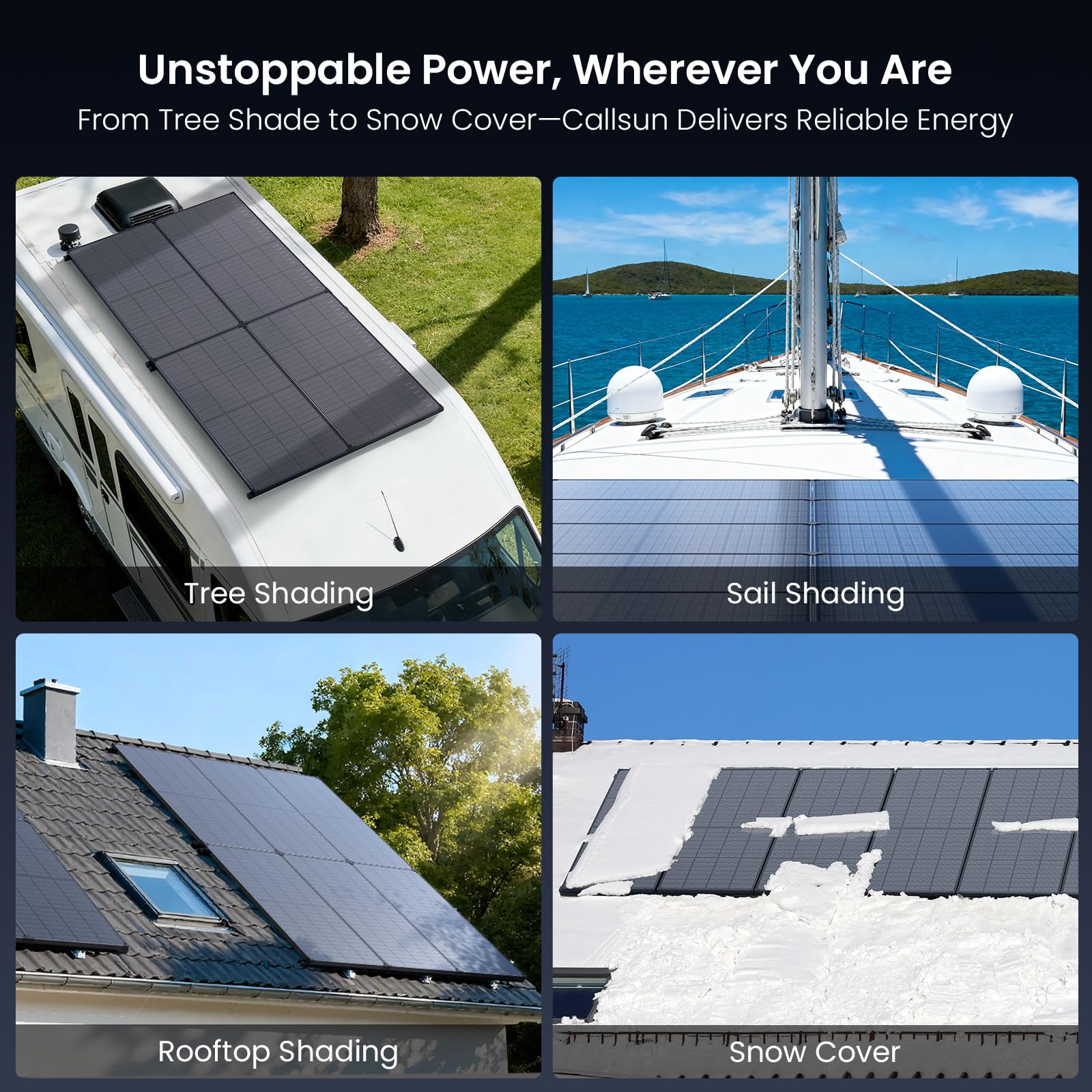

Properly configured 12 V or 24 V systems for RVs, boats, portable power stations and off-grid installations.
Before ordering
Confirm Voc, Vmp, Isc, Imp, dimensions, weight, connector type and mechanical-load ratings from the current datasheet. Size the series/parallel array so it remains inside the charge controller or power station input limits in all temperatures.
Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
