Specifications
Product type: Off-grid hybrid solar inverter/charger
Rated AC output: 3,600 W
AC output: 110/120 V AC, 60 Hz, pure sine wave
Battery system voltage: 24 V DC
Solar charge controller: 120 A MPPT
PV operating voltage range: 60–450 V DC
Maximum PV input power: 4,200 W
Maximum PV open-circuit voltage (Voc): 500 V DC
MPPT tracking efficiency: Up to 98% (listing-stated)
Inverter efficiency: 95% (listing-stated)
Battery compatibility: 24 V sealed, AGM, gel, flooded lead-acid and lithium batteries
Charging modes: Solar only, utility first, solar first, and utility/solar hybrid
Output modes: Utility first, inverter/solar priority and SBU priority
Product dimensions: 42.3 × 33.4 × 11 cm
Product Overview

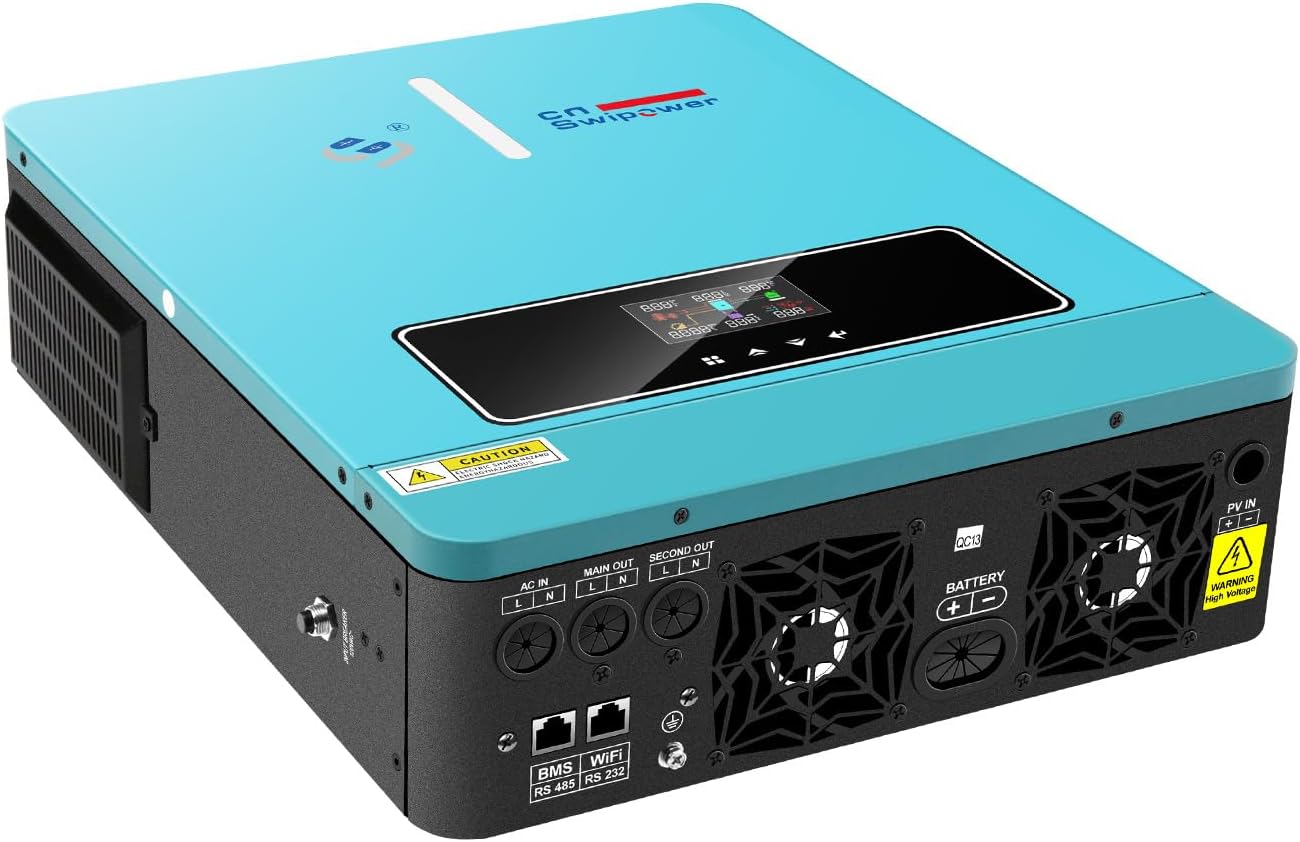

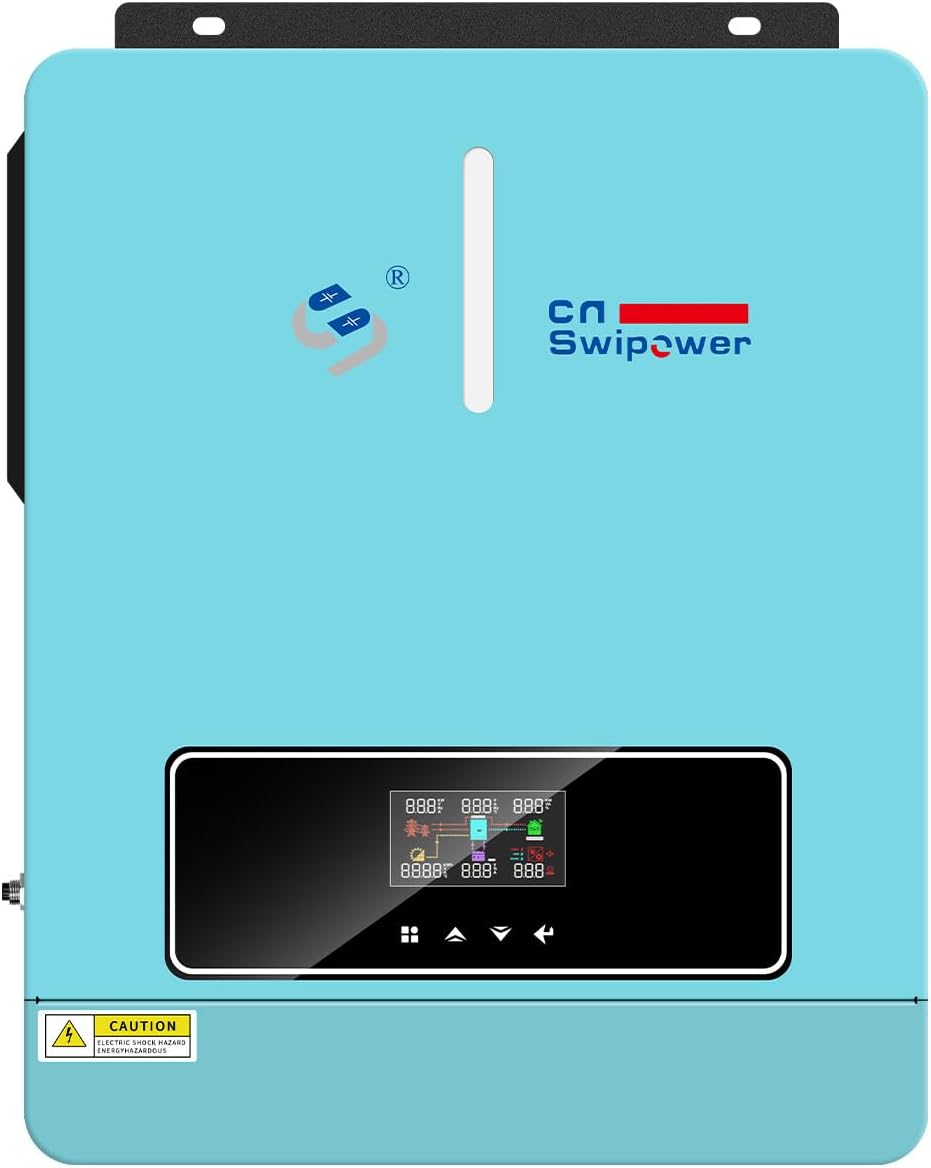

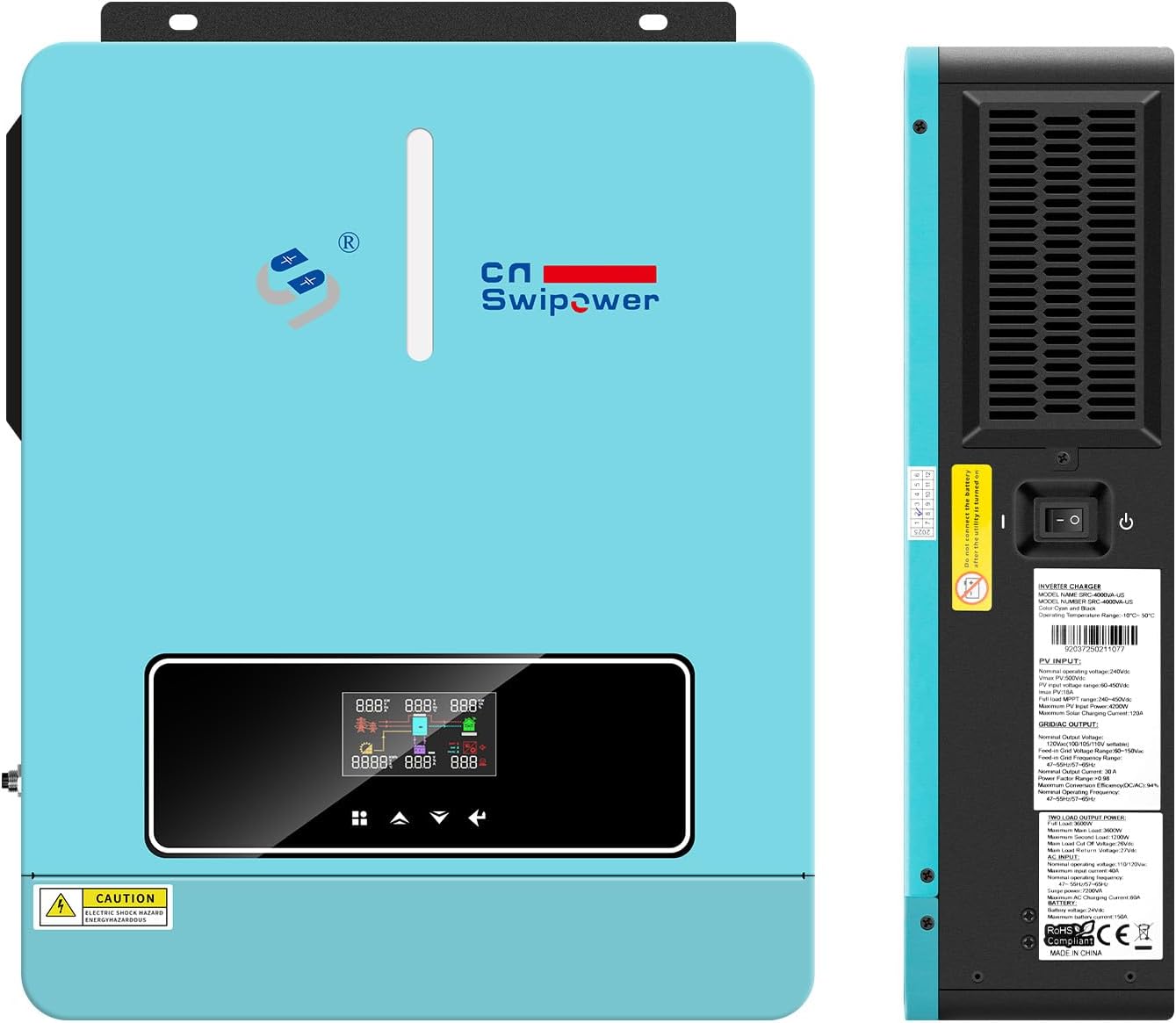

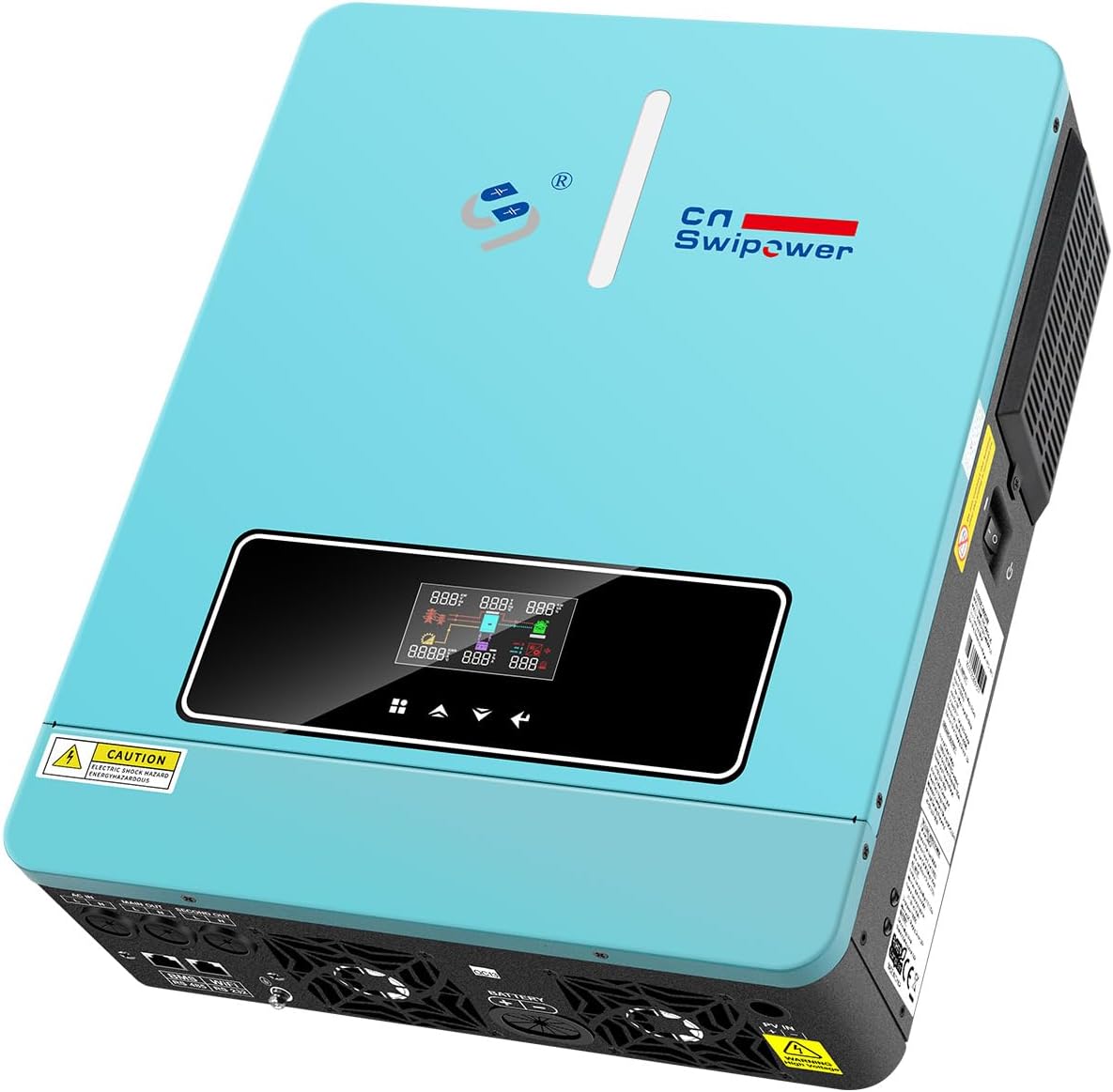

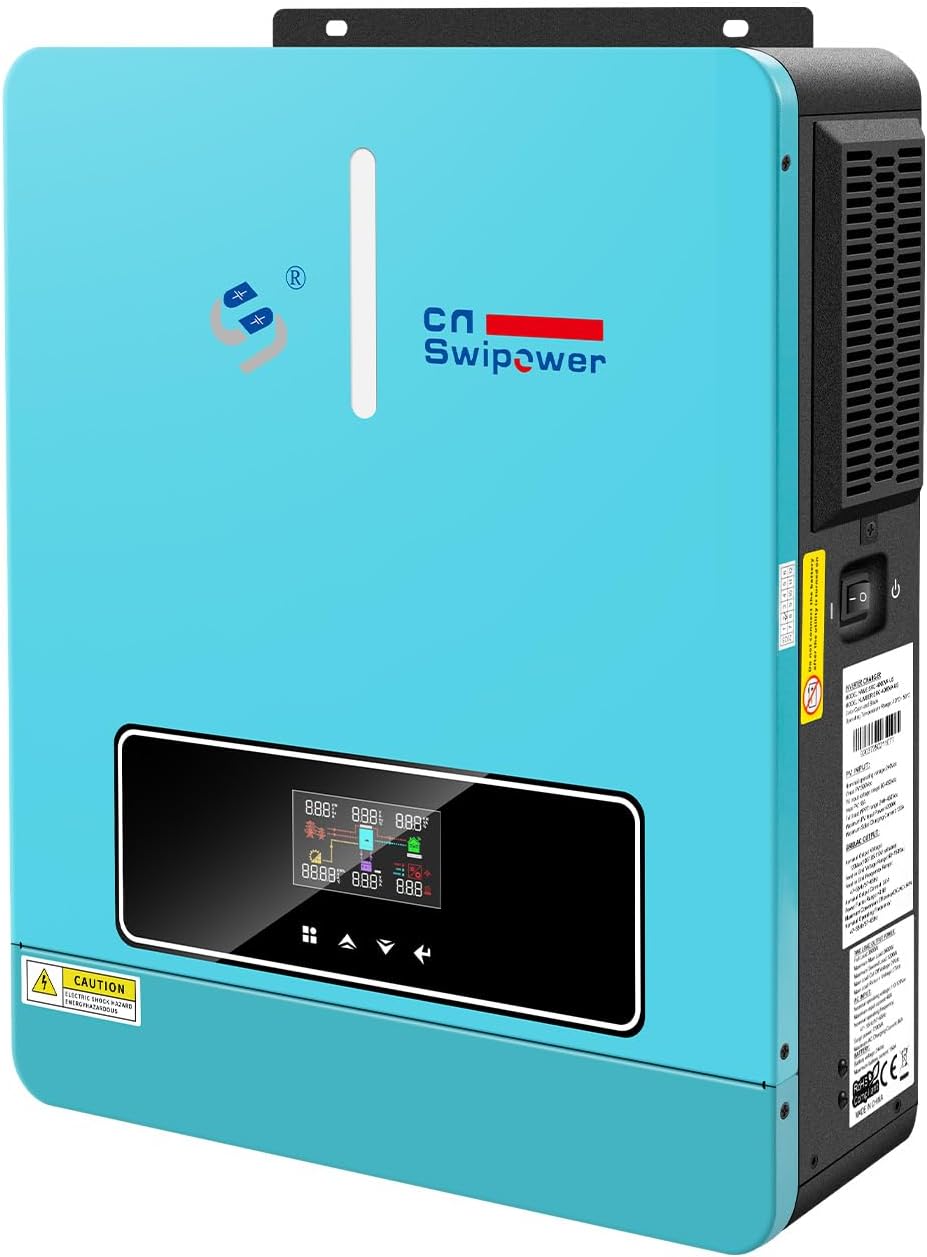

This all-in-one 24 V unit combines a 3,600 W pure sine-wave inverter, a 120 A MPPT solar controller and utility/generator charging support. Multiple charging and output-priority modes allow the system to be configured for off-grid use or backup power.
Suitable Applications
Suitable for properly engineered 24 V off-grid home, cabin, RV and backup-power systems with 110/120 V, 60 Hz loads.
Compatibility and Safety Check
The 20–30 V range appearing in the product title refers to the low-voltage battery/DC side, not the solar-array PV range. For the PV array, use the published 60–450 V DC operating range and keep worst-case cold-weather string Voc below 500 V DC. Also stay within the 4,200 W PV input limit and follow the manual's breaker, fuse, conductor and grounding requirements.
