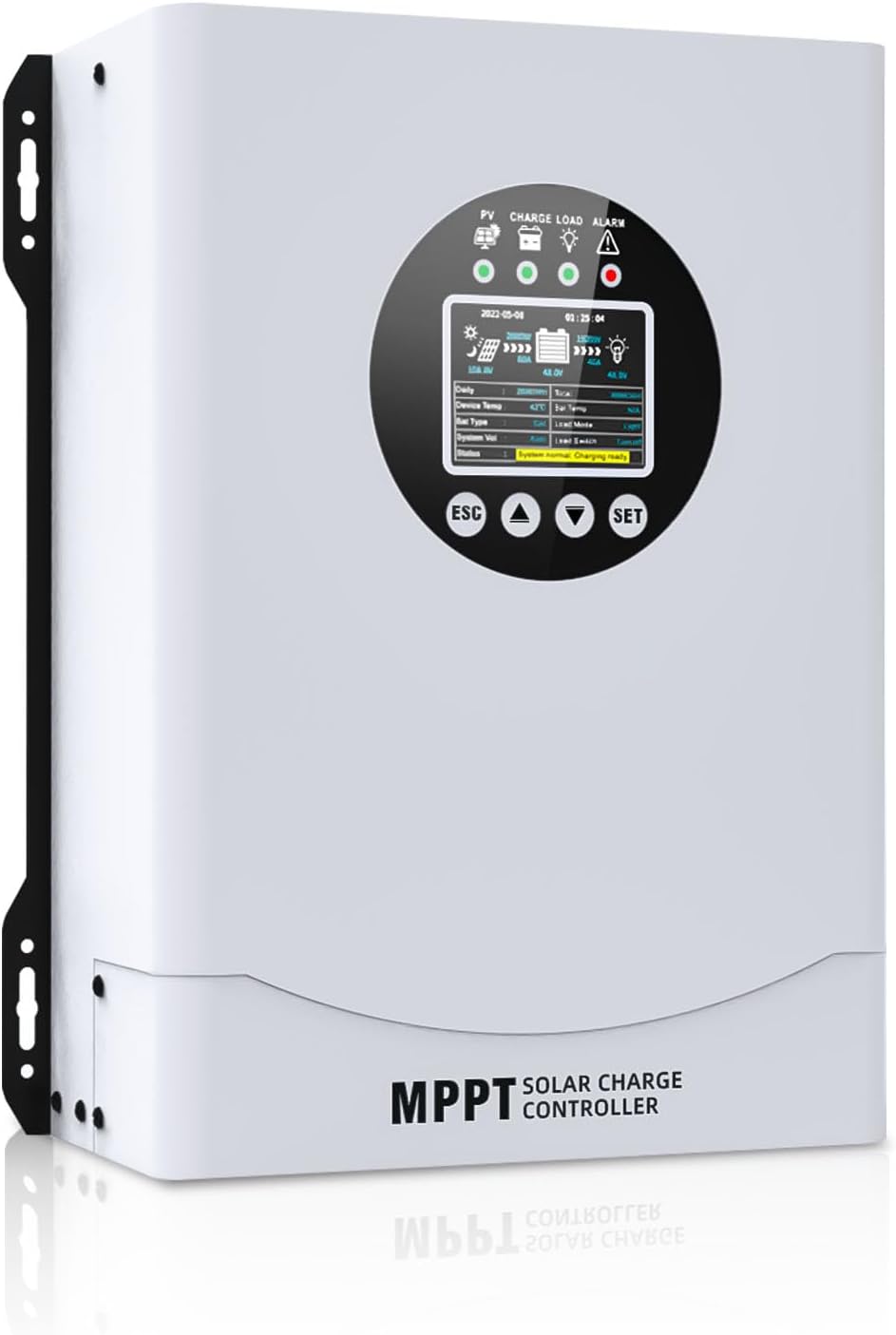

120A MPPT Solar Charge Controller, 12V 24V 36V 48V 60V 72V 84V 96V Battery System Auto , Solar Panel Charge Controller Regulator, LCD Display,Max Input PV 230V for FLD,LiFePO4,SLD,Gel,AGM
120A MPPT Solar Charge Controller, 12V 24V 36V 48V 60V 72V 84V 96V Battery System Auto , Solar Panel Charge Controller Regulator, LCD Display,Max Input PV 230V for FLD,LiFePO4,SLD,Gel,AGM
Equipplus may earn a commission from qualifying purchases. You pay the partner directly.
Specifications
- Brand/model: EcoSolLi KY-M-YM120
- Product type: MPPT solar charge controller

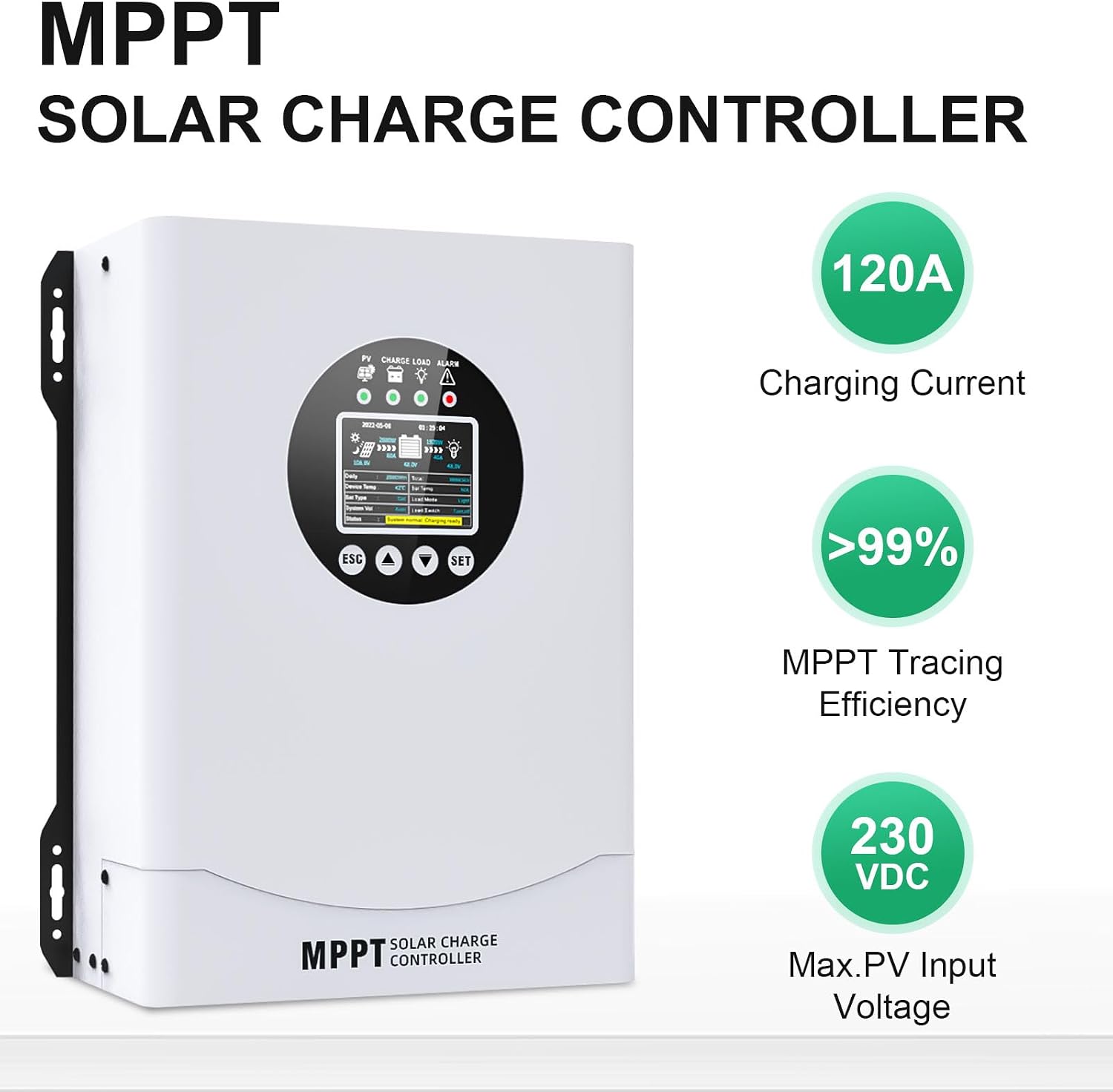

- Rated charging current: 120 A
- Battery-system voltage: 12 V / 24 V / 36 V / 48 V / 60 V / 72 V / 84 V / 96 V DC, automatic recognition
- PV input operating range: Not published for this exact model
- Maximum PV input voltage: 230 V DC
- Maximum PV input power — 12 V system: 1,440 W
- Maximum PV input power — 24 V system: 2,880 W
- Maximum PV input power — 36 V system: 4,320 W
- Maximum PV input power — 48 V system: 5,760 W
- Maximum PV input power — 60 V system: 7,200 W
- Maximum PV input power — 72 V system: 8,640 W
- Maximum PV input power — 84 V system: 10,080 W
- Maximum PV input power — 96 V system: 11,520 W
- MPPT tracking efficiency: >99%
- Peak conversion efficiency: Up to 98%

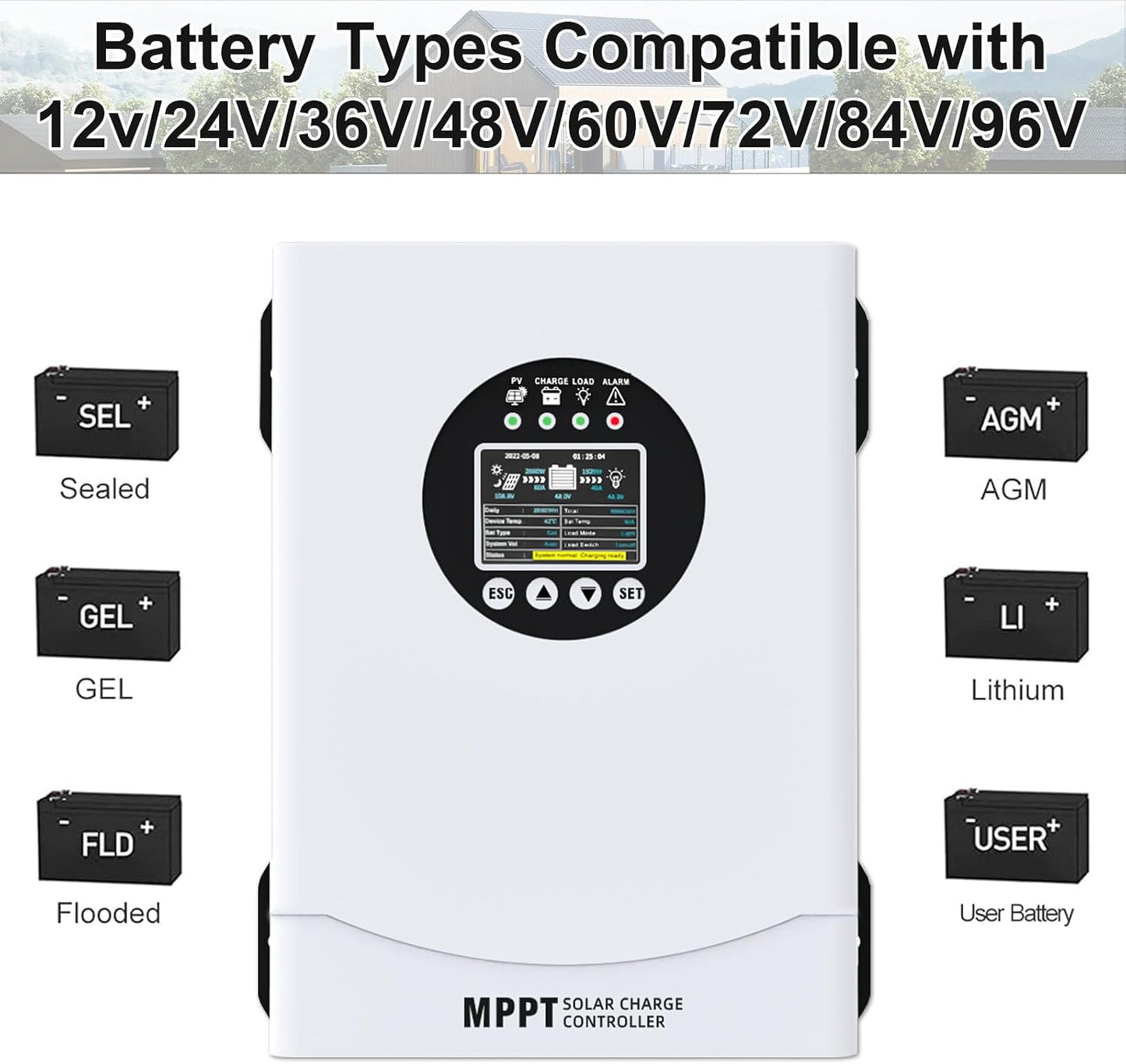

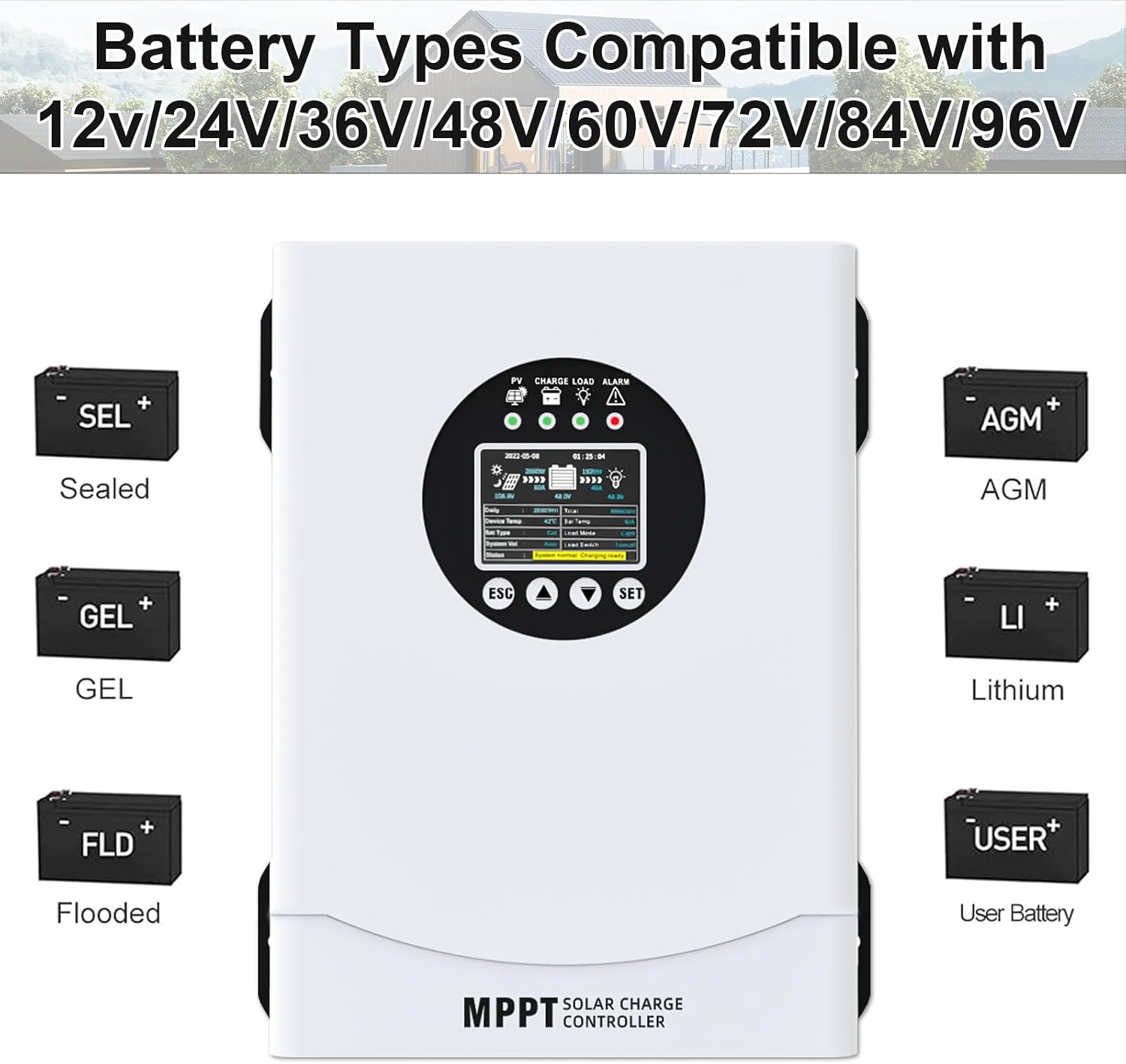

- Compatible batteries: Flooded lead-acid, sealed lead-acid, gel, AGM and LiFePO4; user-defined mode

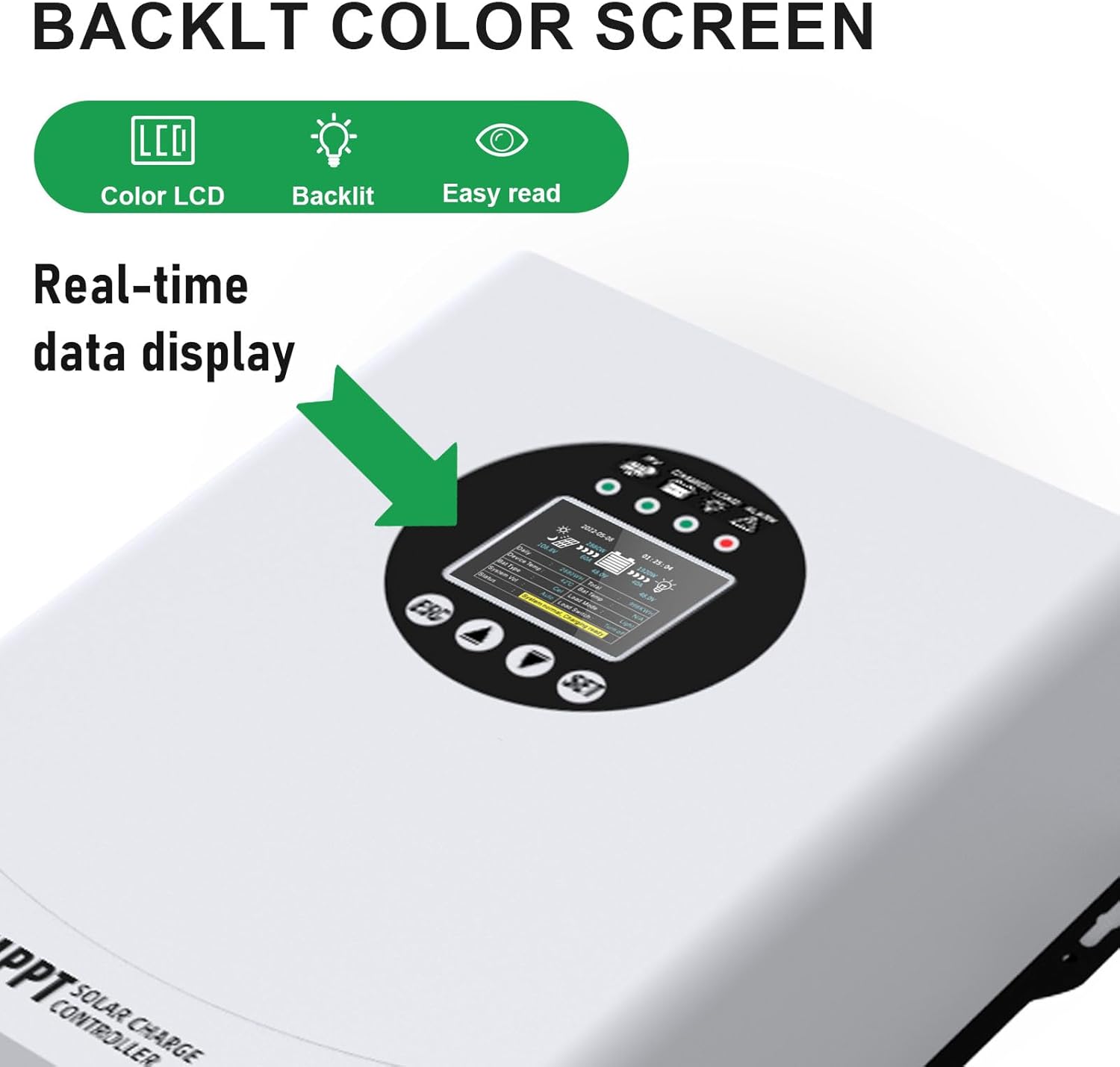

- Display: LCD
- Construction: Metal housing

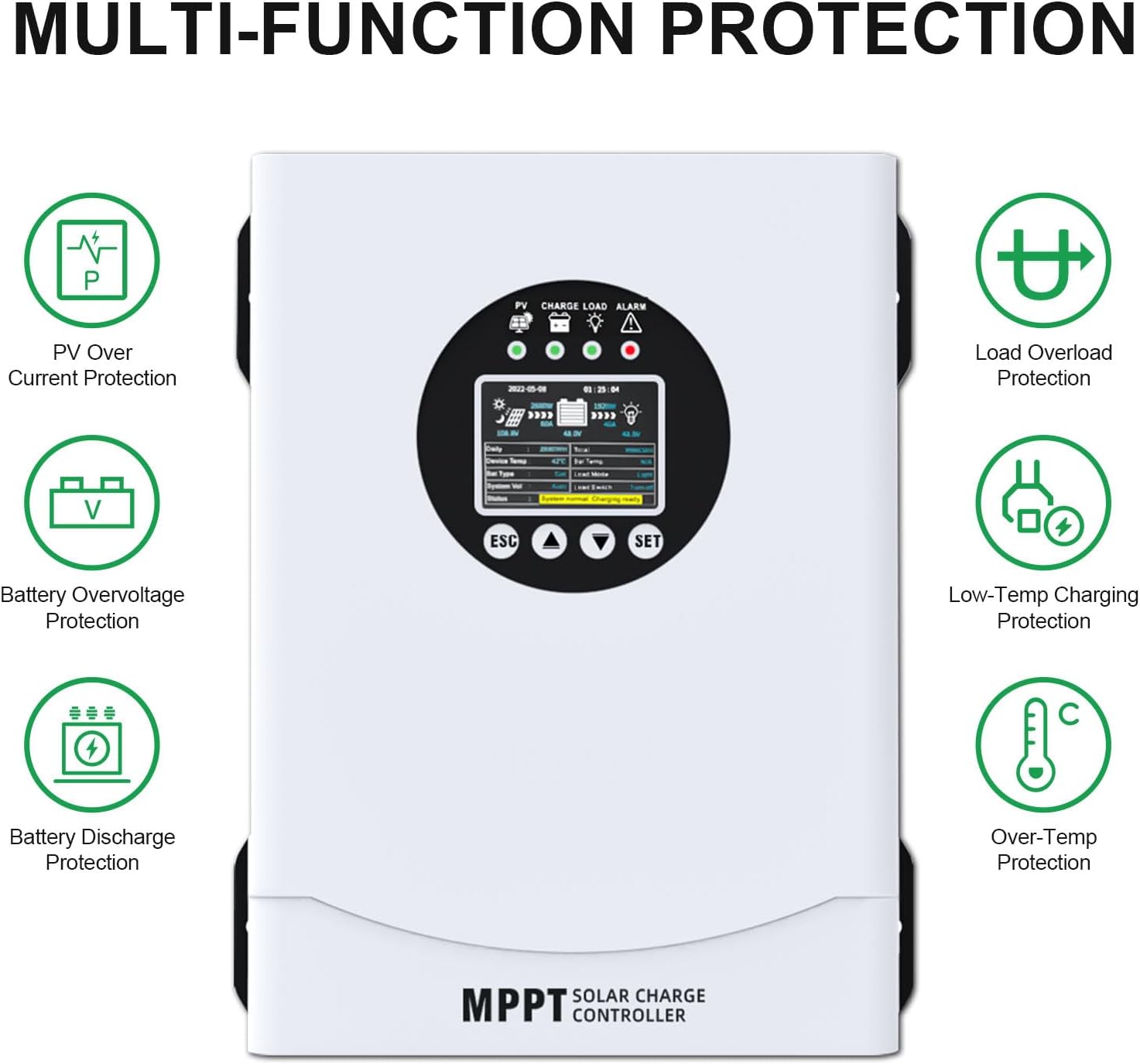

- Protections: PV over-current, battery discharge, battery over-voltage, load overload, over-temperature and low-temperature charging protection
- Operating temperature: Not published for this exact model
- Dimensions: Not published for this exact model
- Weight: Not published for this exact model
Product Overview
This 120 A MPPT controller automatically recognizes battery systems from 12 V through 96 V and supports common lead-acid and LiFePO4 battery types. The maximum allowable solar wattage rises with battery-system voltage, as listed above.
Suitable Applications
Suitable for high-current off-grid solar charging systems after confirming the exact PV operating window, conductor requirements and battery settings for the installation.
Compatibility and Safety Check
The exact listing states a 230 V maximum PV input voltage but does not publish the controller's minimum/start voltage or full MPPT operating range. Do not use 230 V as a target operating voltage. Obtain the supplied manual or a manufacturer rating-label confirmation before designing the PV string, and keep cold-weather array Voc below the absolute maximum.
