Specifications

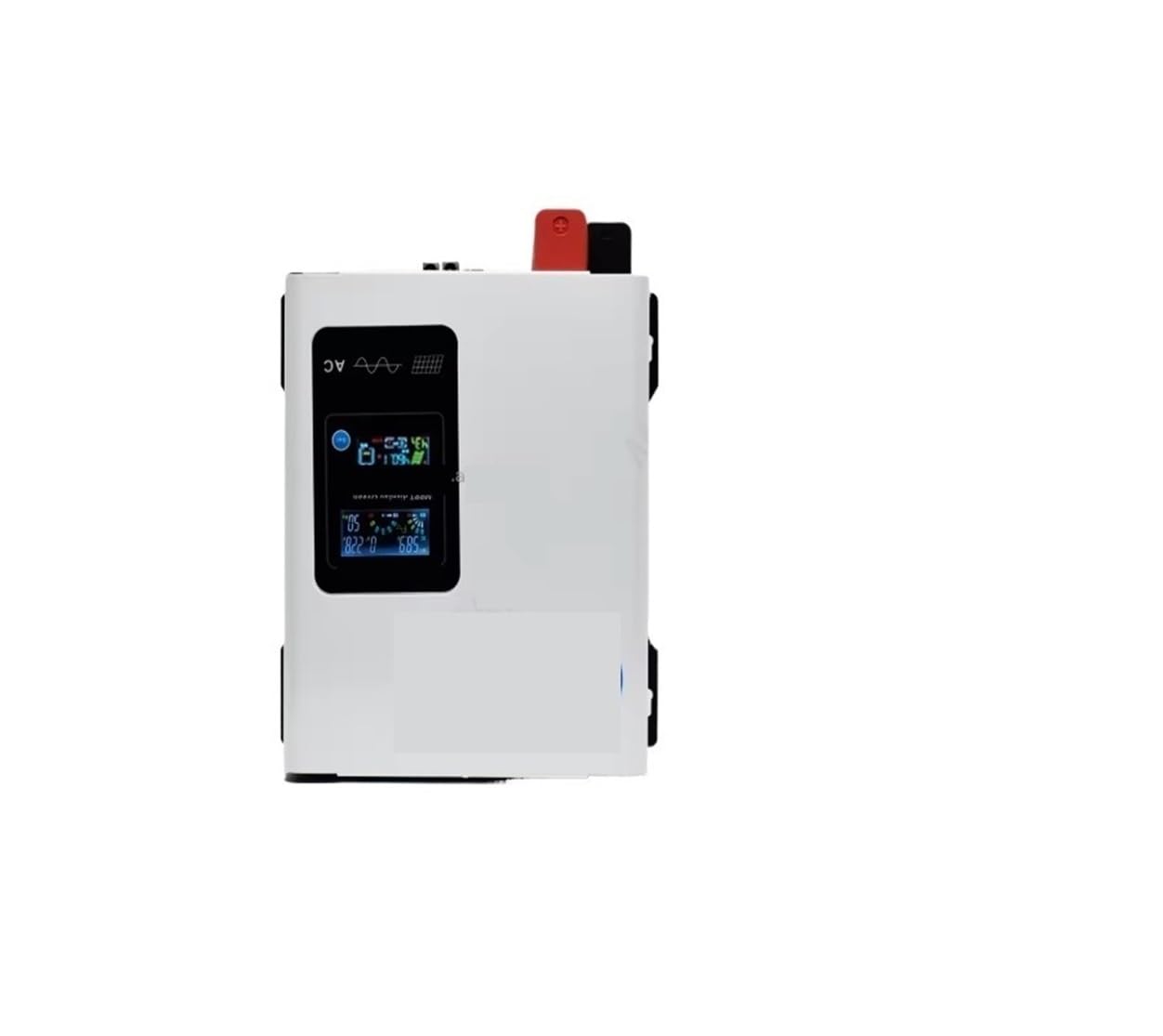

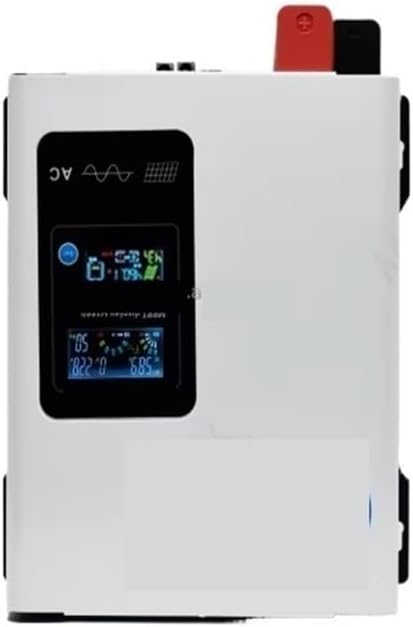

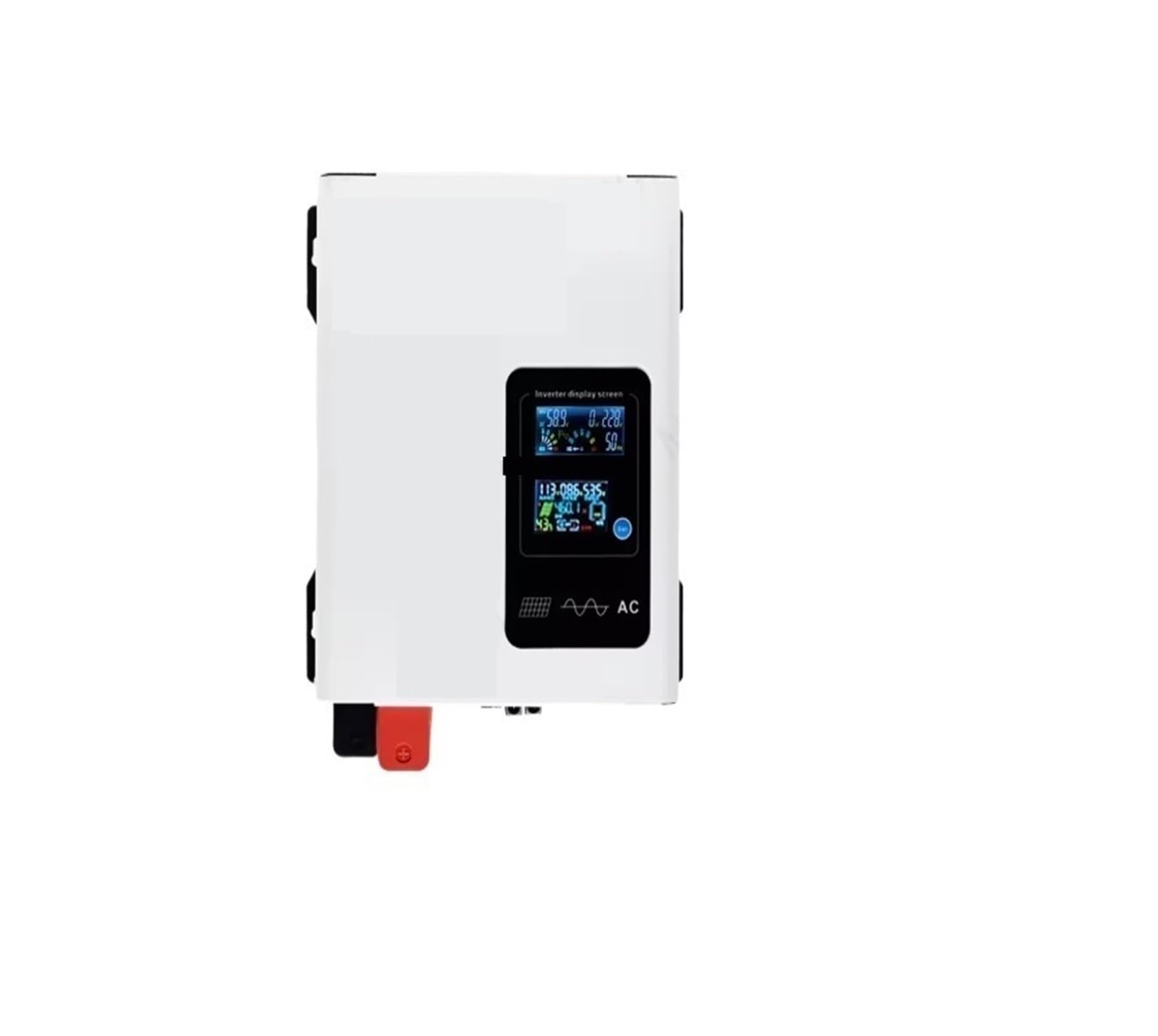

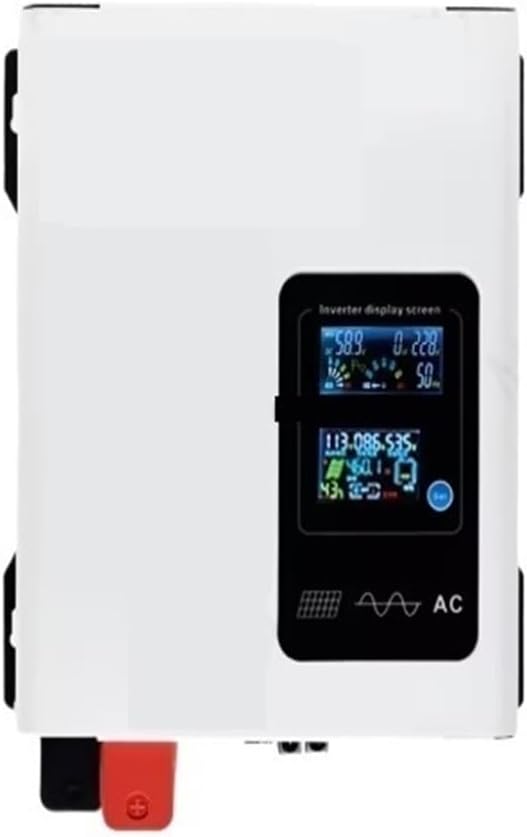

Product type: Off-grid hybrid solar inverter with integrated MPPT controller
Selected configuration: 50 Hz, 12 V DC to 110 V AC
Rated AC output: 1,000 W
Output waveform: Pure sine wave
Inverter efficiency: 90% (listing-stated)
Solar charge controller: 30 A MPPT
PV input voltage range: Not published for the selected variant
Maximum PV input power: Not published for the selected variant
Maximum PV open-circuit voltage (Voc): Not published for the selected variant
Display: LCD
Cooling: Fan cooled
Protections: Short-circuit, overload, over-voltage and over-temperature protection
Product dimensions: 24 × 30 × 9 cm
Package dimensions: 37 × 30 × 15 cm
Product Overview
This selected 1,000 W configuration converts a 12 V battery supply to 110 V AC at 50 Hz and includes a 30 A MPPT solar charge controller. A pure sine-wave output is intended for a broad range of compatible household and electronic loads.
Suitable Applications
Suitable for small off-grid and backup systems where a 12 V battery bank, 110 V / 50 Hz loads and the inverter's published continuous rating match the installation requirements.
Compatibility and Safety Check
The listing groups several 12 V, 24 V, 48 V, 110 V, 220 V, 50 Hz and 60 Hz options. This CSV row is the 50 Hz, 12 V-to-110 V selection. The exact listing does not publish PV operating voltage, maximum PV power or maximum PV Voc for this selection. Obtain the exact model manual or a clear rating-label photo before connecting panels.
