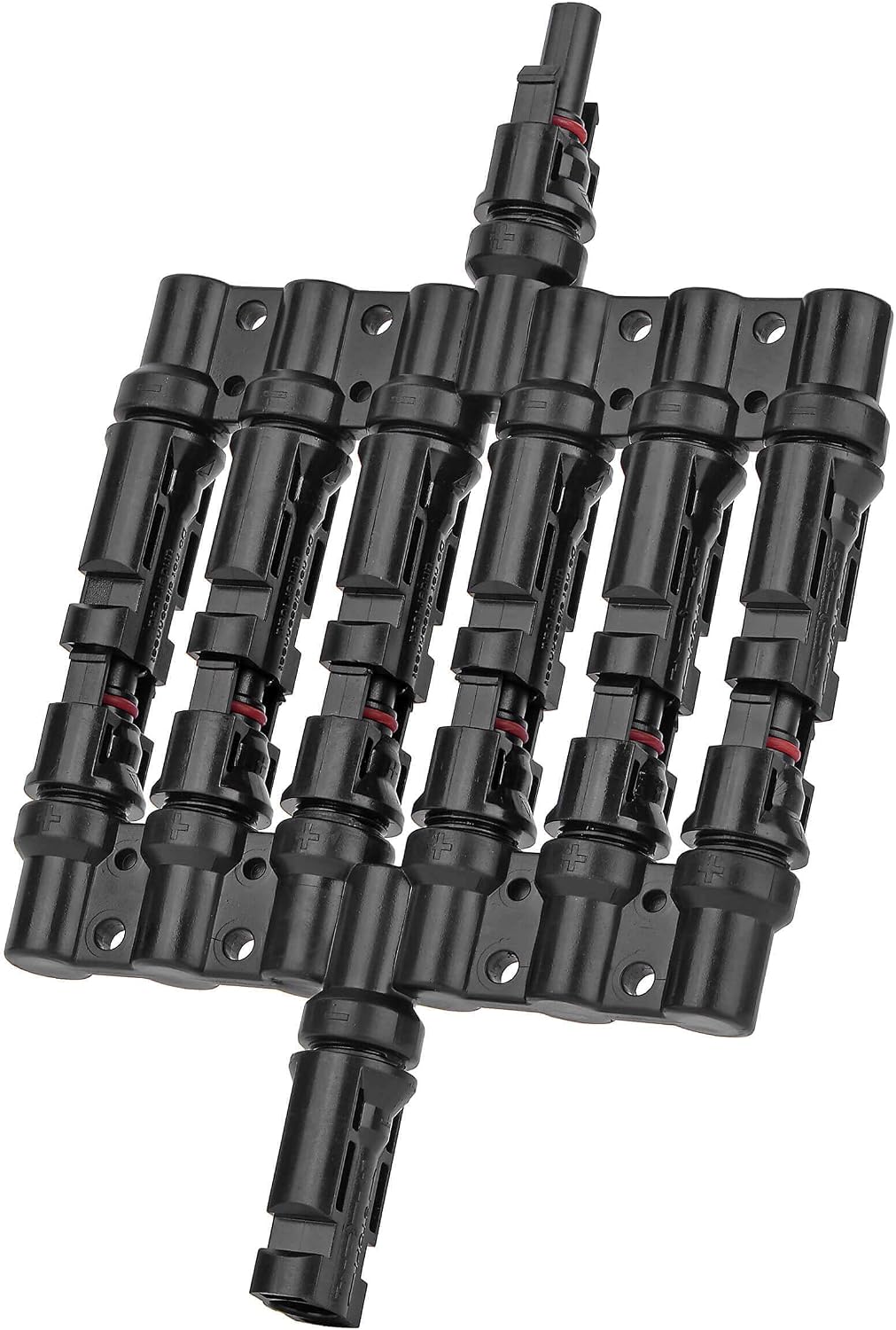

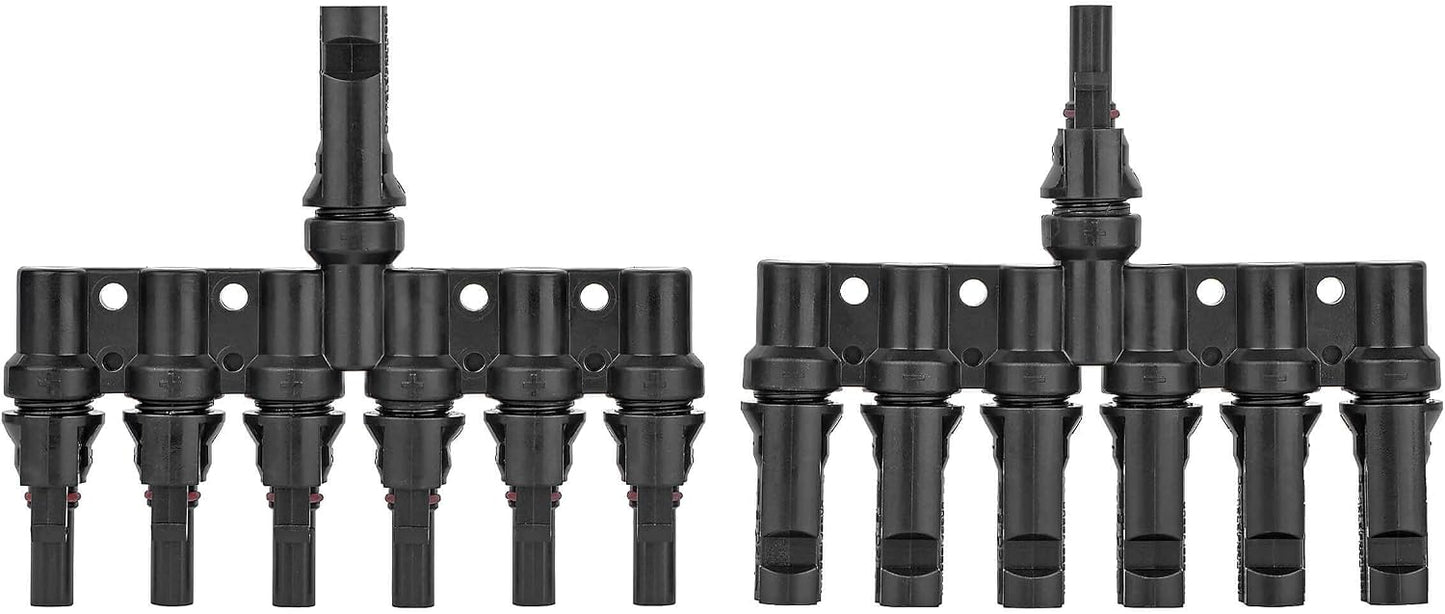

1 to 6 Solar Panel Connector - 6 Way Y Branch DIY Mount Tool Solar Parallel Connector in Pair - Solar Wire Connectors for Connection Between Solar Panels

Specifications

Primary configuration: The specifications below describe the headline/primary option in this Shopify listing. If the product page offers several sizes or bundles, confirm the selected variant before ordering.

• Connector arrangement: One-to-six branch
• Circuit arrangement: Parallel
• Quantity: One mating pair
• Function: Combine compatible solar-panel leads
• Maximum voltage and current: Verify before installation
• Maximum-current figure shown by the listing: 30 A
• Certification claim: TÜV-certified connector adapter
• Housing / contact materials listed: PPO, copper, glass and aluminum
• Branch count: Six panel inputs to one combined output

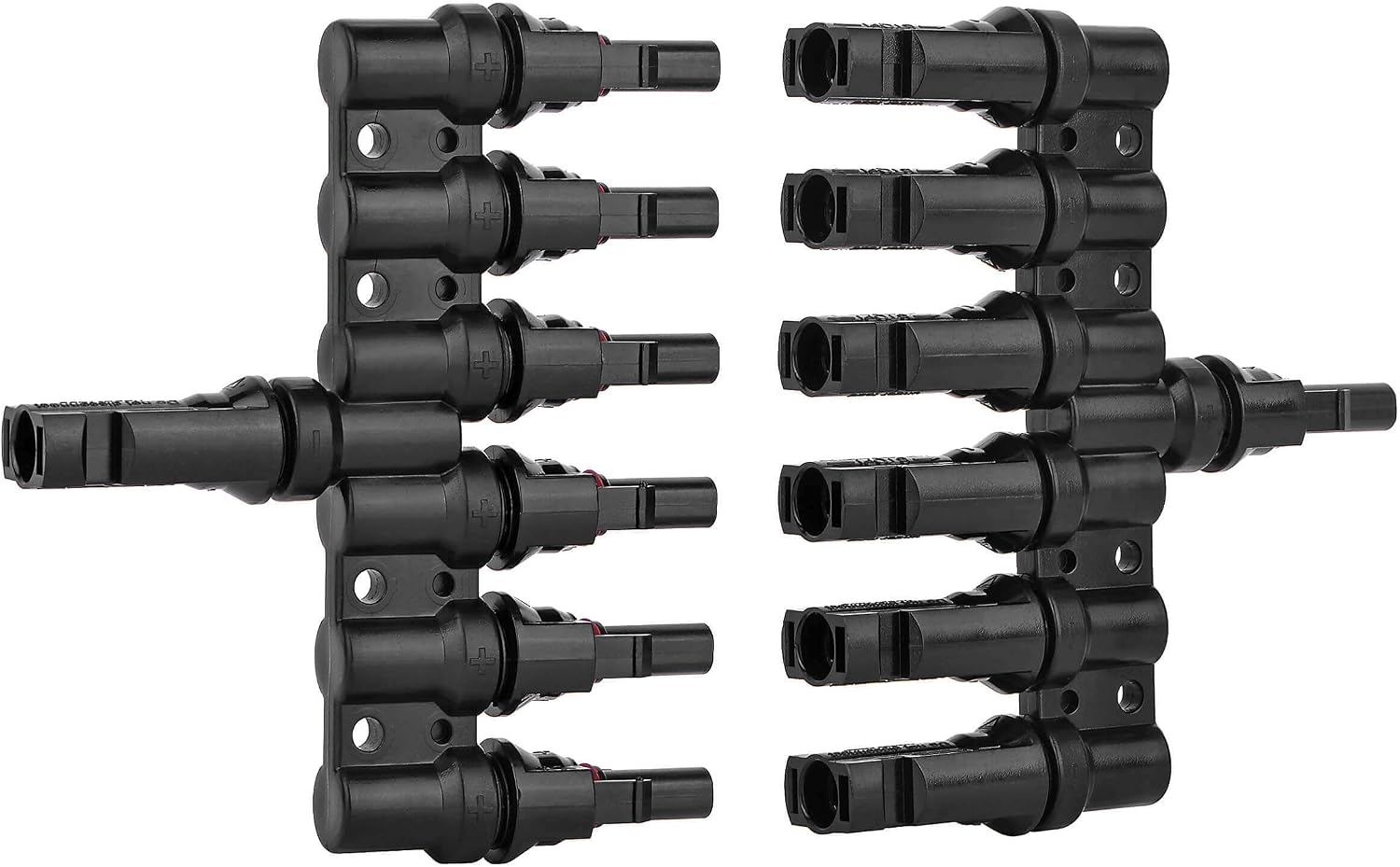

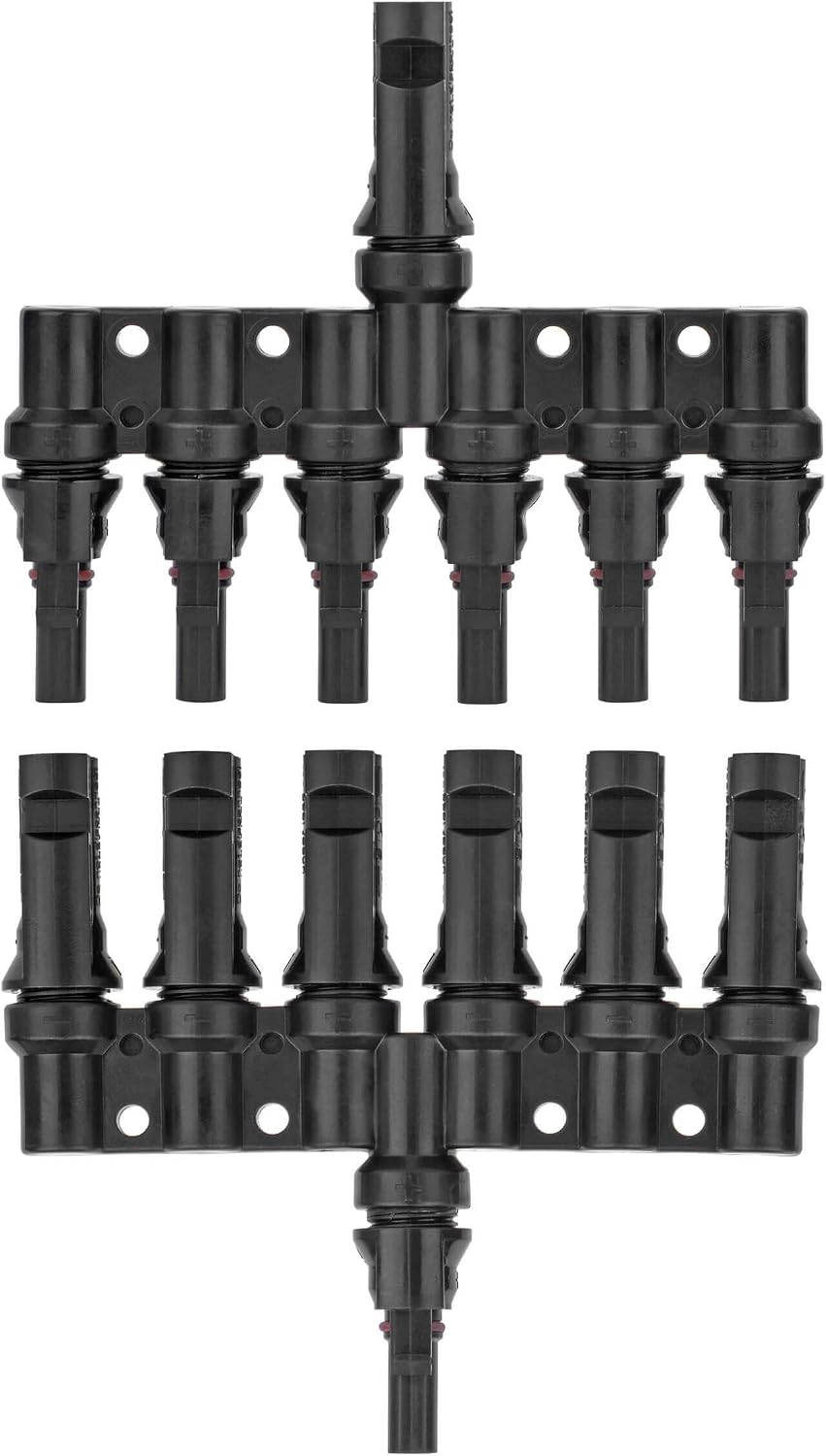

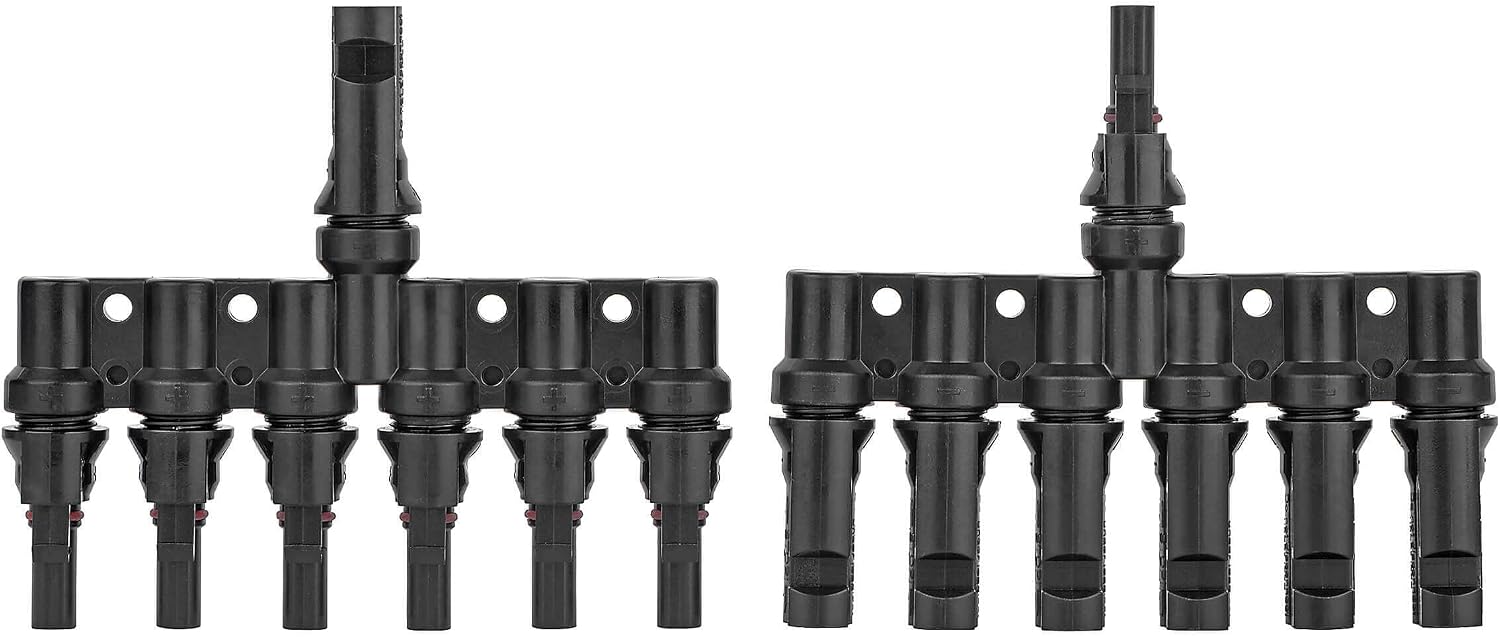

• Supplied as positive and negative mating adapters
• Electrical effect: Voltage remains at the module/string level while currents add in parallel

Product overview

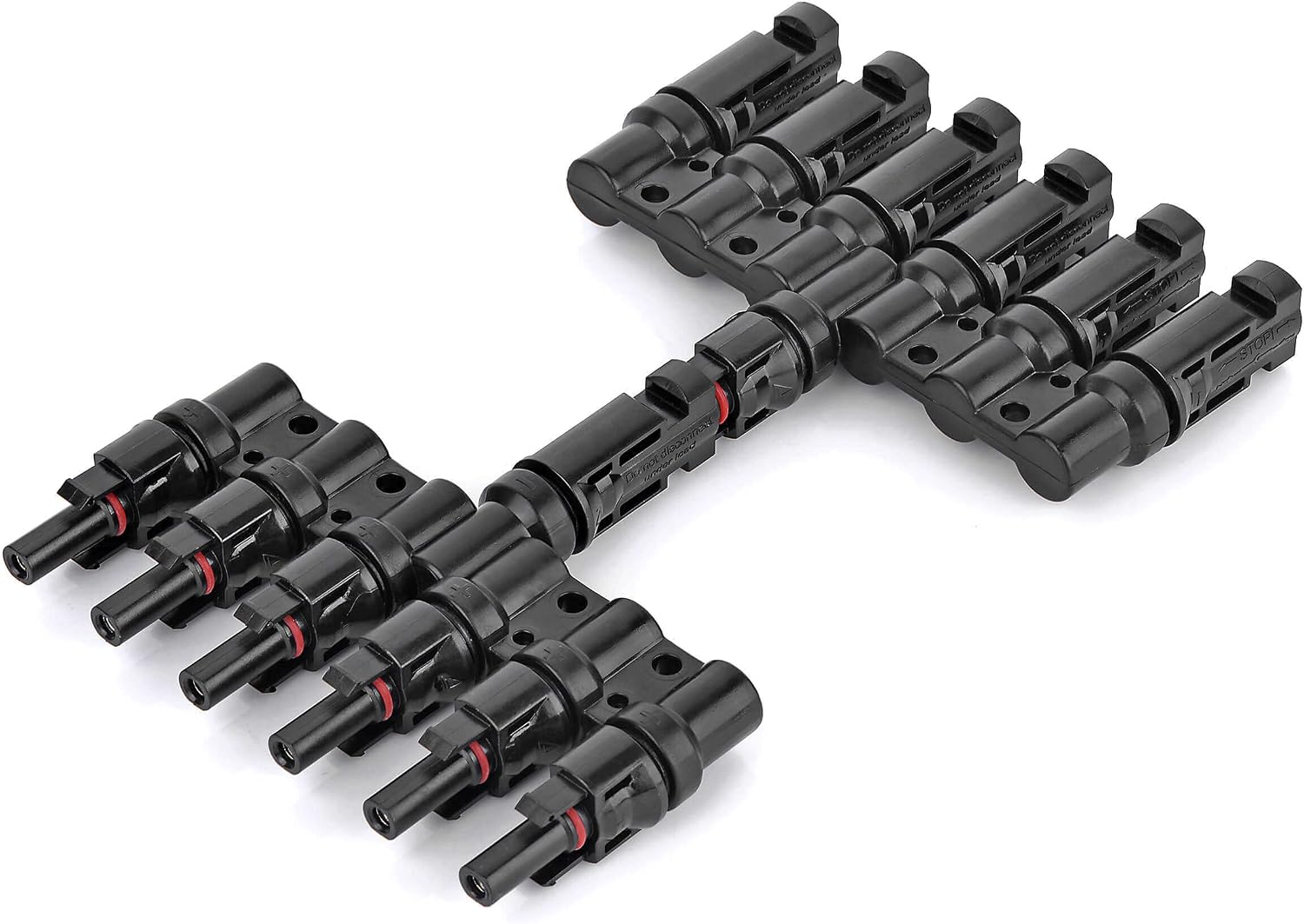

This six-way branch connector pair brings multiple compatible solar-panel leads together in parallel. It can reduce the number of separate junctions in a small array when all strings have matching electrical characteristics.

Suitable applications

Parallel connection of compatible PV modules within the connector, cable and upstream protection ratings.

Before ordering

Confirm connector compatibility, polarity, maximum voltage and total parallel current. Parallel branches increase current; cable sizing, fusing and connector ratings must be checked for the complete array.

Technical sources

Exact Amazon.ca product listing

Specifications were compiled from the exact Amazon listing and, where available, the manufacturer's page for the same model. Package contents and technical details can change or vary by selected option; confirm the label, manual and datasheet before purchase or installation.
